NFC tag sticker labels, IoT tags, personal automation shortcuts, 13.56MHz, share los13, nfc213, nfc215, rfid

Chip: NFC213, NFC215

Usable capacity: 213 approx. 144 bytes, 215 approx. 504 bytes

Reading distance: 1 to 5 centimeters

Read/write time: 1 to 2 milliseconds

Operating temperature: -20 to 55 degrees Celsius, 90 degrees humidity

Erase count: >100,000 times

Data storage > 10 years

Read time: 100,000 times

Diameter: 25 mm

Packaging: Self-adhesive PE + coated paper

Tutorial

1: Prepare a cell phone that supports NFC function.

2：Download the NFC reading and writing software on your cell phone (the cell phone comes with an application store or search online to upload)

3: According to your actual situation, choose the project software, such as: text recording, URL recording, Bluetooth recording, etc. ....

4: If you want to write the URL format, simplify the URL to the smallest byte, click the URL and paste it to your cell phone. If you want to write the path is bluetooth or wifi, configure it according to the software instructions, and for other related purposes, just follow the software instructions.

5: After the software configuration is completed, remove an NFC sticker and ring it according to the software prompts and the phone's NFC reading position.

6: Wait for the software instructions (leverage writing success)

7：After successful writing, gently touch the NFC sticker with the NFC position of the cell phone, if the cell phone prompts (NFC detected whether to open) and other words, click to open and check whether the content is consistent with the contents of the write.

8、Successfully configure the NFC sticker, paste it to the position you want to paste.

9: reset problem: reset NFC sticker, you also need to use NFC reading and writing software, specific software, please operate according to the software instructions, each NFC sticker can be erased more than 100,000 times!

Tip: Please select the appropriate model according to the bytes to be configured!

Translated with www.DeepL.com/Translator (free version)

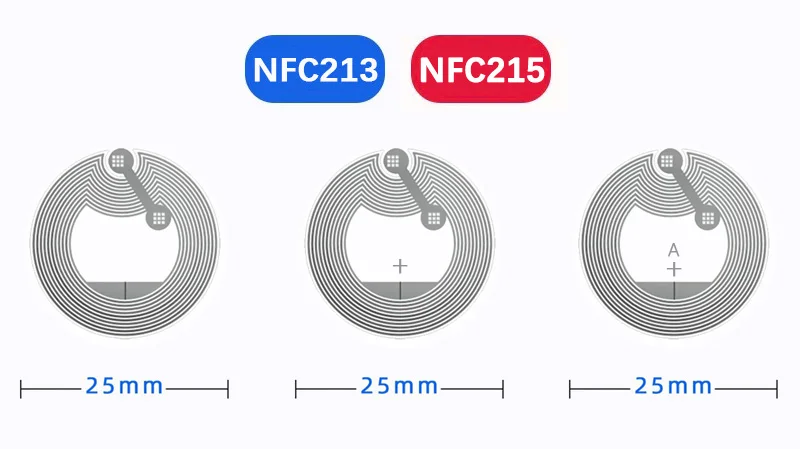

Note: The above style charts are for NFC213 and NFC215 products, due to the different production batches, the appearance may be slightly different, only the appearance is different, the memory and functions remain unchanged.
