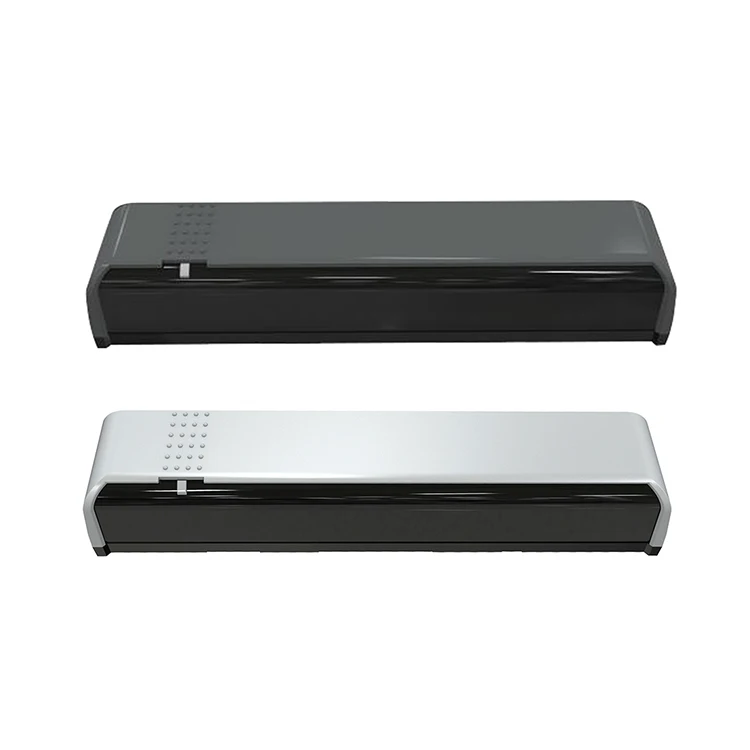

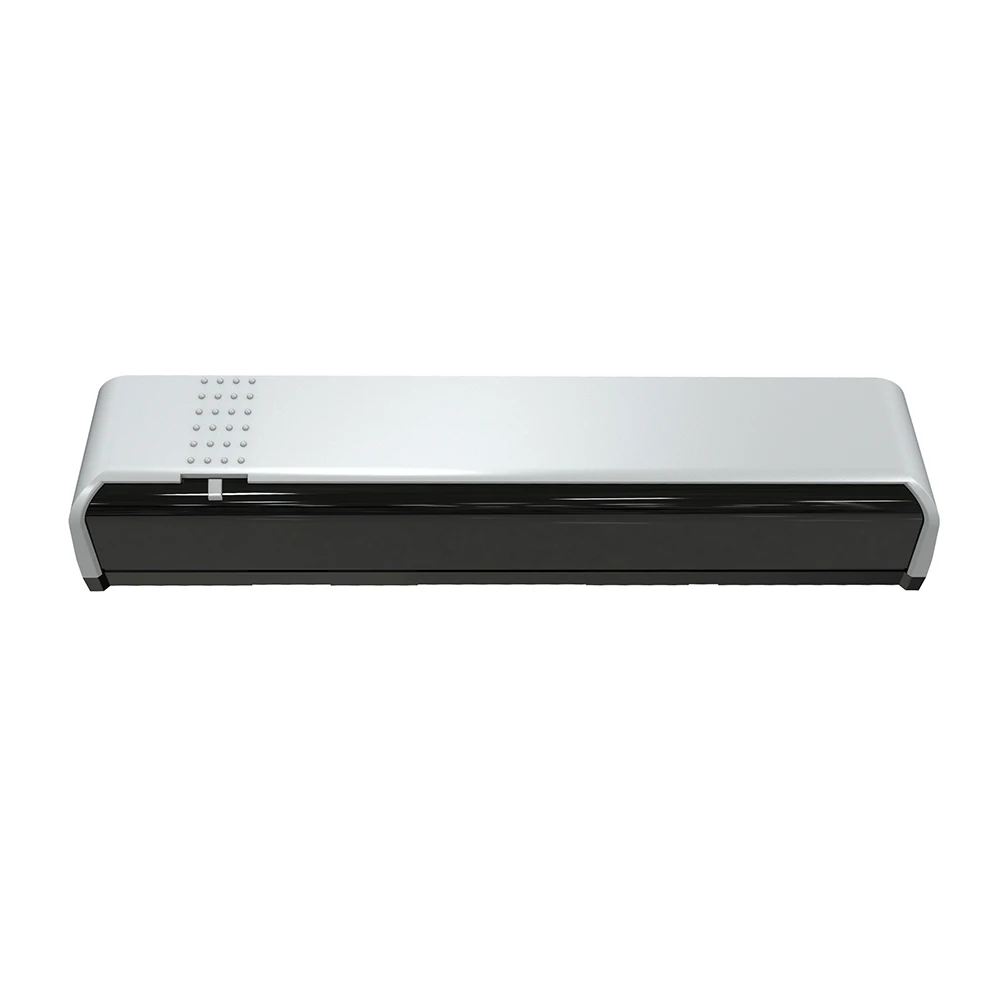

Professional Integrated Microwave Motion Sensor Active Infrared Presence Detector for Automatic Door

CNB-506Combination Sensor Microwave Motion And Infrared Safety Sensor With Bluezone Threshold Function
This product Microwave Motion & Infrared Presence Sensor, the activation function is performed by microwave technology, the presence detection is performed using an active infrared function.Microwave activation and infrared safety prsence combination sensor for automatic doors.
Microwave technology adopts 24.125GHz microwave sensor module imported from Germany, which is not affected by temperature, humidity and other environmental factors, with reliable working performance.
Infrared safety presence adopt background self-learning function. It will learn background automatically when power on. Suit all kinds of occasions. Always self-correcting once be influenced by quake, distortion, move, dark and sunshine. Ensure the sensor can work durable. Also other versioncomplies with EN16005 can be available.
Also it is compatible with any brands gate motors; All products will pass the quality test when they leave the factory and have one-year free warranty.

Specification
Item
Microwave Motion and Infrared Presence Sensor
Brand Name
Canbo
Model Number
CNB-506
Application
Hotel/building/office/mall/hospital/warehouse etc
Certificate
ISO9001, CE
Power input
AC/DC 12V~30V
Material
ABS plastic
Max install height
3.5 meters
Cable length
2.5 meters

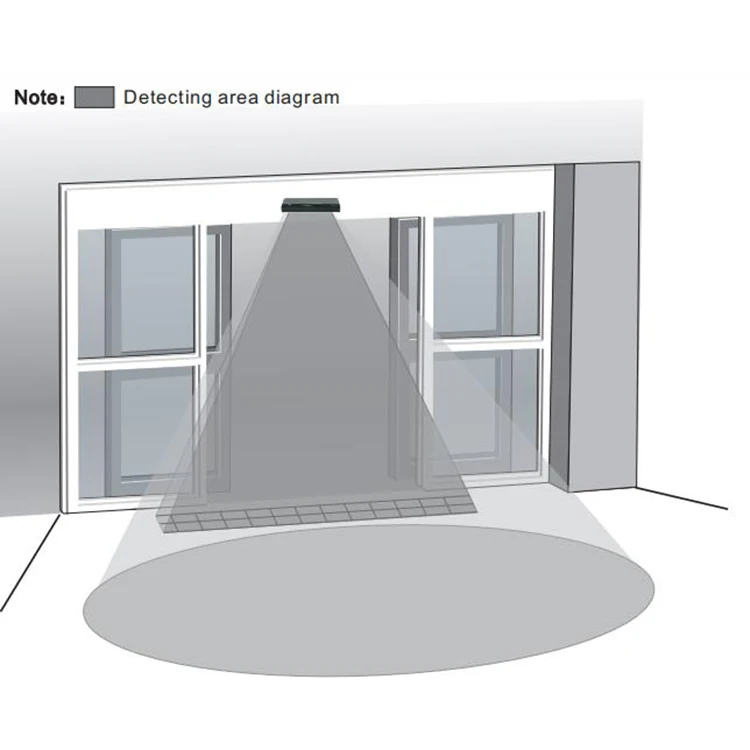

Detection range(motion)
4(W) x 2(D) meters (install height=2.2 m)
Detection range(presence)
2500x600mm
Dimension

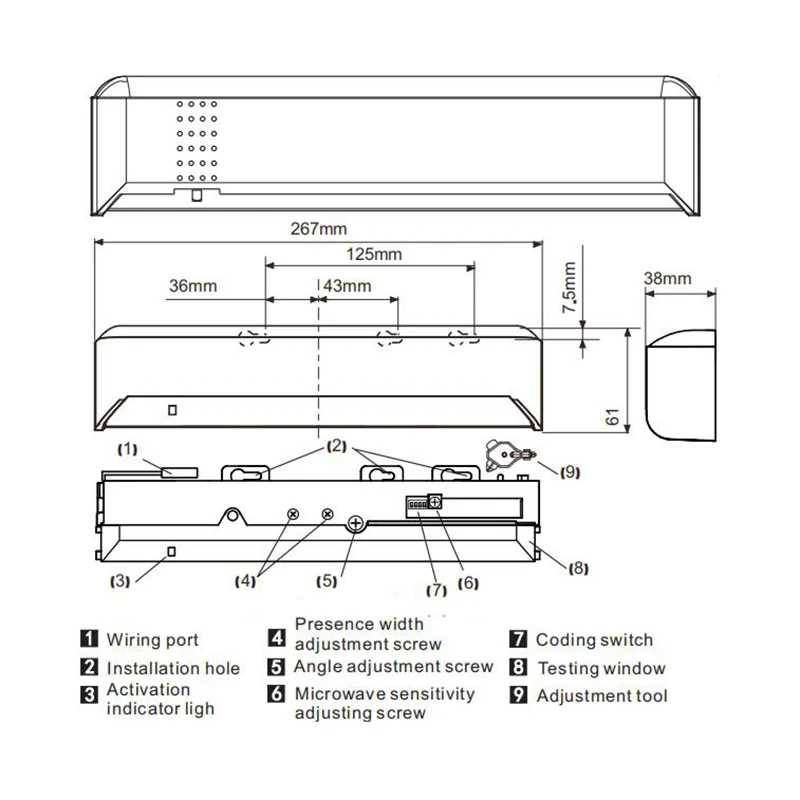

267(L)61(W)46(H) mm
Characteristics
Microwave activation and infrared presence combination sensor
LED indicator

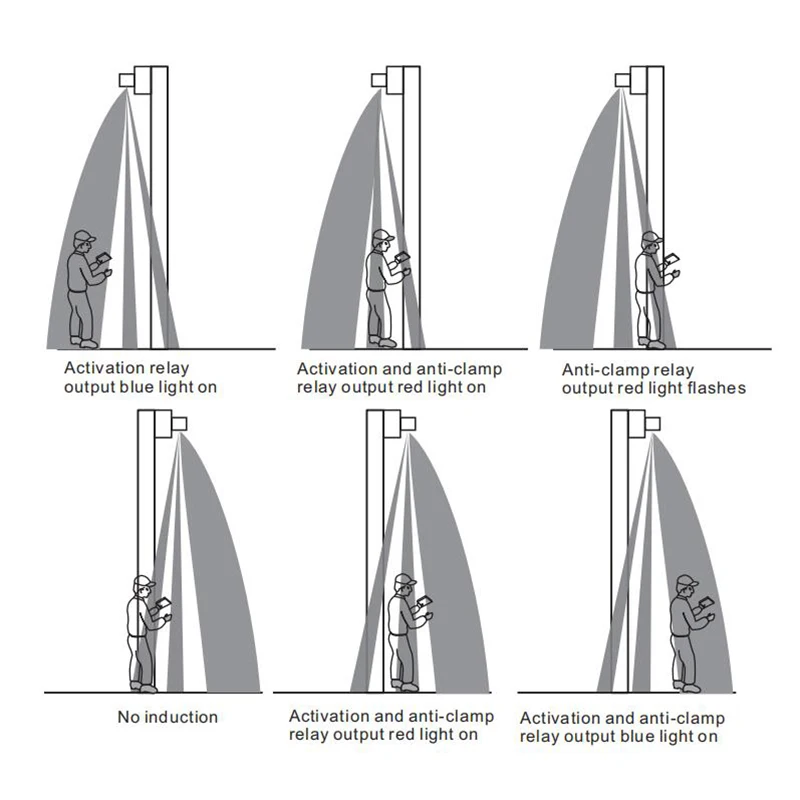

Standby mode: Green LED; 2nd row infrared ray detect mode red light always on; 1st row infrared ray detect mode red light flashes. Microwave induction Blue LED light on
Signal output
Ralay, one way activation, one way presence, NO/NC optional
Warranty
1 Year
Details Images

* Microwave technology for autodoor activation;
* Infrared technology for safety presence ;
* Infrared presence adopt background self-learning function.
* Maximum mounting height is 3500 mm
* High sensitivity infrared IR modulate, stable and accurate performance in bad temperature and humidity conditions.
* Adopts 24.125GHz microwave sensor module, not affected by temperature and humidity, durable and reliable.

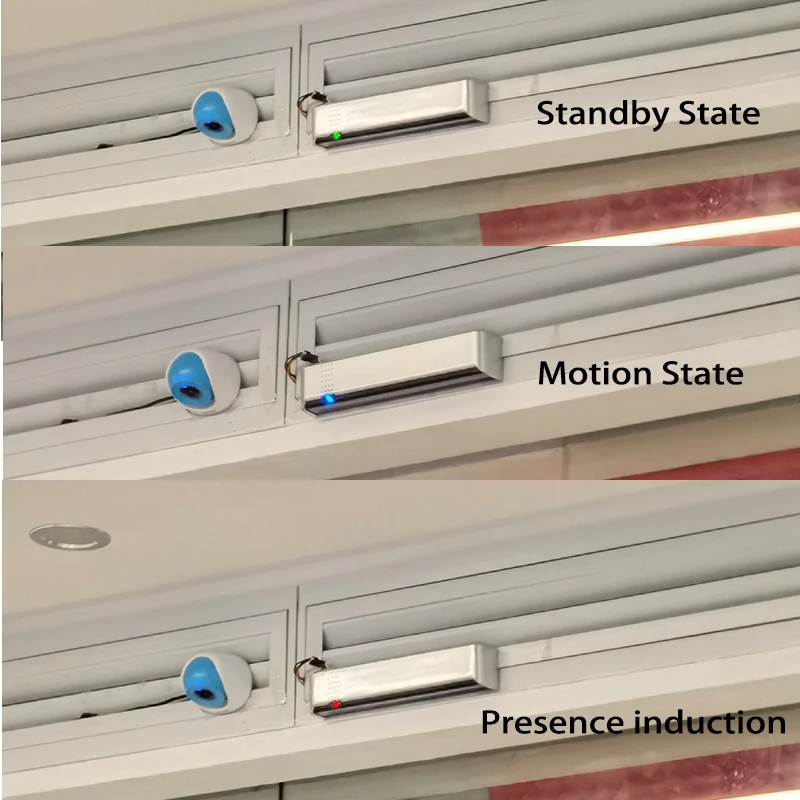

* With LED indication: Microwave induction Blue LED light on.Standby mode: Green LED; 2nd row infrared ray
detect mode red light always on; 1st row infrared ray detect mode red light flashes.
