RFID Metal Access Control EM Card Reader Keypad 2000 User 125KHz Card Reader Keypad Key Fobs Standalone Door Access Controller

RFID Metal Access Control EM Card Reader Keypad  With 2000 Users 125KHz Card Reader Keypad Key Fobs Door Access

The unit is single door multifunction standalone access controller or a Wiegand output keypad or card reader.It is suitable for mounting indoor.It is housed in a strong, sturdy and vandal proof Zinc Alloy electroplated case which is available in either a bright silver or matt silver finish .This unit supports up to 2000 users in either a Card, 4 digit PIN, or a Card + PIN option.The inbuilt card reader supports 125KHZ EM cards.The unit has many extra features including ock output current short circuit protection, Wiegand output , a backlit keypad and anti tamper ect.These features make the unit an ideal choice for door access not only for small shops and domestic households but also for commercial and industrial applications such as factories, warehouses laboratories, banks and prisons

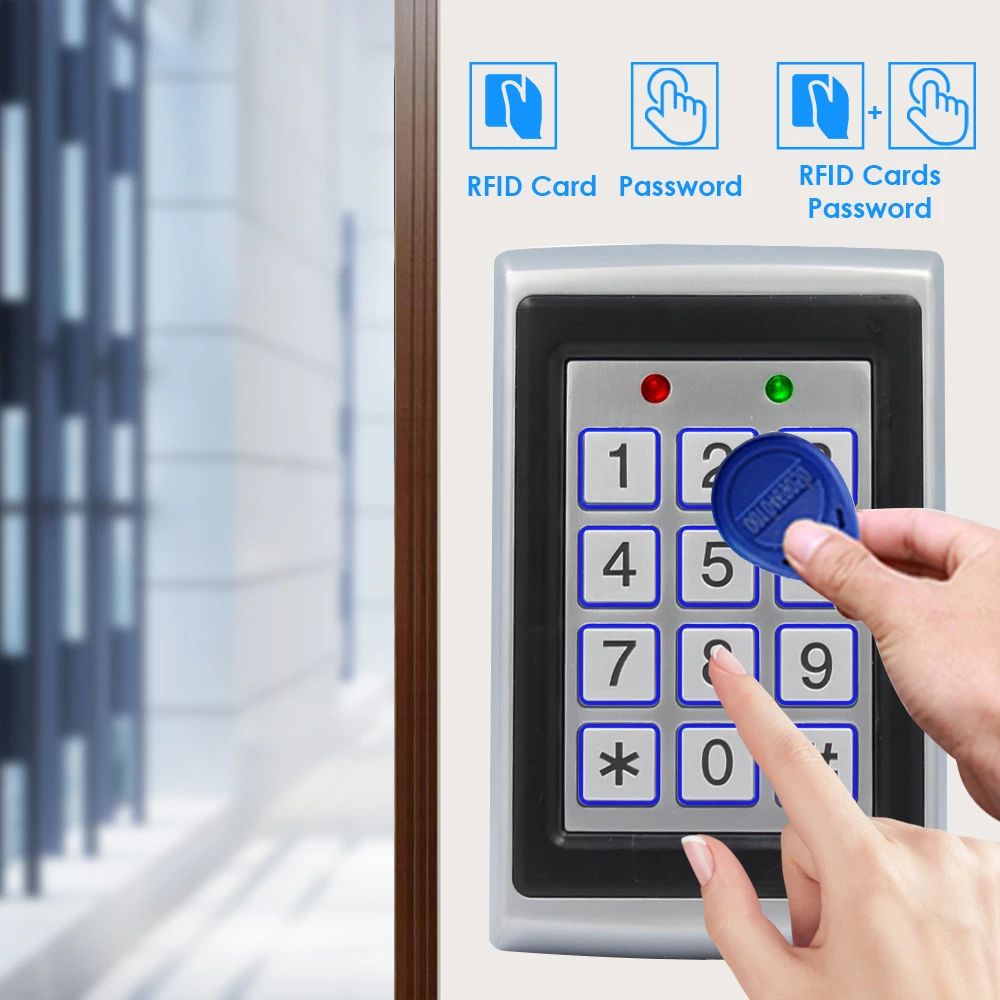

Capacity: 2000 user's ；Support entry modes : Password Only / ID Card Only / Password + ID Card

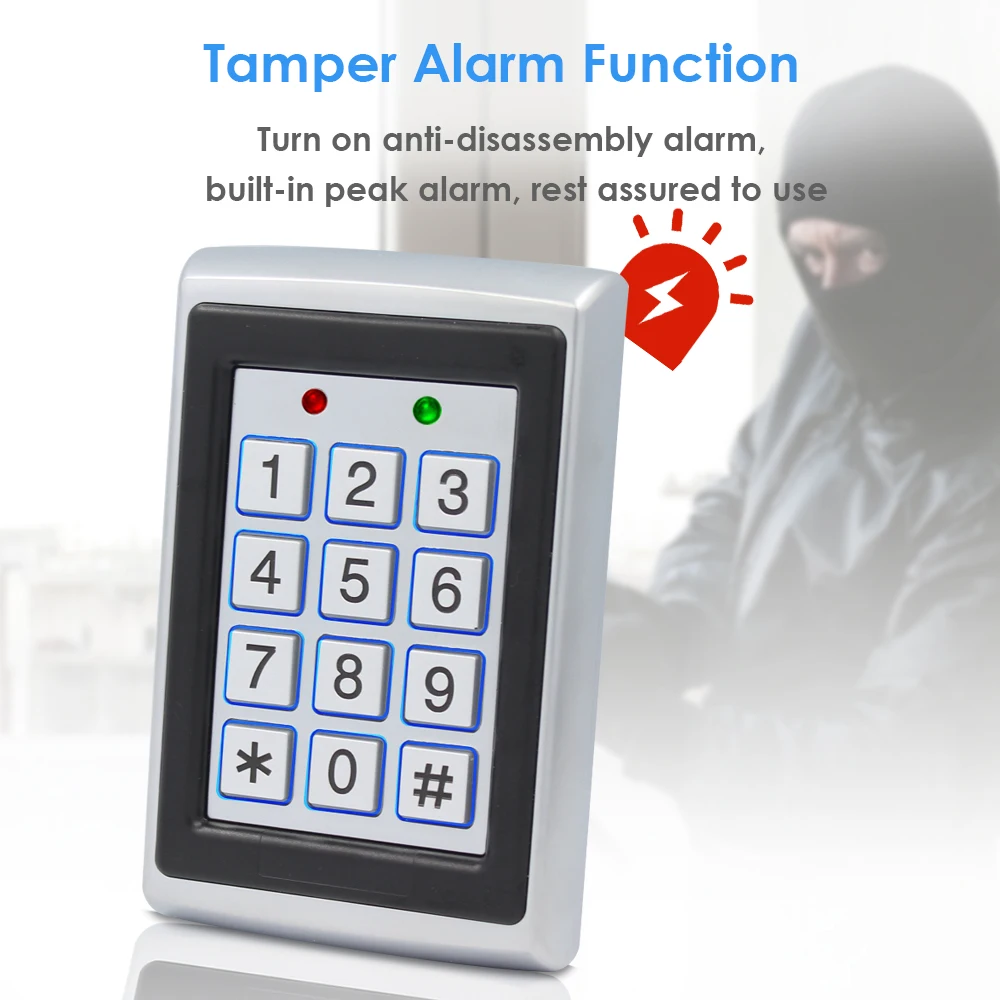

Tamper Alarm Function

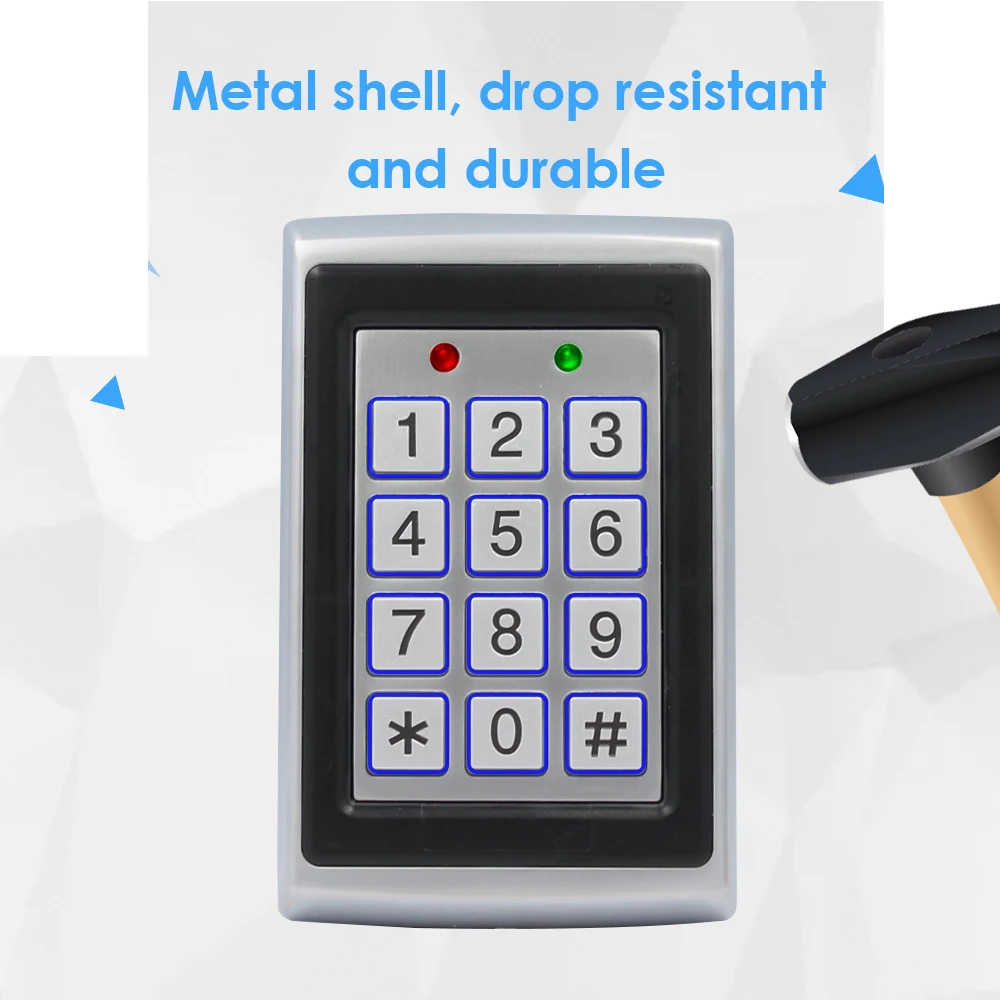

Metallic case for better protection

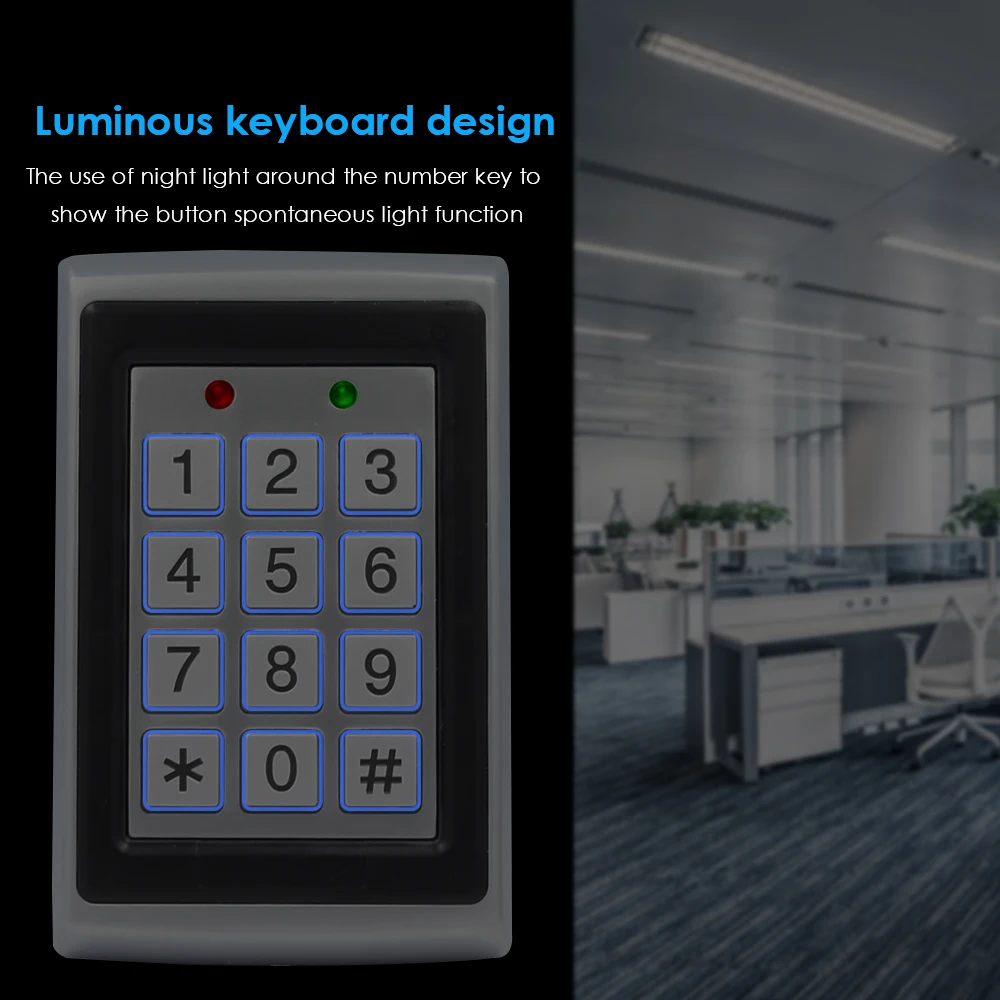

Luminous keyboard design

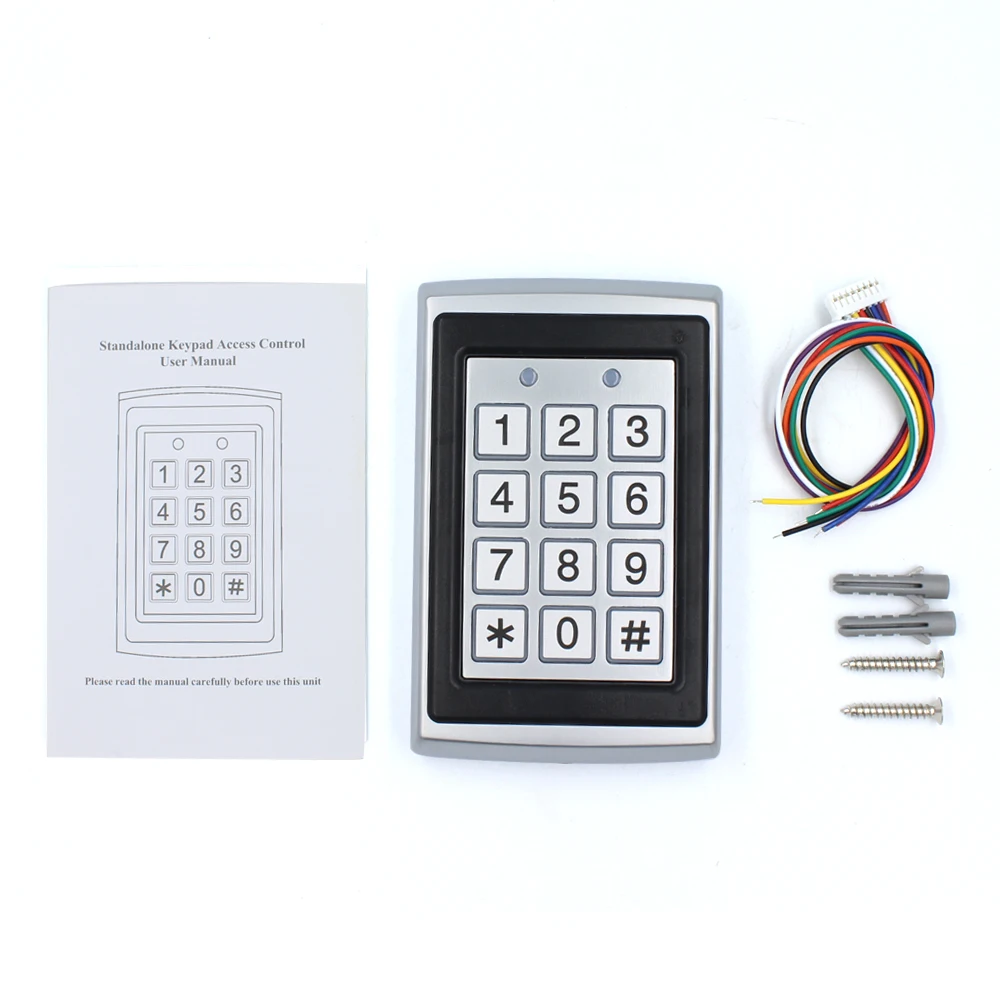

Packing list

Keypad*1

User manual*1

Rubber plug*2

Self tapping screws*2

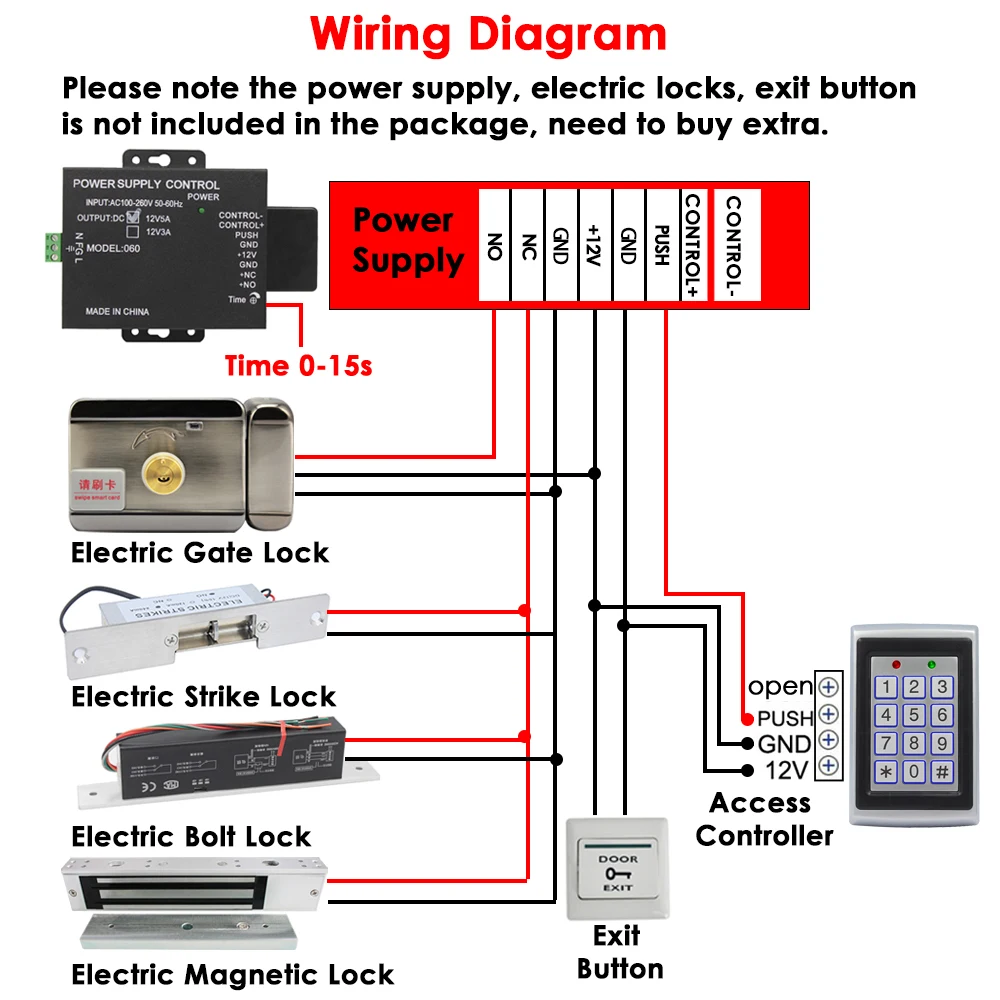

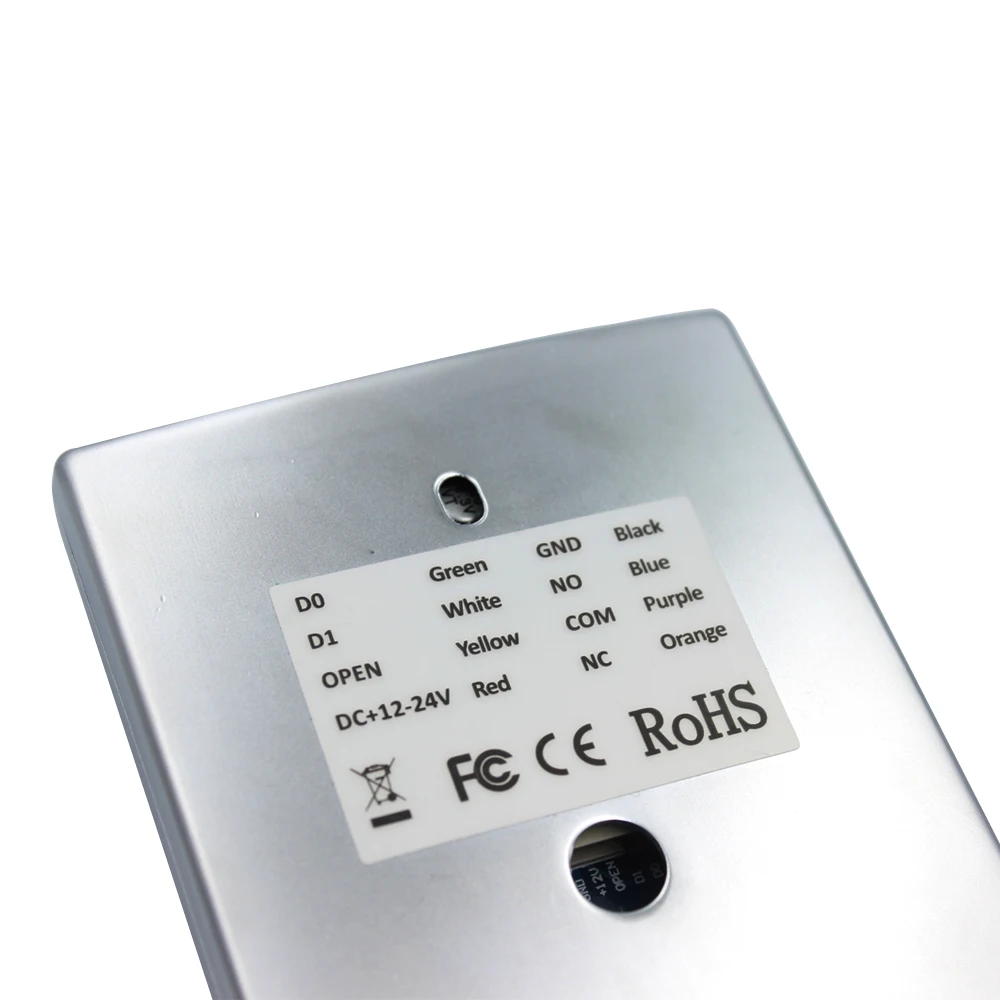

Wiring diagram

Features:

●Strong Zinc Alloy Electroplated anti-vandal case.

●Full programming from the keypad

●2000 users, supports Card, PIN, Card + PIN.

●Can be used as a stand alone keypad.

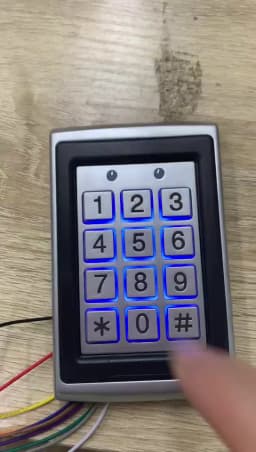

●Backlight keys.

●Wiegand 26 input for connection to external reader.

●Wiegand 26 output for connection to a controller.

●Adjustable Door Output time, Alarm time, Door Open time .

●Very low power consumption (30mA).

●Fast operating speed, <20ms with 2000 users.

●Lock output current short circuit protection.

●Easy to install and program.

●Built in light dependent resistor (LDR) for anti tamper.

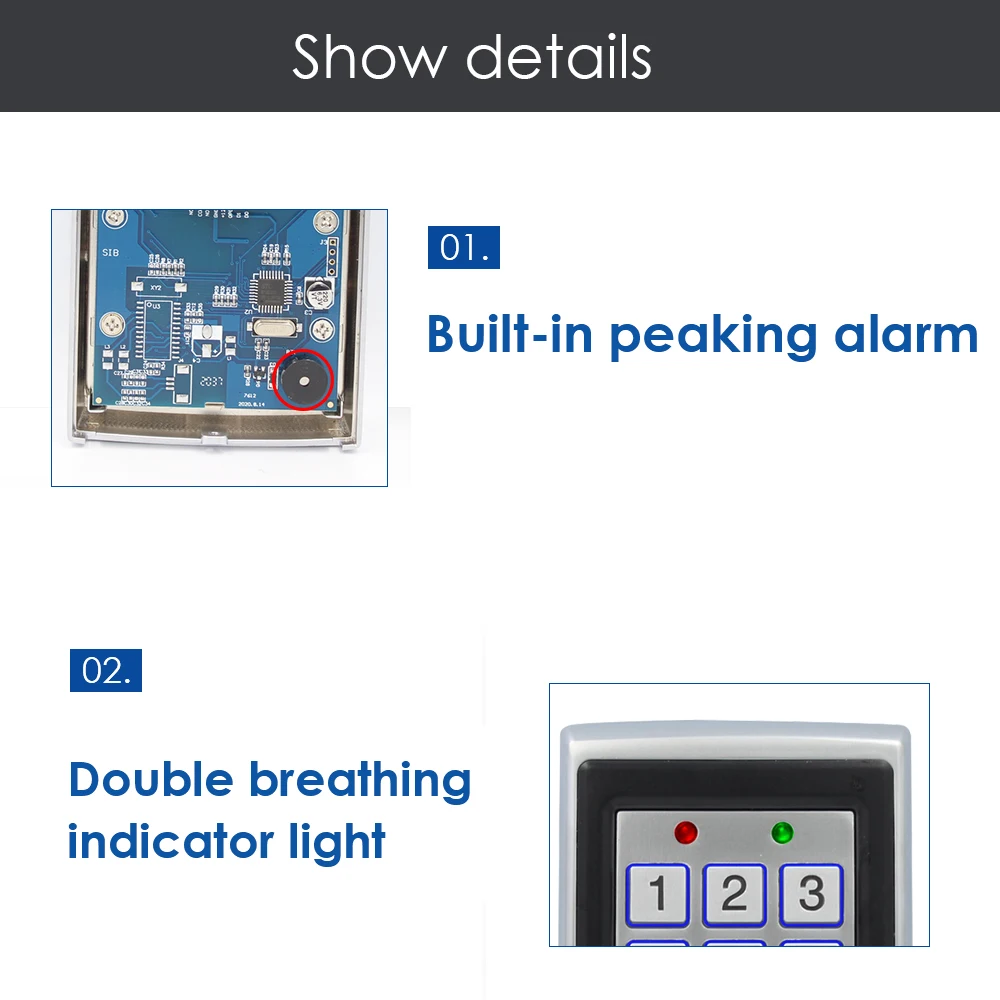

●Built in buzzer
