Universal 2 Channel 12V-24V Garage Door Receiver 433MHz Switch Transmitter Command Gate Door Opener 433.92MHz Fixed Rolling Code

2CH 12V-24V Garage Door Receiver 433MHz Switch Transmitter Command Gate Door Opener Motor Receiver 433.92MHz With Keychain Fixed

Description

1，Models：RMT3206

2，Frequency：433.92MHz=433MHz

3，Codes：Fixed / Learning / Rolling Code

4，Channels：2

5， Power supply：DC 9V-24V

6，Built in Aerial antenna：Reception range 50m-100m

7，Controlcapacity：400PCS

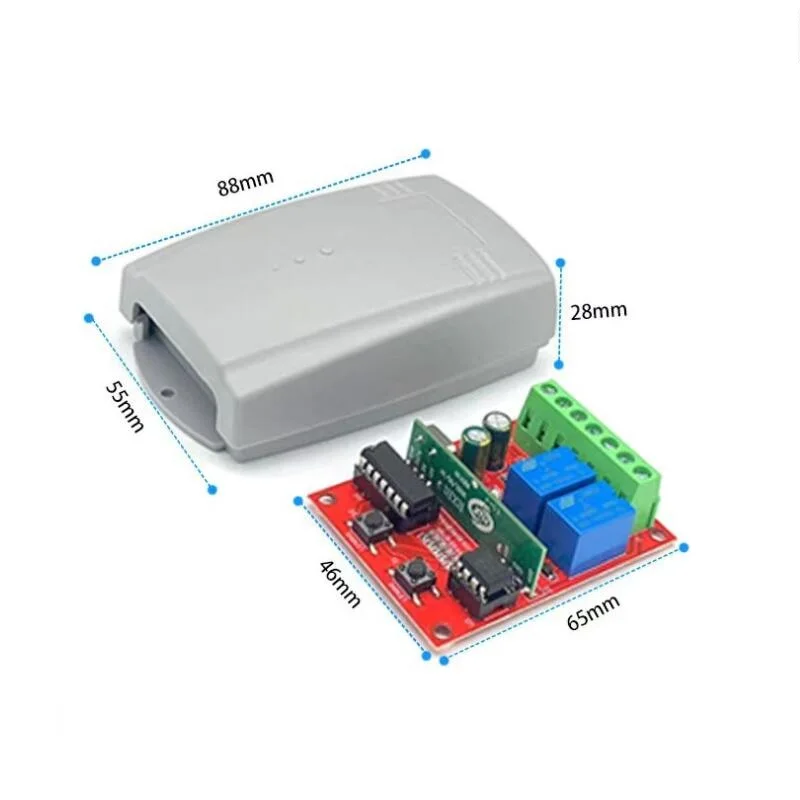

8，Size：88mm*55mm*28mm

Features

The product is a general smart receiver and it can be matched with the majority of the wireless receiver in the market, including fixed code （2262, 2260,2264,5326,M1E,M5E etc）, learning code （1527, 2240, 6P20B, 6P20D etc）. roling code （HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc） and a part of customized remote controller.

Compatible Models

TO.GO 2VA

TO.GO.4VA

TO.GO 2WV

TO.GO 4WV

Include

1*Receiver

1*English Manual

1*Screwdriver as gift for free

Include

Programming

Momentary working model:

1.Learning transmitter’s codes:

Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.

• Repeat the above steps for other transmitters.

2.Erasing transmitter’s codes:

Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.

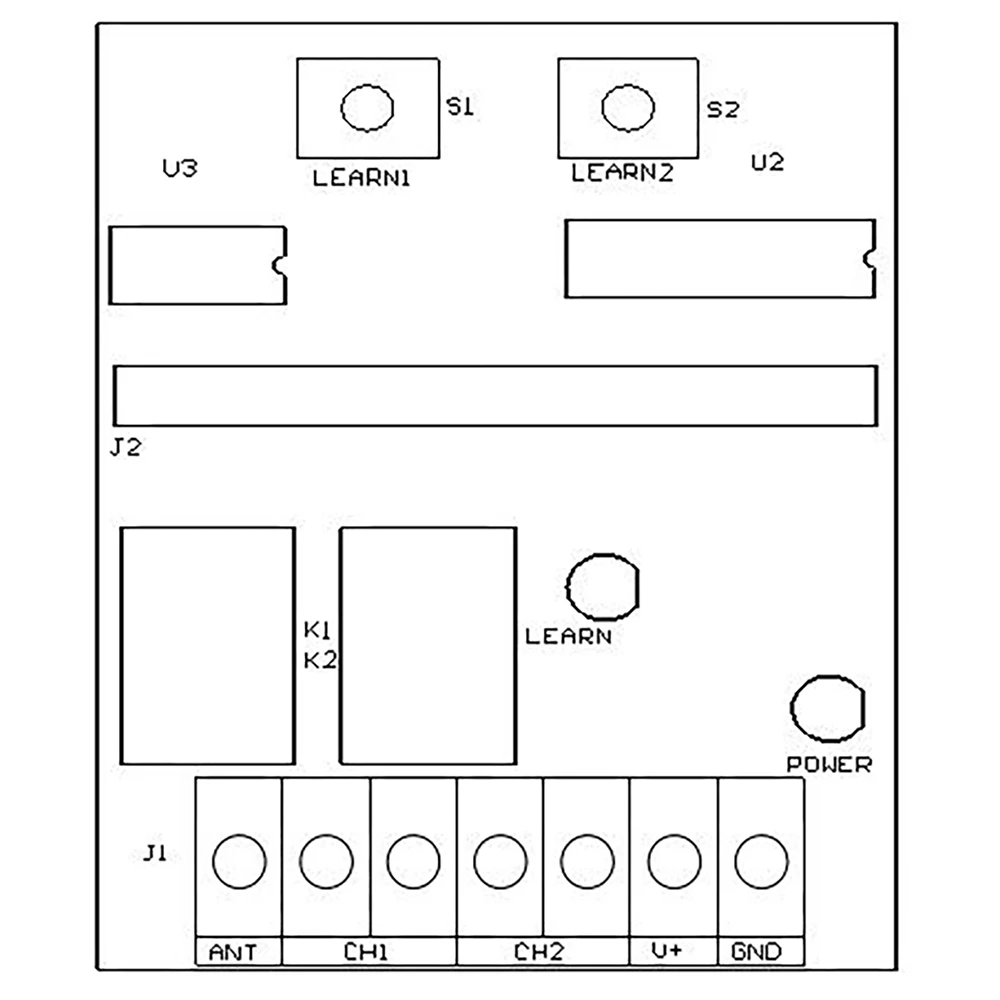

ANT - Receiver Antenna

CH1 - Relay Output 1

CH2 - Relay Output 2

V+ - Voltage +

GND - Ground
