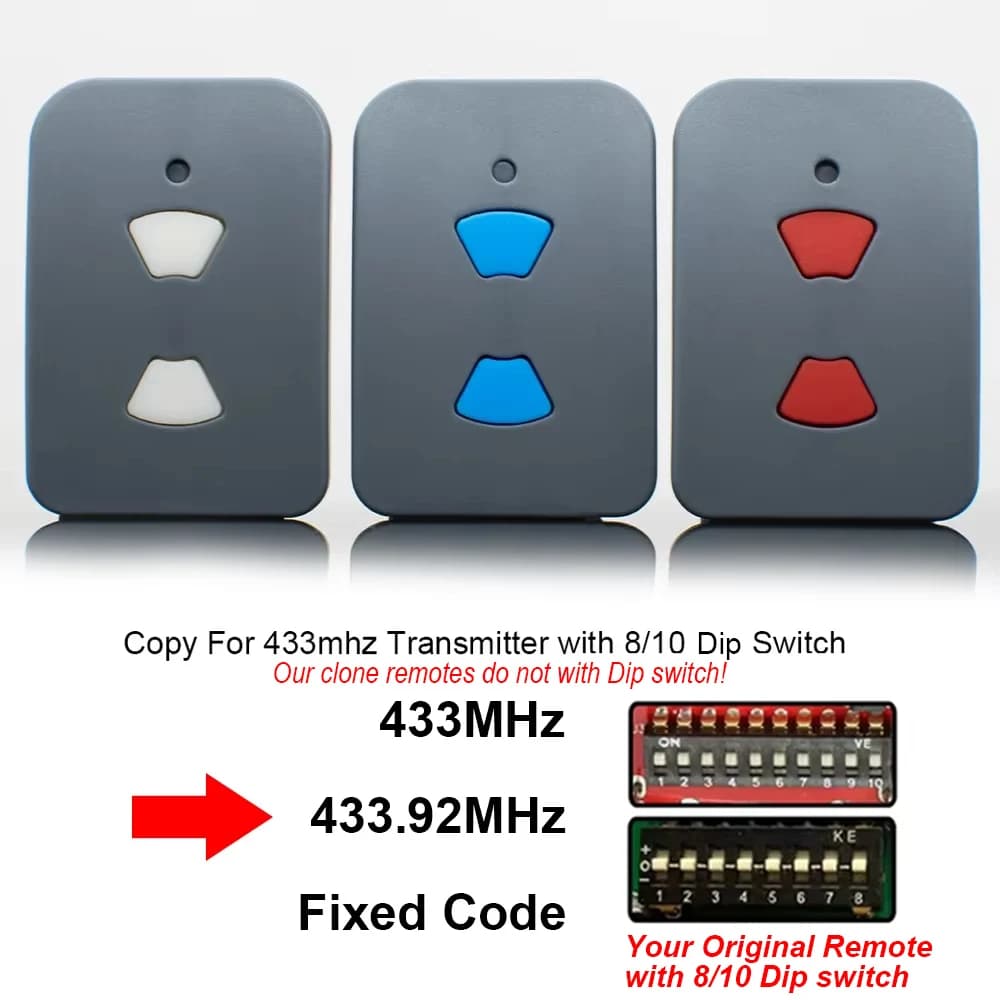

Universal 433 433MHz 433.92mhz Garage Gate Remote Control Fixed Code Keychain Controller Clone Transmitter with 8/10 dip Switch

Note : Pls read Carefully befor you buying!!!

Our clone remote control does not come with Dip switch.

Pay Attentions to:

Dear friend, please check the following instructions before you buy; if you do not meet the conditions still to buy, we will not accept returns

Please confirm

Condition I: the original remote control may be used normally

Condition II: know the transmission frequency of original remote control (referring to the following diagram)

Condition III: IC of original remote control is 2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527(EV1527,HS1527,HX1527),FP527,CS5211,SMC918,SMC926,AX5026,AX53263,AX53264,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on. 5026-2 5026-3 5026-4 FP527 HT12E or without code. IC model of original remote control is 2262 2260 1527 2240 and compatible IC It is unnecessary to consider vibration resistance and address code. The project may be compatible to vibration resistance and address code. only support static code, does not support dynamic code.

Some examples of brands

ADYX ALIZE EM2C
ADYX ALIZE EM4C

Avidsen 100400,104505,
Avidsen 100550,400600,
Avidsen 100951,100955,
100601 micromark MM23164


CARDIN S476-TX2
CARDIN S476-TX4

CAME
TOP 432 SA
TOP 432 A,
TOP 434 A
TOP 432 EV,
TOP 434 EV
TOP 432 M,
TOP 434 M
TOP KAM 432 NA,
TOP 434 NA
TOP 432 S, T 432 , T 434
TAM 432 SA

CASIT TXS1,TXS2
CASIT TXS3,TXS4
CASIT ERTS92B ,ERTS92T
CASIT ERTS20DB,ERTS20DQ

DEA 433-1,433-2,433-4
DEA MIO TD2,MIO TD4
DEA GT2M,GT4M
DEA GENIE
DEA punto-2,punto-4

DITEC GOL4C

DELMA KING 2CH
DELMA KING 4CH
DELMA MIZAR 1CH
DELMA MIZAR 2CH
DELMA APOLLO 4CH

DICKERT MZHS433-01
DICKERT MZHS433-04

ERREKA LUNA 2
ERREKA LUNA 3
ERREKA RESON 1
ERREKA RESON 2

BERNER ELKA TEDSEN TELETASTER
SKX1LC
SKX2LC
SKX3LC
SKX4LC
SKX1MD
SKX2MD
SKX3MD
SKX4MD

FAC TM 433DS-1
FAC TM 433DS-2
FAC TM 433DS-3

Marantec Digital 382 433,384 433
Marantec Digital D302 433,D304 433
Marantec Digital D313 433
Marantec Digital D321 433
Marantec Digital D323 433
Marantec Command 131 433
Marantec Digital 211 433,212 433,214 433
Marantec Digital 221 433,222 433,224 433
Marantec Digital 231 433,232 433

Motorline mx1
Motorline mx2
Motorline mx3
Motorline mx4
Motorline mx6

NICE
FLO1
FLO2
FLO4

PROTECO TX433
PTOTECO PTX433 405

ROGER H80
ROGER TX22
ROGER E80 TX52R
ROGER E80 TX54R
ROGER TX1
ROGER TX10

RIB 433-1
RIB 433-2
RIB 433-3
RIB SUN T433 2CH
RIB SUN T433 4CH
RIB MOON T433 2CH
RIB MOON T433 4CH

SEAV BE SMART S2
SEAV BE SMART S4
SEAV BE GOOD S3
SEAV BE-HAPPY-S1
SEAV BE-HAPPY-S2
SEAV BE-HAPPY-S3
SEAV TXS 1,TXS 2
SEAV TXS 3,TXS 4
SEAV TXS 6

PRASTEL MPSTF2E MPSTF3E MPSTF4E

TELCOMA EDGE2,EDGE4
TELCOMA Tango Blue 2,Tango Blue 4,
TELCOMA Slim 2,Slim 4

Teletaster SKX1 MD / SKX2 MD / SKX3 MC / SKX4 MD
Teletaster SKX1HD / SKX2HD / SKX4HD / SKX6HD
Teletaster SKXWD1 / SKXWD2 / SKXWD4
Teletaster SKX1GS / SKX2GS / SKX3GS / SKX4GS

Some brands

NOTE

Here's how to tell the frequency of the remote control and the code chip, as shown below(each remote control board has a silver-white sound table with round,rectangular, Square,etc.).Each remote control has a black chip on it, and the chip has a model with a clearly coded chip on it.)

Inapplicable

The inapplicable IC is HCS300 30 HCS301 and compatible rolling code
It's very very important. Don't ingnore them.
Don't simple think the frequeny is same then it can be copied.It's not true.

Specifications:

1.Operating frequency: 433.92MHz
2. Number of channels: 2
3. Code: Fixed code
4.Include: 1 x Remote Control (Battery and Keychain Include),1 x English Manual
5.Distance: Up to 100 meters
Note：If the received remote B button does not light up, don't worry, this is normal. You can clone directly.

With this remote cloner you can clone all 433.92MHz fixed code key fobs. Some remotes that use this frequency are listed below. This is not a complete list! If your remote uses the 433.92MHZ frequency it will work with the remote duplicator

How to Program - it's easy!

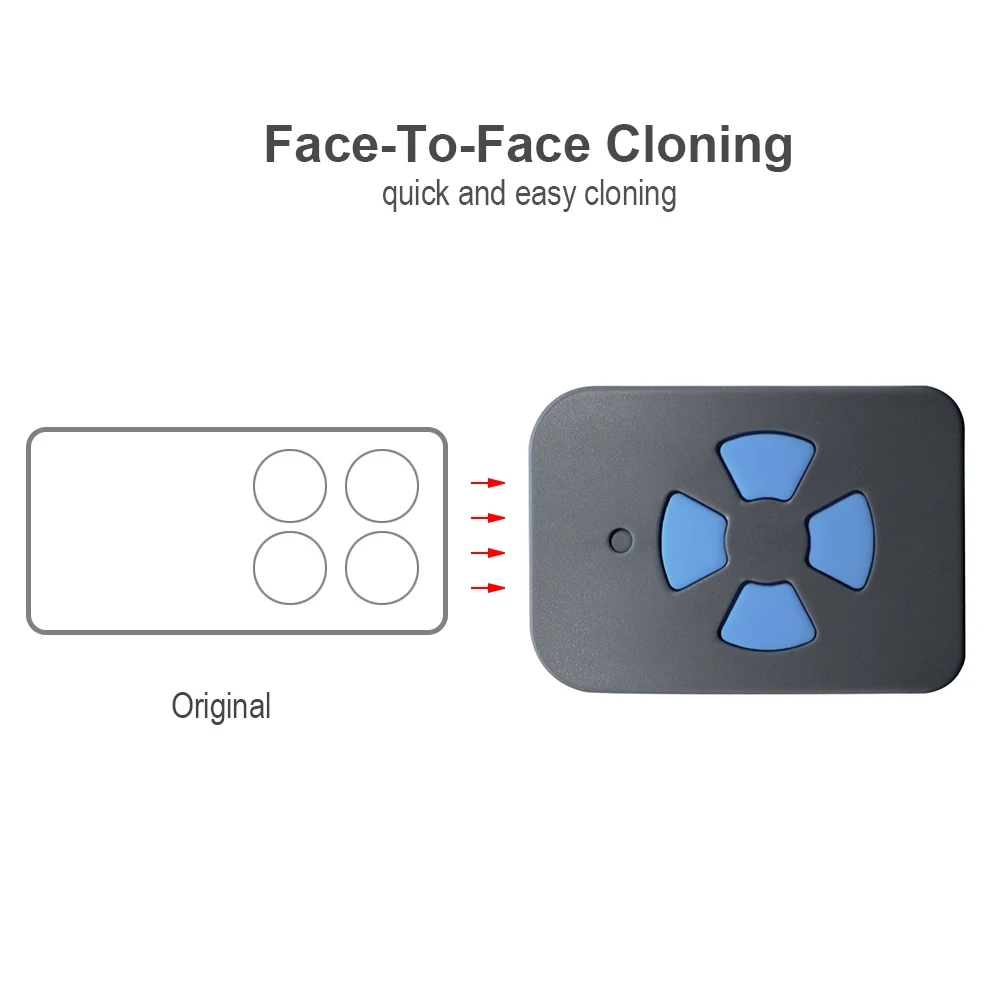

Face to face copy your original remote control

Step:1:Clear the history code from duplicator

1:Press button A and B continuously until LED flash 3 times
2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash
3.Release button “A”,finish code clearance.

Step 2,Copy code from original transmitter

1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash
3. Release both buttons,finish code copy,copy other button in same way.

Include

1 x Remote Control
1 x Battery
1 x Keychain
1 x English Manual
