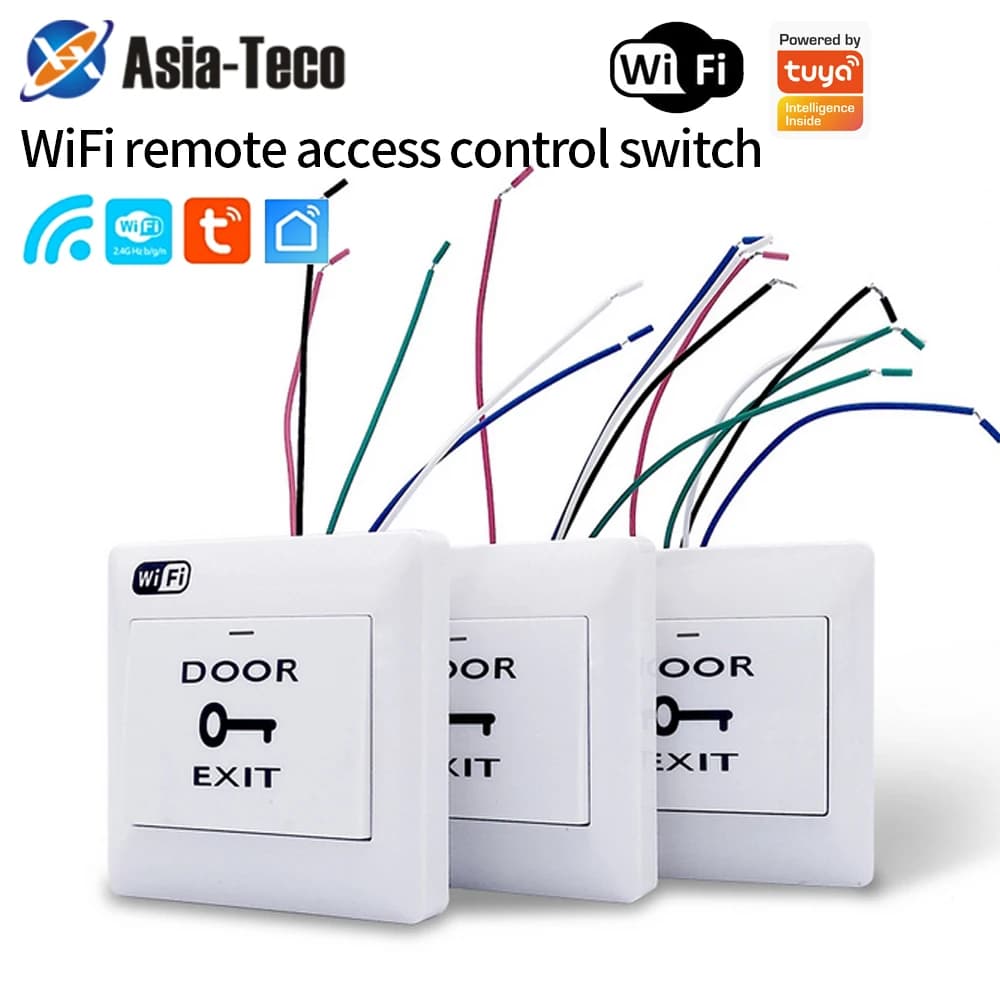

Support Tuya App WIFI Exit Switch Surface Mounted Intelligent Life Access Control System Control 4-Wire Switch

Support Tuya app WIFI exit switch surface mounted intelligent life access control system control 4-wire switch

Note:

1. If this switch needs to realize the mobile phone remote control function, it must provide a 12∨DC regulated power supply for the switch.

2 The switch must be installed in an environment with WiFi coverage.

3 Avoid high-voltage power supply or strong magnetic interference in the installation environment.

RF433 remote control：

The equipment is installed in a weak current system with a WF environment, and the wireless switch can be remotely controlled within a certain distance.

APP remote control：

Simple and intuitive switch button·Switch status is synchronized with the mobile phone in real time

The device is installed in a weak current system with a WF environment, and the mobile phone can remotely control it in any place where there is a signal

Smart cloud sharing：

The mobile phone paired with the module for the first time is the mobile phone with the primary account, which can manage the shared users. Support one mobile phone to control multiple devices, support multiple mobile phones to control one device.

Smart home platform: Tuya

Model Number: Type 86 Smart Access Control Switch

Security Mode: Fail Safe with Signal

support: wholesale/dropshipping

Product Name: Type 86 Smart Access Control Switch

Structure: fire-resistant fuel mixed resin

Product life: 100,000 times of aging test

Power supply mode: DC12VProduct

specifications: 86X86X22mmWorking

temperature: -10°C- 55°C (14-131°F)

Product name: wireless switch

Working frequency: 433.92MHz

Working voltage: DC 3V

Transmitting power: <10mWRemote control

distance: <100 meters (indoor distance)

Working temperature: -10°C~ 70°C

Size: 86*86*15.5 (mm)

Standard battery: CR2032 battery
