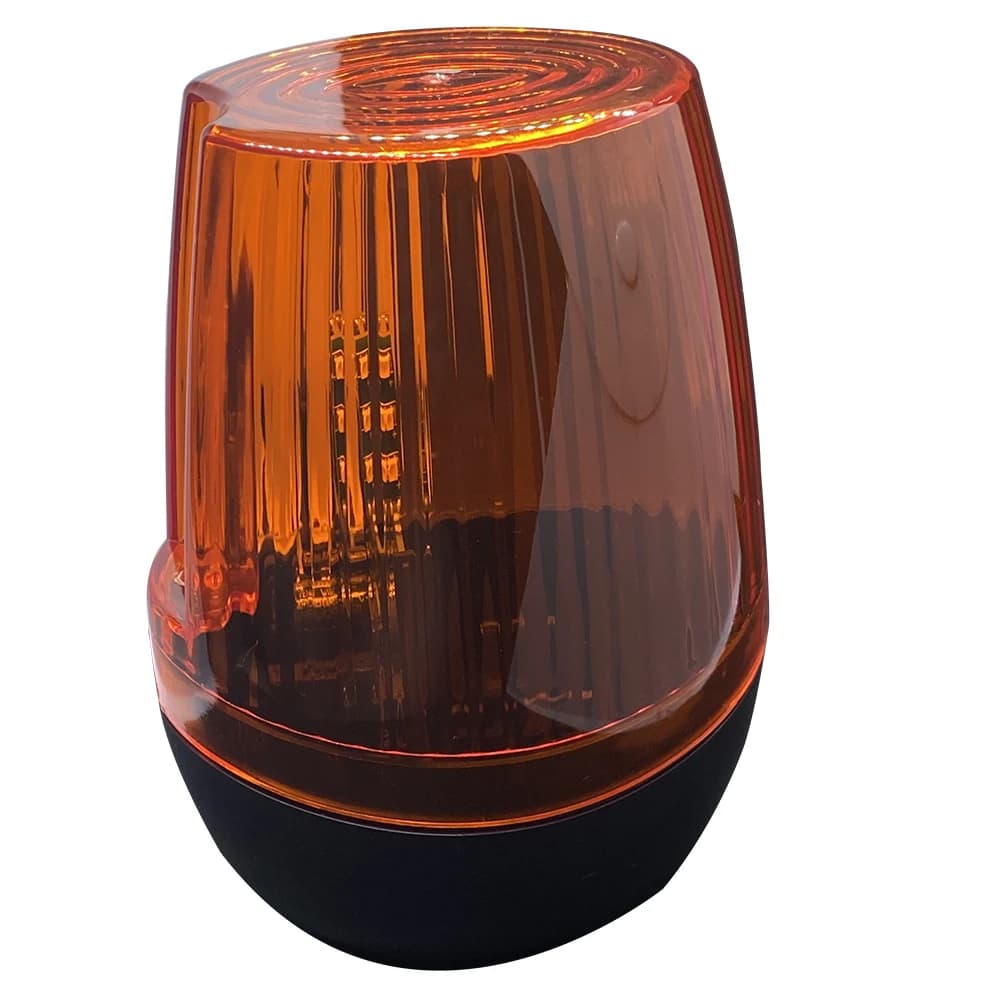

AC DC LED Gate Flashing Light Lamp Alarm Lamp For Swing Sliding Gate Opener/Barrier Gate Signal Strobe Flashing Lamp (No Sound)

Safety Instruction

1.For security, please read the user manual carefully before initial operation;
2.Please be sure the power is off before connecting, the product is produced without fuse;
3.This system must not endanger life or property during the running failure or its security risks
have been eliminated.

Specification

Working voltage: 12-265V AC/DC
Loading capacity: 1.5W
Weight: 210g
Flashing frequency: 1Hz
Installation method: Vertical/horizontal
Working temperature: -20°C~+60°C
Protection level: IP54
Size: 7.4*5.2*14cm

Antenna This is used to extend the effective distance of controller Waterproof and dustproof It is made of plastic material IP 54 .

Connecting Instruction

1.Power input connect to PCB board terminal, Working power 12V-265V DCIAC

2 SW1 switch
It's the switch for switching LED in flickering or lighting,
When SW1 at connecting,LED will flicker after power on;
When SW1 at disconnecting,LED will light after power on

wide range of uses:

Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system
