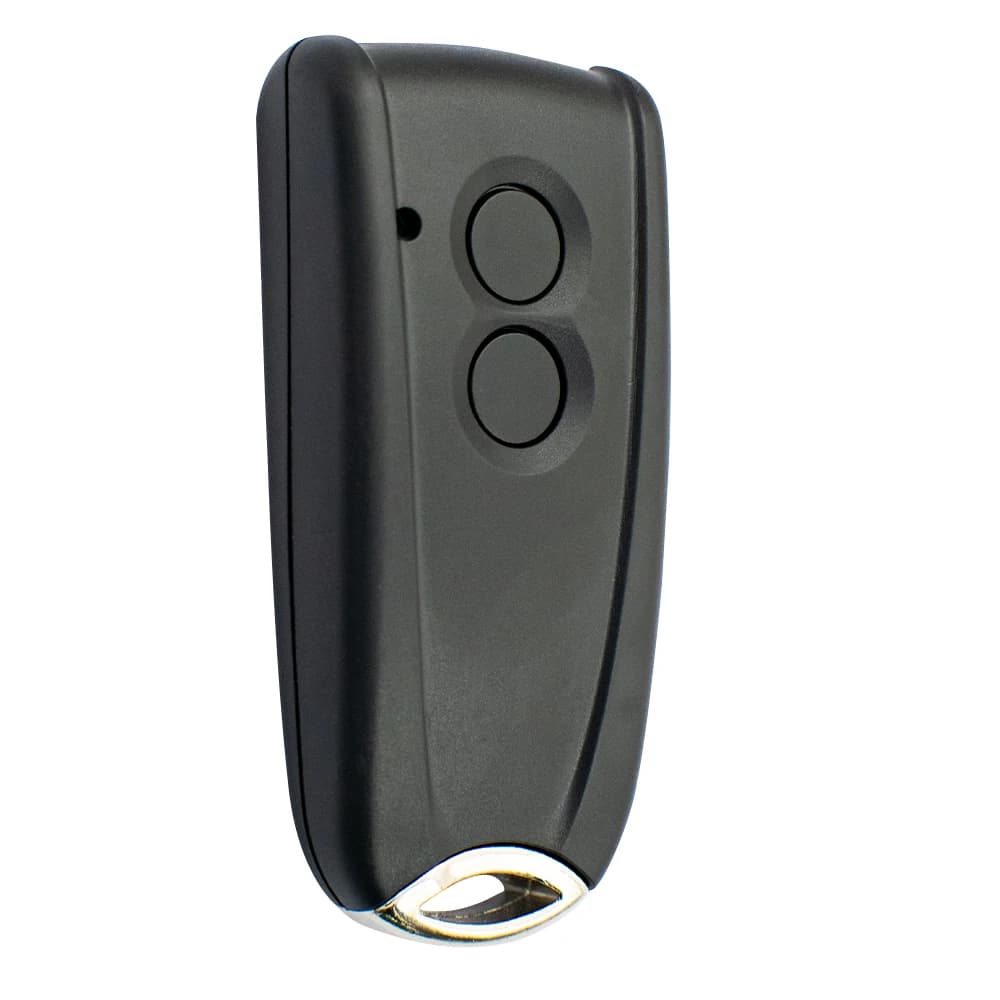

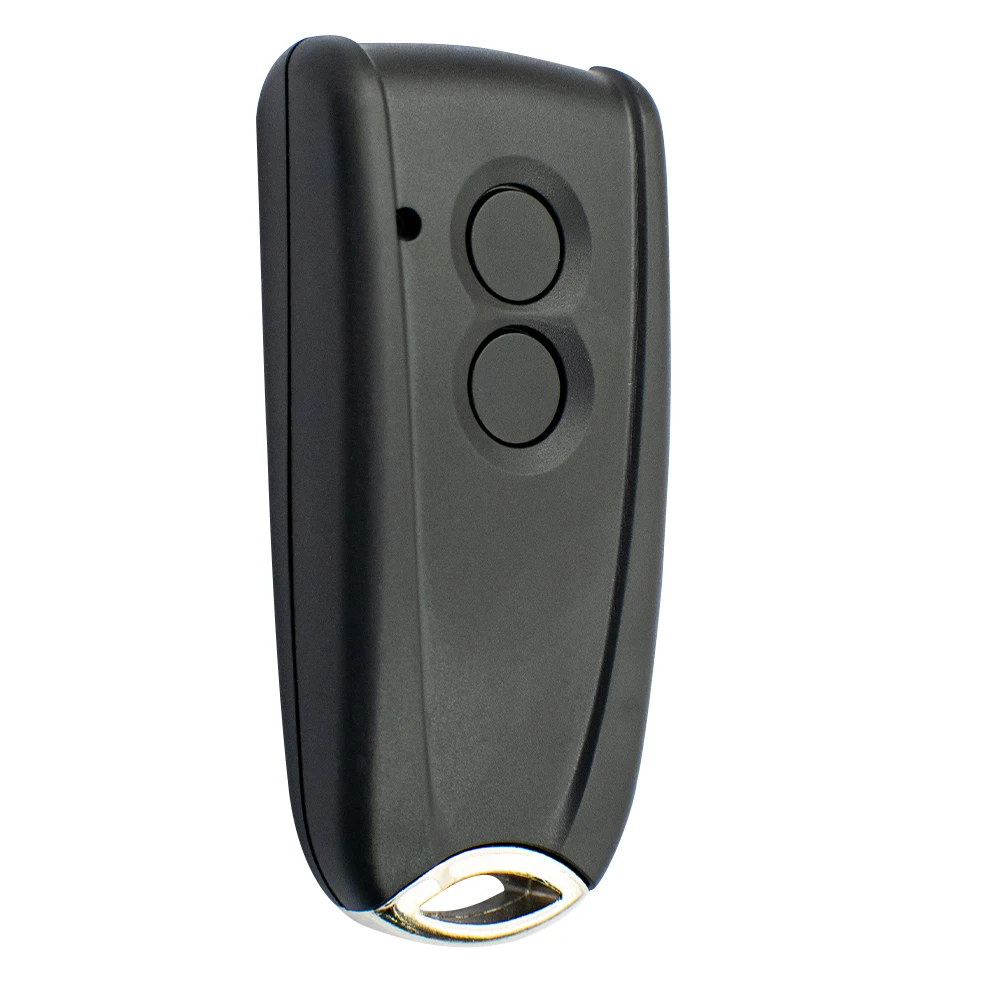

Compatible with Liftronic 500 700 800 RSC2 RSE2 RSZ1,AGS RSC2 RSE2 Garage Door Remote Control 433MHz

Remote Control Model：

RSC2-433
RSE2-433

Receiver Model：
Liftronic 500
Liftronic 700
Liftronic 800
Portronic D5000
Portronic D2500
Portronic S4000

Access to receiver required. Please make sure you got access to your receiver/opener before purchase.

Disclaimer: Your remote control must be the same as the picture and your model must be in the list, we will not be responsible for wrong purchase

Feature

1. Free Battery
2. Free Coding Instructions
3. Free Keychain
4. Heavy Duty Design
5. In-built Battery
6. Button Protector

Description:

1.Type of programming: Programming with the receiver
2.Number of channels: 4
3. Code: rolling code
4. Frequency: 433.92mhz
5.Woring Range: 10-50 m (open space)
6.Power supply: 12V 27A
7.Remote come with Battery !!!
8.Modulation Mode: ASK (AM)
9.The transmission power: ≤ 100mW
10.The working temperature: -20 ° C to +50 ° C
Security of use: dynamic code provides a high level of security, non-copyable code.
Disclaimer:Your Old remote must be same as the advertisement , new remote do not compatible with other remotes .

Include:

1xRemote Control
1xBattery
1xKeychain
1xEnglish Manual

How to Program

You have to press a button on the receiver (under the motor cover or next to the motor in a separate box), and then press a button on the new remote to register it. Materials required for programming: your receiver!
1. Open your receiver from the garage door.
2. Press the programming button. Inscription is usually: ENR, MEMO or PROG.
3. On some receivers, it is necessary to hold down the programming button.
4. On the receiver the LED indicates the start of the programming mode.
5. Press for one second on a button on the new remote control and let it go again.
6. The LED of the receiver will light differently or goes out to indicate a successful programming.
7. Wait a few seconds to exit the programming mode. Congratulations! Your new remote control is programmed!
