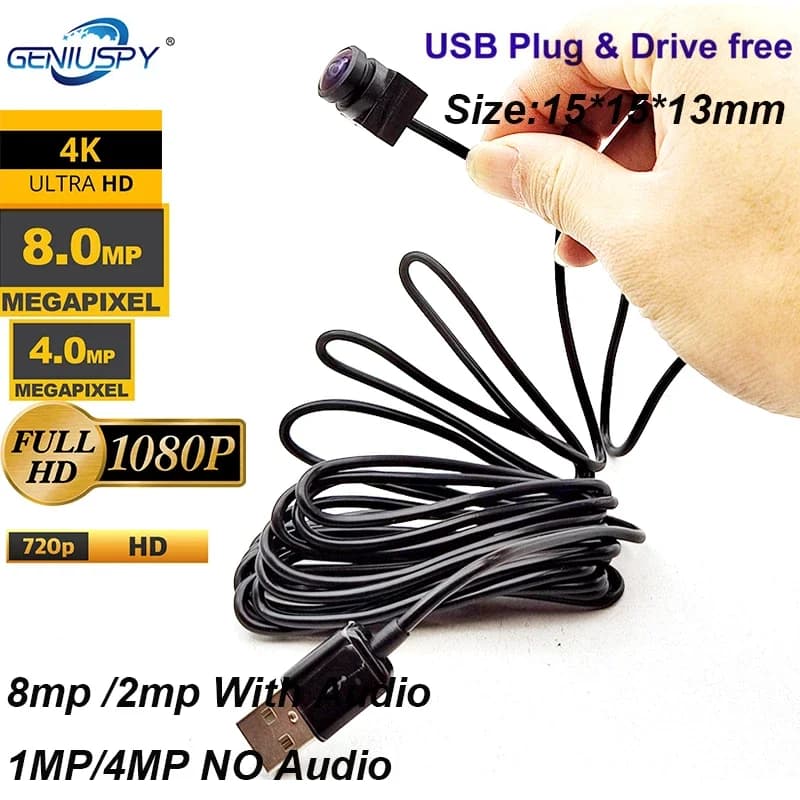

4K 8MP 5MP 1080P IMX179 Full HD USB Camera Module MJPEG 30fps High Speed Mini CCTV Linux UVC Android Webcam Surveillance Camera

Notice :

720P

4K 8MP 5MP 1080P IMX179 Full HD USB Camera Module MJPEG 30fps High Speed Mini CCTV Linux UVC Android Webcam Surveillance Camera

Note: 1080P with audio,2M usb cable( , the video display in the link is 1.7mm lens  2mp

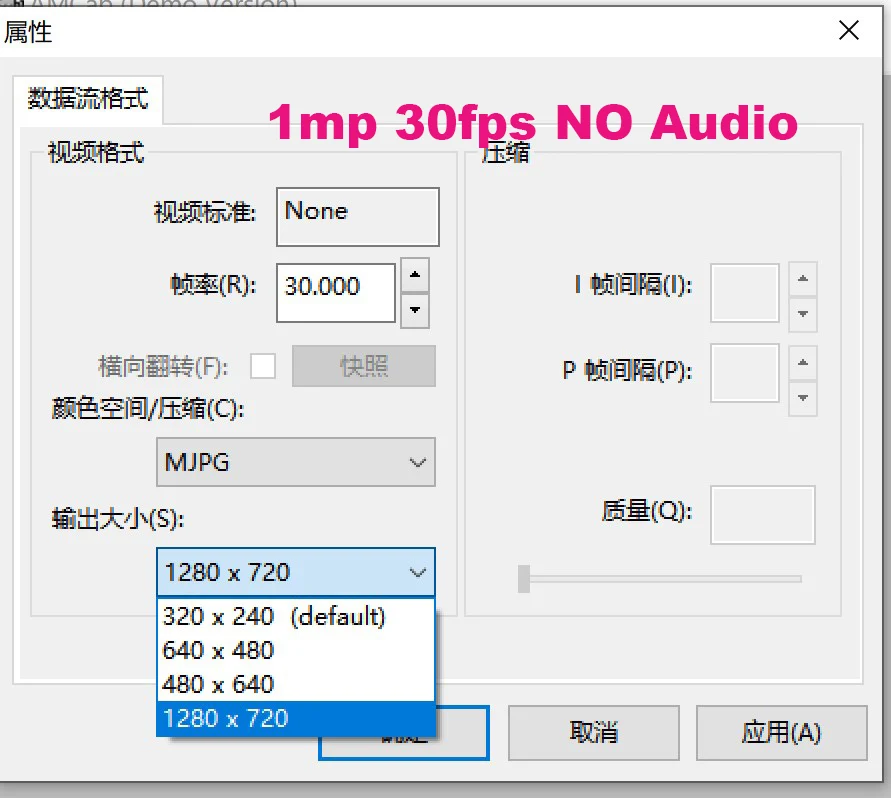

720P without audio ,2Meters usb cable

4MP with audio 2meters usb cable

5MP with audio 2meters usb cable

8MP with audio 2meters usb cable

TYPE-C defult is 1meters

if you need 3meters or other length ,pls contact with our sales

if you need other connector ,pls kindly contact with us for custom made !

for more products infomation ,pls go to our store page !

if you have other requirement ,welcome contact with us free !

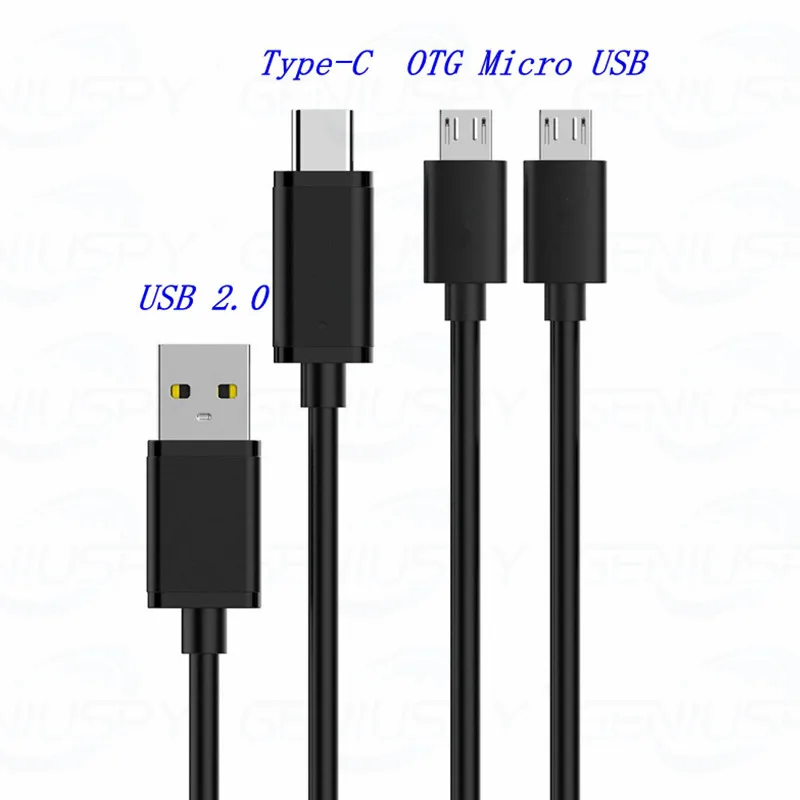

These interfaces are optional, please tell me which one you need:

This camera is a 1.0Megapixel 1280*720p /5.0megapixel size  2592*1944P HD/3264(H) X 2448(V) 800MP pixels/2.0 megapixel size 1920*1080 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

Feature:

HD  720P1080P/5MP/4mp /8mp USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

Typical application

1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera

5: Construction Equipment6: Banking equipment7: body switch8: Scanner

9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition

12:video door phone13:HD surveillance

Remarks:

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Typical application

1: ATM,Kiosk,POS,TV box          2: advertising cameras        3: one camera         4: Smart TV built-in camera

5: Construction Equipment         6: Banking equipment          7: body switch          8: Scanner

9: a mobile terminal device        10: Medical diagnostic image acquisition            11: fingerprints, palm prints image acquisition

12:video door phone                  13:HD surveillance

Parameter description:

SLens Size:1/4 inch/1/2.7 inch /1/4 inch

Pixel size: 3um

Maximum effective pixels: 1280X720P /1920 (H) X1080 (V)/2592*1944p/3264(H) X 2448(V) 800MP pixels

Output image format: YUV2 (YUYV) / MJPEG

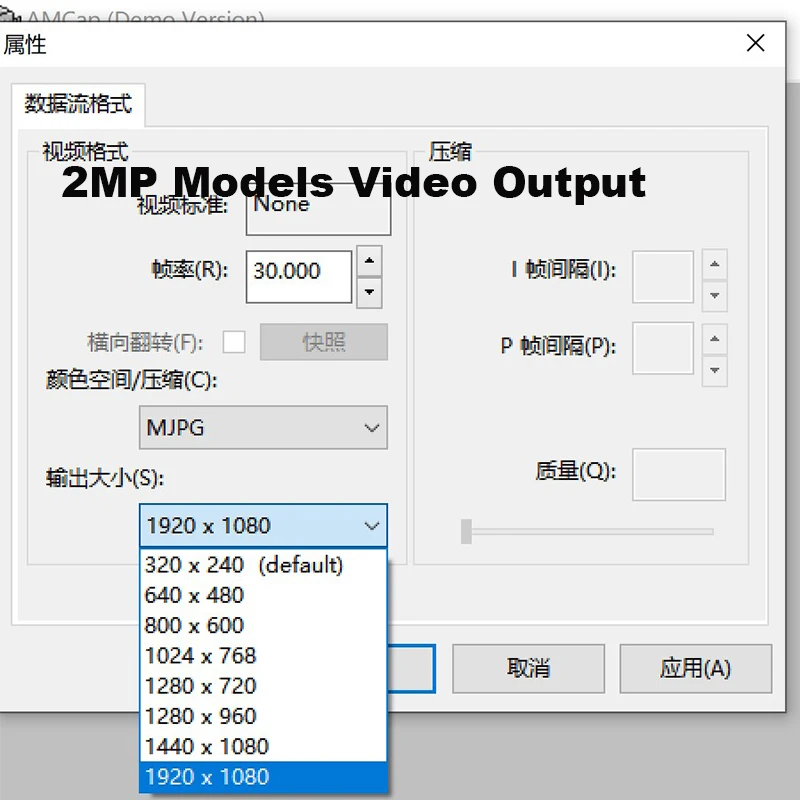

Frame rate:640X480 @ 30fps MJPEG,1280X720 @ 30fps MJPEG,1920X1080 @ 30fps MJPEG

YUV2,640X480 @ 20fps YUV2,1280X720 @ 5fps YUV2,1920X1080 @ 5fps YUV2 2592*1944P @30FPS.3264(H) X 2448(V) 15FPS800MP pixels

Signal to noise ratio: 60dB

Dynamic range: 69dB

Sensitivity: 3.3V/lux-sec@550nm

Minimum illumination: 0.01LUX

Shutter type: Electronic rolling Frame shutter/ exposure

Interface type: USB2.0 High Speed

Support free flooding protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: support

Automatic white balance AEB: support

Automatic gain control AGC: support

Adjustable parameters: brightness contrast color saturation hue resolution

The gamma exposure contrast gain white balance backlighting

Power supply: USB BUS 4P-2.0mm POWER socket

Working voltage: DC5V

Working current: 140mA~220mA

Working temperature: 0 ~ 60

Storage temperature: -20 ~ 70 C

Board size: 15X15mm

Machine weight: 50g

Supported system: WinXP/Vista/Win7/Win8/Linux with UVC (above linux-2.6.26)/MAC-OS X 10.4.8 or later

/Wince with UVC/Android 4 or with above UVC

Lens: 3.6MM

Angle: 90degrees

Line length:2M /3m Cable

5MP Video output

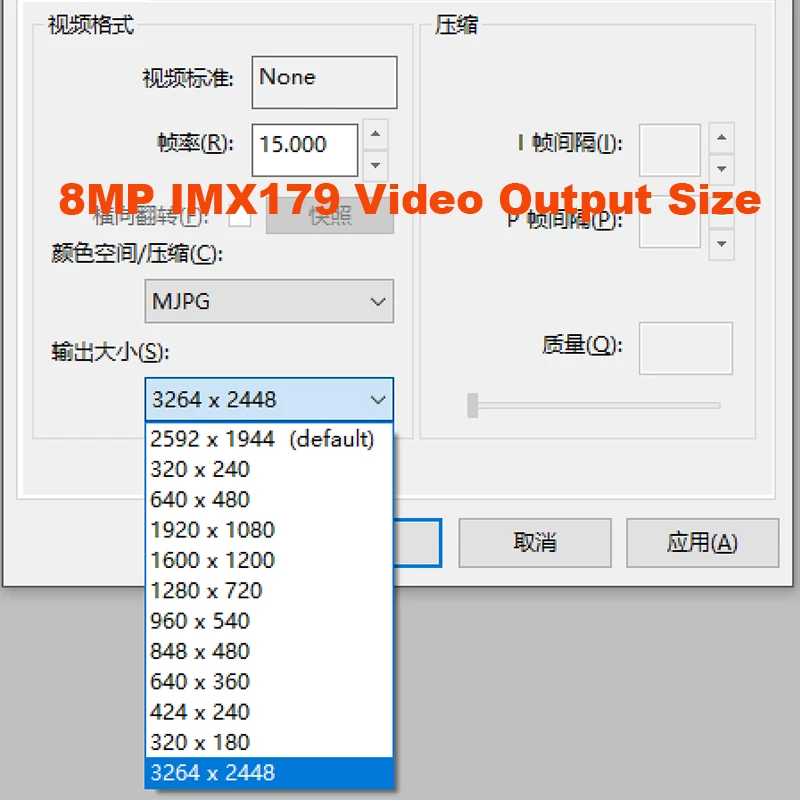

8MP Models Video Output

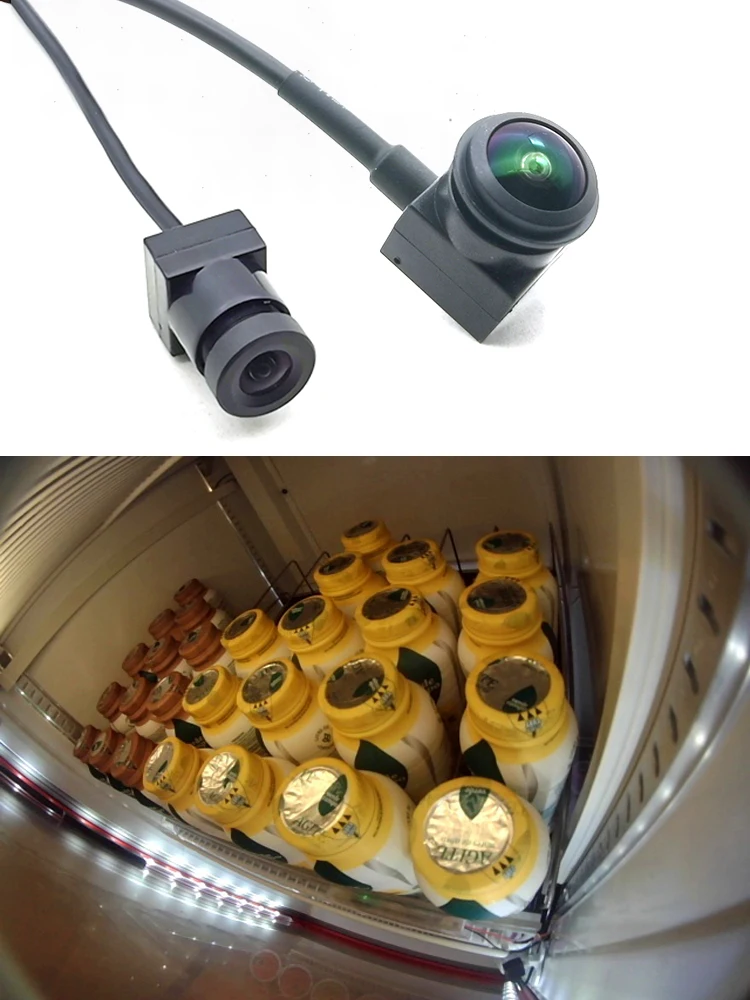

Real case:

Package contents:

1 x Camera

Notice :Dear,all customer ,because cd disk is easy damaged by rude transport and Most

of the Customer 's Computer Without CD CD-ROM disk drive,it is hard to copy the files

from the CD Disk! In addation ,the CD Disk Polluting the environment after used !

Software will be sent to your emails or leave message in aliexpress when you paid!pls contact with our SALES team if you need !
