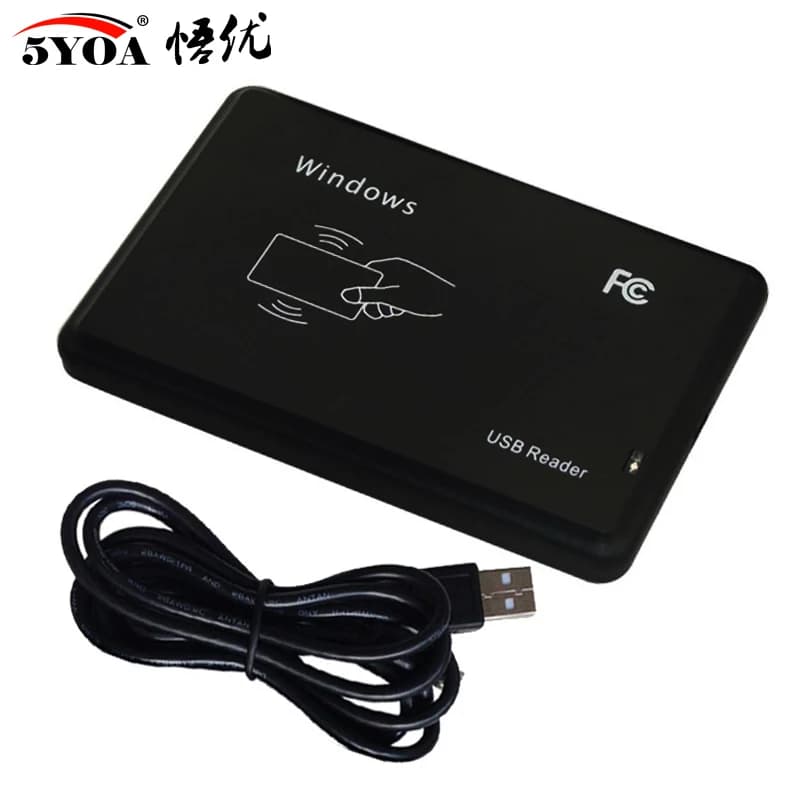

5YOA Smart RFID Card Reader 125KHz 13.56MHz ID IC Dual Frequency Access Control Encrypted Programmer Reader With USB Interface

125khz 13.56mhz RFID Reader

Frequency: 125Khz,13.56MHz, 125KHz+13.56MHz ((Please pay attention to selecting the frequency of the card reader before placing an order)

Size: 9.8x6.3x1cm
Reading speed: 0.2S
Reading distance: 0-80mm
Communication interface: USB
Power supply mode: USB power supply
Working voltage: DC 5V(+/-5%)
Working current: 100mA
Card reading type: TK4001/EM4100 and other ID cards, MF/S50/S70 and other 14443A protocol tags (IC cards)
Application: Widely used in access control entrance guard, consumption, hotel lock, water meter, electricity meter and gas meter and a series of ID or IC card management application system.

Package Included: 1pcs RFID card reader + 1pcs USB cable

How to use this product:
Open the computer's output software (such as notepad, word, excel and other editors), the card near the reader, the output software at this time the cursor shows the label card number.

Attention:
The card reader default output the first 10 bits.

How to use

After the card reader is connected to the computer, the card reader enters the self-test and initialization from the "drop" sound, and the card reader has entered the state of waiting for the card to be swiped, and the indicator light is "red" at this moment. Open the computer's output software (such as: Notepad WORDEXCEL and other editors), put the card close to the card reader, the red light flashes green and then turns red, and the buzzer sounds to send data, that is, automatically The card number is displayed at the cursor of the computer.

Support 125khz chips reading

EM4100 / EM4102 / TK4100 etc, but not all chips under 125khzs

with USB Cable for using
