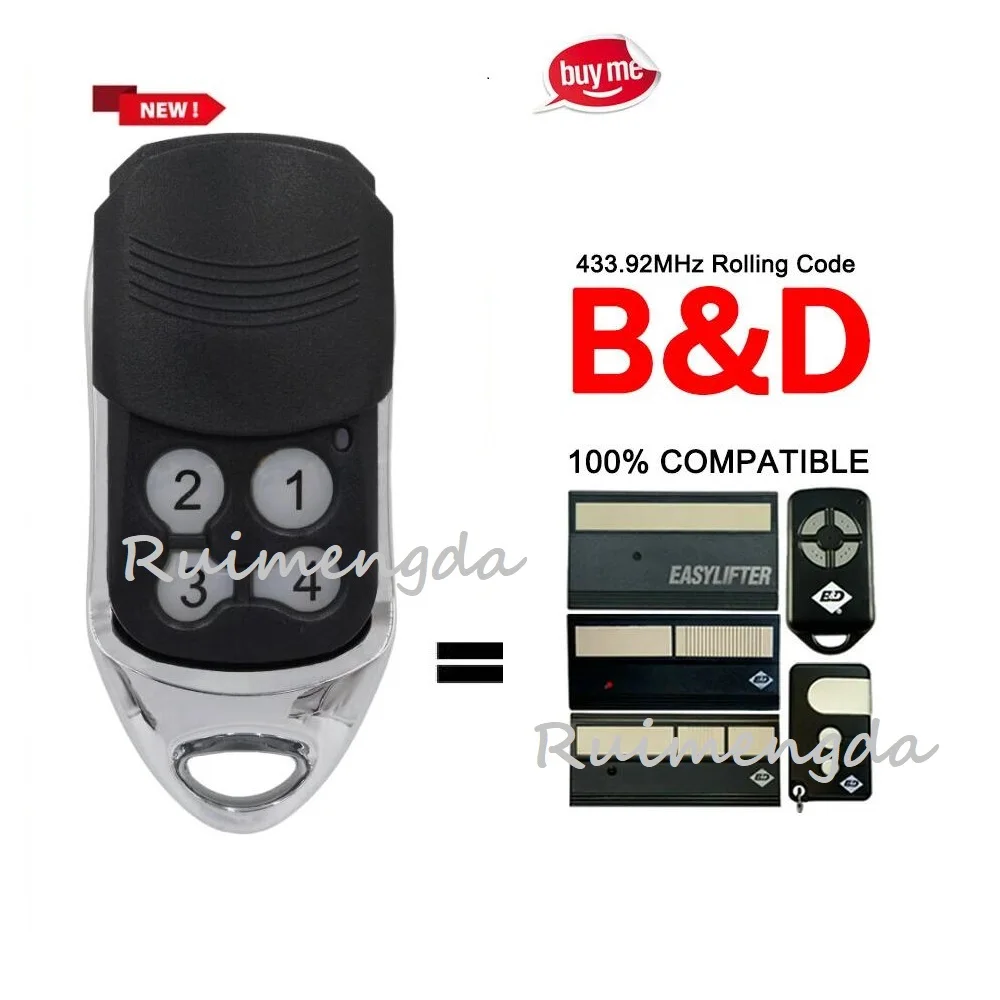

B&D BnD B and D Garage Door Remote Easylifter Econolif Cad4 Cad5 Cadp Gate Door Control Compatible With

Description:

1.Type of programming: Programming with the receiver
2.Number of channels: 4
3. Code: rolling code
4. Frequency: 433.92mhz
5.Woring Range: 10-50 m (open space)
6.Power supply: 12V 27A

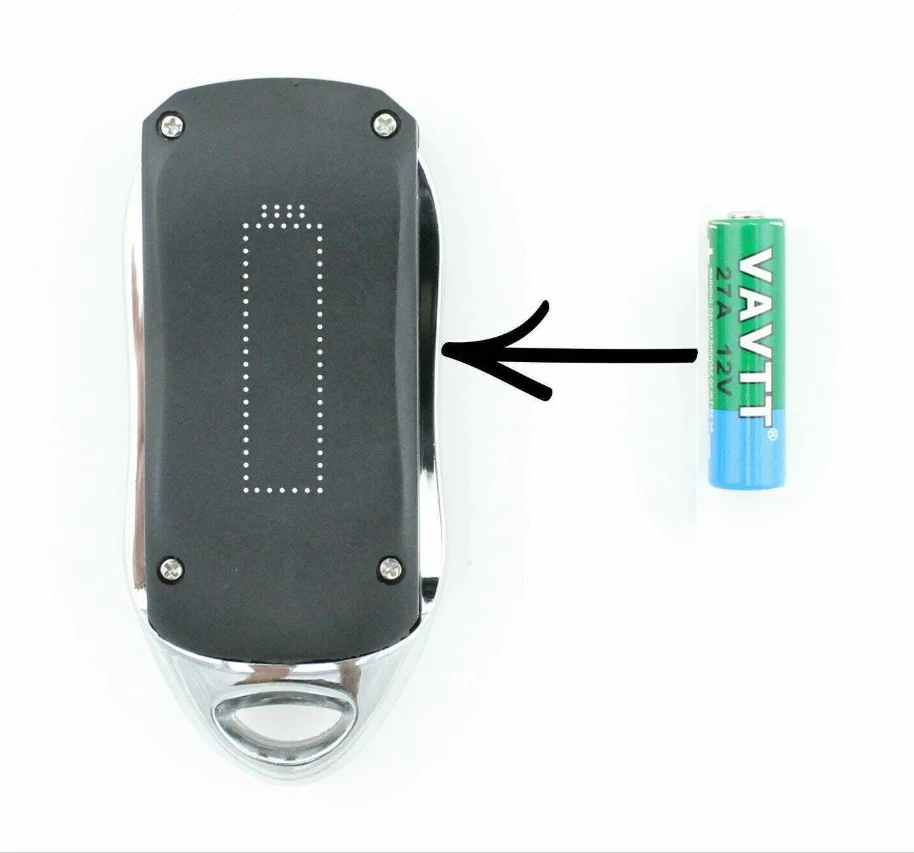

7.Remote come with Battery !!!
Security of use: dynamic code provides a high level of security, non-copyable code.
Disclaimer:Your Old remote must be same as the advertisement , new remote do not compatible with other remotes .

100% Compatible

062162
059116
059120
062170
Controll-A-Door 4 (CAD4) - If your original remote has two buttons with ridges/grooves on the left button then your motor is not compatible.
Controll-A-Door 5 (CAD5)
Controll-A-Door R (CAD R)
Controll-A-Door P (CAD P)
Controll-A-Door Shed Master
FAM4
FAM5
FAM P
FAM RDO
EL4
EL5
EASYLIFTER
FIRMAMATIC SDO
FIRMAMATIC RDO
FAM R
EL R

Not Compatible with Tritran Red Remotes or other brand motors

Not Compatible with 27MHz remotes (this will either be on the back or inside your remote)

Not Compatible if remote has DIP switches (7-12 little switches inside the remote)

Not Compatible if your original remote is dark navy in colour and looks like the remotes on the immediate left and right

Not Compatible with 062150 remotes (this remote looks similar remotes pictured in our listing, but has ridges/grooves on the left button)

Please ensure that your original remote is pictured and your motor model number is listed to ensure compatibility.

Brand new

modern, stylish, compact design which fits perfectly in your pocket.
The new design includes a sliding cover, preventing buttons being pressed
accidently.

Main technical indicators

Operating voltage:DC12V,27A battery

SAW lock transmitter frequency

Operating Current:≤ 12mA

Operating frequency:433.92MHz

Transmit Power:≥ 10mW

Frequency deviation:± 0.2MHz

Transmission speed :50 - 60KHZ

How to program

1) Press the programming button on your motor. The LED will go on.

2) Press desired button on the new remote control.
3) The opener light will flash, confirming successful programming. Now the opener will operate when the remote control push button is pressed.

To erase all codes from the receiver, hold the receiver's Learn button until the indicator light goes off (after 6 seconds). All codes that the receiver has learned will be erased.

Including

1 X remote control

1 X free in-built battery

1 X instruction

1 X keychain
