Universal Garage Door Gate Remote Control Receiver 300 a 868 MHz Receiver AC/DC9-30V Gate Controller Opener Transmitter

When to ship ?

We are the seller with the fastest delivery on the platform. When we receive your order, we will send your package within 12 hours.

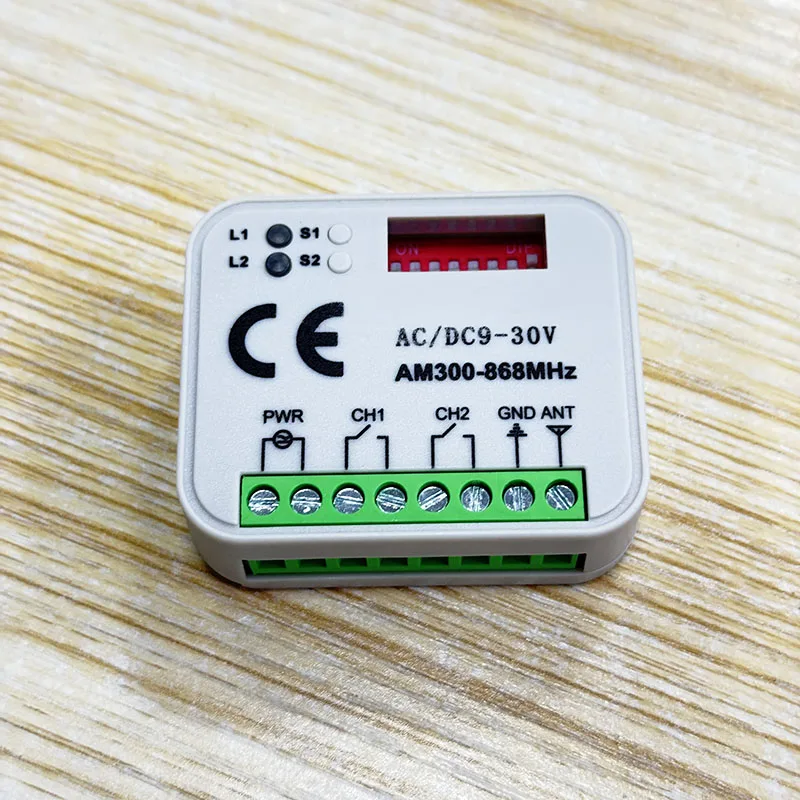

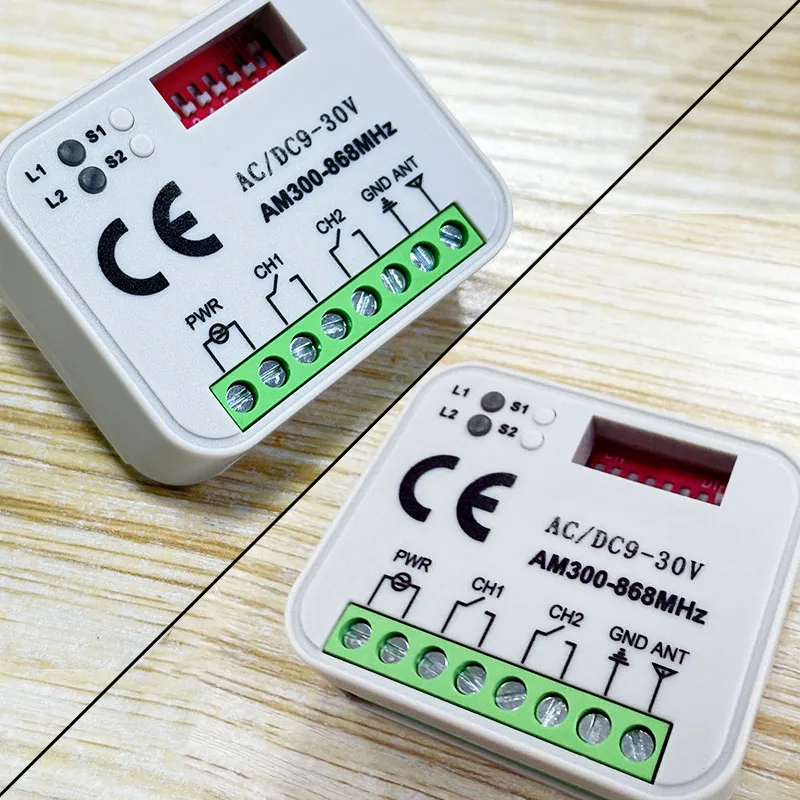

Universal Multi Frequency 300MHz-868MHz Receiver

Specifications

1，Name: YNG201
2，Operating Voltage: AC/DC 9V-30V
3，Channels: 2
4，Frequency: 300MHz - 868MHZ
5，Code: Rolling and Fixed code & Learning code
6，Distance: 50-100 meters.
7，Size: 56mm*46mm*20mm.
8，One receiver can work with 400 codes.
9，It don’t interference other remotes and receivers.
10，Brand selector: With 8 dip switches user can make different combination for different remote brands.
11，Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
12，Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.

Working Frequency : 300MHz-868MHz(Rolling Code & Fixed Code & Learning Code)

300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz
Can identify ALL Fixed Code (2262, 2260, 2264, 5326, M1E, M5E
and so on). All Learning Code (1527, 2240, 6P20B, 6P20D and so on)
Rolling Code (HCS301, HCS300.HCS200, HCS201, HCS100,
HCS101 and so on)

Features

* Receive stronger signal
* One receiver can work 400 codes
* Simple operation, better quality and trustworthy.
* It will not interfere with other remotes and receivers
* Compatible with multiple brands of remote controls

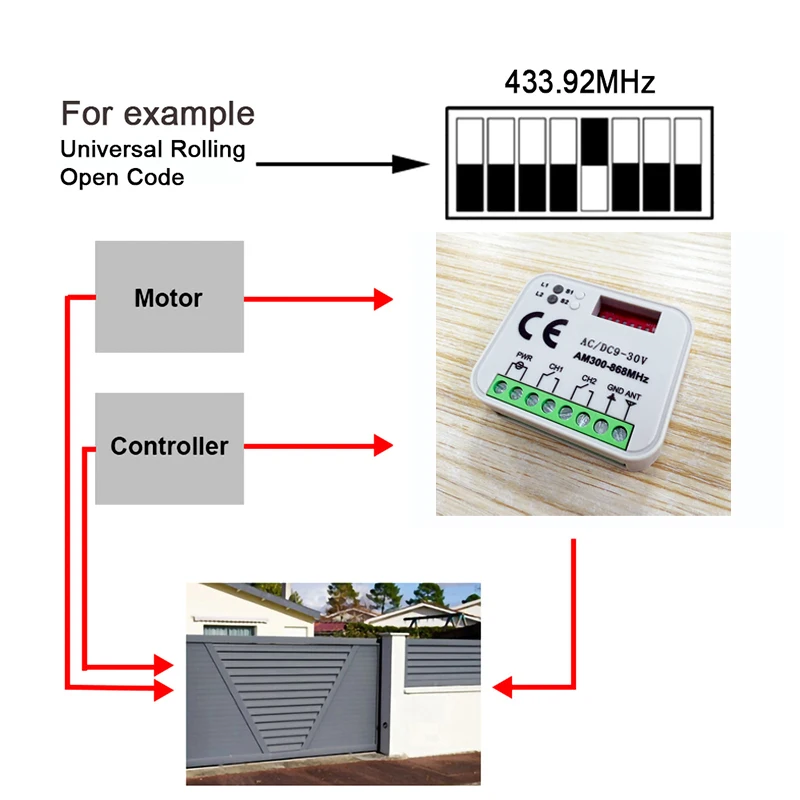

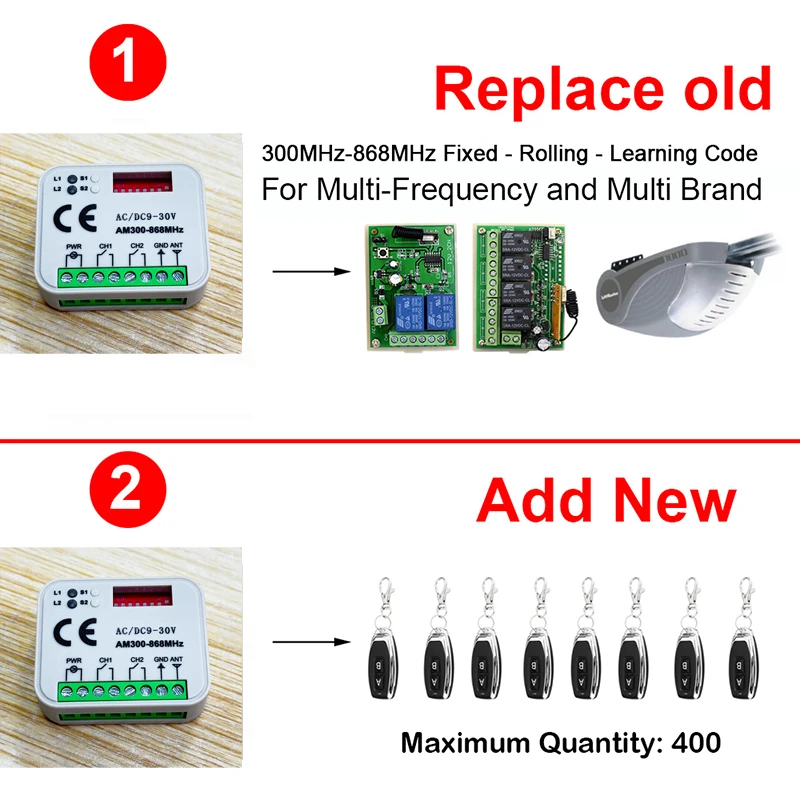

Replacing old garage control systems, or for adding more remotes to control garage doors

Connect your motor or your controller to use

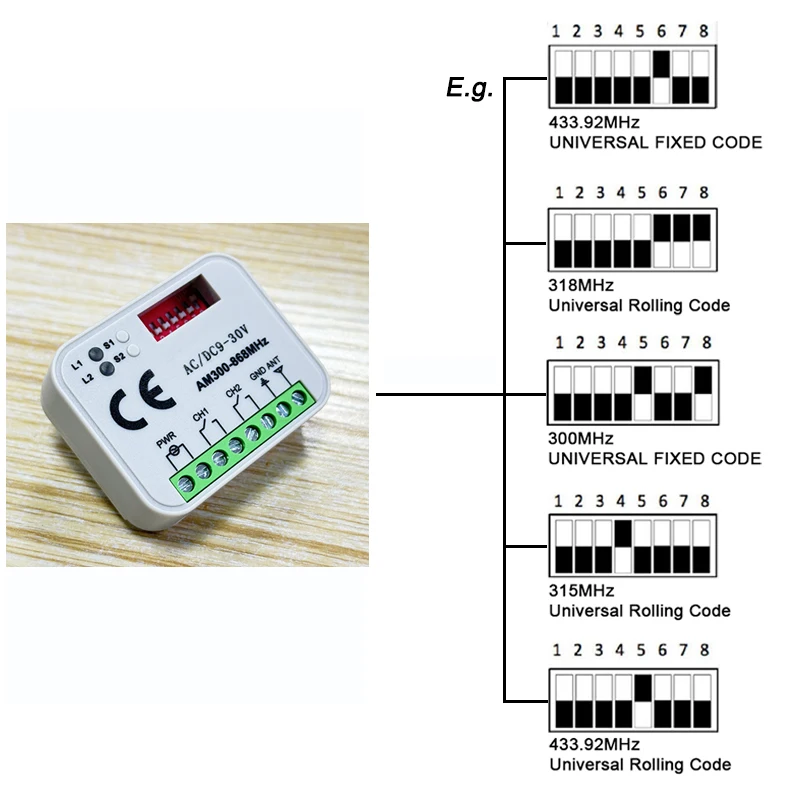

How to dial the code?

You can switch the dial code you need according to your remote control brand and frequency

How to program?

1, Brand selector: With 8 dip switches user can make different combination for different remote brands. 2, Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it is better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2 and 3; shorten 1and 2 if input less than 24V. 3, Programming procedure:
1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For 433,92Mhz Rolling Code remote controls, just move Dip-switch 5 UP. ( Contains manual)
2) Press the learn button. The will LED turn on.
3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.
4) Repeat step 2 for another button. 4. The 2-nd channel programming procedure is the same. 4. Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered

Include

Receiver
Small Antenna
English Manual
