For Appliances Gate,Garage Door External Antenna. for 433.92MHZ Garage Remote 433 MHz Signal Antenna

Specification

1) Material : ABS & Metal

2) Color : Black

3) Frequency : 433.92MHz 433MHz 434.42mhz

4) Mounting: Screw (wall mount)

5) Cable Length (m): 2M

6) Bandwidth (MHz): 10

7) VSWR ≤1.5

8) Gain(dBi): 3

9) Max Input power (W): 20

10) Input Impedance(Ω): 50

11) Polarization: Vertical

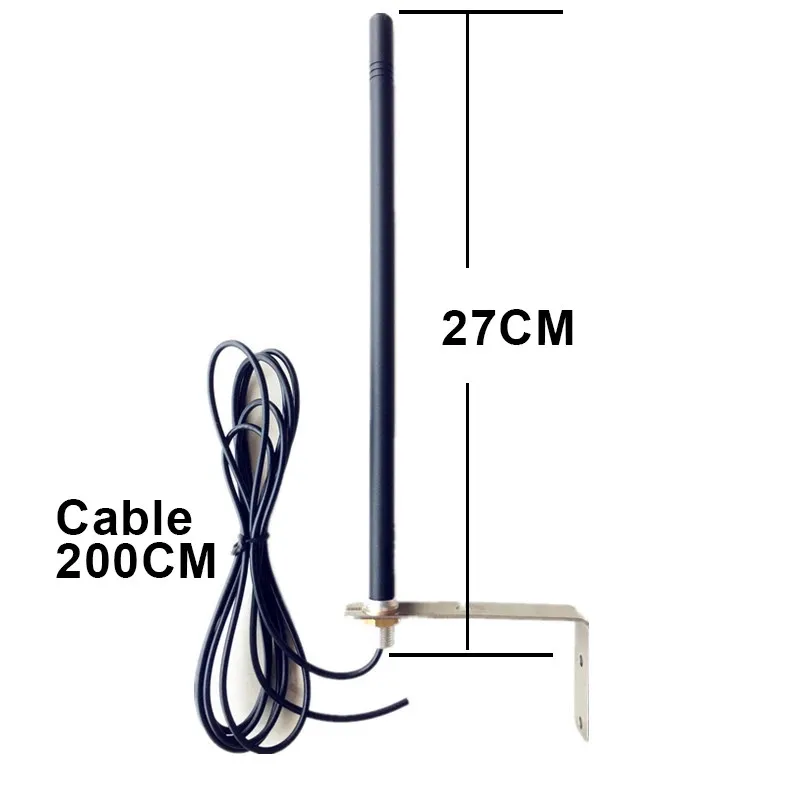

12) Antenna Length (mm): 250

13) Cable Type: RG174

14)Impedence: 50 Ohm

15)Bracket made from stainless steel

Package includes

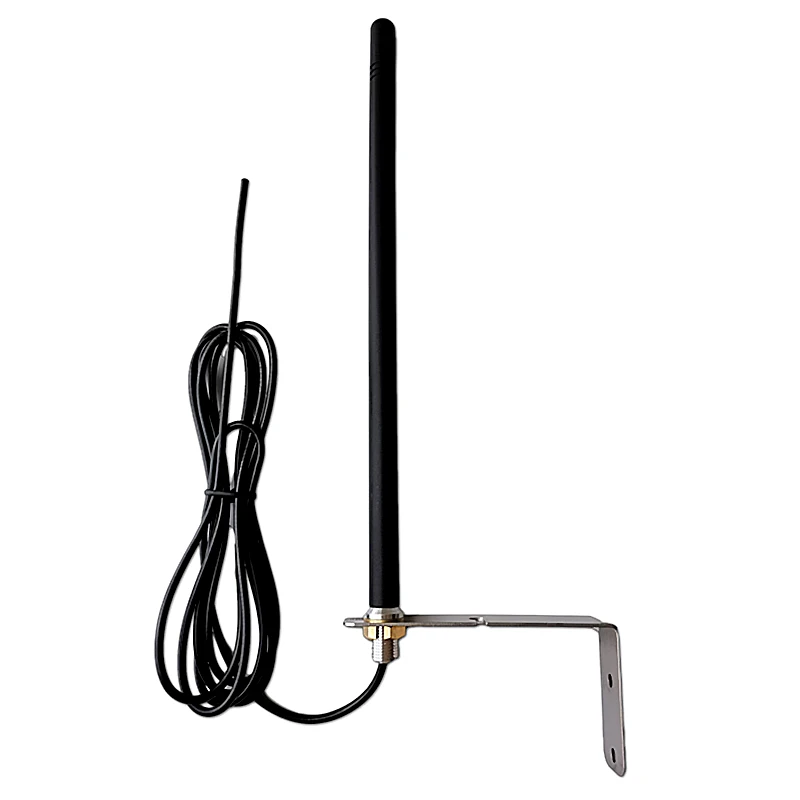

1 x Antenna

1 x Metal wall mounted base

2X fix screw

wide range of uses:

Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters

Electrical appliances/Home automation i.e.lights, Alarm system, access control system

It is applicable to all 433.92mhz remote control extension distance

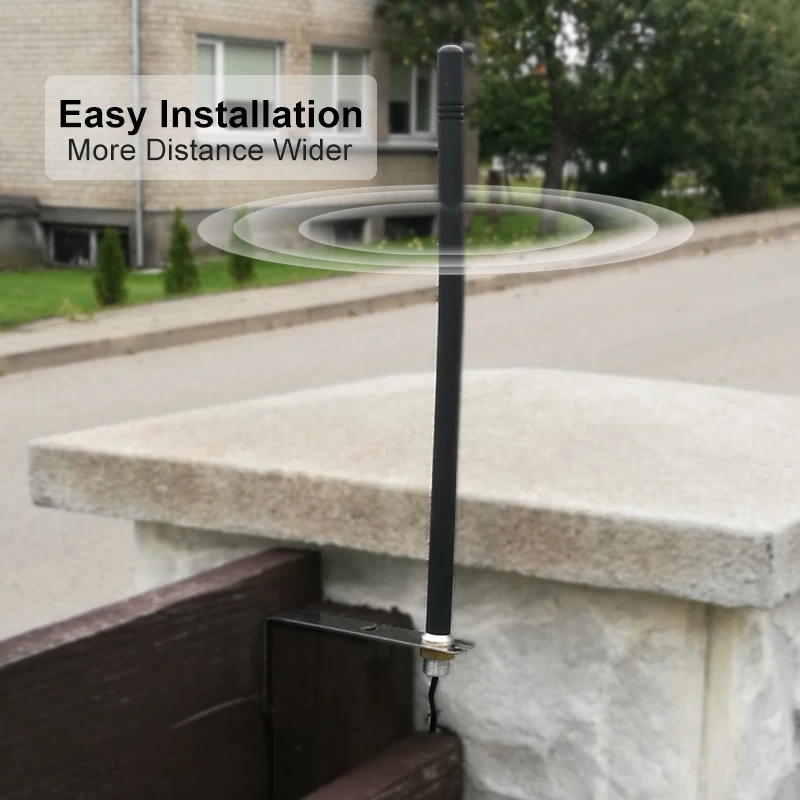

Simple installation

Please open your garage door opener or gate control panel,

Find the antenna interface interface and connect our wire to the antenna interface,

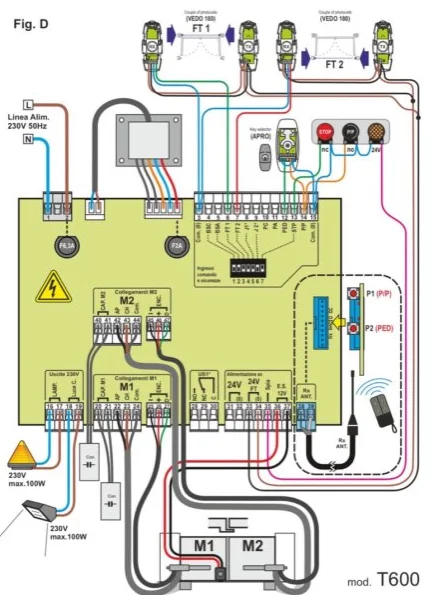

As shown in the figure below, most control panel antenna interfaces will have the ANT flag
