868 MHz Remote Control HSM4 HSM2 HS2 HS4 HSE2 HSE4 HSZ1 HSZ2 HSP4 Garage Door Remote Command Remote Gate Opener

Compatibility Model

hsm2 868 ,hsm4 868,
hs1 868,hs2 868,hs4 868,
hse2 868,hse4 868
hsz1 868,hsz2 868,
hsp4 868,hsp4-c 868,
hsd2-A 868,hsd2-c 868

Features

If you have the original remote control, you can use it to clone your original remote control. After the remote control is cloned successfully, it will work.

If your original remote control is lost, you can use our remote control and your receiver to program it. After the remote control is programmed, it will work.If you need to add more remote controls, you can use other remote controls to directly clone the programmed new remote control.

Specifications:

1. Model : SMG-0149
2. Type : Clone or Programming

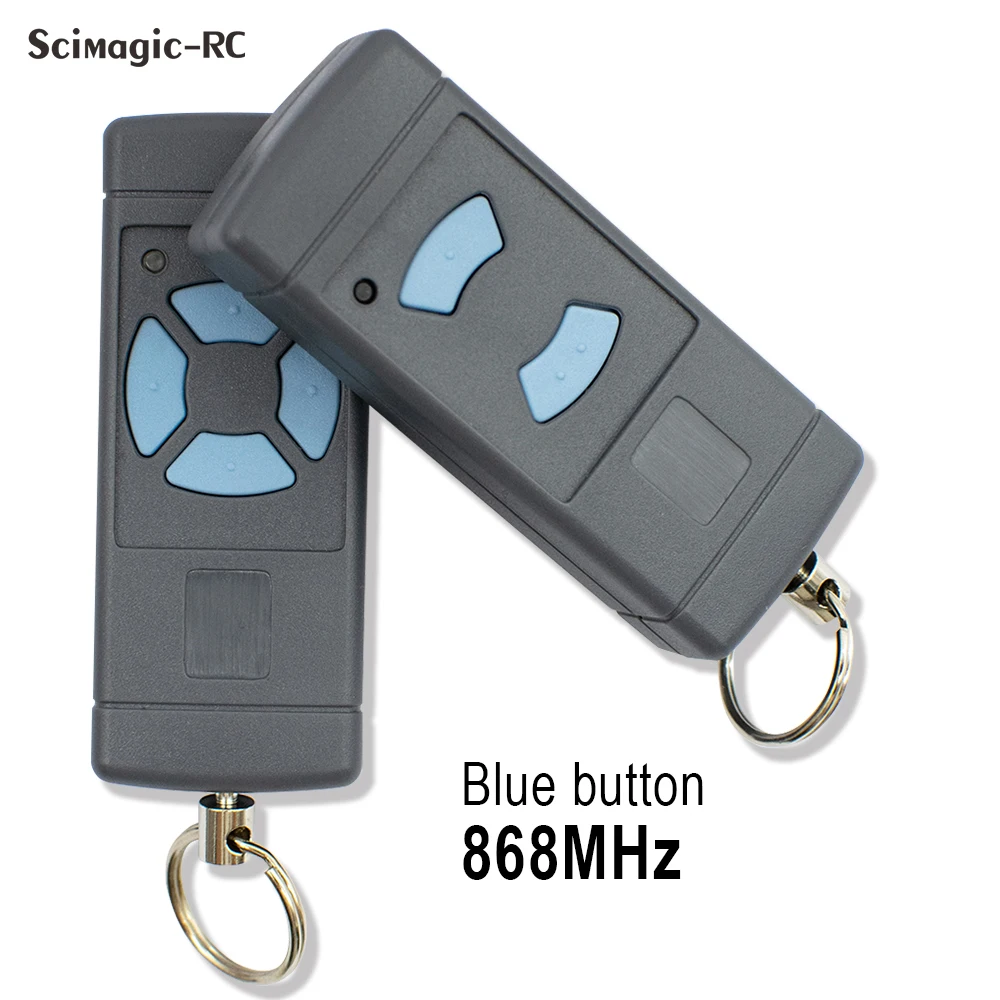

3. Frequency : 868MHz

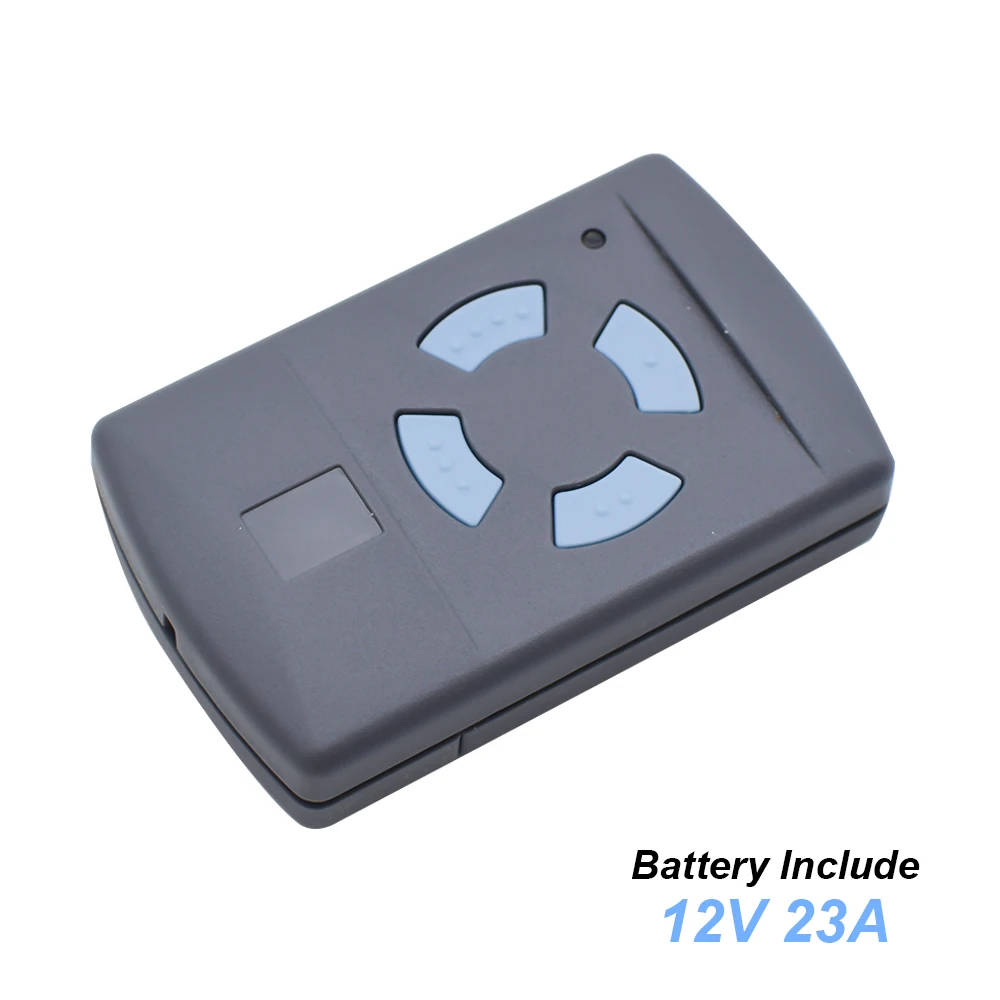

4. Battery : Include Battery
5. Buttons : 4 / 2
6. Distance : 10m-100m(Open Area)

Included

SMG-HORMANN SMG-0130 Included ：
Remote Control
English Manual
Include Battery

SMG-0149/SMG-0150 SMG-2009 Included ：
Remote Control
English Manual
Include Battery
Keychain

How to Clone ？

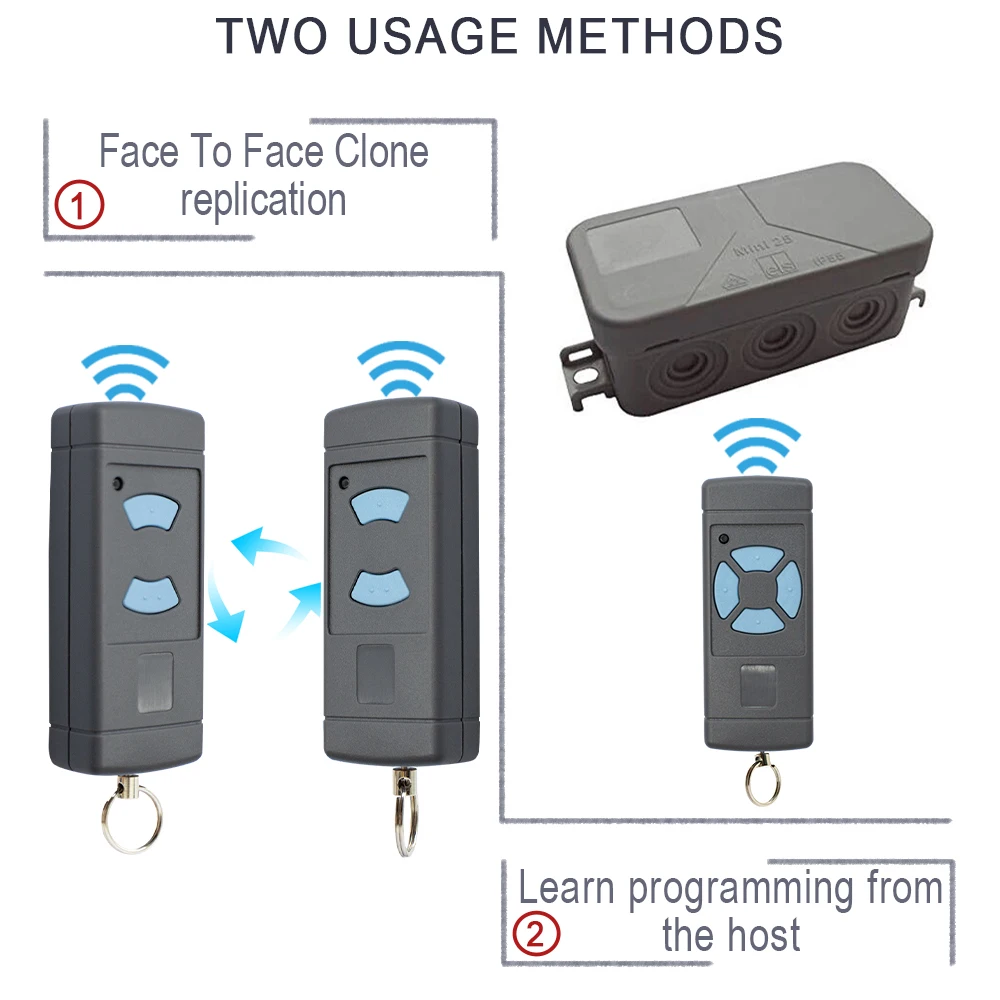

Face to face copy your original remote control

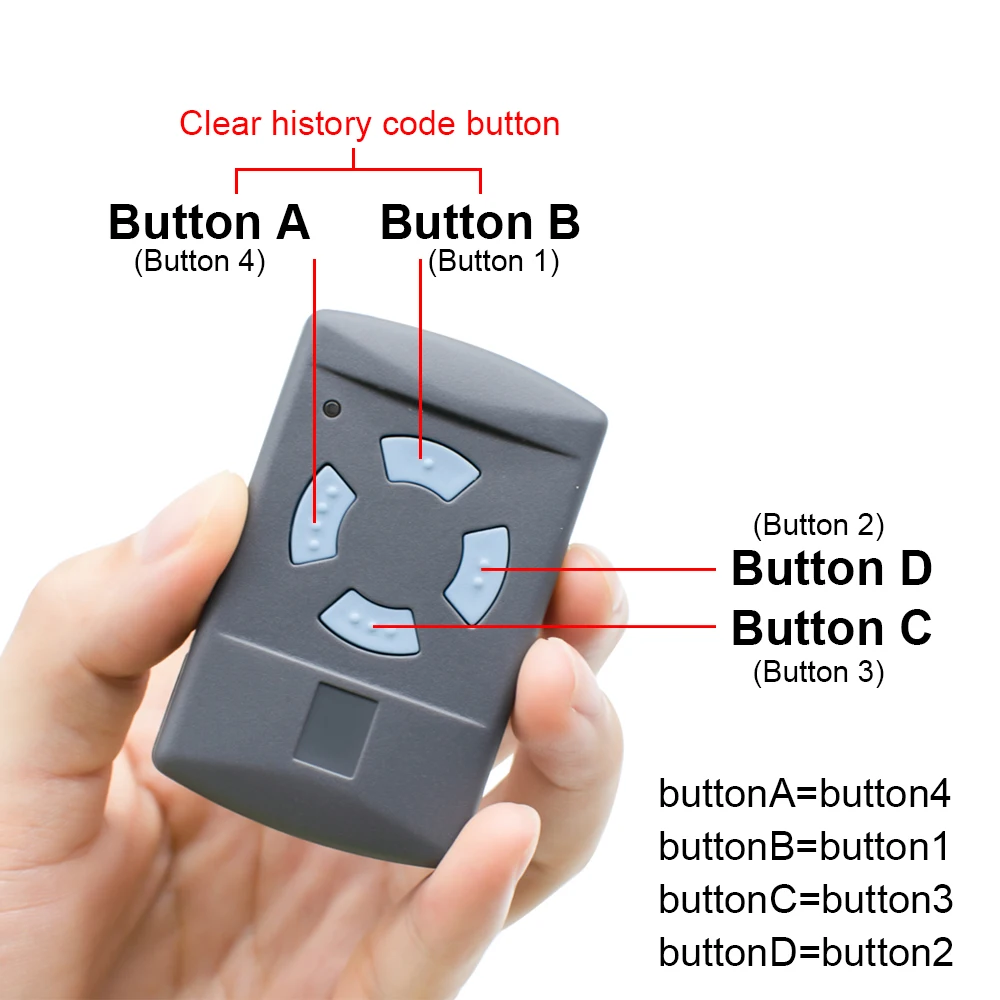

Step:1:Clear the history code from duplicator
1:Press button A and B continuously until LED flash 3 times
2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash
3.Release button A ,finish code clearance.

Step 2,Copy code from original transmitter
1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator is LED flash
3. Release both buttons,finish code copy,copy other button in same way.
