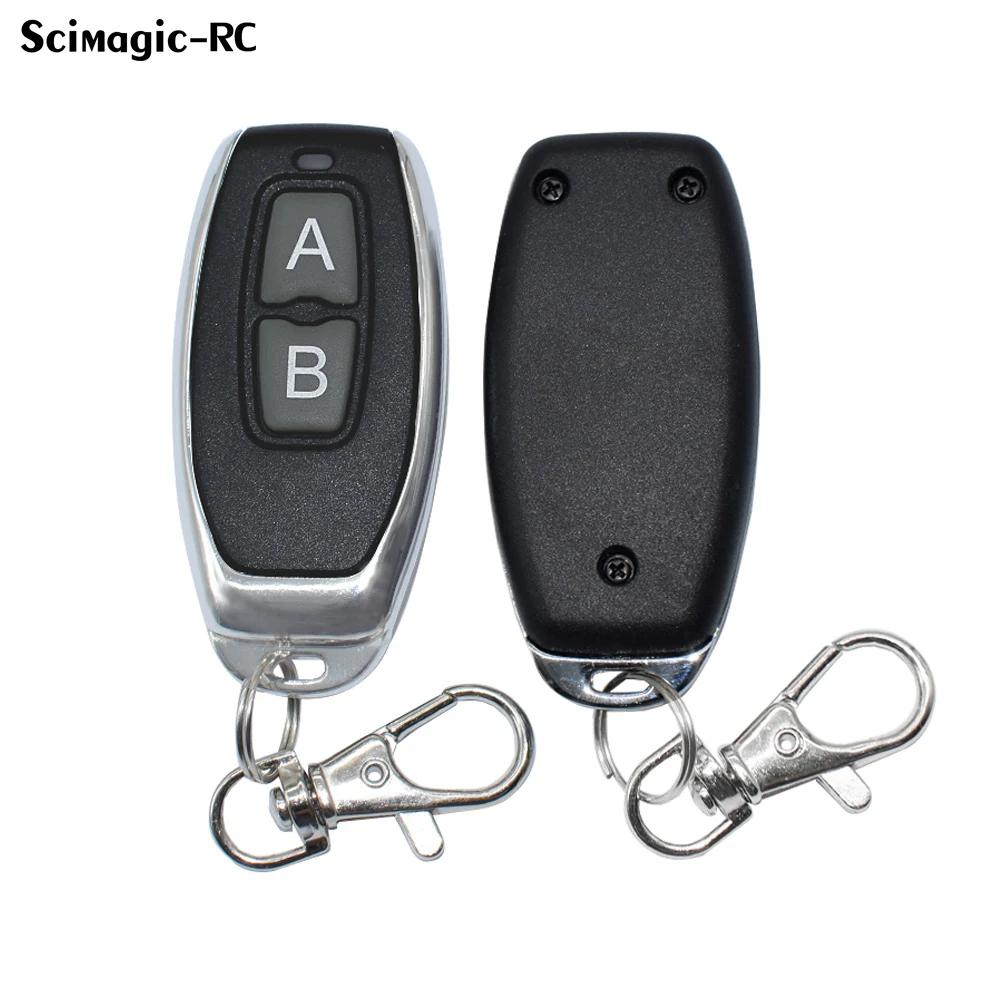

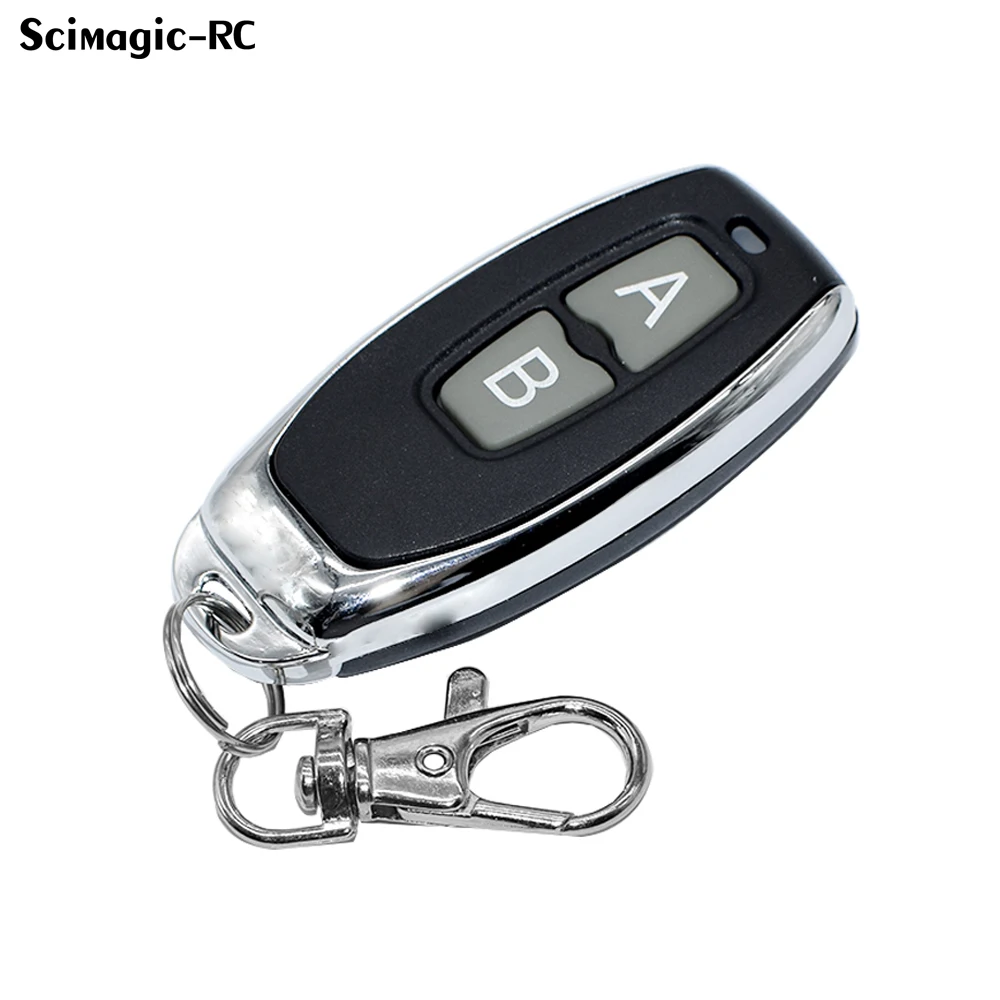

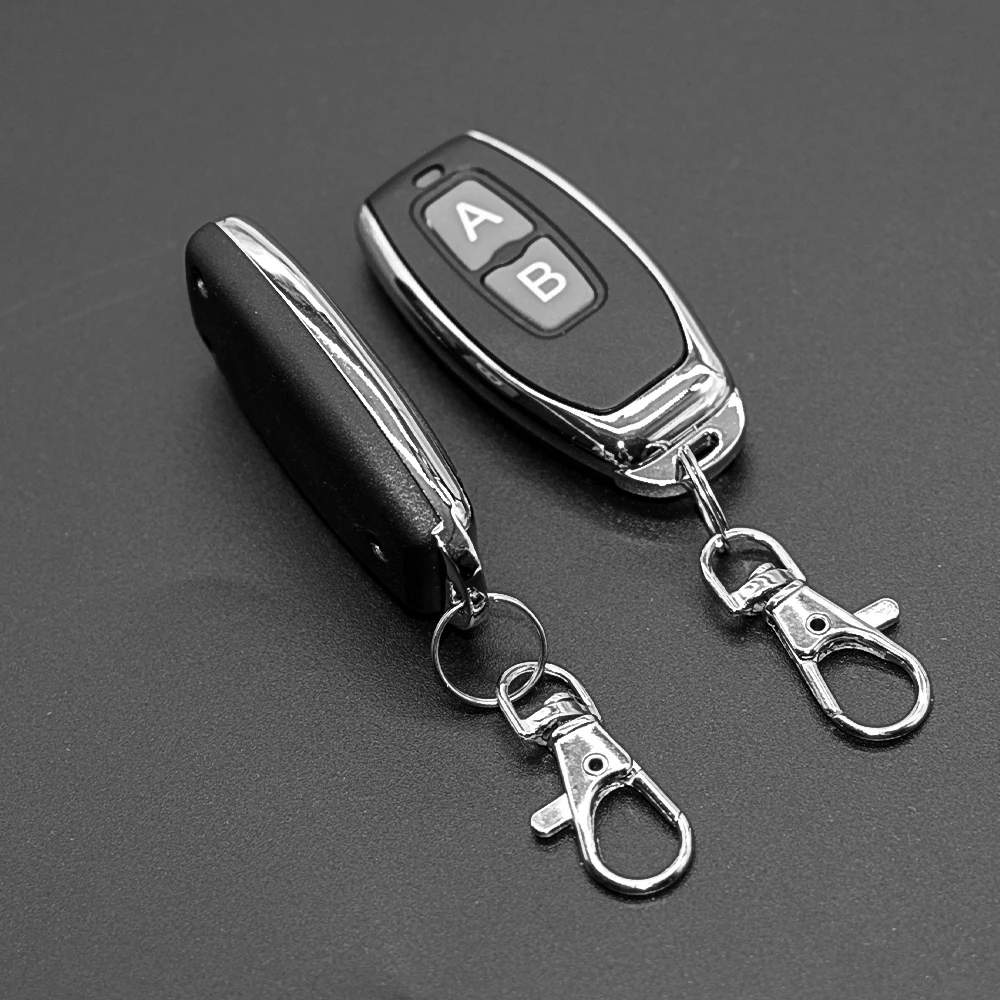

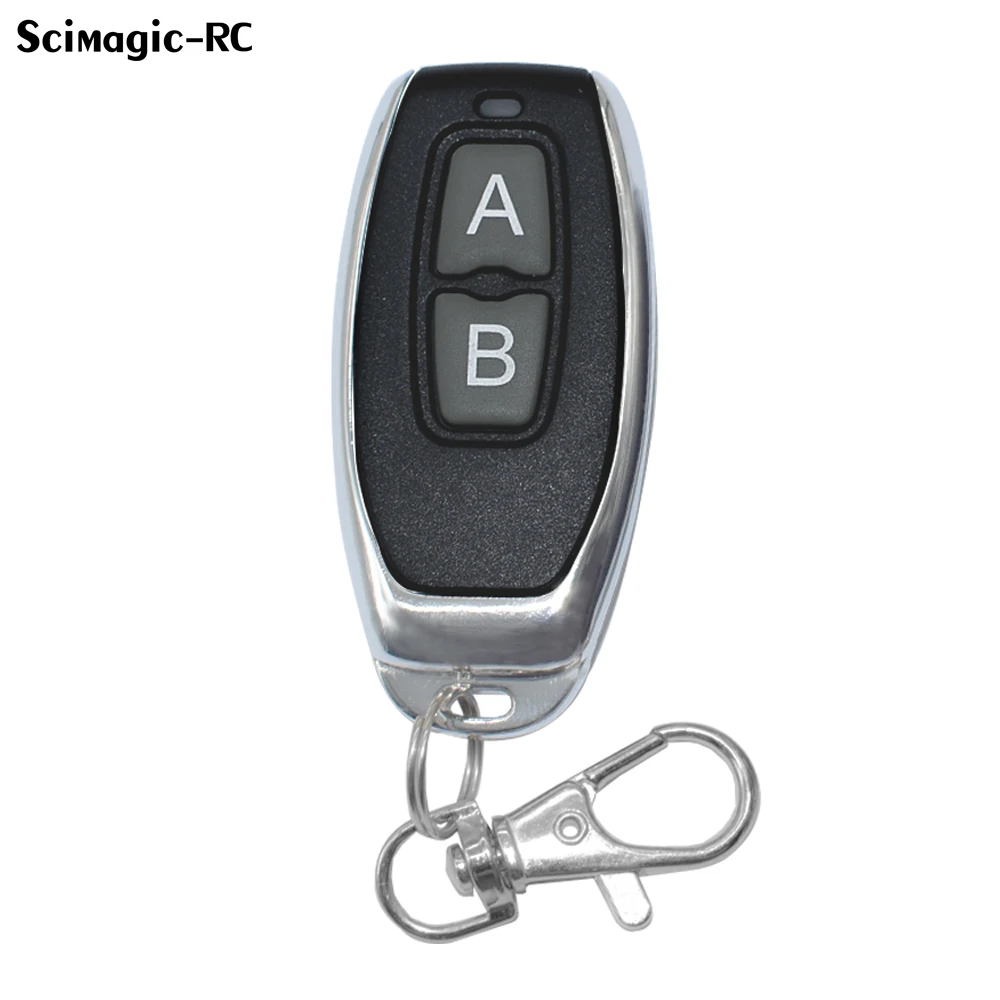

Universal Wireless 433.92Mhz RF Remote Control 433 Mhz Cloning Fixed Code Remote Control 2 Channel For Gate Car Home Garage Door

Description

Material: Metal and Plastic .
Color: As pictures show.
Type: Wireless remote.
Size: 59×28×8mm/2.32×1.10×0.31in (Approx.)
Operating frequency: 433MHz, 433.92MHz
For: Such as electric telescopic door remote control, road gate remote control, alarm remote control and so on.
Rated voltage: 3V Battery(included).
Wireless transmission distance: 10-150 (m). (open space)

Feature

* Suitable for All Fixed code remote control.
* Clone up to 2 remote control signals.
* Latest IC programming procedure preventing accidentally remove code.

Cloning chip types:

2260(PT2260,SC2260,LX2260,HX2260); 2262,(PT2262,SC2262,LX2262,HS2262,HX2262),PT2264,PT2240(LX2240),1527( EV1527,HS1527,HX1527 ),FP527,CS5211,SMC918,SMC926,AX5026,AX5326-3,AX5326-4,HT600,HT680,HT6207,HT6010,HT6012,HT6013,HT6014,HT12D, HT46F49E, PIC16F629,PIC16F630 and so on. Different chip manufacturers have different prefixes chip model, as long as the digital portion of the chip can be the same model.

Note:
This model isn't compatible with rolling code: E.g HCS301, HCS300, HCS101, HCS200\HCS201 etc

1 New = 2 Old

1 remote control can control up to 2 different brands of 433mhz fixed code remote controls.

Universal 433MHz remote control

Suitable for All 433mhz Fixed code remote control.

Duplicate Your Existing Remote Controllers so you always have a backup:

1. Vehicle central locking systems
2. Garage doors
3. Electronic gates
4. Electrical appliances/Home automation i.e. lights
5. Car sunroofs
6. Car/Motorbike alarms

How to Program - it's easy!

Face to face copy your original remote control

Step:1:Clear the history code from duplicator

1:Press button A and B continuously until LED flash 3 times
2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash
3.Release button “A”,finish code clearance.

Step 2,Copy code from original transmitter

1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash
3. Release both buttons,finish code copy,copy other button in same way.
