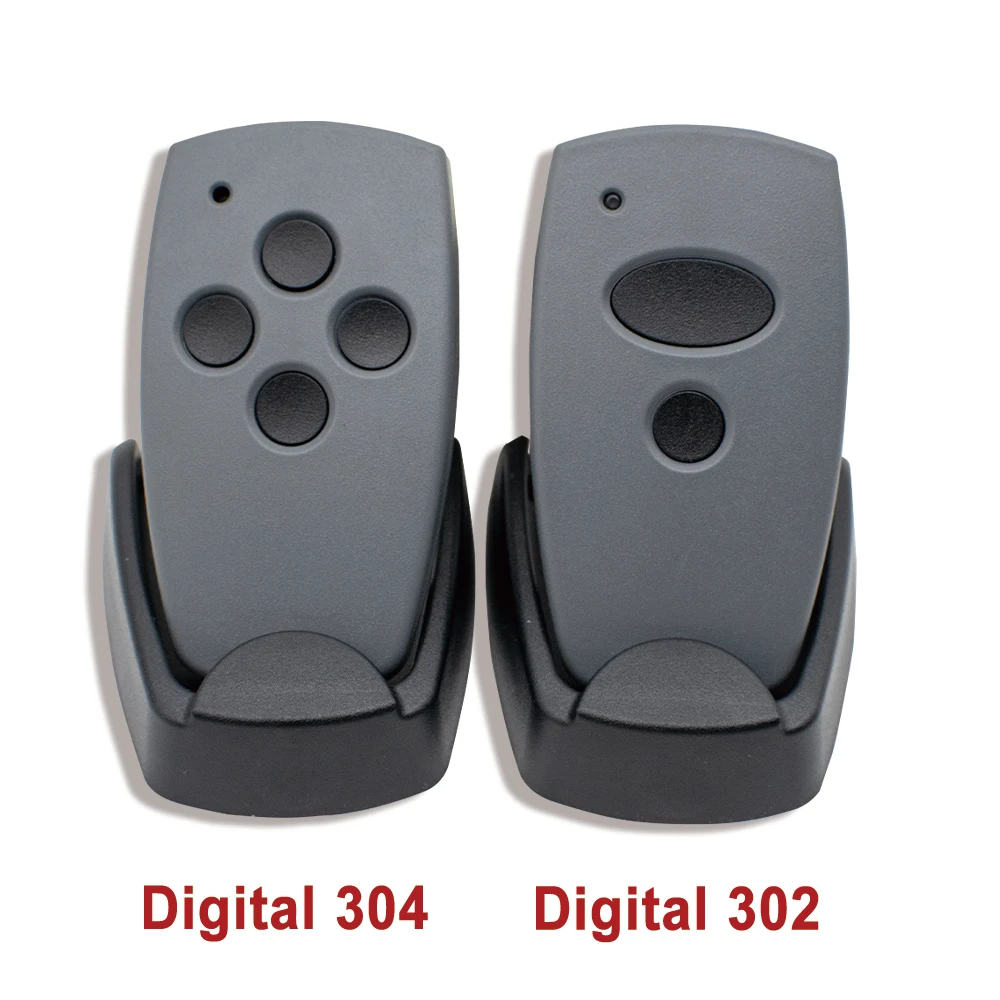

433.92MHz Garage Door Remote Control Compatible With Digital 302 / 304 / 313 / 323 / 321 / 211 / 212 / 222 /221 224 433

Garage Remote Control 433.92MHz

Special reminder:

Please make sure that your remote is on the compatibility list.

D302 D304 433 Description:

Operating Current: ≤ 8mA
Working frequency: 433MHz, 433.95MHz.
Modulation Mode: ASK (AM)
The transmission power: ≤ 100mW
Emission Distance: 50 to 100 m (proof)
The encoding type: self Copy
The working temperature: -20 ° C to +50 ° C

Duplicate Your Existing Remote Controllers so you always have a backup:

1. Vehicle central locking systems
2. Garage doors
3. Electronic gates
4. Electrical appliances/Home automation i.e. lights
5. Car sunroofs
6. Car/Motorbike alarms

How to Program - it's easy!

Face to face copy your original remote control

Step:1:Clear the history code from duplicator

1:Press button A and B continuously until LED flash 3 times
2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash
3.Release button “A”,finish code clearance.

Step 2,Copy code from original transmitter

1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash
3. Release both buttons,finish code copy,copy other button in same way.

Description

Material: Metal and Plastic .
Color: As pictures show.
Type: Wireless remote.
Size: 59×28×8mm/2.32×1.10×0.31in (Approx.)
Operating frequency: 433MHz, 433.92MHz
For: Such as electric telescopic door remote control, road gate remote control, alarm remote control and so on.
Rated voltage: 3V Battery(included).
Wireless transmission distance: 10-150 (m). (open space)
