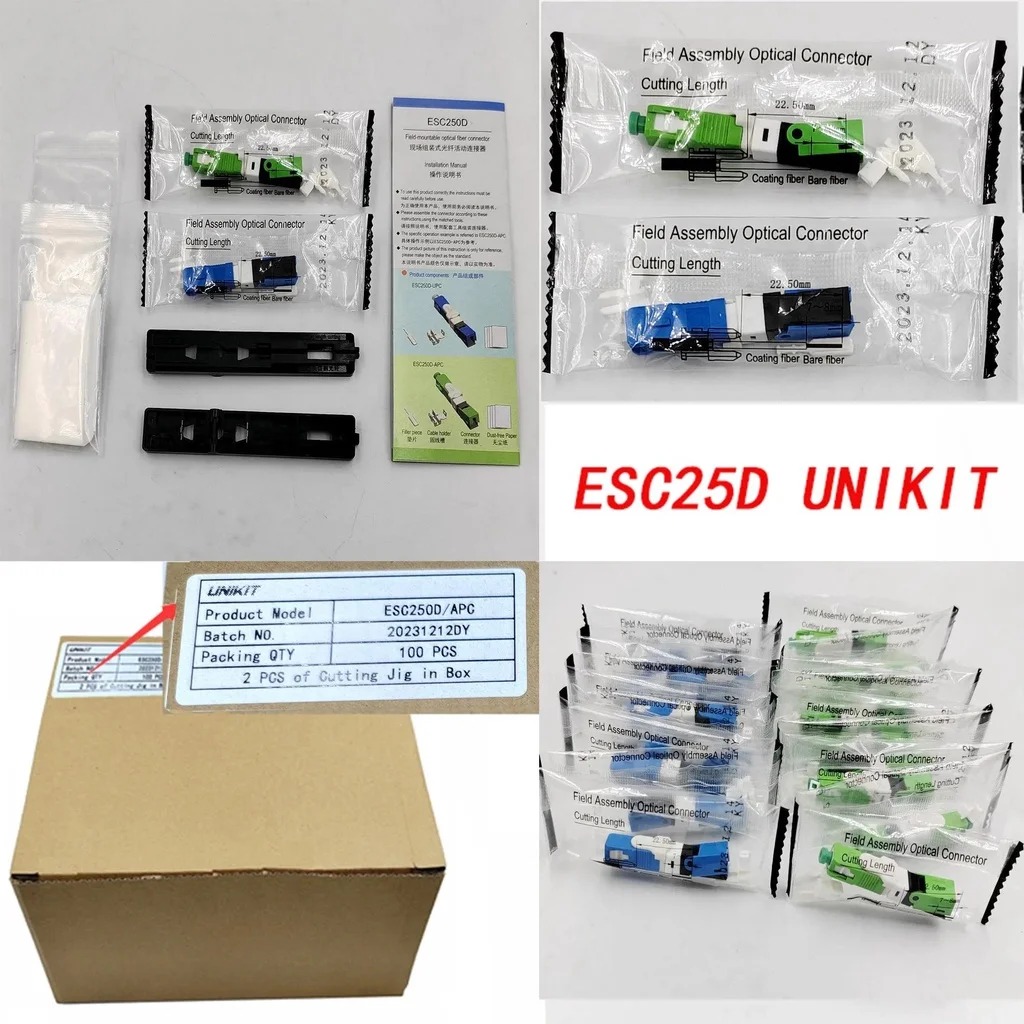

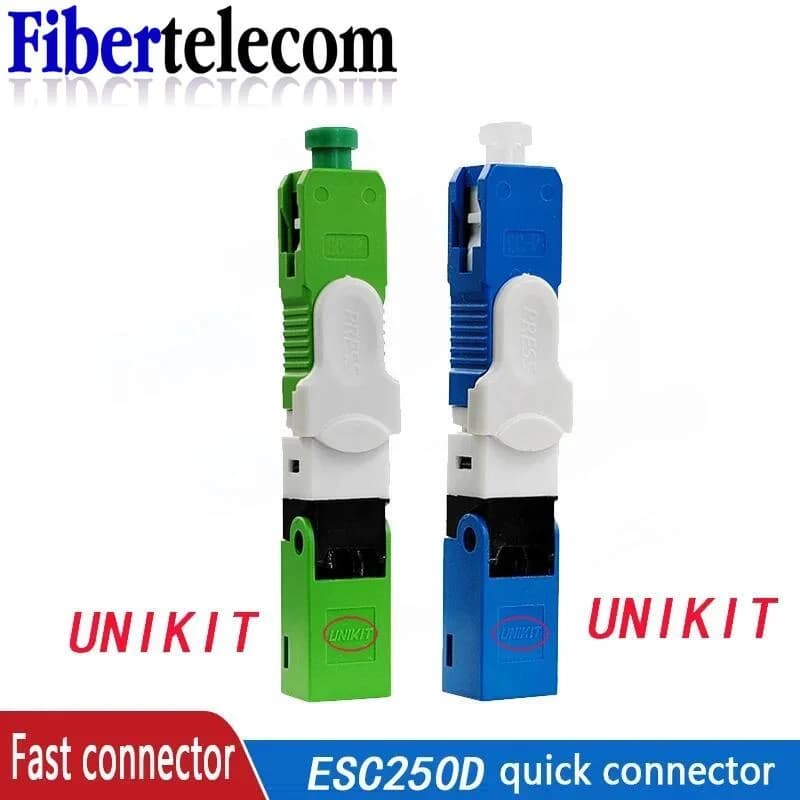

Original UNIKIT Brand ESC250D FTTH SC UPC Optical fibe quick connector SC FTTH Fiber Optic Fast Connector Embedded 100% Original

Field Assembly S C/PC fast connectorfor FTTH can provide a quick and easy termination of fibers in the field. Options are available for 900 micron allowing the installer to terminate and make connection in minutes at equipment and fiber patch panels. This connector system removes any requirement for epoxy, adhesives or costly curing ovens and polishing and fibe ederface inspection.

FEATURES

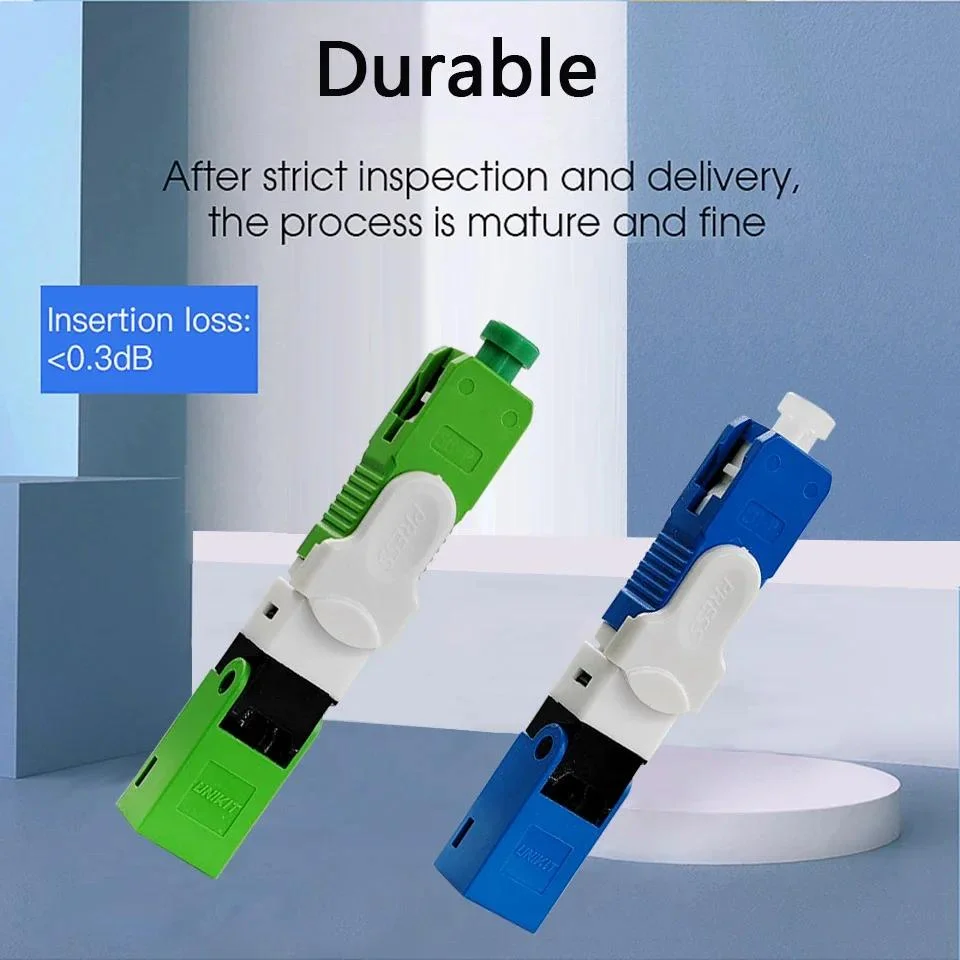

1.Low insertion loss, 0.2dB, 0.3dB, customer optional

2.High return loss, 40dB, 45dB, 50dB, customer optional

3.Reliable, durability over 500 times mating

4.Low environmental sensitivity, adopt to complex environment

5.Application: Datacom telecom measurement equipment single-mode lasers ONU FTTH projects .

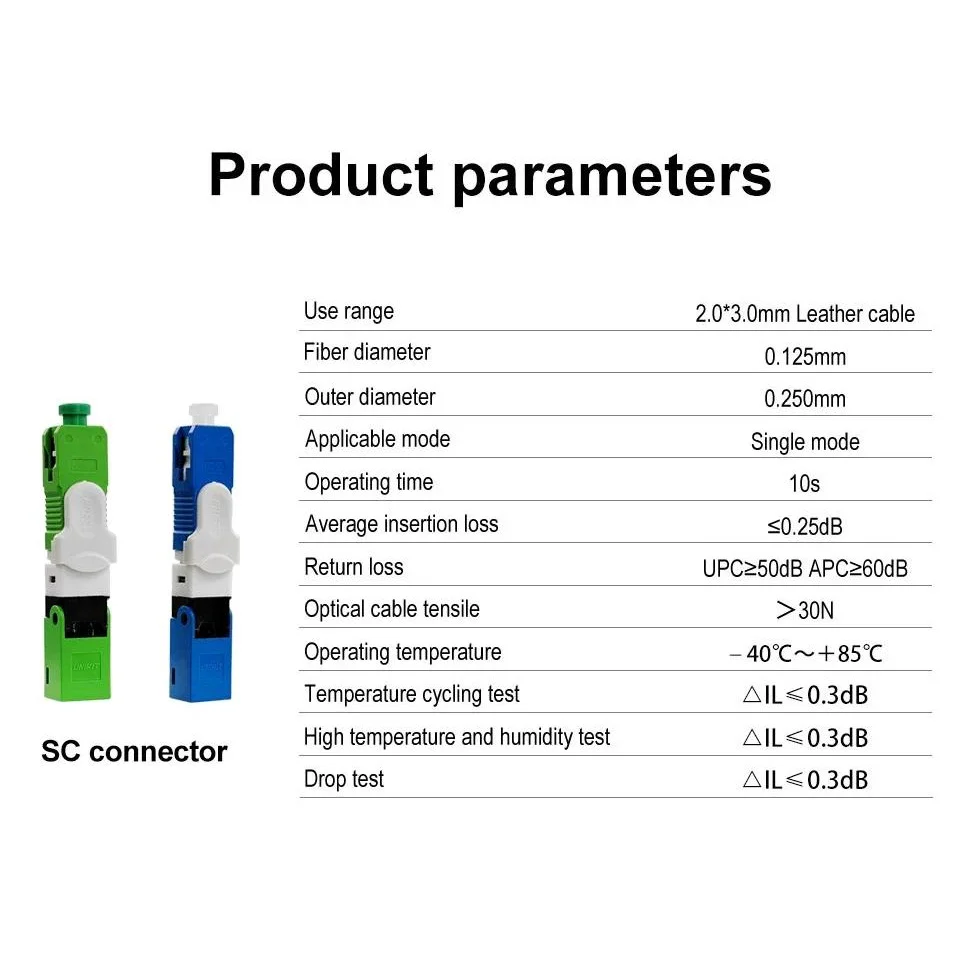

SPECIFICATION

Item

Paramete

Cable Scope

3.0 x 2.0 mm Bow-type Drop Cable

2.0/3.0 indoor cable

Fiber Diameter

125μm ( 652 & 657 )

Coating Diameter

250μm

Mode

SM

Operation Time

about 15s(exclude fiber presetting)

Insertion Loss

≤ 0.3dB

(

1310nm & 1550nm

)

Return Loss

≤ -40dB

Success Rate

>98%

Reusable Times

>10 times

Tighten Strength of Naked Fiber

>5 N

Tensile Strength

>50 N

Teperature

-40~+85℃

On-line Tensile Strength Test (20 N)

IL ≤ 0.3dB

Durabiltiy (500 times mating)

IL ≤ 0.3dB

Drop Test(4m concrete floor, once each direction, three times total)

IL ≤ 0.3dB
