Digital D382 868MHz Garage Remote Control Compatible With D384 D302 D304 D313 D321 D323 868 Gate Keyfob

D382 D384 Garage remote control 868.3MHz

Specifications:

The encoding type: self Copy
Working frequency: 868.3MHz
Operating Current: ≤ 8mA
Modulation Mode: ASK (AM)
The transmission power: ≤ 100mW
Emission Distance: 50 to 100 m (proof)
The working temperature: -20 ° C to +50 ° C

Compatible Model:

Digital D382 868
Digital D384 868
Digital D302 868
Digital D304 868
Digital D313 868
Digital D321 868
Digital D323 868
Command 131 868

How to Program

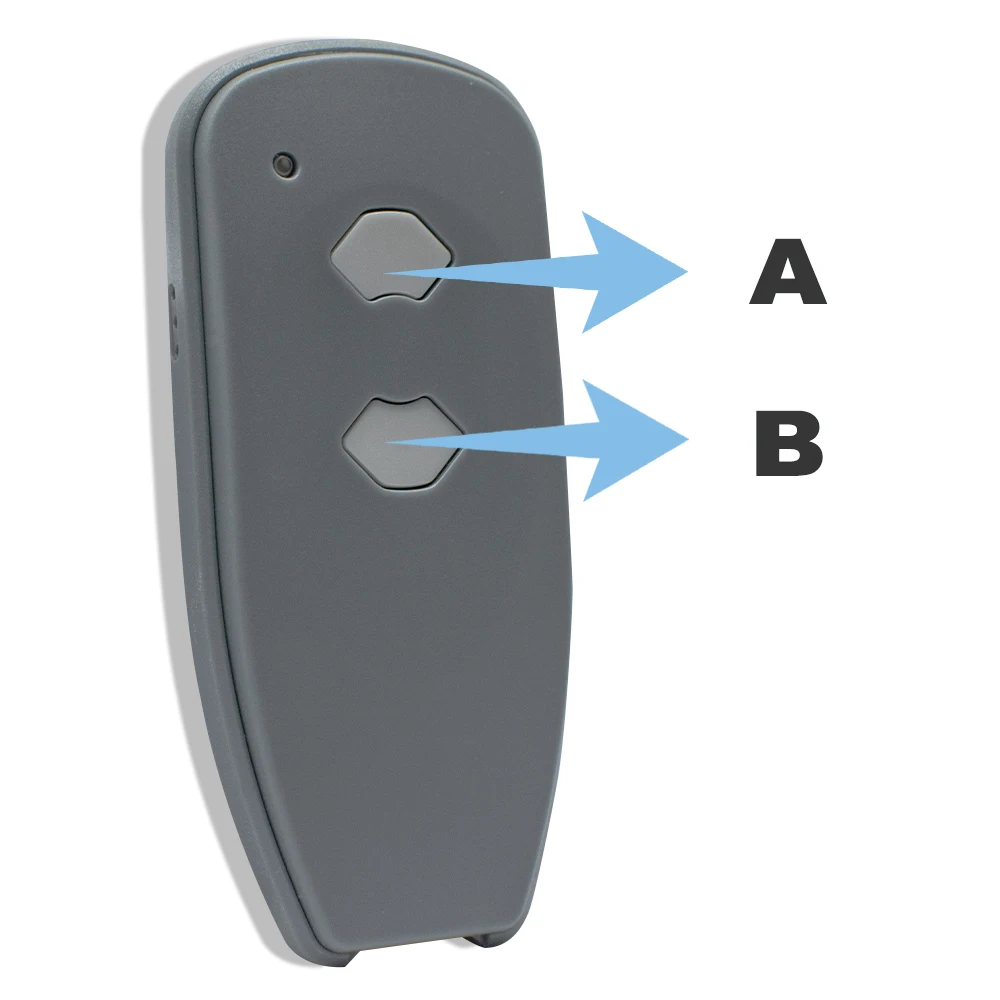

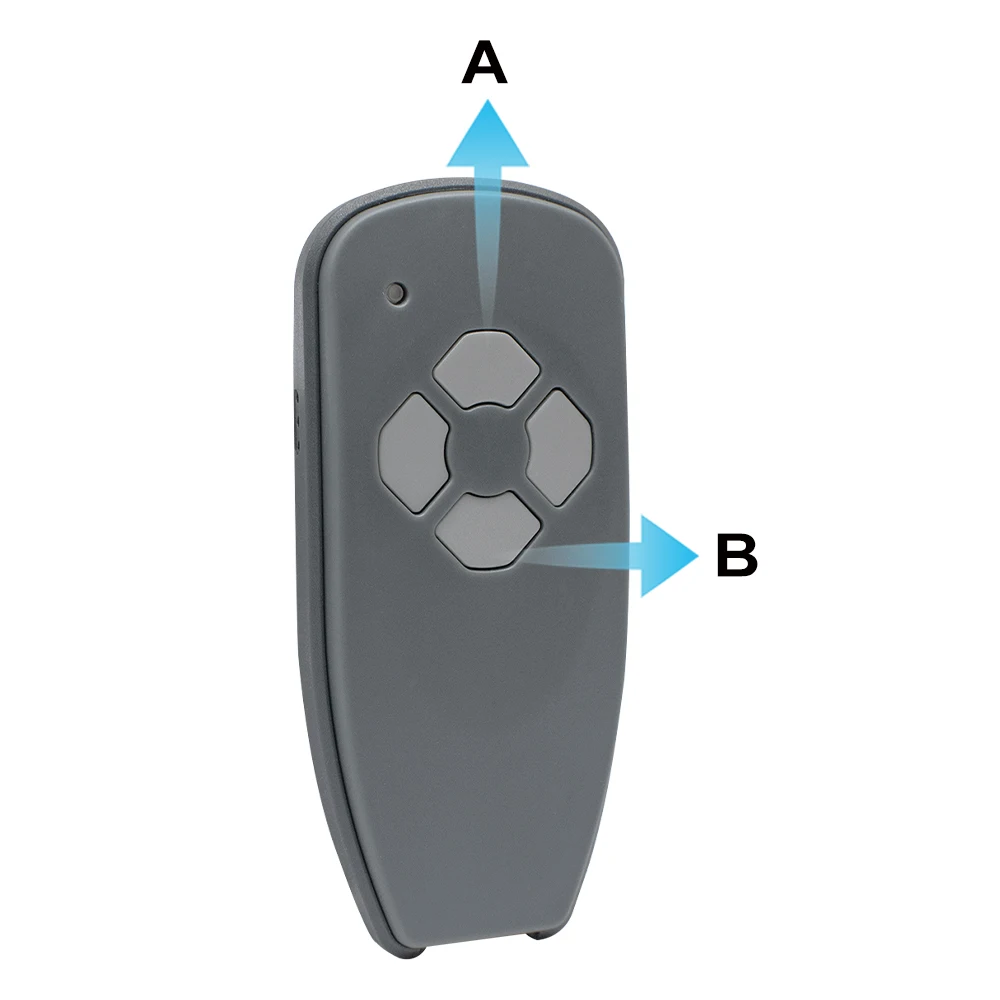

Face to face copy your original remote control

Step:1:Clear the history code from duplicator

1:Press button A and B continuously until LED flash 3 times

2.Release button B (Keep pressing button A),and press button B Slowly for 3 times,LED flash

3.Release button “A”,finish code clearance.


Step 2,Copy code from original transmitter

1. Put duplicator aside of original transmitter,as close as possible.

2. Press and hold button A of original transmitter,then press and hold button A of duplicator until you see the duplicator’s LED flash

3. Release both buttons,finish code copy,
copy other button in same way.

Include:

Remote Control
Battery
English Manual
