JIENUO 4K CCTV AHD 1080p Camera White Dome Security Infrared Night Vision 5MP TVI CVI 2mp Video Home Front Rear View Cam System

The product does not include a power adapter, if you need a power adapter and other accessories, please choose

Why AHD

As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?

Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

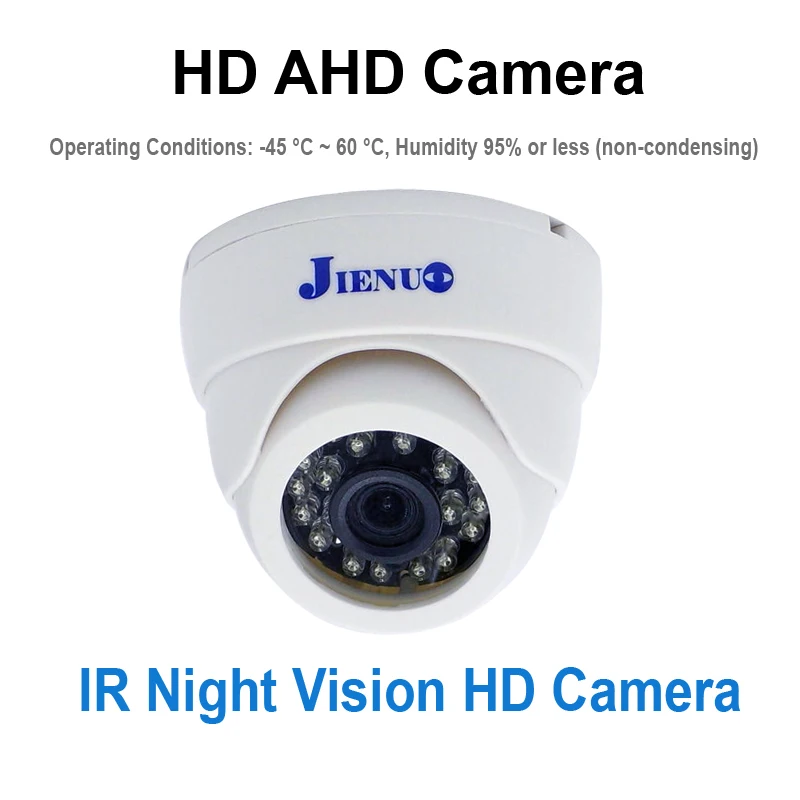

HD AHD Camera

1.HD camera

2.Resolution :720P / 1080P / 5MP /4K

3.24PCS IR LEDS with 30M IR Distance

4. Built in IR-CUT Filter, Day & Night Vision

5. High Quality ABS Plastic Case, Does not support waterproofing

6. Standard lens: HD 3.6mm Lens ( 6mm lens optional).

7.AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.

8. HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters.

10. MUST work with AHD DVR

11. Best choice for project reconstruction.

12. You can upgrade an old analog security system to HD cameras without changing cable routes.

***P.S: Before ordering, please confirm that you have a DVR that supports AHD. Normal DVR does not support AHD cameras.
Video capture card does not support AHD camera, does not support direct connection to TV

When ordering, please confirm the camera system you need, such as PAL or NTSC, which is very important.
Some AHD DVRs support changing the camera format, such as: XM AHD DVR, you can change it in the menu, or contact us

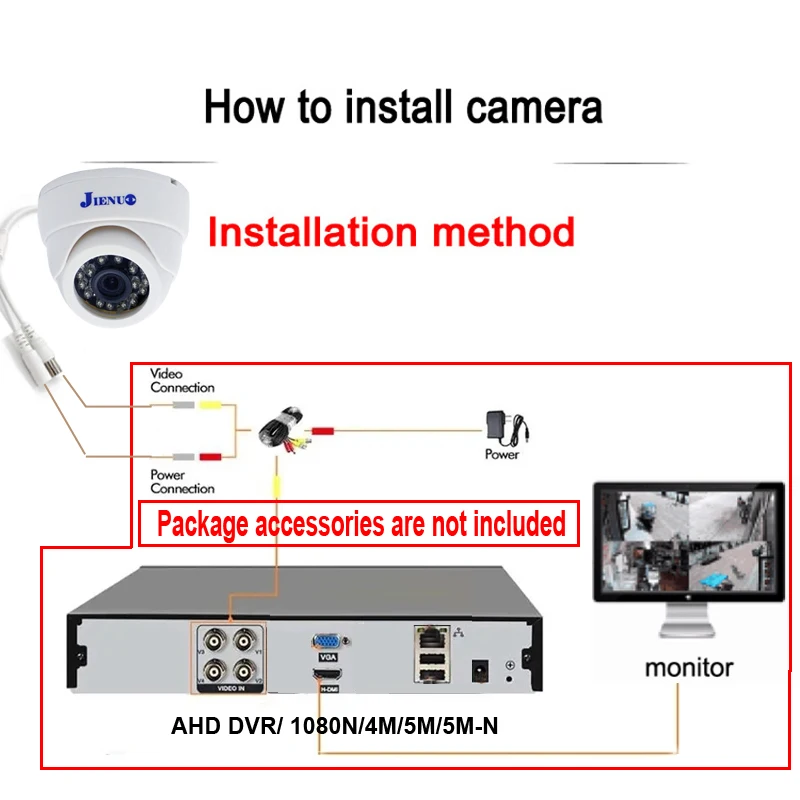

How to install camera

Installation environment and installation method

How to choose

1080P: digital signal, video resolution: 1920*1080, does not support TV connection, does not support analog DVR and monitor connection by default, supports entering Camera menu setting (XVI control entering menu) through AHD DVR, (note) supports connecting to AHD DVR list ( 1080N/1080P/4MP/5M-N/5MP/4K)

5MP: digital signal, video resolution: 2560*1920, does not support TV connection by default, does not support analog DVR and monitor connection by default, supports entering Camera menu settings through AHD DVR (XVI control to enter menu), (note) supports connecting to AHD DVR list ( 5M-N/5MP/4K )

4K HD Camera: Digital signal, 4K effective resolution up to 3840*2160, TV connection is not supported, analog DVR and monitor connection is not supported by default, it is supported to enter the Camera menu setting through AHD DVR (XVI control to enter the menu), (note) support to connect to AHD DVR list ( 4K )

Old DVR connection: CVBS analog signal, 960H, supports TV connection, supports analog DVR connection, Camera does not have any menu settings, supports connection list (TV / Old DVR / 720P/1080N/1080P/4MP/5M-N/5MP/4K)

What is Included

Camera*1

Mounting screws*1
