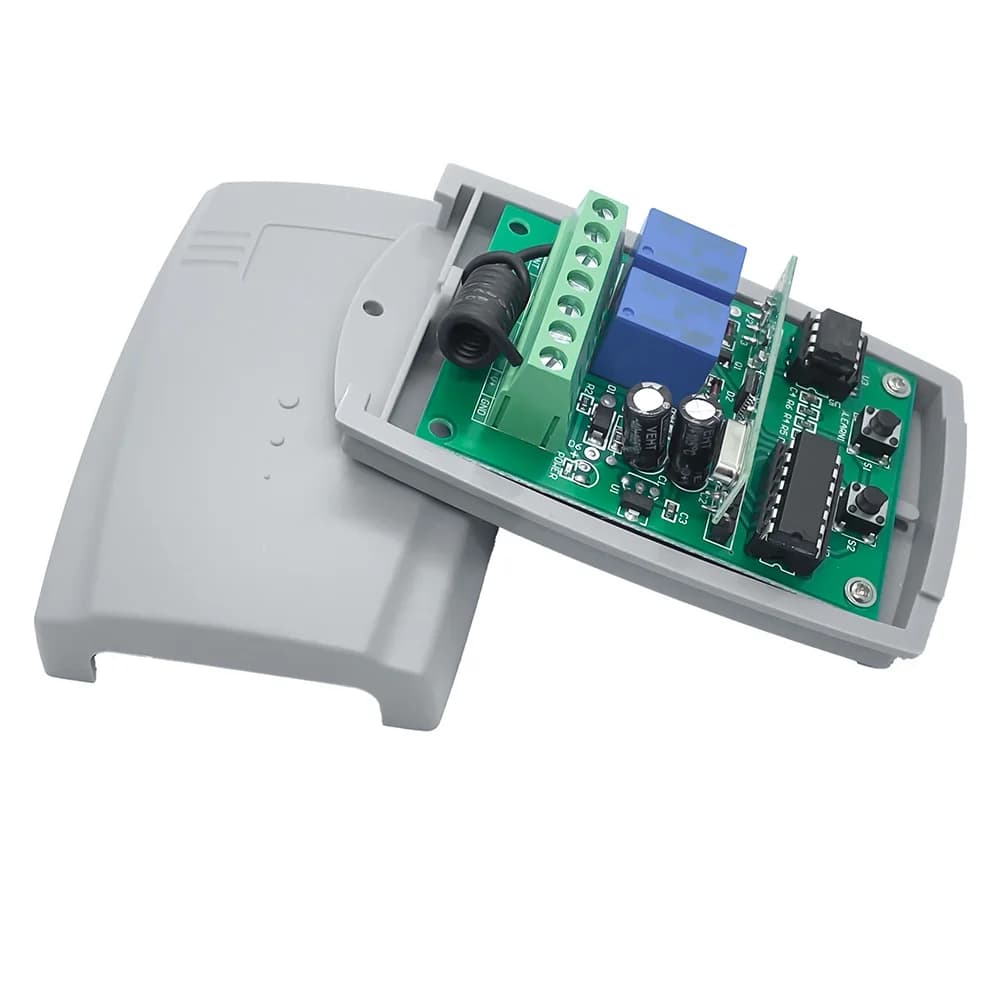

2CH Receiver Door Universal Receiver Remote Control, NOVOFERM DITEC MHOUSE AT-4, DITEC 433MHz Fixed Roll Code

Specifications:

Garage Door Gate Receiver For 99% of the 433mhz remote control in the market

1. Power supply：DC 9V-24V
2. Frequency：433.92MHz 433MHz
3. Codes：Fixed / Learning / Rolling Code
4. Channels：2 Channel
5. Working temperature：-40℃- + 80℃
6.Built in Aerial antenna：Reception range 30-100m
7.Controlcapacity：200

Products advantage:

1) Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

2) Can learn and use most Original 433,92Mhz Fixed and Rolling code remote controls !!! ( Such as : ACM, ERREKA,Ditec,CAME, MHOUSE PUJOL, GIBIDI, DOORHAN, ATA PTX4, MARANTEC etc)

3) 2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

4) 1 relay can store 50 pcs remote control, the receiver can store 100 pcs remote contro

Wide range of uses:

Garage doors, Electronic gates, Barrier gates, sliding doors, automatic doors, rolling doors, shutters
Electrical appliances/Home automation i.e. lights, Alarm system, access control system

Sometimes you need more remote controls for your gate, alarm, fire alarm or any other system. To buy a few additional original remotes for your gate and alarm system is quite expensive.
So this is the best and much cheaper solution for you!!!

How to connect

How to program

Momentary working model:
1. Learning transmitter’s codes:
Press “learn 1” or “learn 2” for 1 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.
• Repeat the above steps for other transmitters.
2. Erasing transmitter’s codes:
Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out,
Learn 1 to delete channel 1
Learn 2 to delete channel 2
