JIENUO AHD Camera Full Color Night Vision CCTV Security Surveillance 1080P Outdoor Waterproof Analog Digital Video 2mp Home Cam

The product does not include a power adapter, if you need a power adapter and other accessories, please choose

Why AHD

As the industry moves from standard definition to high definition, how can we ensure the whole surveillance system not only satisfies the resolution requirement, but also the total cost?

Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

HD AHD Camera

1.HD camera

2.Resolution :1080P

3.4PCS White light with 30M Distance

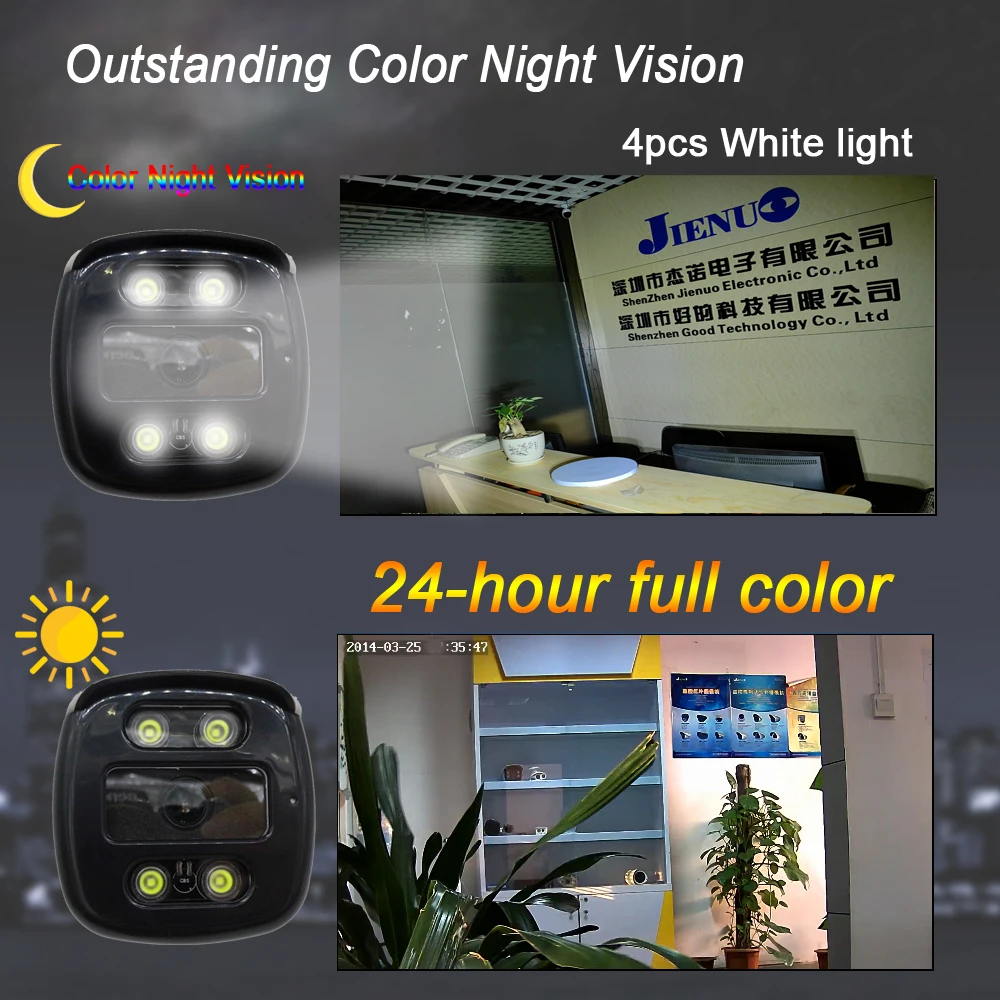

4. 24-hour full color night vision

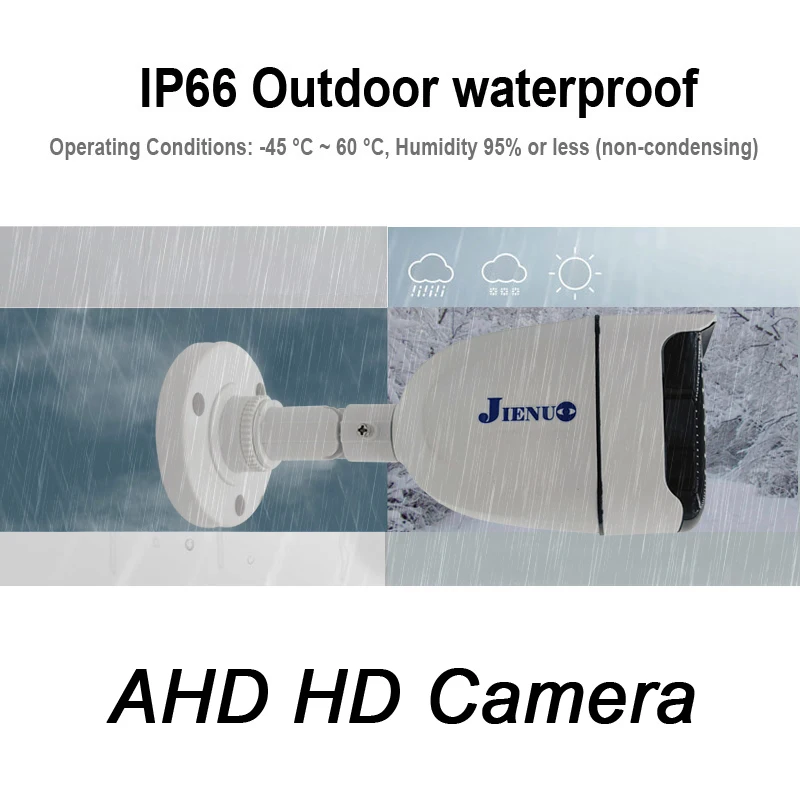

5. High Quality ABS Plastic Case, Used Indoor/Outdoor, Waterproof IP66

6. Standard lens: HD 3.6mm Lens ( 2.8mm/6mm/8mm lens optional).

7.AHD (Analog High Definition), a new video format for enhanced CVBS (COMET*) & HD video transmission.

8. HD AHD camera is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

9. Usually use Coaxial-Cable, SYV-75-5 cable can transfer video over 500meters.

10. MUST work with AHD DVR

11. Best choice for project reconstruction.

12. You can upgrade an old analog security system to HD cameras without changing cable routes.


*** Note :
If you need to connect your old DVR (analog signal input), please select: Old DVR connection when ordering
If you need to connect a TV/monitor (analog signal input), please select: TV connection when ordering

1080P: Resolution 1920*1080
TV connection: 960H
Old DVR connection:960H

Super Video Technology presents Analog High Definition(AHD) technology to the market. AHD is an over-coaxial-cable analog HD video transmission standard, allowing long-distance HD transmission at a lower cost to meet the requirements for a complex and large installation.

P. S: Camera does not support any mobile app connections. No network features available

The product only has full color night vision with white light and does not support infrared video.

Ordering instructions:

Full Color Camera: 24-hour color camera, must be connected to AHD DVR, does not support TV connection, does not support Old DVR connection

Old DVR connection: 24-hour color camera, supporting connection to Old DVR

TV connection: 24 hour color camera, supporting TV connection

Supports 24-hour full color

Camera automatically activates white light when there is no light at night, and the video will also be in color video mode

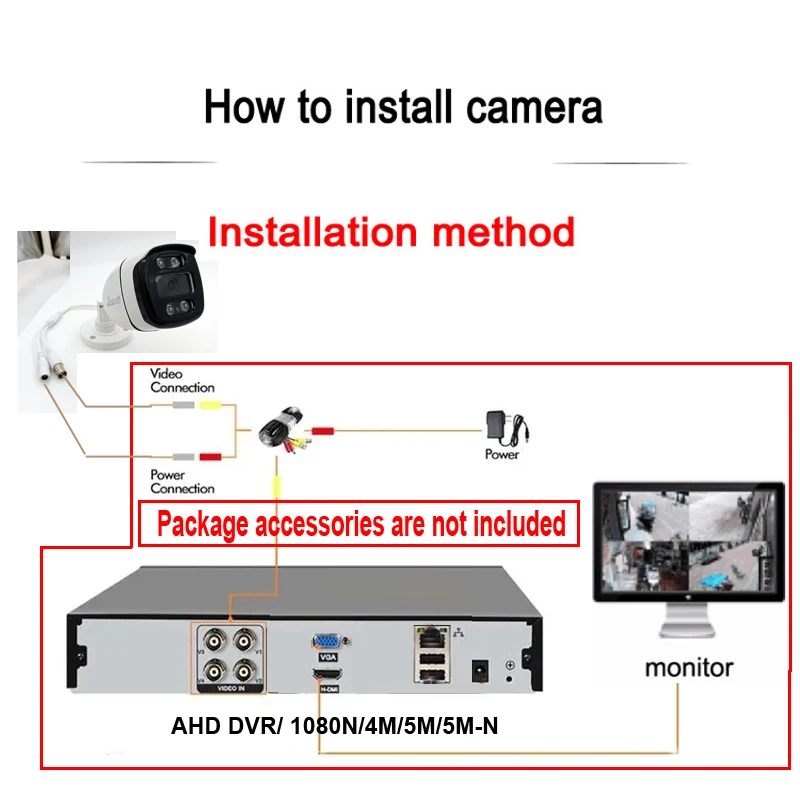

How to install camera

Installation environment and installation method

How to choose

1080P: digital signal, video resolution: 1920*1080, does not support TV connection, does not support analog DVR and monitor connection by default, supports entering Camera menu setting (XVI control entering menu) through AHD DVR, (note) supports connecting to AHD DVR list ( 1080N/1080P/4MP/5M-N/5MP/4K)

TV connection: CVBS analog signal, 960H, supports TV connection, supports analog DVR connection, Camera does not have any menu settings, supports connection list (TV / Old DVR / 720P/1080N/1080P/4MP/5M-N/5MP/4K)

Old DVR connection: CVBS analog signal, 960H, supports TV connection, supports analog DVR connection, Camera does not have any menu settings, supports connection list (TV / Old DVR / 720P/1080N/1080P/4MP/5M-N/5MP/4K)

What is Included

Camera*1

Mounting screws*1
