IP55 Automated Gate Safe Infrared Detector Sensor/ Swing /Sliding/Garage Gate / Door Safety Infrared Photocells DOORHAN DITEC

Infrared Photocells Alarm Detector Sensor Anti-rain Automated Gate Safe Infrared Detector Sensitive Infrared Beam Gate Opener

Features:

1.Single Beam Infrared Sensor with high levels of anti-RFI / EMI capability.

2.Sealed design to anti-rain(fog), dust(worms) and other integrated weather, the detector sensitivity will increase automatically(AGC circuit).

3.High-powe-r transmitter, sensitivity surplus degree up to 90%.

4.High-powe-r infrared receiver tube, low-powe-r process technology.

5.Adjustable of beam interdiction period, to make it more flexible and adaptable.

6.When interrupt, the relay output switch signal without voltage.

7.Professional anti-jamming optical housing.

Specifications:

Power Supply: DC/AC 12 to 24V

Work current : 50MA

temperature : 50~ (-30)

Water Proof, UV proof

Size : 49.2 x 76 x 21.6MM

Detector Area: indoor 20m. Outdoor 10m

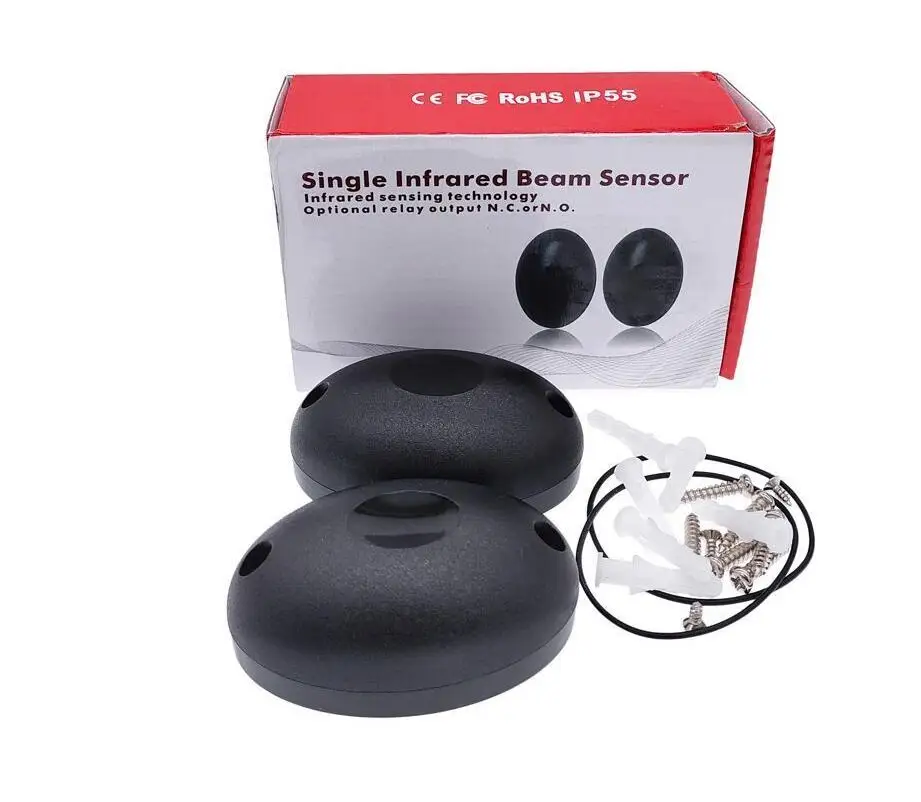

Package Included:

1 x Single Beam Infrared Sensor Transmitter;

1 x Single Beam Infrared Sensor Receiver;

1 Bag Install Accessories;

1 x English Usage Manual.
