Clone TOP 432EE 432EV 432NA 434EE 434EV 434NA 432 434 EE EV NA Garage Door Remote Control Duplicator 433.92MHz Fixed Code

Specifications:

Working voltage: DC12V (27A battery a including)

Operating Current: ≤ 8mA

Working frequency: 433.92MHz

Modulation Mode: ASK (AM)

The transmission power: ≤ 100mW

Emission Distance: 50 to 100 m (proof)

The encoding type: self Copy

The working temperature: -10 ° C to +50 ° C

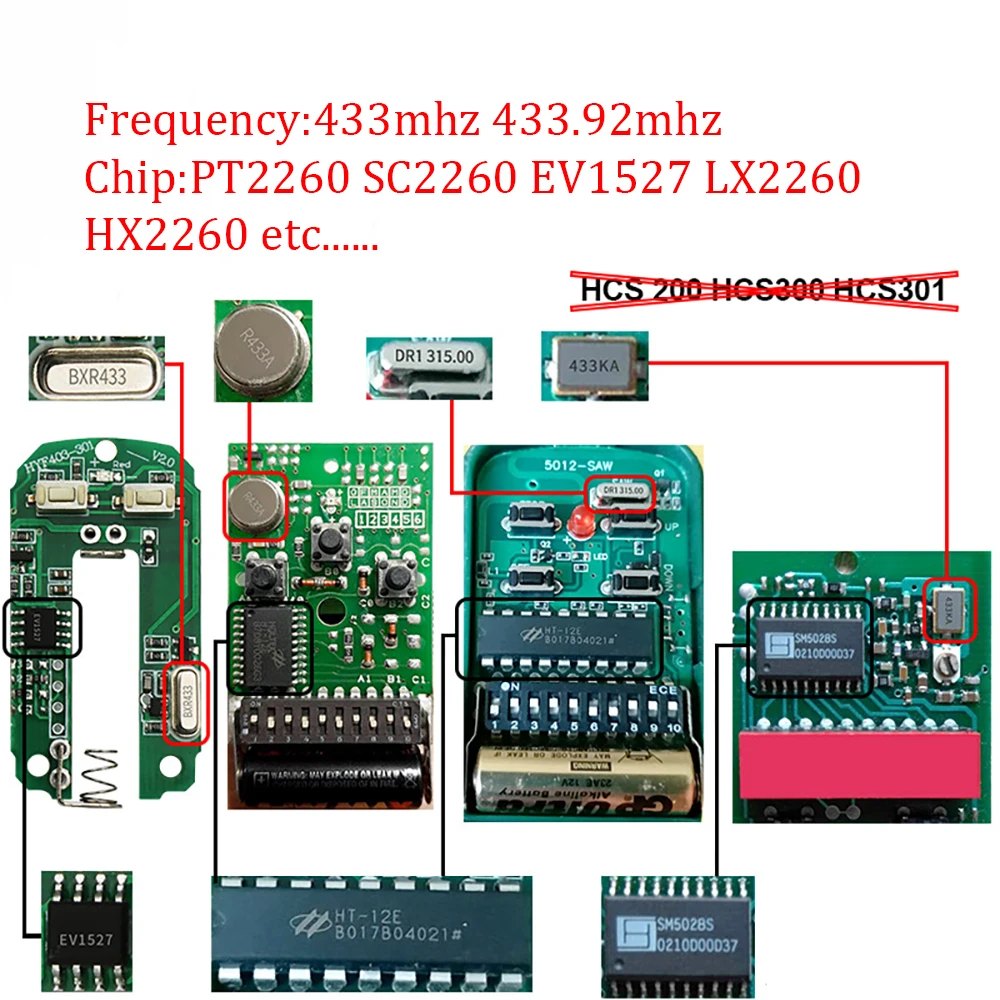

Works with the following remote control IC modules (please check your original remote control before ordering),and your remotes also should be Fixed code or Learning code.

2260 (all manufacturers), 2262 (all manufacturers), PT2264 (all manufacturers), 5326 (all manufacturers),

527 (all manufacturers), 1527 (all manufacturers), 2240 (all manufacturers)

HT6026, HT6012, HT6014, HT600, HT680, HT6010, HT6207, HT640, HT6P12E, HT6P20D, 12L-4SC

PT2292, 12L4SC, SC5262, PLC168, NF9420116, UM3750AM, SMC918, SMC908, 1416, 5211

HCS101, HCS200, HCS201, HCS300, HCS301 (part of the code)

Uses: garage doors, motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products

Note :

This is a clone remote control, new remote control must clone the original remote control. If your original remote control does not work, please do not buy it.

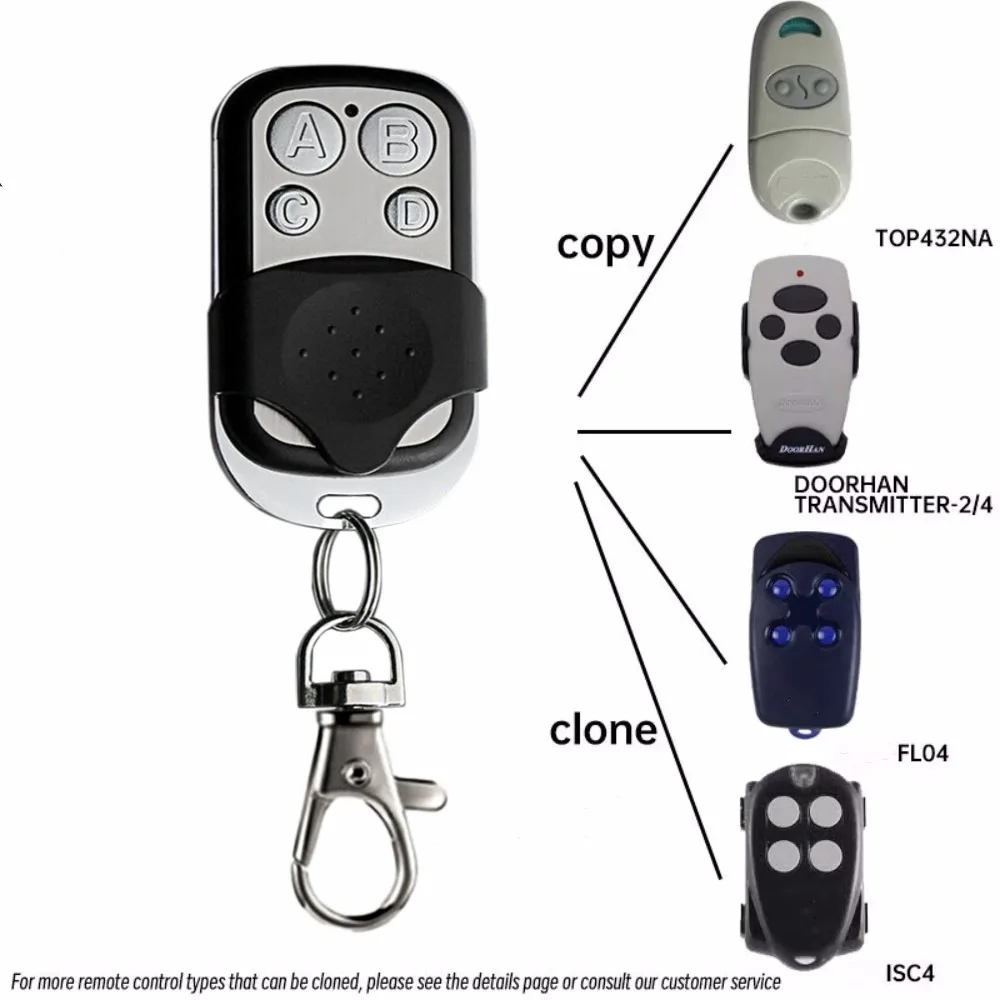

Compatible Models

How to Clone?

Face to face copy your original remote control

Step 1：Clear the history code from duplicator

1: Press buttons A and B simultaneously until the LED flashes 3 times
2：Release button B (Keep pressing button A),and press button B Slowly for 3 times，LED flash
3：Release button "A",finish code clearance.

Step 2,Copy code from original transmitter

1: Put duplicator aside of original transmitter,as close as possible.
2: Press and hold the A button of the original transmitter, then press and hold the A button of the copier until you see the copier's LED flashing
3: Release the two buttons to complete the code copy, and copy other buttons in the same way.
