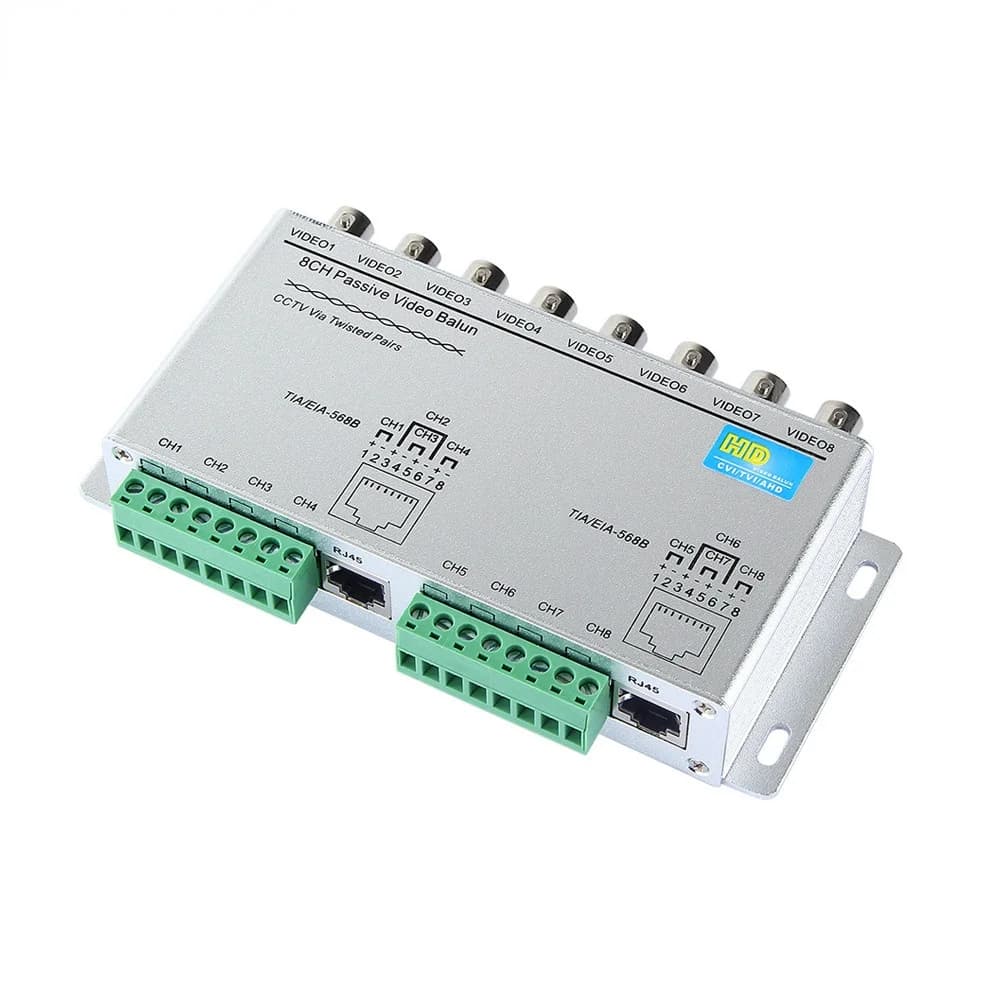

4CH 8CH Passive Video Balun For TVI CVI AHD Cameras CCTV Via Twisted Pairs UTP Video Balun 4CH Transceiver BNC To UTP RJ45

dianxiaobao_1 100% brand new and high quality Passive Video Balun For AHD CVI TVI Max 1080P Video signals from 4 different cameras can be transmitted over RJ45 single network cable Video balun enable you to reduce material and installation costs Features 4 BNC Female to 8 Pin terminal block BNC Female connectors, directly connect to your BNC Male connector CCTV Camera, no adapter needed. Transmit video signal via UTP Lan cable Can be used as a receiver and as transmitter Maximum 450m color video working distance when used with passive UTP Video transceiver Passive design (no power required) Built in transient suppression protection and lightning protection Fast and easy installation, no power required. Specifications: Passive HD Transceiver Item Specification Properties Transmission Signal 4channel Transmission Distance HDCVI720P:450m/1080P:250m HD TVI 720P/1080P:250m AHD 720P:320m/1080P:250m Category Type UTP CAT5/5E/6 Video Transmission Properties and port Compatible Format BNC-M Twisted-pair Video Connector Push-terminal Compatible Format HDCVI/HDTVI/AHD Resolution 720P/1080P Anti-interference >60db Protection ESD 1a contact discharge electricity level 3 Coaxial Cable Connector 2KV(common-code)Per: IEC1000-4-5 UTP Cable Connector 2KV(different-code),4KV(common-code).Per:IEC1000-4-5 Impedance BNC 75 ohms UTP Cable 100 ohms Physical Properties Dimension(L*W*H) 102mm*60mm*26mm Shell Metal Color Silver N.W. 200G Stability MTBF >10000H Environmental Operating Temperature -10-55 Storage Temperature -20-70 Humidity 0-95%(non-condensing) Package : 1X 4CH Passive Video Balun dianxiaobao_3 dianxiaobao_4
