Super Small Mini Analog Camera 3.7/2.1mm 90/140 Degree 700TVL HD Color CCTV Security Surveillance Camera

Super Small Mini Analog Camera 3.7/2.1mm 90/140 Degree 700TVL HD Color CCTV Security Surveillance Camera

Option 1: 3.7mm Lens 90° Camera

Option 2: 2.1mm Lens 140° Camera

Technical parameters:

Pickup device: Color

Horizontal resolution: 700TVL

Resolution( H X V ): 1280 x 960

System format: PAL/NTSC

Electronic shutter: PAL= 1/50 - 1/100,000 seconds  NTSCL= 1/60 - 1/120,000 seconds

Minimum illumination: 0.1Lux (F: 1.2)

SNR(Signal to Noise Ratio): > 48dB (automatic gain closed)

Gamma: 0.45

Backlight compensation: Auto

Lens: 3.7 /2.1 mm Lens

Automatic gain: Yes

Automatic white balance: Yes

Lens installation: C/CS

Video output: 1 Vp-p, 75Ω

Power input: DC 8V to 12V 1A (Max. 1A)

Working temperature range: -10C  to 50C  (maximum humidity 95%)

Storage temperature range: - 20C  to 60C  (maximum humidity 95%)

Applications: Widely used for Home, Office, helicopters and other aerial aircraft, as son on

Features: Clean and fine image, vivid picture quality, low illumination, wide voltage and low power consumption

Package include:

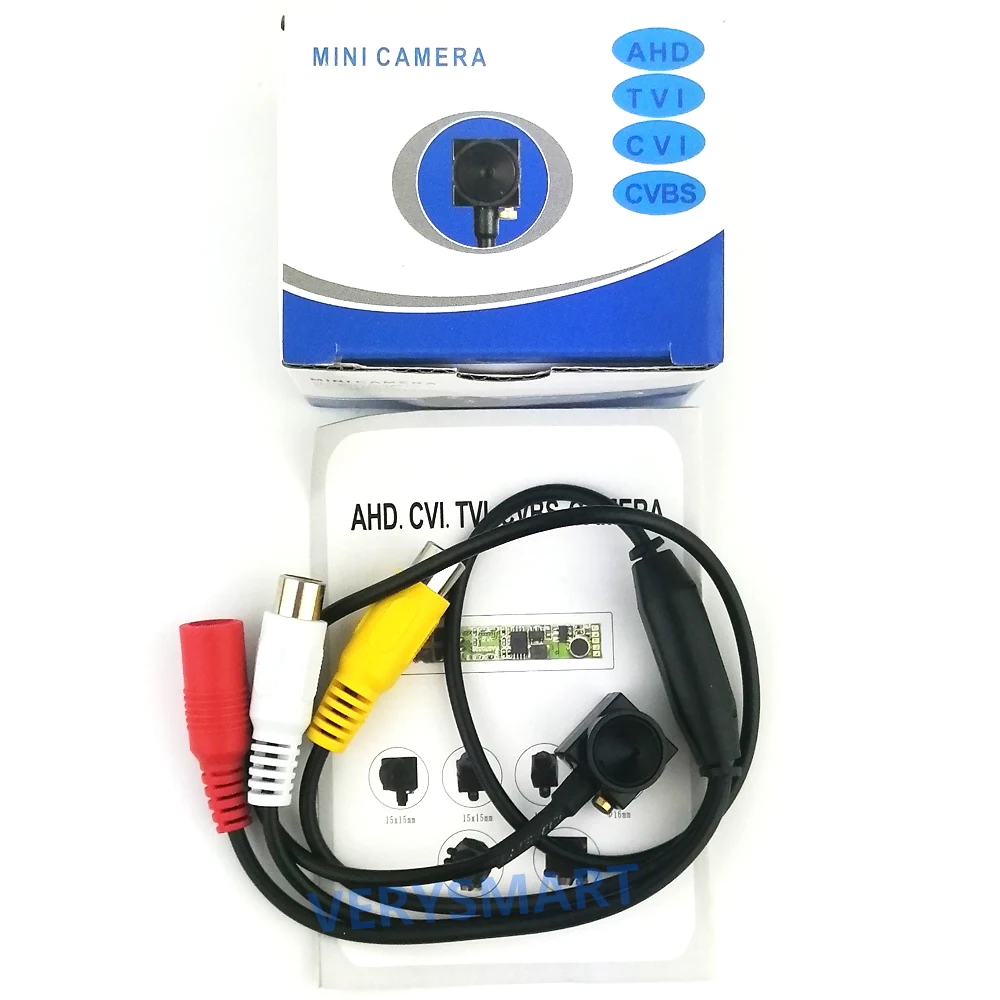

1 x Super Small Mini Analog Camera
