Type-C AF Auto Focus Webcam 4K 8MP 15FPS 12MP High Speed UVC OTG 2592*1944 30FPS Audio USB Camera Module 5MP Mini CCTV android

Type-C AF Auto Focus Webcam 4K 8MP 15FPS 12MP 15FPS High Speed UVC OTG 2592*1944 30FPS Audio USB Camera Module 5MP Mini CCTV

NOTE: Before purchase this camera, please confirm whether your phone supports OTG function to avoid unnecessary losses or trouble when use the camera

(For those who require OTG Micro USB interface, please contact customer service or note in your order,Thank you !)

our camera not support iphone !!!!only for  otg android or pc

(Notice: Cam -With Housing , Module-Without Housing ),pls check

5MP is 30fps audio . 8MP is 15fps IMX179 senor, 12mp is 15fps ,IMX326 senor,module size is 14*14mm

4K 8MP IMX179 video recording effect

Note: the camera needs to keep a distance of more than 8CM from the object to be able to focus automatically. When the camera is working, it will emit heat. The highest temperature can reach 55 degrees, which is normal, please do not worry.

for more products infomation ,pls go to our store page !

if you have other requirement ,welcome contact with us free !

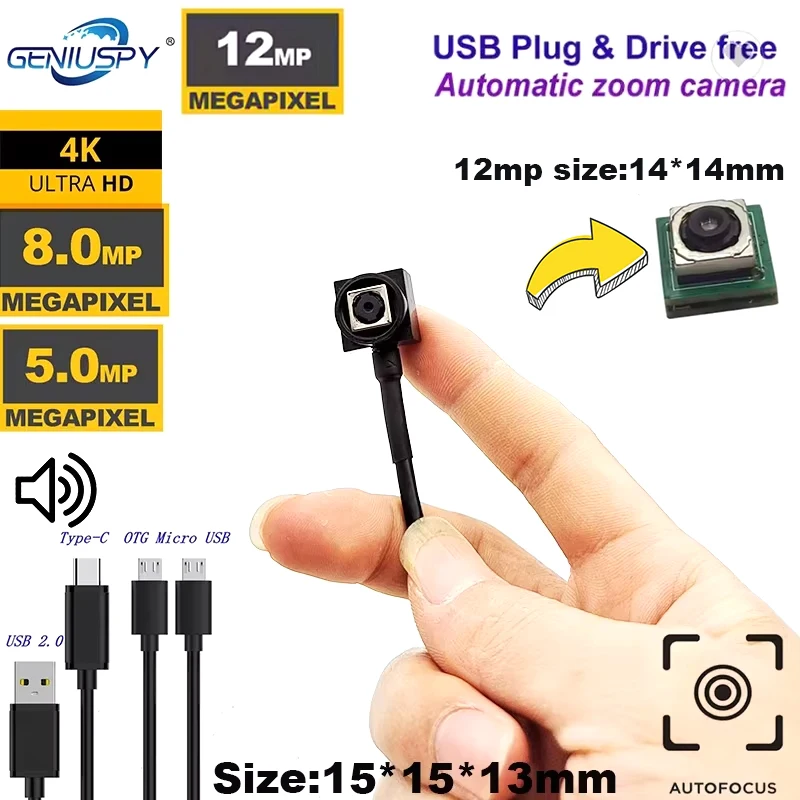

Camera Pictures: Size:15*15*13mm

Camera Module:

12MP Models  Details:

These interfaces are optional, please place orders which one you need:

Surveillance Camera Full HD 1080P UVC OTG AF AutoFocus 500W USB Camera Module 2592*1944 30FPS High Speed 2MP CCTV Webcam

Our company has been persisting in the tenet of credibility based, customers supreme, and quality guaranteed, to provide the best services to you through our utmost efforts!

We promise: the same to you the quality our price is optimal, same price our quality is the most guarantee!

Factory direct sales of goods are definitely value for money!

Feature:

HD 1080P  5MP USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

Typical application

1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera

5: Construction Equipment6: Banking equipment7: body switch8: Scanner

9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition

12:video door phone13:HD surveillance

Remarks:

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Typical application

1: ATM,Kiosk,POS,TV box          2: advertising cameras        3: one camera         4: Smart TV built-in camera

5: Construction Equipment         6: Banking equipment          7: body switch          8: Scanner

9: a mobile terminal device        10: Medical diagnostic image acquisition            11: fingerprints, palm prints image acquisition

12:video door phone                  13:HD surveillance

This camera is a 5.0 megapixel size 2592*1944 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 15/30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!

HD 5MP /8MP USB camera module

Synchronization technology

High speed USB 2.0 interface

High quality image

Low power consumption

Small outline for embedded application

UVC compliance for use in OS Windows,Linux,Android,Mac

1: ATM,Kiosk,POS,TV box         2: advertising cameras       3: one camera        4: Smart TV built-in camera

5: Construction Equipment        6: Banking equipment         7: body switch         8: Scanner

9: a mobile terminal device       10: Medical diagnostic image acquisition           11: fingerprints, palm prints image acquisition

12:video door phone                 13:HD surveillance

1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!

2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

3: This product is equipped with a USB cable.

Size:1/4 inch

pixel size:1.4 µm x 1.4 µm

Maximum effective pixels: 2592(H)*1944(V)/1920 (H) *1080 (V)

Output image format: YUV2 (YUYV) / MJPEG

Frame rate:

2592*1944-MJPEG-30FPS YUY2-2FPS

2048*1536-MJPEG-30FPS YUY2-3FPS

1920*1080-MJPEG-30FPS YUY2-5FPS

1280*720-  MJPEG-30FPS           YUY2-10FPS

950*540-    MJPEG-30FPS            YUY2-

640*480-    MJPEG-30FPS            YUY2-30FPS

320*240-    MJPEG-30FPS            YUY2-

320*180-    MJPEG-30FPS            YUY2-30FPS

Signal to noise ratio: 36dB

Dynamic range: 72dB

image area:3673.6 µm x 2738.4 µm

Sensitivity: 690 mV/lux-sec

Minimum illumination: 0.01LUX

Shutter type: Electronic rolling Frame shutter/ exposure

Interface type: USB2.0 High Speed

Support free flooding protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: support

Automatic white balance AEB: support

Automatic gain control AGC: support

Adjustable parameters: brightness contrast color saturation hue resolution

The gamma exposure contrast gain white balance backlighting

Power supply: USB BUS 4P-2.0mm POWER socket

Working voltage: DC5V

Working current: 140mA~220mA

Working temperature: 0 ~ 60

Storage temperature: -20 ~ 70 C

Board size: 15*15*13mm

Machine weight: 50g

Supported system: WinXP/Vista/Win7/Win8/ Linux with UVC (above linux-2.6.26)/ MAC-OS X 10.4.8 or later

/Wince with UVC/Android 4 or with above UVC

Interface:USB Interface

Lens: 3.6mm

Angle(FOV): 75°

Line length:2M

5MP Video output

8MP Product Description:

Sensor: So ny IMX179

Lens Size: 1/3.2inch

Pixel size: 1.4um

Image area: 6.18mm x 5.85mm

The most effective pixel: 3264(H) X 2448(V) 800MP pixels

Output image format: MJPEG

Supported resolution and frame rate:

3264X2448 @ 15fps / 2592X1944@ 15fps

1920x1080 @ 30fps / 1600X1200@ 30fps

1280X720 @ 30fps / 960X540@ 30fps

640X360 @ 30fps / 848X480@ 30fps

424X240 @ 30fps / 320X180@ 30fps

Signal to noise ratio: 34dB

Dynamic range: 72.5dB

Sensitivity: 0.65V/lux-sec@550nm

Minimum illumination: 0.5lux

Shutter type: Electronic rolling shutter / Frame exposure

Interface type: USB2.0 High Speed

Support free drive protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Automatic gain control AGC: support

Button camera: support

Adjustable parameters: brightness, contrast, color saturation, hue, clarity

Lens parameters: with no distortion lens

Power supply mode: USB BUS POWER 4P-2.0mm socket

Working voltage: DC 5V

Working current: 160mA~260mA

Working temperature: -10～70℃

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC

8MP Models Video Output

12MP Product Description:

Sensor: So ny IMX326

Lens Size: 1/3.2inch

Pixel size: 1.4um

Image area: 6.18mm x 5.85mm

The most effective pixel: 40000H) X 3000V) 12MP pixels

Output image format: MJPEG

Supported resolution and frame rate:

4000X3000@ 15fps

Signal to noise ratio: 34dB

Dynamic range: 72.5dB

Sensitivity: 0.65V/lux-sec@550nm

Minimum illumination: 0.5lux

Shutter type: Electronic rolling shutter / Frame exposure

Interface type: USB2.0 High Speed

Support free drive protocol: USB Video Class (UVC)

Support OTG protocol: USB2.0 OTG

Automatic exposure control AEC: Support

Automatic white balance AEB: Support

Automatic gain control AGC: support

Button camera: support

Adjustable parameters: brightness, contrast, color saturation, hue, clarity

Lens parameters: with no distortion lens

Power supply mode: USB BUS POWER 4P-2.0mm socket

Working voltage: DC 5V

Working current: 160mA~260mA

Working temperature: -10～70℃

Supported systems:

WinXP/Vista/Win7/Win8

Linux with UVC (above linux-2.6.26)

MAC-OS X 10.4.8 or later

Wince with UVC

Android 4.0 or above with UVC
