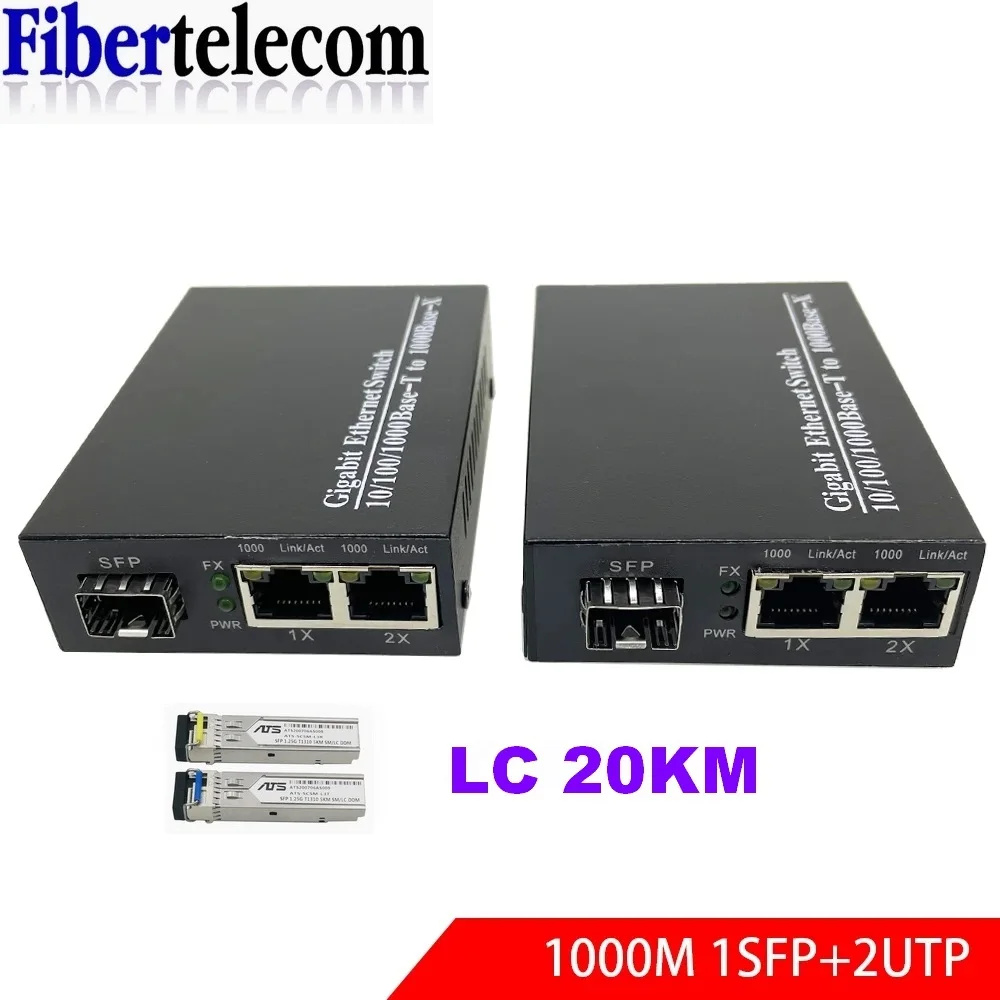

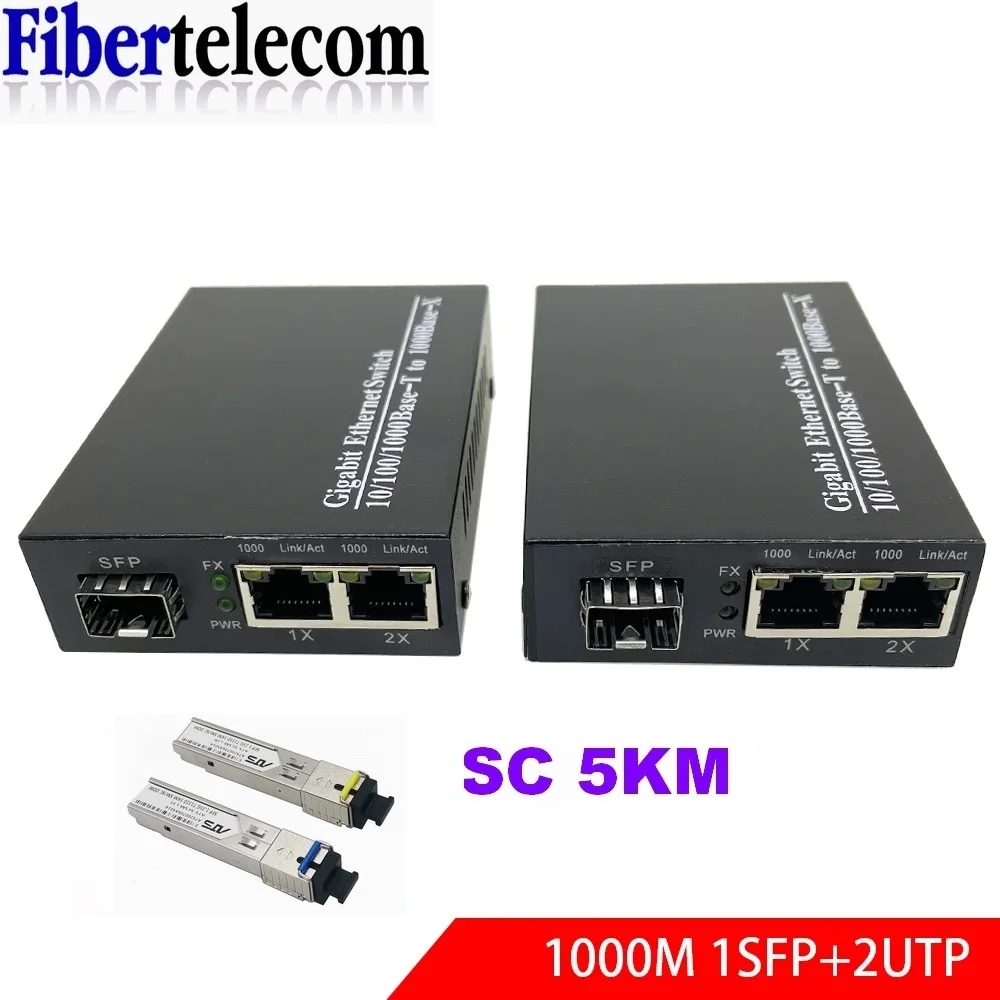

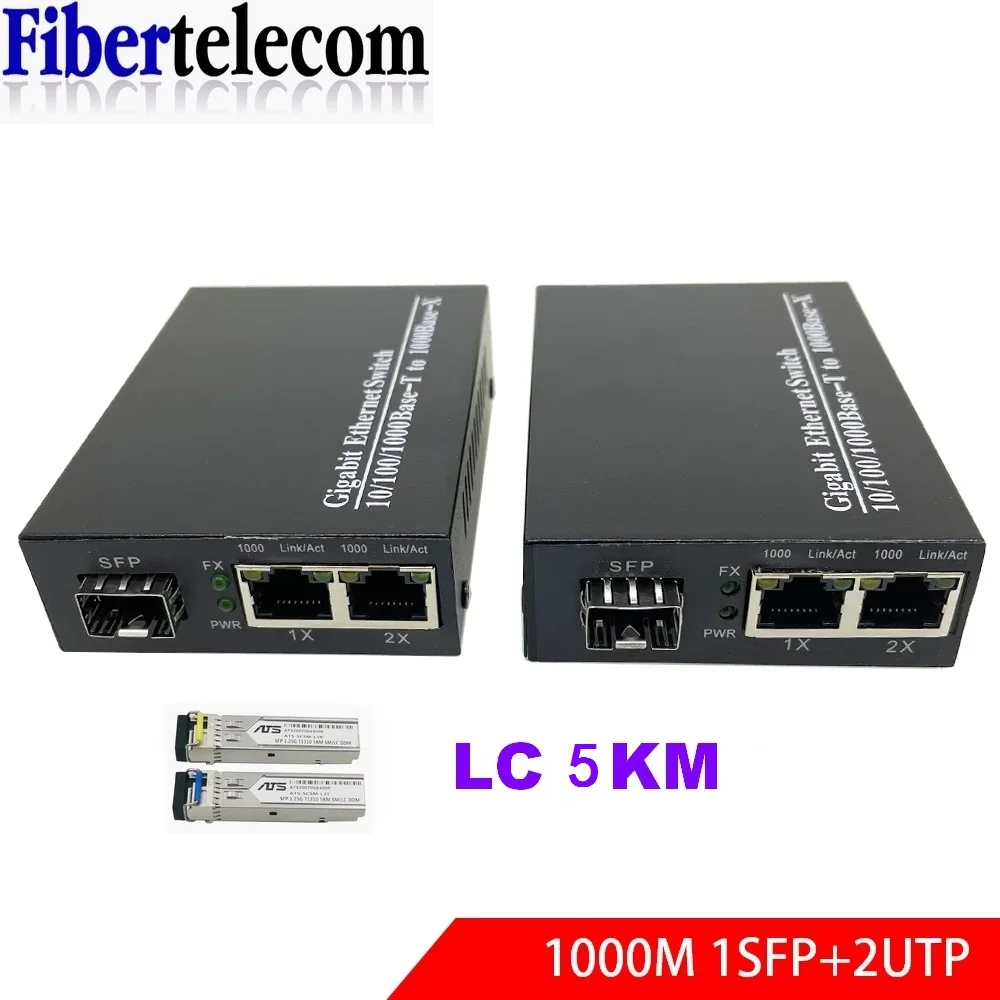

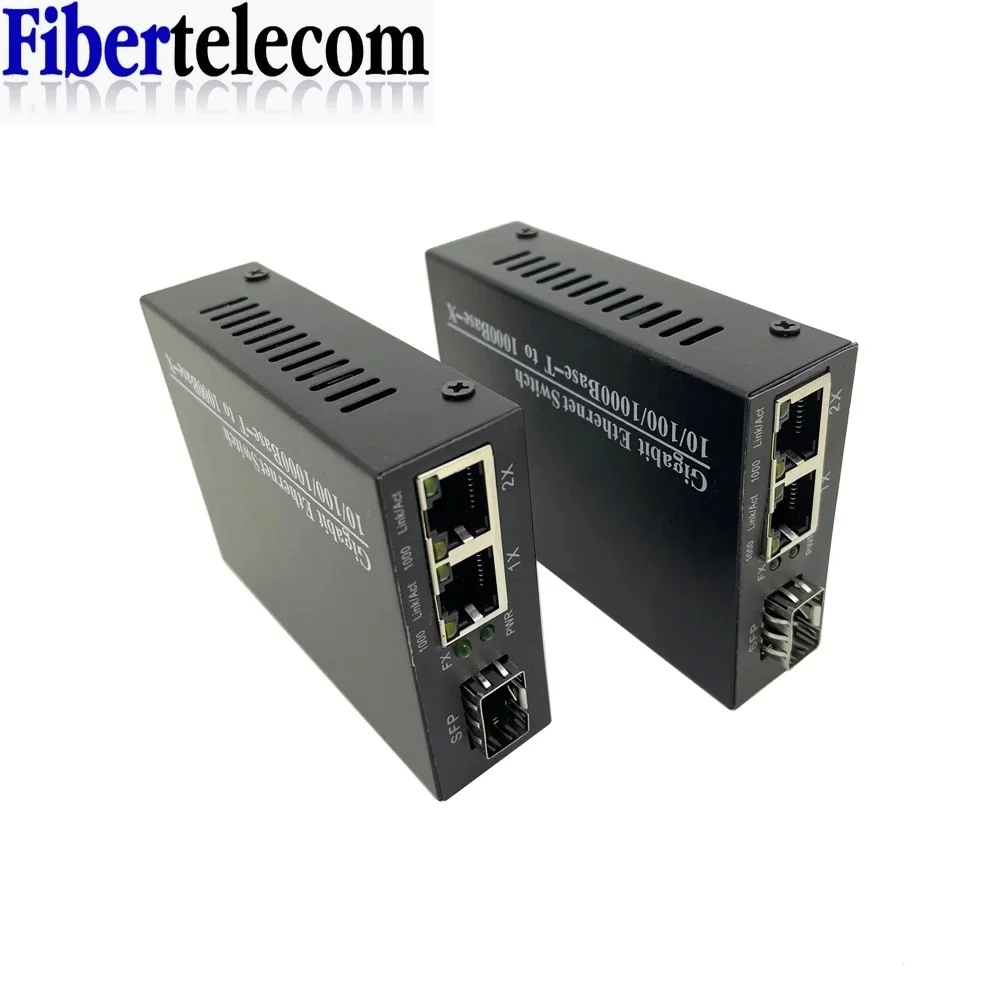

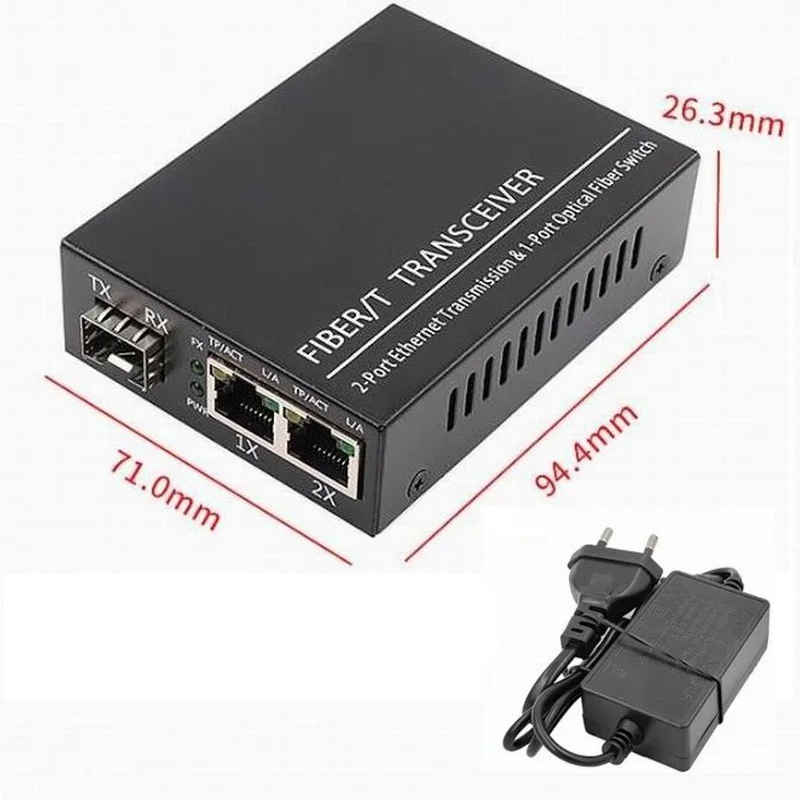

Gigabit Optical Fiber Ethernet Switch Gigabit Media Converter 1 SFP to 2 RJ45 UTP

2X10/100/1000 Mbps SFP Slot Ethernet Media Converter

Please Note:

1.This Price is not include SFP Module,If you need SFP modules also,welcome to contact us.

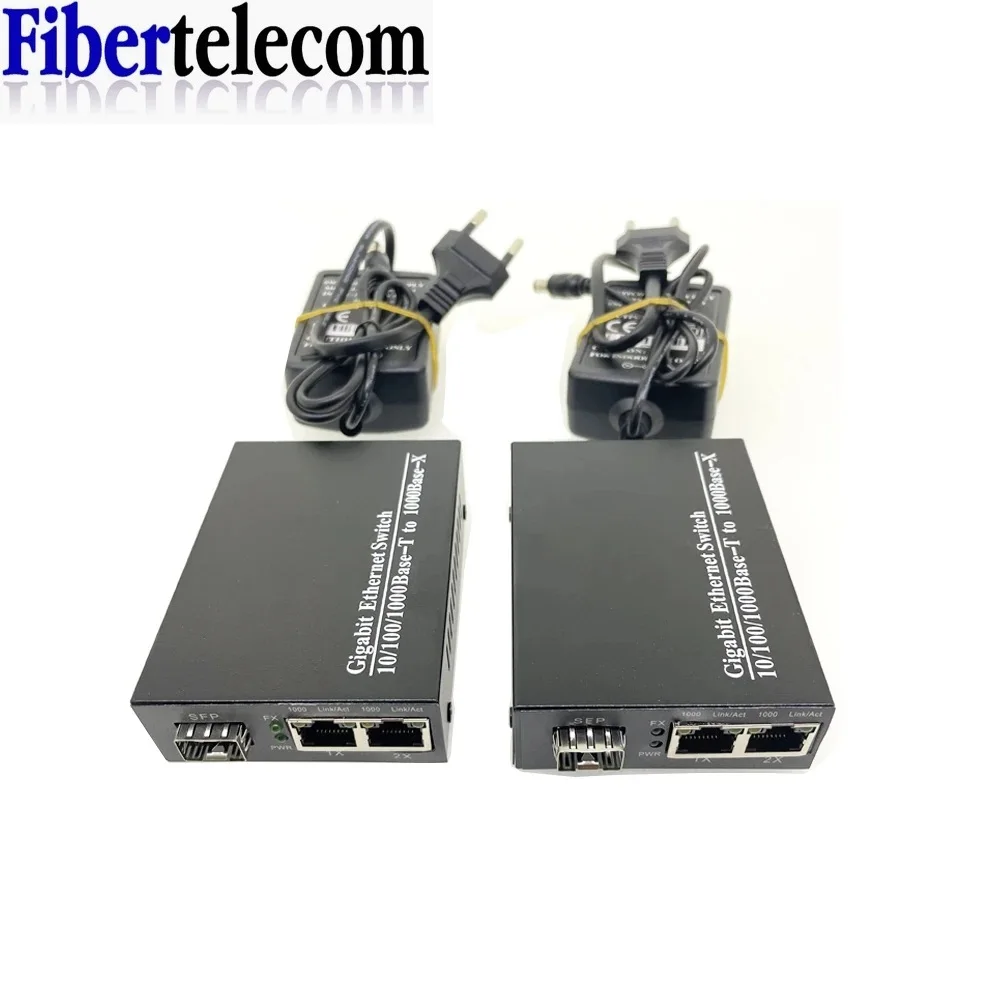

2.Default with EU power adapter.UK,US,BR,AU standards can be provided as request.

3.There are price for Fiber Optical Media Converter Board with adapter , and cheap price for only adapter ! please choose waht you need !

Overview

This 10/100/1000M Gigabit Ethernet converter is used in backbone network transmission and is primarily used for Gigabit Ethernet devices links. It converts Optical-Electric Ethernet signals between

10/100/1000M UTP interface (TX) and 1000M SFP socket (FX). According to customers’requirements, this media converter supports single-mode and multi-mode fibers with a transmission distance of up to 80 km for single-mode fiber and 550 m for multi-mode fiber. It extends the transmission distance through its photoelectric conversion network. The media converter takes advantage of intelligent connection technology to provide auto-negotiation thereby eliminating the need to manually configure or monitor settings.

Key Features

* Modular design, plug and play

* Complies with IEEE 10/100Base-TX, IEEE 802.3ab 1000Base-T and IEEE 802.3z 1000Base-SX/LX standards

* Auto negotiation function allows UTP ports to auto select 10/100/1000M and Full Duplex or Half Duplex

* Available in single fiber WDM versions - 1310/1550 nm wavelengths used

* Supports automatic cross of twisted pair ports

* Alarm LED illuminates to indicate link failure, status LEDs for easy monitoring of device's status

Parameters

Specifications

Standards

IEEE802.3z 1000Base-SX/LX , IEEE802.3ab 1000Base-T Gigabit Ethernet IEEE802.3u,100Base-TX, IEEE 802.3 10Base-T

Wavelength

Multi-mode: 850 nm

Single-mode: 1310 nm, 1550 nm

Transmission Distance

Fiber:

Multi-mode: 550 m (fiber size: 50/125 μm)

Single-mode: 10/20/50/80 km (fiber size: 8.3/125, 8.7/125, 9/125 or 10/125 μm)

UTP:

Cat. 5e or Cat. 6: 100 m

Port

One RJ45 port, One SFP

MDI/MDI-X

Auto selection

LED Indicator

PWR: Illuminated for normal operation

ALM: Illuminated when failure occurs on fiber or copper link

LNK/ACT: Fiber link – Illuminated when receiving link pulses from compliant devices, Flashing when data packets are being transmitted/ received

Power Supply

Outside: 5 V DC 2 A

Built-in: 100 V to 240 V AC 50Hz to 60 Hz

Operating Temperature

0 °C to +70 °C

Storage Temperature

-20 °C to +80 °C

Storage Humidity

5% to 90% (non-condensing)
