for HSM4 868 MHZ Handheld Transmitter 868.35mhz

Professional remote control seller!

Top Selling!
Quality assurance!
good service!
Support for large volume orders!
More in stock!
Shipped within 48 hours on weekdays!

Specifications:

Type of programming: self Copy
Number of channels: 4

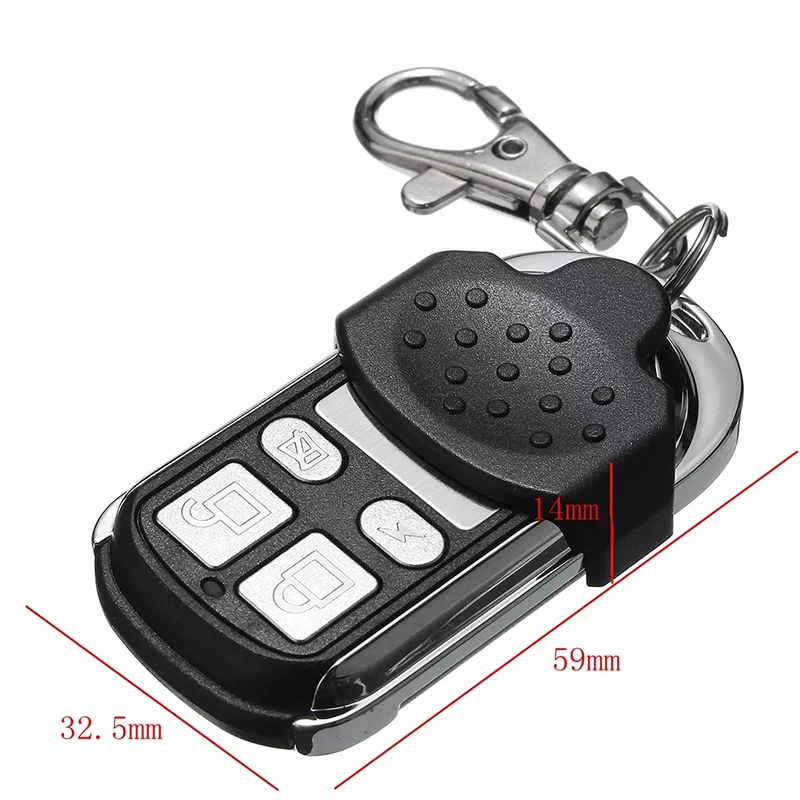

Size: 60*30*12mm
Product material: ABS
Product weight: 40 g
Product color: Black + silver
Rated voltage: 12V 30A
Installation: wireless

For: Such as electric telescopic door remote control, road gate remote control, alarm remote control and so on.
Wireless transmission distance: 50-150 (m). (open space)
Frequency:868MHz, 868.3MHz
Usage:Fifteen seconds clone, can be used directly after cloning

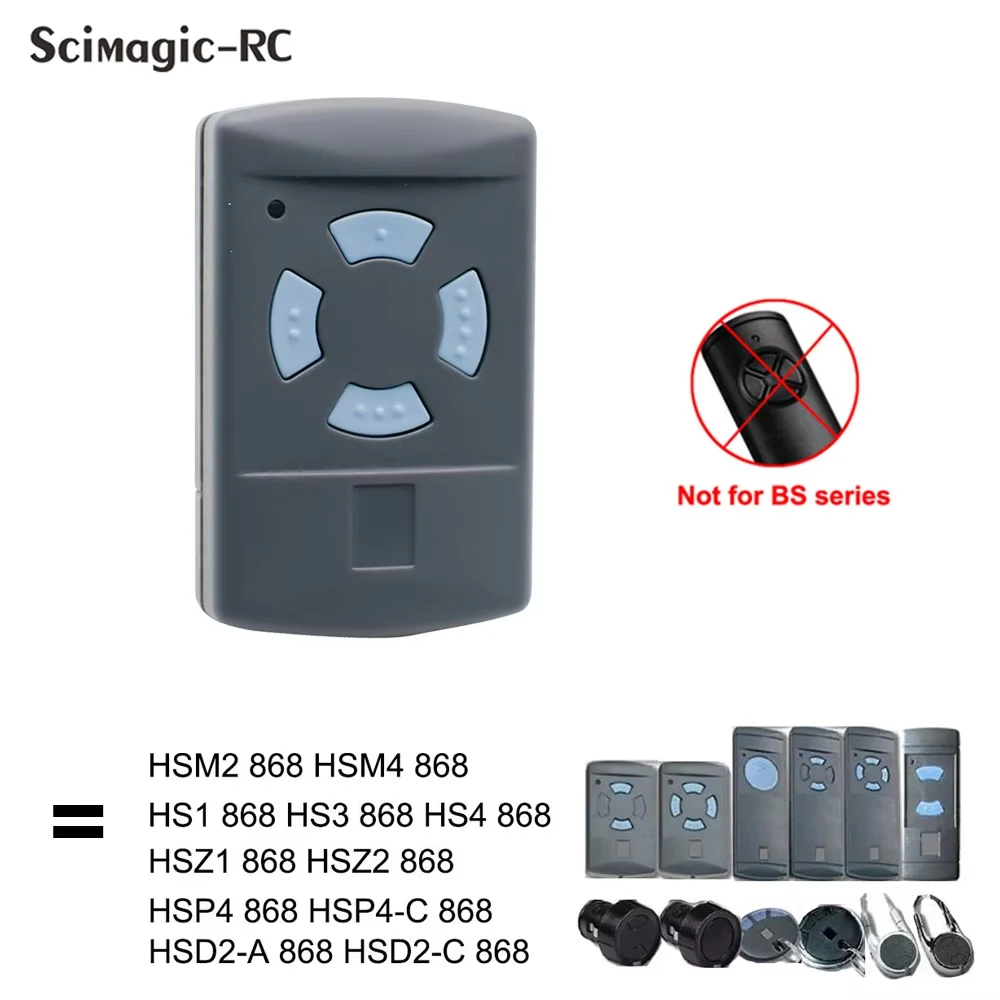

100% compatible with the following remote control models

HSM2 868 ，HSM4 868
HS1 868，HS2 868，HS4 868
HSE2 868，HSE4 868
HSZ1 868，HSZ2 868
HSP4 868，HSP4-c 868
HSD2-A 868，HSD2-c 868

100% Compatible motor models:
supramatic e2

Usage:
Press the red button once, then press and hold the button at the top of the remote.

It is only compatible with the 868MHz blue button

Features:

1.Privacy is strong
2.One to one key copy
3.Each key password alone save
4.Can continuous repetitive copy use one million times

How to program - It is very easy!

Face to face copy your original remote control

Step:1:Clear the history code from duplicator
1:Press button 4 and 2 continuously until LED flash 3 times
2.Release button 2 (Keep pressing button 4),and press button 2 Slowly for 3 times,LED flash
3.Release button 4 ,finish code clearance.

Step 2,Copy code from original transmitter

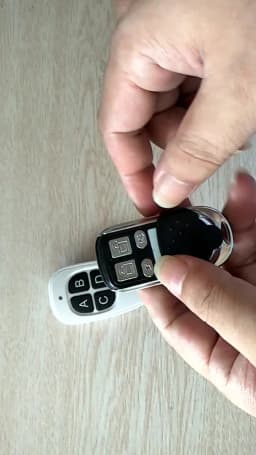

1. Put duplicator aside of original transmitter,as close as possible.
2. Press and hold button 1 of original transmitter,then press and hold button 1 of duplicator until you see the duplicator is LED flash
3. Release both buttons,finish code copy,copy other button in same way.

Press and hold buttons 4 and 2 at the same time to clear the code
Press and hold buttons 1 and 3 together to restore the code.

Method 2:
Press your garage door receiver's programming button, then press our remote control button, after successful programming, it's ready to use.

Include:

Remote Control
Battery
English Manual
