Hot POE Cable Passive Power Over Ethernet Adapter Cable POE Splitter Injector Power Supply Module 12-48v For IP Camera

Passive POE- means that the input and output voltage are equal.

Transforms non-POE devices into PoE-enabled.

Supports 5V, 12V, 24V, 48V.

Power supply required for power input - simply use the power supply (wall transformer) that is provided with the device you are trying to power.

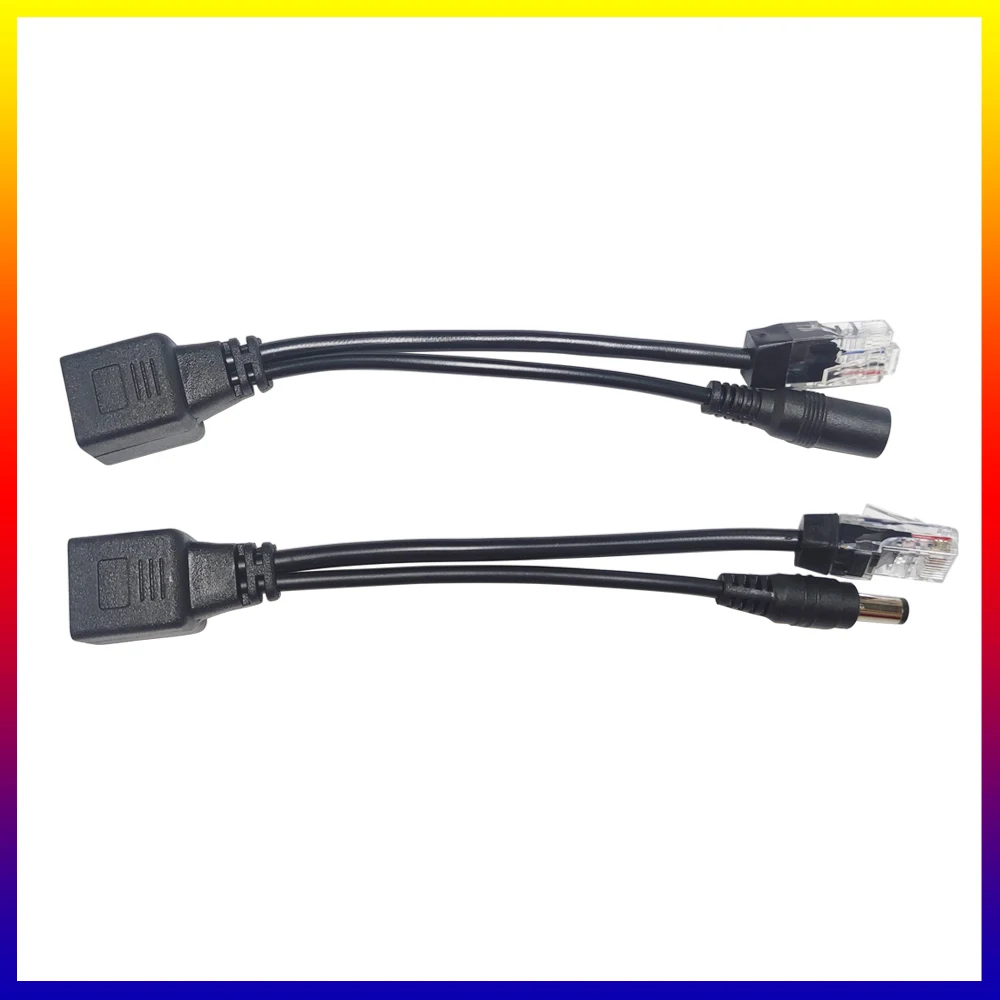

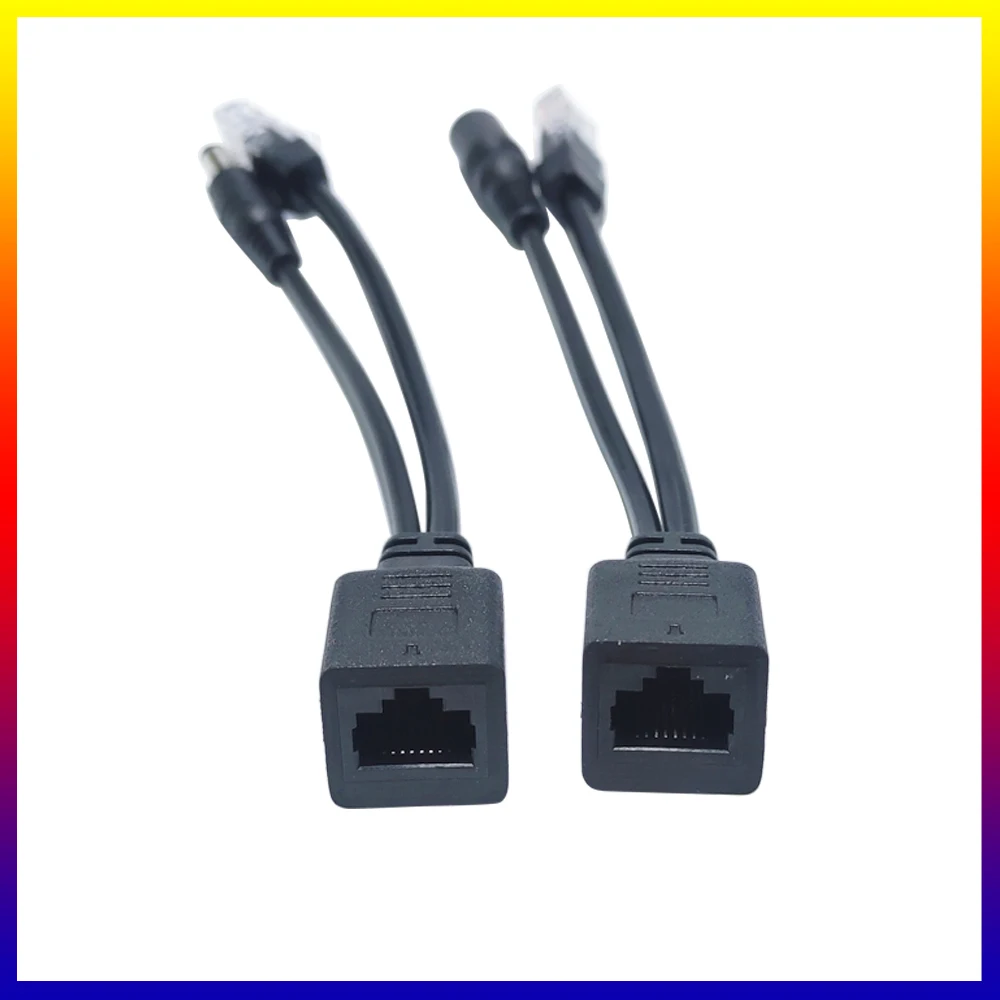

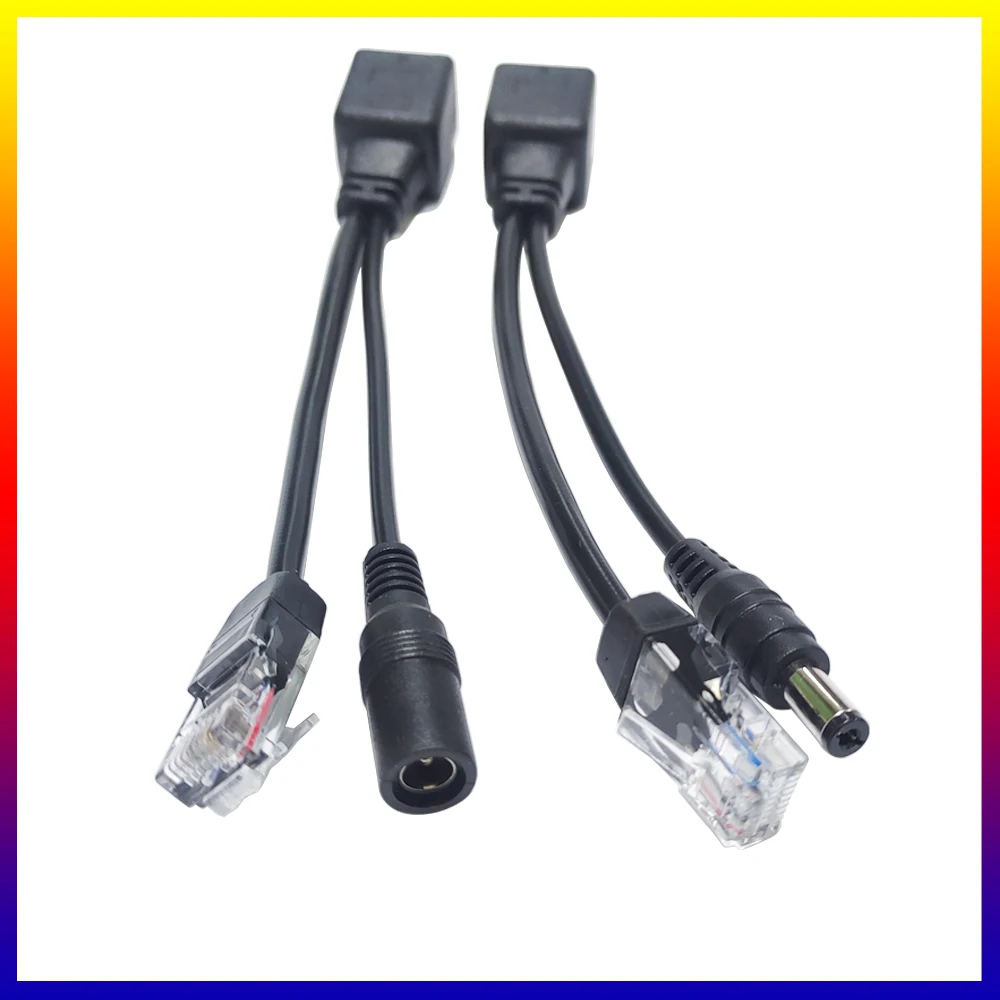

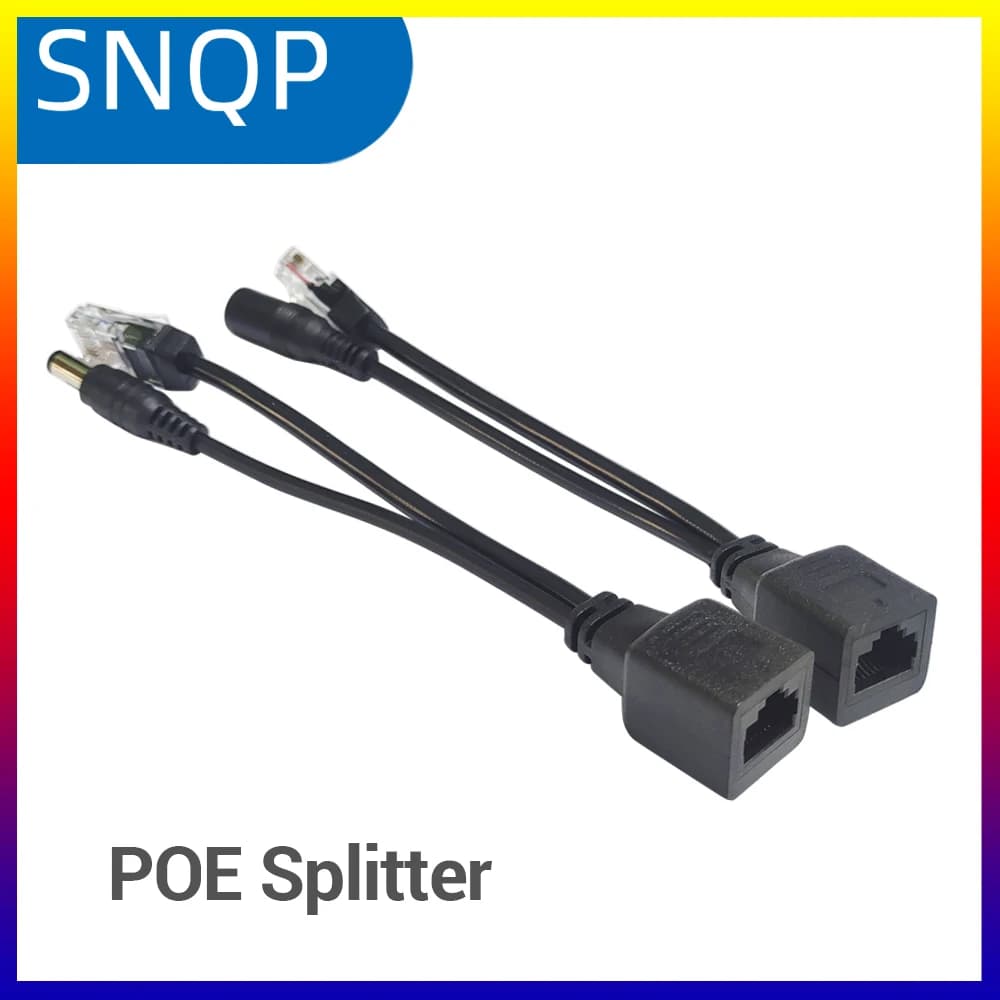

POE injector and splitter kit with 5.5 * 2.1 mm DC jack/plug.

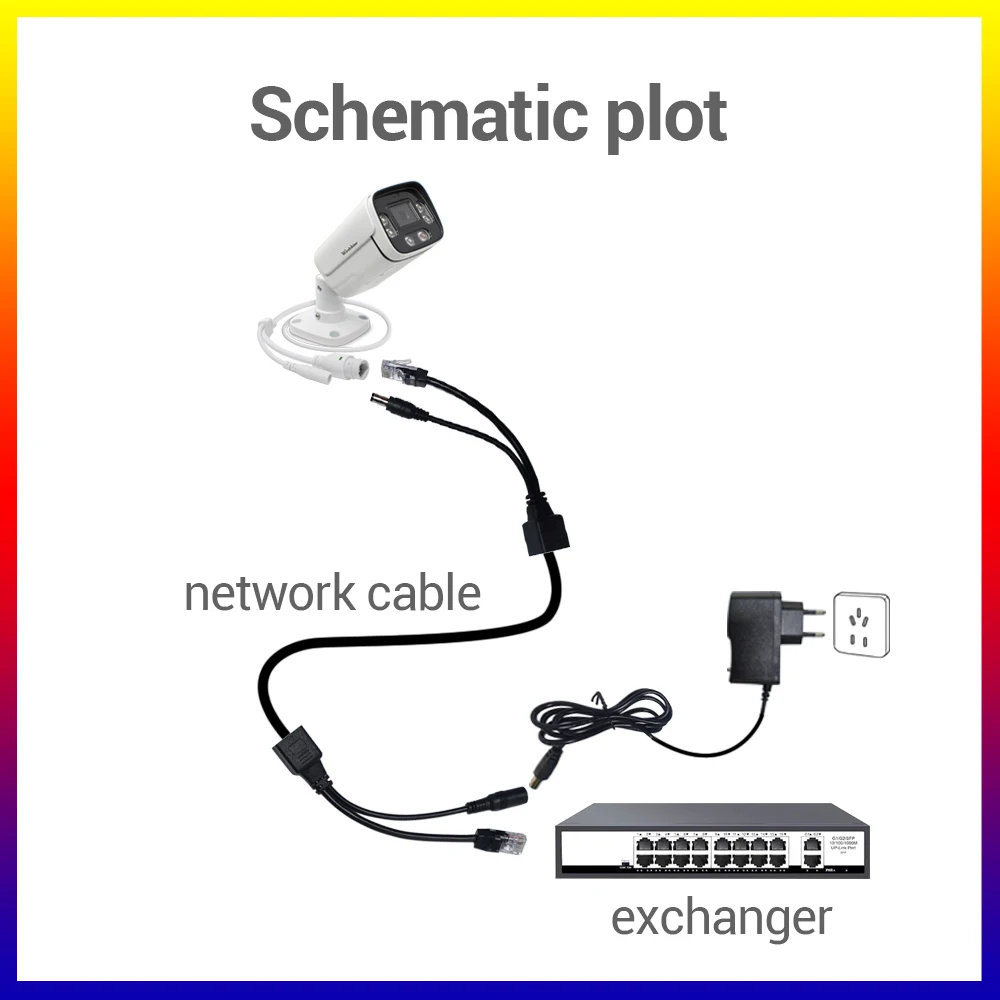

Use with an IP security camera, wireless access point, and other devices.

Can work up to 30-40 metres/100-130ft (depending on the quality of the cable and the power draw of the device).

Specifications:

Color: Black/White

Material: Plastic

Injector: RJ45 Male + Power In to RJ45 Female

Splitter: RJ45 Female to RJ45 Male + Power Out

Supports: 5V, 12V, 24V, 48V

Power plug/jack: 2.1 * 5.5mm / 0.9 * 2.2in

Data Pins: 1&2 and 3&6

Power Pins: 4&5 and 7&8

Length:16.5cm / 6.5

Transmission distance: 30-40 m / 100-130 ft

Network Type: 10BASE-T, 100BASE-T

Application: WLAN, routers, switches

Quick Detail:

The complete passive power over Ethernet kit contains two pieces: an injector and a splitter. It is suitable for use with products that basically do not support Power over Ethernet. Passive power over Ethernet set is applicable for a wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers, or other network devices. The passive power over Ethernet set is compatible with most devices available on the market, such as D-Link, Linksys, Airlive, Senao, Wline, Micronet, Edimax, etc.

Features:

The devices can be supplied standardly up to 50V. (The power adapter is not included. It is possible to use the power adapter of the powered device as an access point, IP camera, etc.) Passive PoE's range is normally from 30-40 meters/100-130ft (the real distance depends on the power supply, type of cable, and powered device).

POE RJ45 Network Connector Female to RJ45 Male Plug/DC 5.5mm Female + Male Adapter Cable
