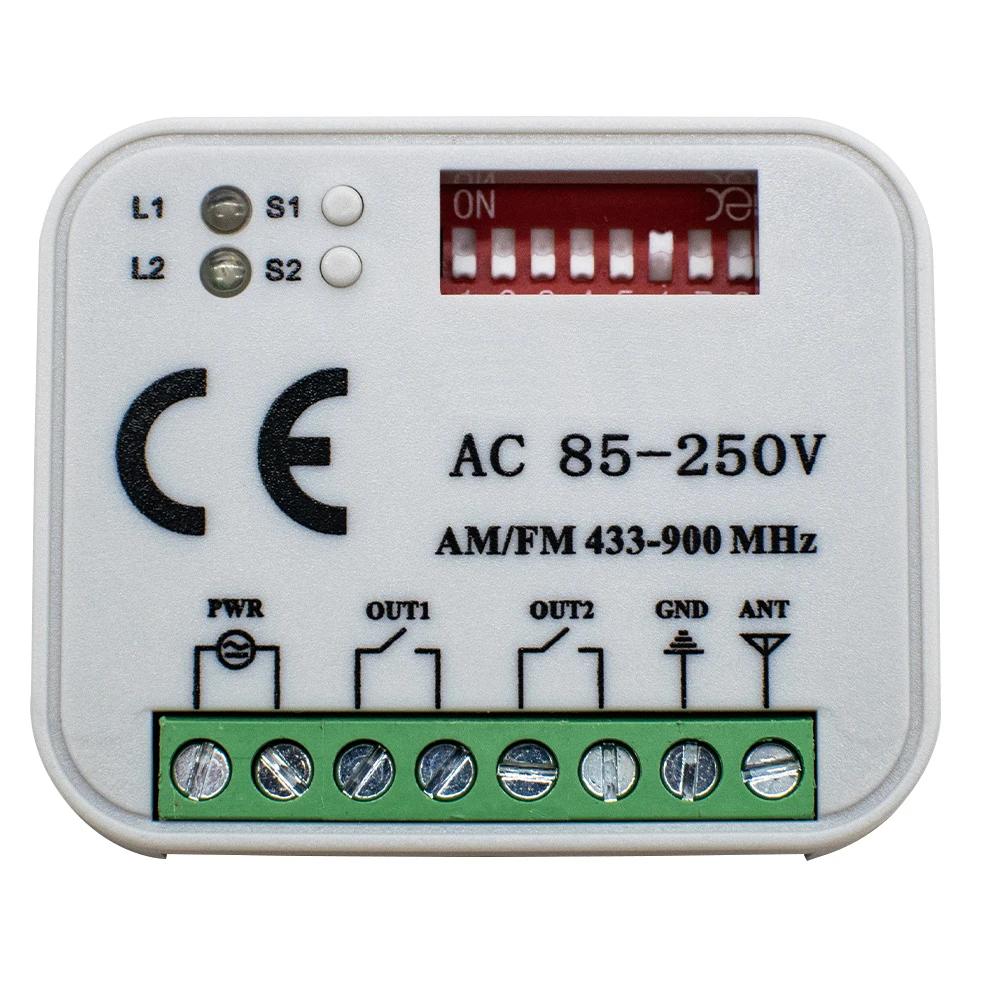

Universal Garage Door Receiver AC 220V 9-30V 2CH Frequency 300-900MHz Controller Switch For 433 868 MHz Remote Control

Special Note:

These remotes are not clone remotes.
These remotes only work with my receiver.
Please do not buy the remote control privately.

SMG-662 Universal Receiver Switch Frequency 300MHz to 900MHz

Specifications:

1)Name: Universal receiver SMG-662.
2)Operating Voltage: AC/DC 9V-30V or AC 85-250V.
3)Channel: 2.
4)Frequency: 300MHz - 900MHz.
5) Distance: 30-50 meters.
6) Very mini size: 5.5cm*4.5cm*1.0cm.
7) One receiver can work with 400 codes.
8) It don’t interference other remotes and receivers.
9) Brand selector: With 8 dip switches user can make different combination for different remote brands.
10)Code: Rolling and Fixed code & Learning code.

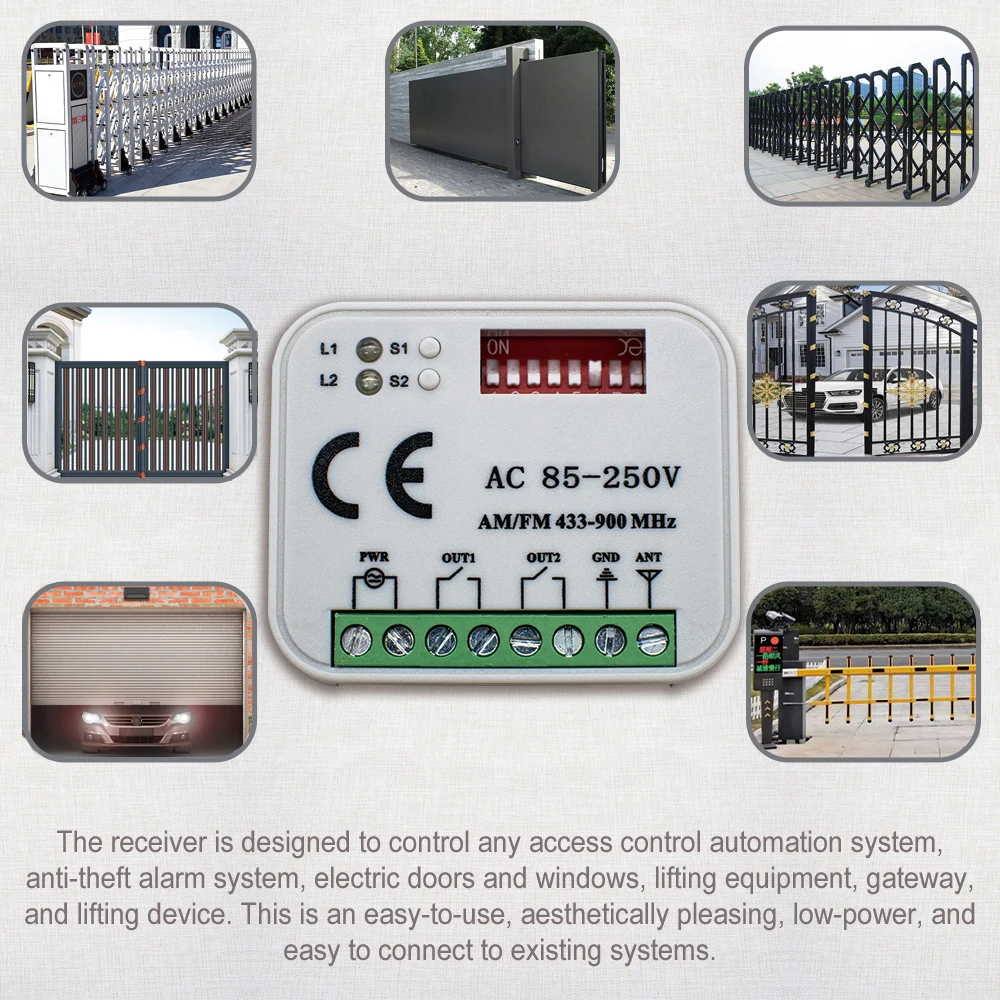

11)Uses: Receiver is designed to control any gate automation system, burglar alarm system, electric doors, windows, lifting equipment, gateways, lifting devices. This is an easy to use, good looking, low power consumption and is easy to connect to your existing system.
12) Power Input Selector: This receiver can work at AC/DC 9V~30V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.

Working frequency: 300-900MHz(Rolling code & Fixed code)

300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz

Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),

Some Brand remote controls (ATA PTX4, APRIMATIC, ALLMATIC, BENINCA, DITEC, DEA, DITEC, ECOSTAR, ERREKA, FOX, GIBIDI, HORMANN Blue button, LIFTMASTER, NOVOFERM, PUJOL, SEAV, SOMMER, VDS....)

Wide range of use:

garage doors, Gate Doors, Automatic barrier,Electronic gates,motorcycles, car alarm products, home security products, short-range wireless remote control products, industrial control products, Electrical appliances/Home automation,Alarm Systems etc.

Include

Receiver
Small Antenna
English Manual

How to program - It is easy!

1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz Marantec remote controls, just move Dip-switch 7 UP.

2) Press the learn button. The will LED turn on.

3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.

4) Repeat step 2 for another button.

5)The 2-nd channel programming procedure is the same.

Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered
