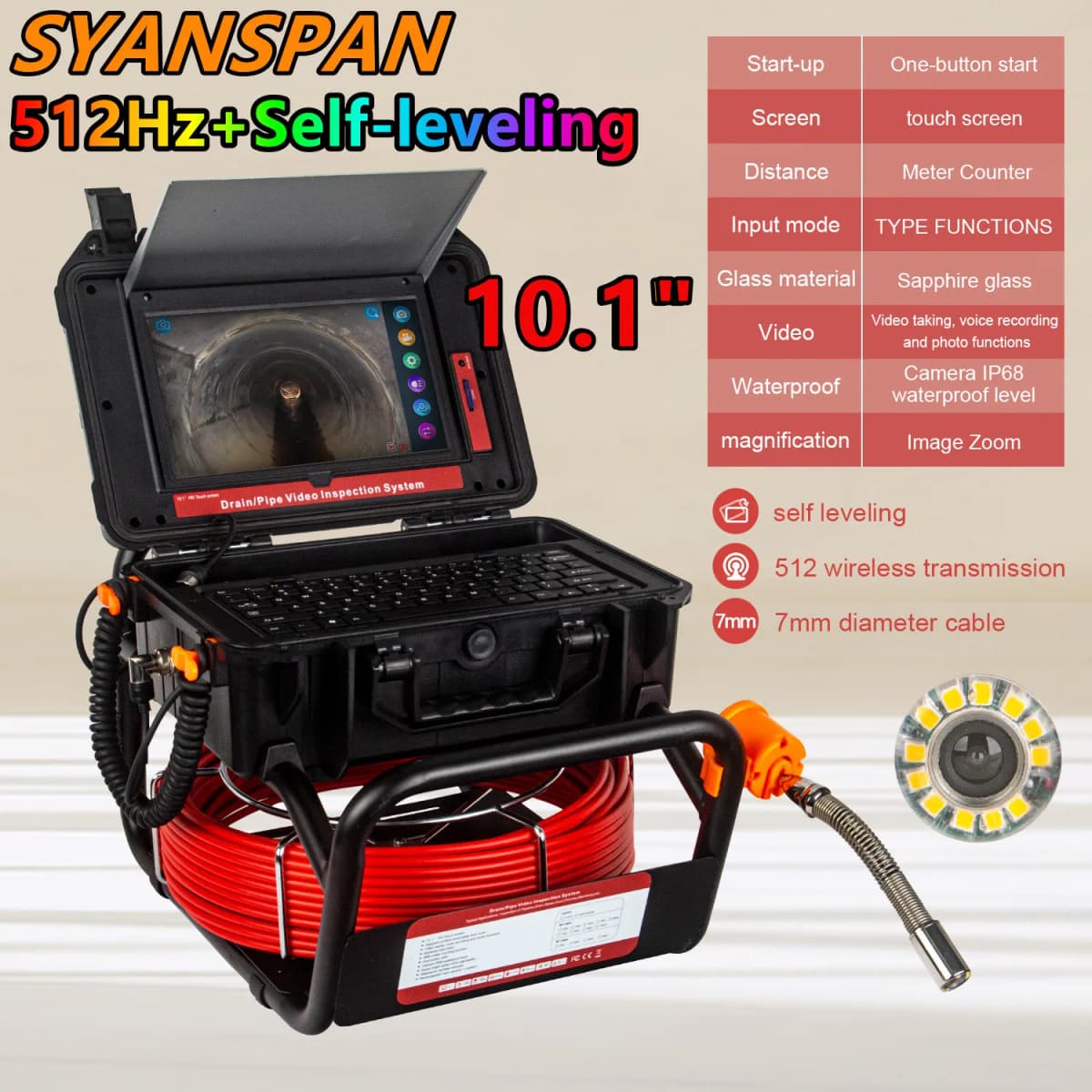

512Hz Transmitter Sonde for Pipeline Location Endoscope Image Self-Leveling DVR,SYANSPAN 23mm Drain Pipe Inspection Camera IP68

Pipe Inspection Camera 10.1 Inch 1080P Screen and Auto Self-Balancing 512HZ Sewer Pipeline Locator IP68 Waterproof 23MM Camera with DVR Fuction

Warm tip: 512HZ receiver needs to be purchased separately.

＜512Hz Built-in Sonde Transmitter＞

This endoscope camera has a built-in 512 hertz transmitter that helps to easily detect any blockage or area of interest. This greatly helps save time from having to dig and locate the problem. The sonde transmits a 512Hz signal that can be picked up with any compatible locator, allowing you to pinpoint the transmitter’s position underground.（Locator Receiver is NOT included）

＜Image Self-leveling Camera＞

The camera with Auto self-balancing function.SYANSPAN Drain Pipe Sewer Pipeline Inspection Camera measures 0.9-inch/23mm with #304 stainless steel housing and the glass of theamera is make from sapphire glass. It with 12leds and adjustable. Waterproof IP68.It is suitable for pipes at 25 -200mm (1 - 8 inch), camer

a with super flexible spring at length of 173mm, easily go through 90° bend pipes at 45mm (2-inches)

＜DVR RECORDING FUNCTION＞

Pipeline Wall Sewer Inspection Snake Camera built-in SD Card slot,8GB TF card

included,it is avialiable to view live video and save video clips and photos.You can record the inspections.

＜WATERPROOF&NIGHT VISION＞

The Drain Sewer Pipeline Industrial Endoscope System with HD 1000TVL high definition waterproof IP68 #304 stainless

steel camera+tipped probe+110°wide viewing angle what make it clear when you inspect some places hard to watch.

12 pcs adjustable LEDs to illuminate the hard-to-reach inspection area.

Inspections will be seen more clearly in the dark environment.

＜MONITOR&CABLE＞

Professional Drain Pipe/Sewer Pipeline Inspection Camera is designed with a 10.1 inches color

HD monitor with a sun-visor for outdoor inspections.The material of wire is fiberglass rod(diameter: 7MM),

anti-corrosion/cold/tensile.

＜PORTABLE CARRY CASE&LONG BATTERY＞

Pipe Wall Sewer Inspection Snake Camera Kit with heavy duty padded aluminum case stores all contents, convenient to carry around. 12V 4500mAh Li-battery included

supports approximate 6 hours of continuous use.

＜VERSATILE＞

Drain Pipe/Sewer Pipeline Inspection Snake Camera can be used under floors, inside walls, attics,

gutters and roof even and can even be used to view mold and water damage.Pipe Sewer Industrial Endoscope Pipe

Video Inspection System also applicable to air-conditioner pipe, vacuum pipeline,Sunken pipe etc.

It is convenient to use and avoid danger at the utmost.

＜WARRANTY & FAST CUSTOMER SERVICE＞

We guarantee to keep our production in good repair for free in one year, and give a promise of maintenance for life.Out of warranty,if you need assistance, including pre-order/after-sales service, please do not hesitate to contact us.

All SYANSPAN pipeline inspection camera spare parts/accessoriesfor repair or replacement,factory offer very cheap

 price, you do not need to worry about the cost and availability of thereplacements.

The SYANSPAN  Video Snake Pipe and Wall Inspectioni is a must have for any homeowner, contractor and even professional!

It eliminates the needs of tearing into drywall to locate leaks, pipes, or electric lines. The Pipeline Inspection Camera System features only the highest quality components such as true premium grade Video Wire, Stainless Steel parts and Connectors for video connections.The Drain/Sewer Industrial Endoscope boasts 2.4G Wi-Fi and accepts DVR by phone while recording for future playback. The portable aluminum carry case,which also stores all items for transport and when in-use. Buy a Video Snake today to avoid tomorrows plumbing problems.

＜Feature＞

>SD Card slot to store still pictures or videos

>1000TVL CCD camera, 110°wide vision angle

>Stainless steel camera head, IP68 waterproof level

> Imported acrylic lens cover, 12 high light white LEDs

> Diameter of camera: 23 mm

> Two plastic guides for camera head, Φ46mm & 80mm

> 10.1”LCD color monitor, with image rotate button

> LED brightness control knob

> Rechargeable battery lasts up to 6 hours

> On-Screen date and time.One push record button

> 120m fiberglass with cable anti-skid buckle

> Rotatable cable reel mounted in case for convenient operation

> Ability to go through 90°bends in Φ45mm pipes

> With distance counter

＜Camera Specifications＞

viewing angle 110°

light source 12 LED with while light(adjustable)

storage temperature -50-60°C

operating temperature -20-60°C

picture color

material:stainless steel

waterproof: IP68

cable material:glassfibre tube

length:20/30/40/50M(Customized)

＜Power supply＞

charger AC100V-240V / DC12.6V 1000mA

battery storage 4500mah

continuous use time for battery approximate 6h

＜Dimension＞

Camera size / material: 120mmx23 mm /stainless steel

package size : 450*440*350 mm

＜Weight＞

switchboard net weight 8Kg（20M)

package weight 8Kg（20M)

Every rise 10M of Cable means the weight of the system increase 0.3KG

＜Package Content＞

1 x Camera

1 x Sun-visor

1 x Monitor

1 x Connecting Line

1 x ABS Box

1 x Charger

1 x Coil

1 x Screw Driver

2 x Camera Protective Case
