4K 8MP 4MP 1080P IMX179 Full HD WDR USB Camera Module MJPEG 30fps High Speed Mini CCTV Linux UVC Android Webcam Surveillance Cam

4K 8MP 5MP 1080P IMX179 Full HD USB Camera Module MJPEG 30fps High Speed Mini CCTV Linux UVC Android Webcam Surveillance Camera
Note: 1080P with audio,2M usb cable Default , TYPE-C 1meters Default ,
if you need other connector ,pls kindly contact with us for custom made !
Dear Valued Customer,
Please note that as a direct manufacturer, this 15x15mm USB camera is available with 7 different sensor chips:
1MP: 1/4-inch sensor
2MP: Three options - WDR (Wide Dynamic Range), Low-Power, and Standard Cost-Effective versions (with 1/2.7-inch or 1/2.9-inch sensors)
4MP: 1/2.7-inch sensor
5MP: 1/2.5-inch sensor WDR
8MP: 1/3.2-inch sensor
Important Note on Lens Angle:
The lens viewing angle specified in the SKU description is based on a 1/2.7-inch sensor. If you choose a different lens, the actual viewing angle will vary depending on the specific sensor size of the model you purchase.
Please feel free to contact us with any product questions – we are here to assist you. Thank you for your support!
Please note:
It is only compatible with computers and Android phones.
For iPhone compatibility, only the 5MP model can be customized (please contact us to request this feature).or  you go this link buy the OTG-Lines
https://www.aliexpress.us/item/3256809962842182.html?gatewayAdapt=glo2usa4itemAdapt

No remote viewing or local recording storage is supported. The camera must be physically connected to an Android device or computer, and video/photos can only be previewed or saved via the designated app. the video &snapshoot can be saved in the phone !
Please consider these limitations before purchasing. Feel free to contact us with any questions!
NOTE: Before purchasing this camera, please confirm whether your phone supports OTG function to avoid unnecessary losses
(For those who require OTG Micro USB interface, please contact customer service or note in your order,Thank you !)
for more products infomation ,pls go to our store page !
if you have other requirement ,welcome contact with us free !

We provide three standard interface options: Type-C, USB 2.0, and OTG Android Micro USB. While Type-C and USB 2.0 are the most commonly selected, please coordinate with our sales team if you need the Android Micro USB variant.

This camera is a 2.0 megapixel size 1920*1080 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!
Feature:
HD 1080P USB camera
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows,Linux,Android,Mac

This camera is a 2.0 megapixel size 1920*1080 pixel 1080P HD USB-2.0-free drive camera module, frame rate up to 30 frames. It can be used for one computer, advertising equipment, video doorbell, can meet the high demands of customers!
Feature:
HD 1080P USB camera module
Synchronization technology
High speed USB 2.0 interface
High quality image
Low power consumption
Small outline for embedded application
UVC compliance for use in OS Windows,Linux,Android,Mac
Typical application
1: ATM,Kiosk,POS,TV box2: advertising cameras3: one camera4: Smart TV built-in camera
5: Construction Equipment6: Banking equipment7: body switch8: Scanner
9: a mobile terminal device10: Medical diagnostic image acquisition11: fingerprints, palm prints image acquisition
12:video door phone13:HD surveillance
Remarks:
1: Use the USB cable wire into the computer, notebooks and other USB interface will be able to use!
2: inserted as computers, laptops can not be used, indicating that there is no drive in accordance with the camera.

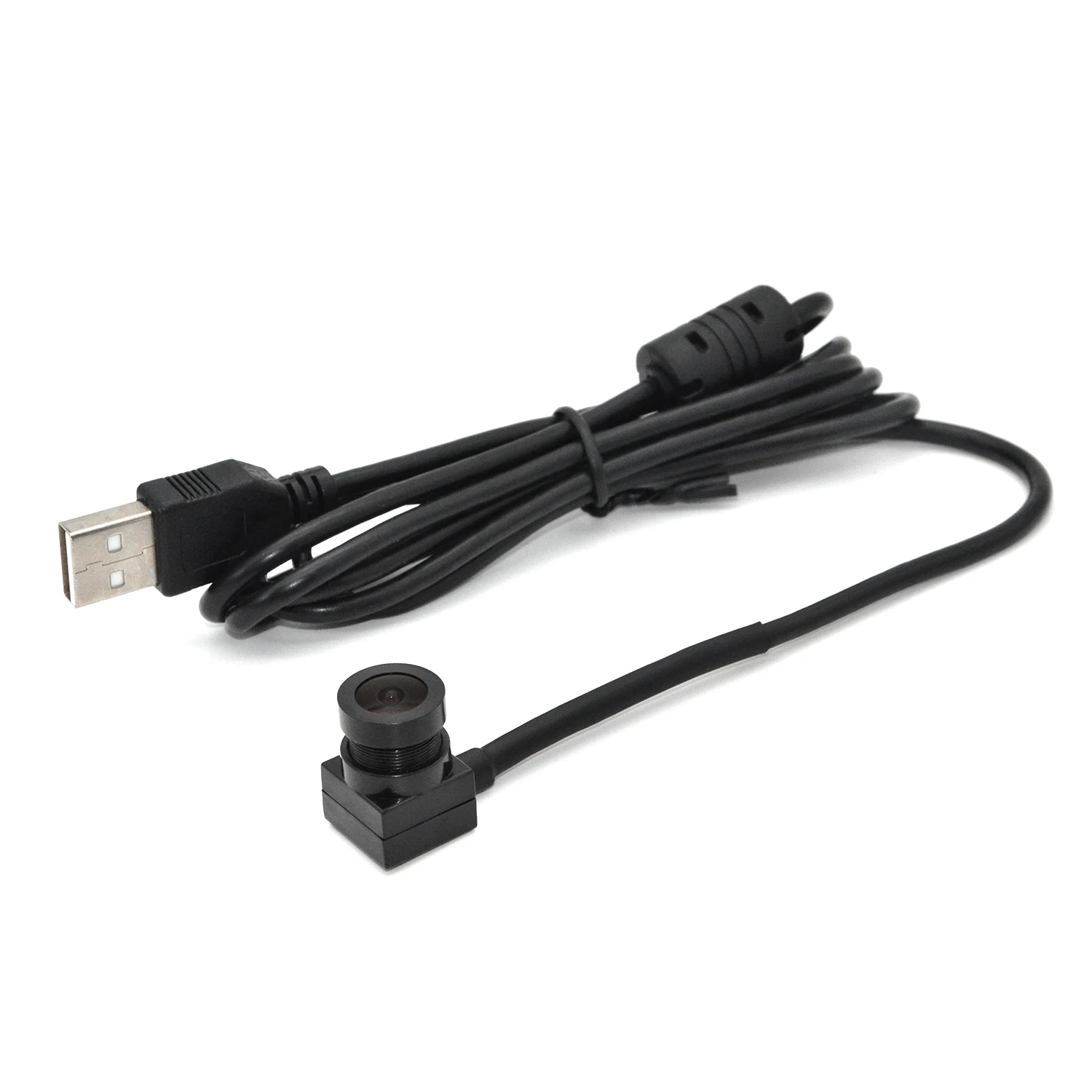

3: This product is equipped with a USB cable.

Typical application
1: ATM,Kiosk,POS,TV box          2: advertising cameras        3: one camera         4: Smart TV built-in camera
5: Construction Equipment         6: Banking equipment          7: body switch          8: Scanner
9: a mobile terminal device        10: Medical diagnostic image acquisition            11: fingerprints, palm prints image acquisition
12:video door phone                  13:HD surveillance
Parameter description:
SLens Size:1/2.7 inch
Pixel size: 3um
Maximum effective pixels: 1920 (H) X1080 (V)
Output image format: YUV2 (YUYV) / MJPEG
Frame rate:640X480 @ 30fps MJPEG,1280X720 @ 30fps MJPEG,1920X1080 @ 30fps MJPEG
YUV2,640X480 @ 20fps YUV2,1280X720 @ 5fps YUV2,1920X1080 @ 5fps YUV2
Signal to noise ratio: 60dB
Dynamic range: 69dB
Sensitivity: 3.3V/lux-sec@550nm
Minimum illumination: 0.01LUX
Shutter type: Electronic rolling Frame shutter/ exposure
Interface type: USB2.0 High Speed
Support free flooding protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: support
Automatic white balance AEB: support
Automatic gain control AGC: support
Adjustable parameters: brightness contrast color saturation hue resolution
The gamma exposure contrast gain white balance backlighting
Power supply: USB BUS 4P-2.0mm POWER socket
Working voltage: DC5V
Working current: 140mA~220mA
Working temperature: 0 ~ 60
Storage temperature: -20 ~ 70 C
Board size: 15X15mm
Machine weight: 50g
Supported system: WinXP/Vista/Win7/Win8/Linux with UVC (above linux-2.6.26)/MAC-OS X 10.4.8 or later
/Wince with UVC/Android 4 or with above UVC
Lens: 1.7MM
Angle: 160degrees
Line length:2M Cable
Main Features:
Mini web camera, usb plug and play camera
Full hd 720P/ 1080P high quality image mini camera
Wire length: 2 meters
3.6mm prime lens Angle: approximately 90 degrees
3.7mm prime lens Angle: about 90 degrees
Drive: Drive free
USB port: USB 2.0 (type-c and Micro port optional)
1MP frame rate: 30fps
2MP Frame rate: 30fps
8MP frame rate: 15fps
Camera length and width: 15*15mm
Audio: 2MP 8MP Built-in microphone, 1MP does not support microphone
8MP Product Description:
Sensor: So ny IMX179
Lens Size: 1/3.2inch
Pixel size: 1.4um
Image area: 6.18mm x 5.85mm
The most effective pixel: 3264(H) X 2448(V) 800MP pixels
Output image format: MJPEG
Supported resolution and frame rate:
3264X2448 @ 15fps / 2592X1944@ 15fps
1920x1080 @ 30fps / 1600X1200@ 30fps
1280X720 @ 30fps / 960X540@ 30fps
848X480 @ 30fps / 640X480@ 30fps
424X240 @ 30fps / 320X180 @30fps
Signal to noise ratio: 34dB
Dynamic range: 72.5dB
Sensitivity: 0.65V/lux-sec@550nm
Minimum illumination: 0.5lux
Shutter type: Electronic rolling shutter / Frame exposure
Interface type: USB2.0 High Speed
Support free drive protocol: USB Video Class (UVC)
Support OTG protocol: USB2.0 OTG
Automatic exposure control AEC: Support
Automatic white balance AEB: Support
Automatic gain control AGC: support
Button camera: support
Adjustable parameters: brightness, contrast, color saturation, hue, clarity
Lens parameters: with no distortion lens
Power supply mode: USB BUS POWER 4P-2.0mm socket
Working voltage: DC 5V
Working current: 160mA~260mA
Working temperature: -10～70℃
Supported systems:
WinXP/Vista/Win7/Win8
Linux with UVC (above linux-2.6.26)
MAC-OS X 10.4.8 or later
Wince with UVC
Android 4.0 or above with UVC

Real case:

Package contents:
1 x Camera
