Dual Lens Synchronous USB Camera Module,Same Frame Rate 30fps,2560x720,Baseline Adjustable, 3D Stereo VR Webcam 720P,Fixed Focus

Dual Lens Synchronous USB Camera Module,Same Frame Rate 30fps,2560x720,Baseline Adjustable, 3D Stereo VR Webcam 720P,Fixed Focus

Feature

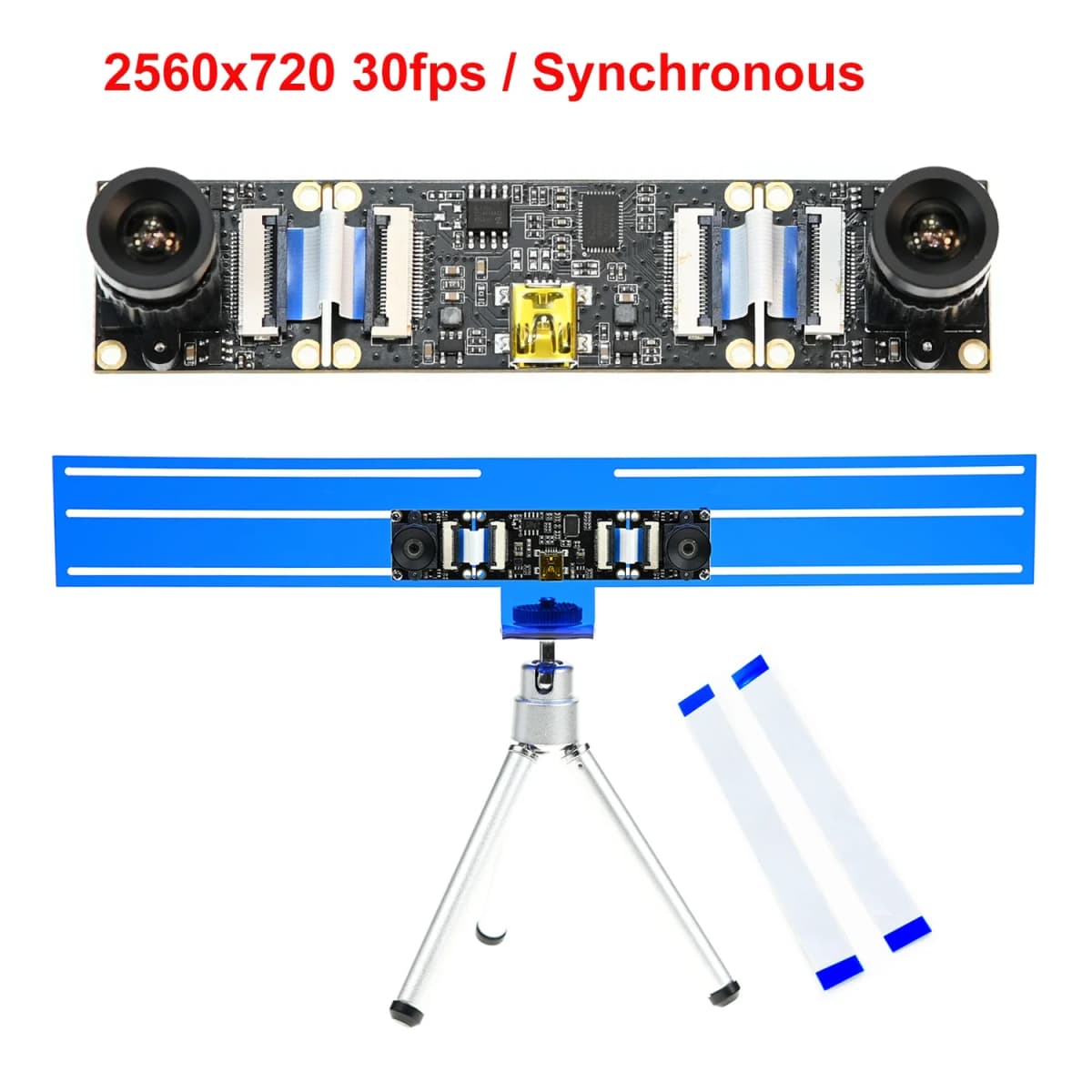

Synchronization Same Frame:

Same frame rate and same resolution at same time for each camera .The two sensors synchronously synthesize one frame of data for output.
​

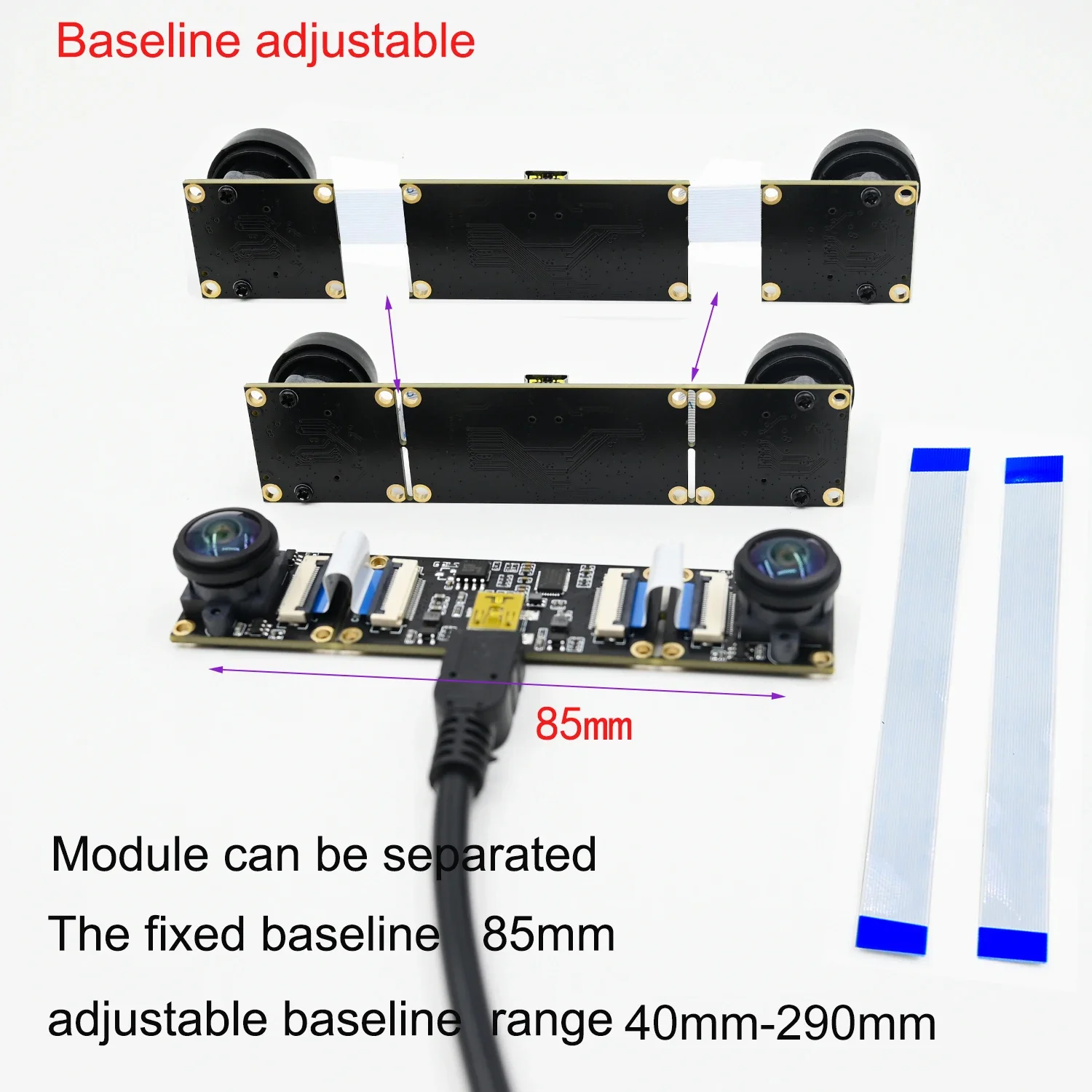

Baseline adjustable：

The fixed baseline is 85mm, and the adjustable baseline range is 40mm-290mm.

HD:

This small usb camera module 720p with dual lens adopts 1MP sensor for sharp image and accurate color reproduction, still picture resolution: 2560x 720 Max.

Angle:

Mounted a High quality Focal length ( 4.2mm,6mm,3mm,2.4mm,1.3mm )M12 lens with IR filter, provides a wilder Field of View.

Frame Rates:

MJPG 2560*720 30fps;YUY2 2560*720 5fps;

Plug-And-Play (UVC compliant):

Just connect the camera with the included USB cable without extra drivers to be installed.

UVC USB camera, Support windows/ linux/Mac/android system. Compatible with raspberry pi, Ubuntu, Opencv, Amcap and many other USB web camera software and hardware.Support OTG protocol and Raspberry Pi.

Parameters changable:

(Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)

Applications: Recommended for the video surveillance system, static high-speed shooting conventional industrial application.

Specifications

Product Display：

How to use the camera

Camera Connect with USB port , then open your camera software and select this camera as video input.
Parameters changable: (Brightness, Contrast, Saturation, White Balance, Gamma, Definition, Exposure...)

General software for USB Camera:

Blue iris, ContaCam, Yawcam,iSpy,Motion Eye OS,AMCAP, VideoCap ,Webcam Viewer, IP Camera Viewer, ZoneMinder,V4L2, Camerafi, VLC Player.

Recommend using software:

AMCAP/ VideoCap for Windows
V4L2 for Linux
FaceTime for MAC
Camerafi for Android
(Some Android are compatible, the others are not compatible)

used for all kinds of machine as below:

​machinery equipment, all-in-one machine, POS equipment, STB, smart box TV BOX, advisement player, LED display,automatic vending machine, safety box, notebook, video door phone, MID, Tablet external, evaluator, Medical Equipment, on-the-spot law enforcement, door bell and button system, cat-eye system, simple security system,teaching system, Interactive system,automobile data recorder. Project video capture, credit card machine, attendance machine, Voting system, High speed video shooting Device, exam system, Driving learning system,Industrial camera, biological microscope, box inside surveillance, micro HD surveillance, endoscope,Medical auxiliary equipment, etc.
