XIAOMI Outdoor Camera CW300 2.5K Full Color Night Vision 4 Million Pixels IP66 Human Tracking Sound And Light Warning Voice Call

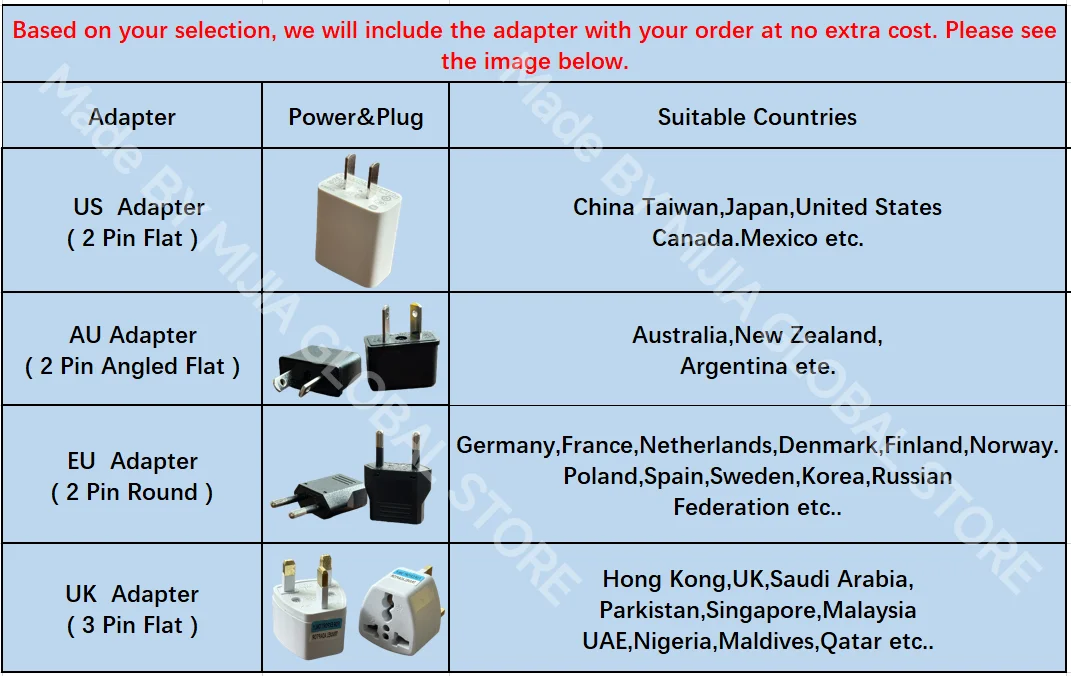

This product is the Chinese version, and the power plugs are all Chinese standard. Please choose the correct adapter. We will provide you with the required specifications for free.

EU plug = Chinese plug Add EU adapter

UK plug = Chinese plug Add UK adapter

AU plug = Chinese plug Add AU adapter

Original US plug = Chinese plug

The application server can only be selected from mainland China. Please upgrade your APP to the latest system, when connecting, make sure the network connection is smooth, the camera is turned on normally, the indicator light is yellow; when the connection is successful, the indicator light will be blue.

Add Device Tip

1. Please upgrade the MiHome APP of your phone to the highest version.

2.Please set the country and region of your MiHome APP to Chinese mainland.

3.Please choose 2.4G to connect WiFi network, not 5G or higher version.

4.Set the country and region of your cell phone to Chinese mainland, and set the language to your familiar language.

User Instructions:

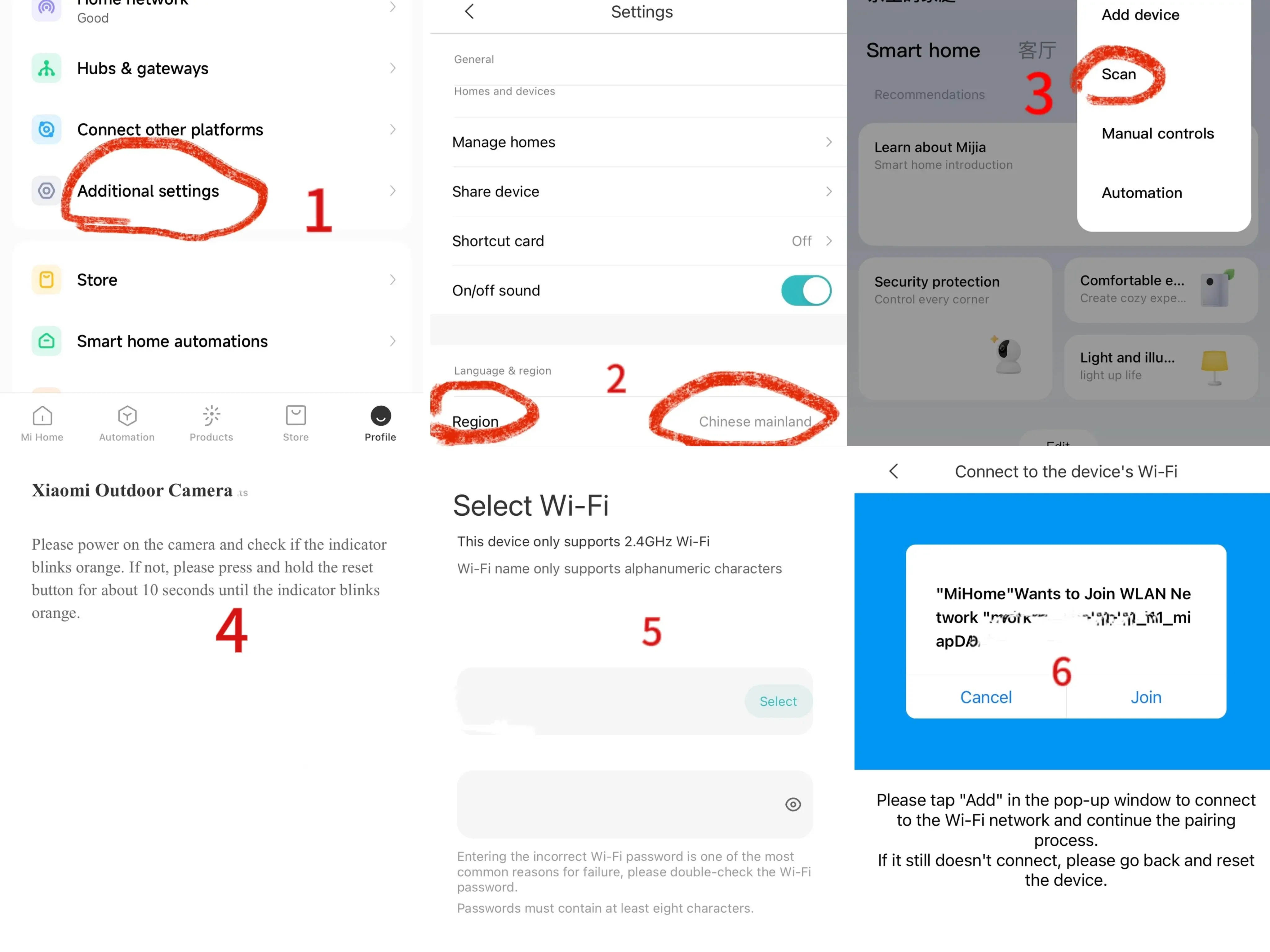

1.Please download the Mi Home app first. After downloading, Click "Profile" - "Additional settings".

2.In "Language & region", set "Region" to "Chinese Mainland".

3.Connect the power.

(1) Insert the power adapter cable into the camera power port, and the camera will automatically power on.

(2) The indicator light will be solid yellow, and you will hear a voice prompt indicating successful power-on.

(3) Click the "+" in the upper right corner, then click "Scan".

4.Follow the on-screen instructions to reset the product. Click "Device Reset".

5.Select Wi-Fi and Click"Next".

6.Continue until the connection is successful.

Powering On: Insert the power adapter cable into the camera's power port, and the camera will automatically power on. The indicator light will be solid yellow, and you will hear a voice prompt, indicating successful startup.

Connecting to Mi Home App: This product is already integrated into Mi Home, allowing control through the Mi Home app and seamless integration with other products. Scan the QR code to download and install the Mi Home app. Users who have already installed the Mi Home app will directly access the device connection page. Alternatively, you can search for "Mi Home" in the app store, download, and install the Mi Home app. Open the Mi Home app's homepage, click the "+" in the upper right corner, and follow the app's prompts to add the device.

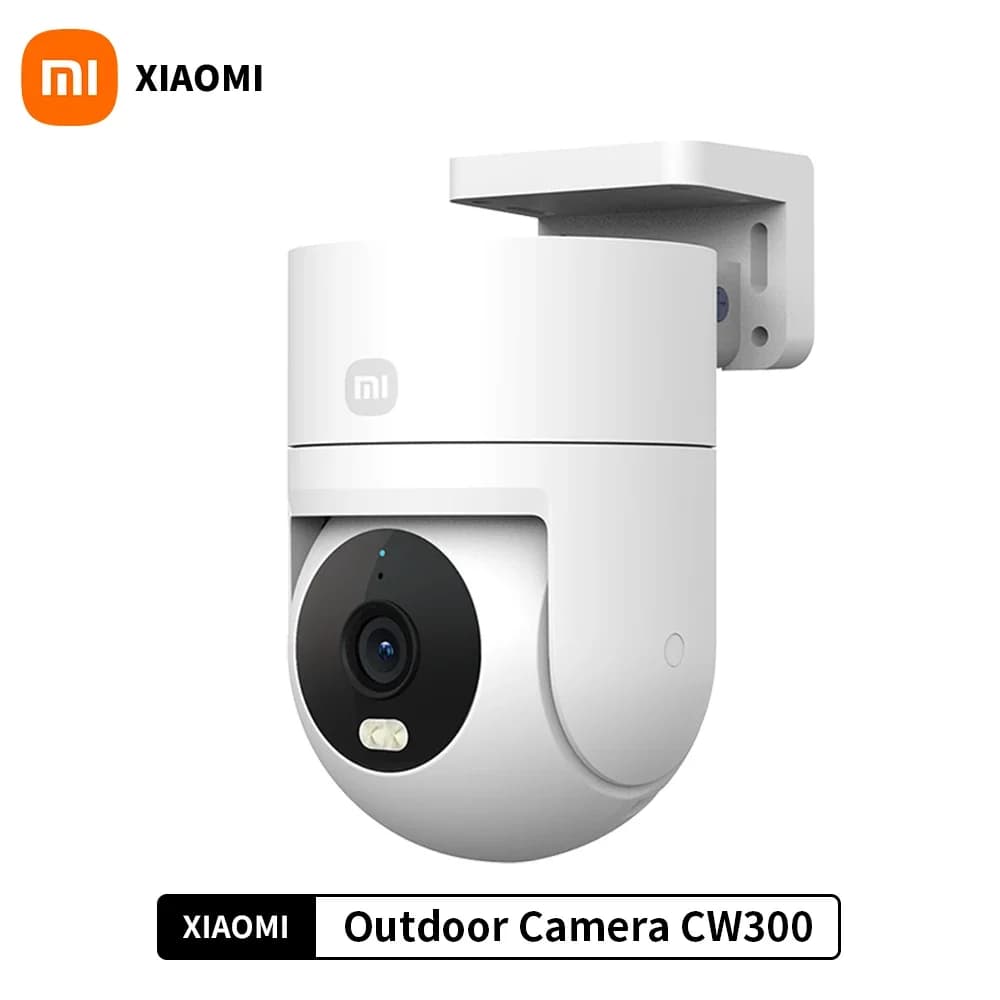

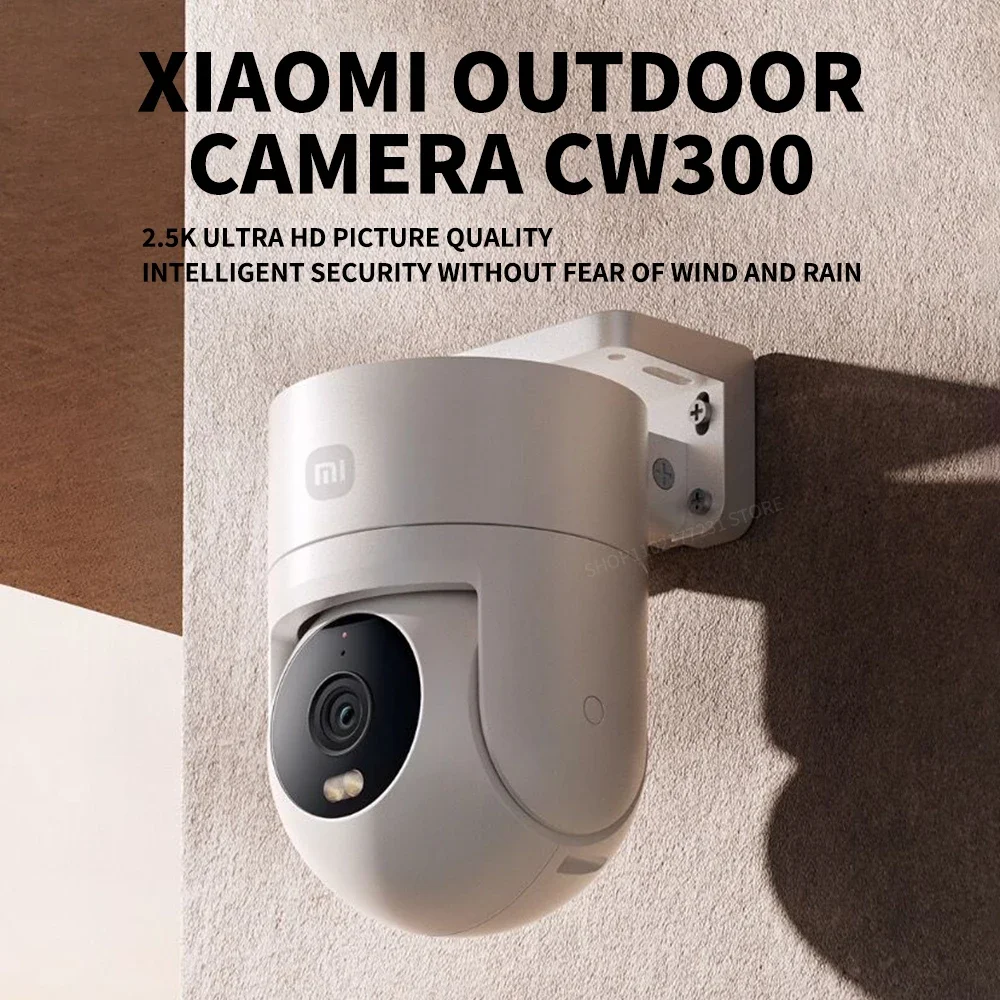

XIAOMI OUTDOOR CAMERA CW300

-2.5K ULTRA HD PICTURE OUALITY INTELLIGENT SECURITY WITHOUT FEAR OF WIND AND RAIN

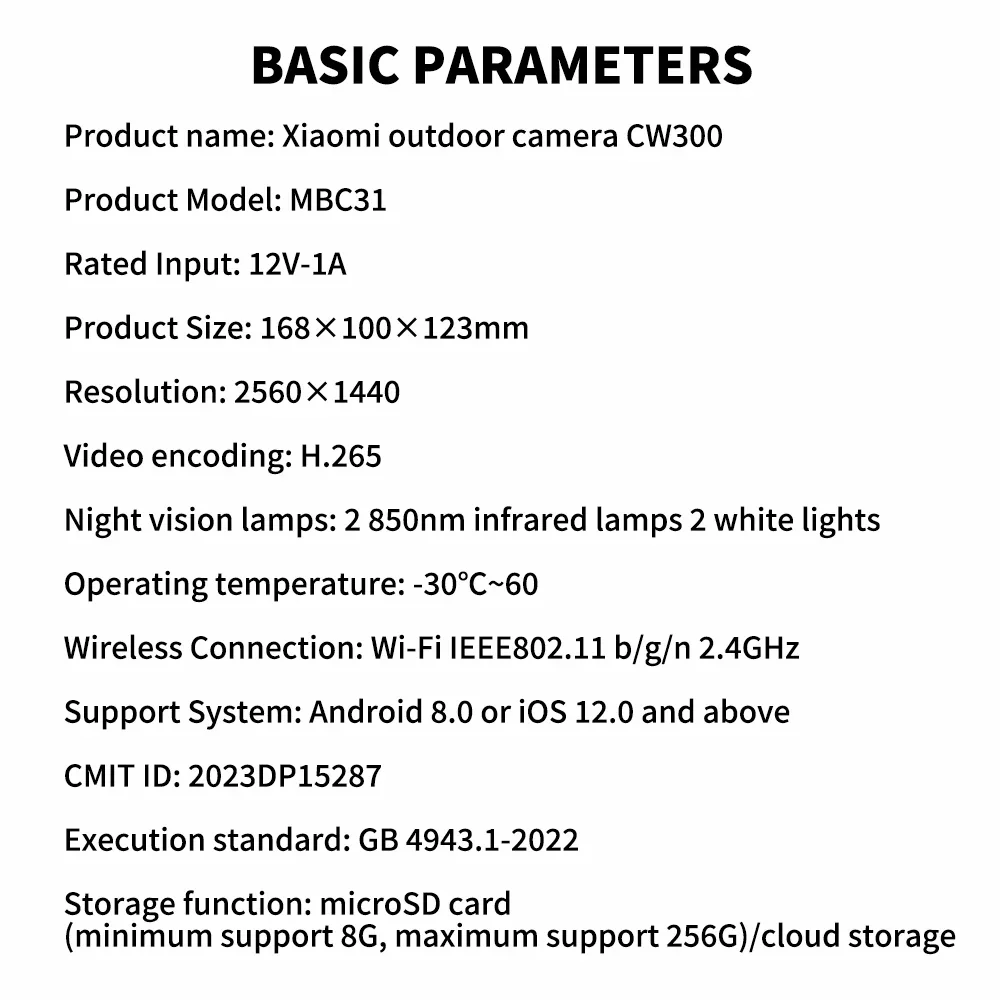

BASIC PARAMETERS

-Product name: Xiaomi outdoor camera CW300

-Product Model: MBC31

-Rated Input: 12V-1A

-Product Size: 168x100x123mm

-Resolution:2560x1440

-Video encoding: H.265

-Night vision lamps: 2 850nm infrared lamps 2 white lights

-Operatingtemperature: -30°C~60

-Wireless Connection: Wi-FilEEE802.11 b/g/n 2.4GHz

-Support System: Android 8.0 or i0S 12.0 and above

-CMITID:2023DP15287

-Execution standard: GB 4943.1-2022

-Storage function: microSD card

(minimum support 8G, maximum support 256G)/cloud storage

-4 MEGAPIXEL

-INTELLIGENT FULL-COLOR NIGHT VISION

-BI-DIRECTIONAL PTZ

-IP66 DUSTPROOF AN WATERPROOF

-AI HUMANOID TRACKING

-AUDIBLE AND VISUAL WARNING

-TWO-WAY VOICE CALL

-WIRED + WI-FI DUAL NETWORKING

-MIJIA SECURITYCHIP

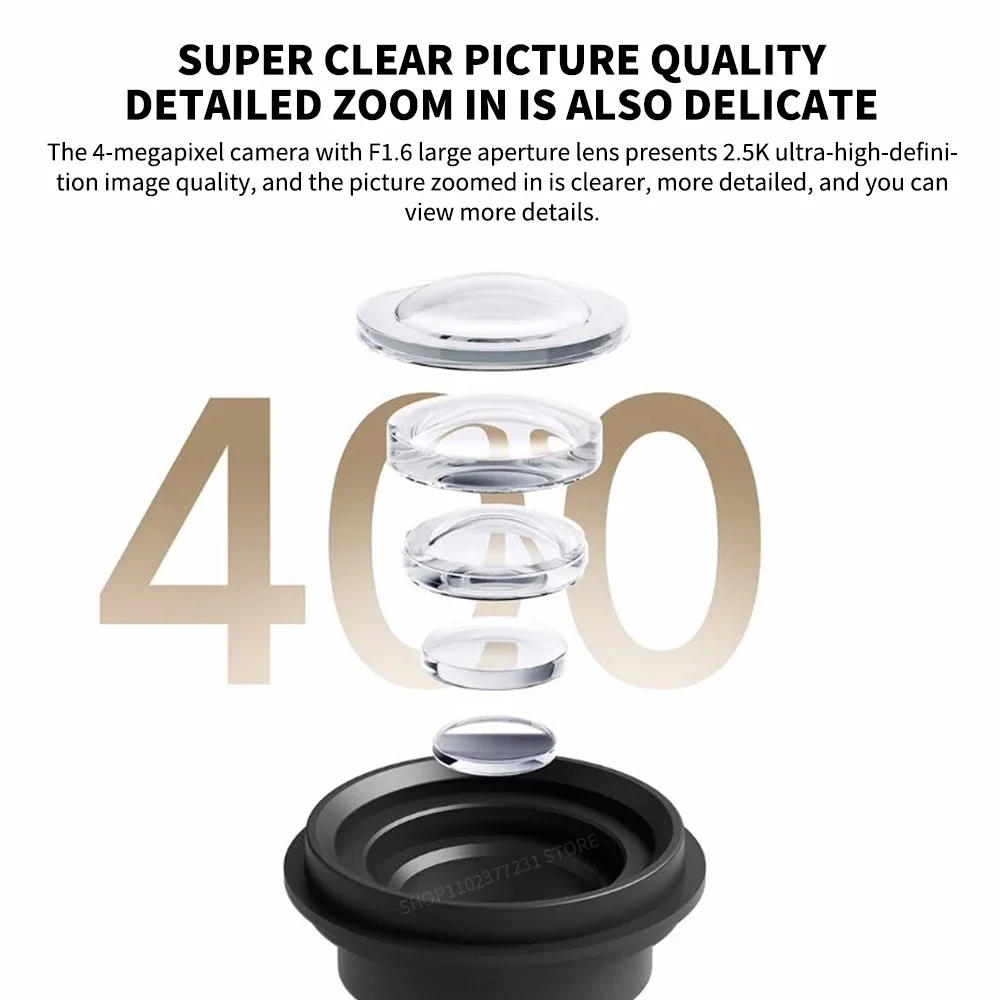

SUPER CLEAR PICTURE OUALITY DETAILED ZOOM INIS ALSO DELICATE

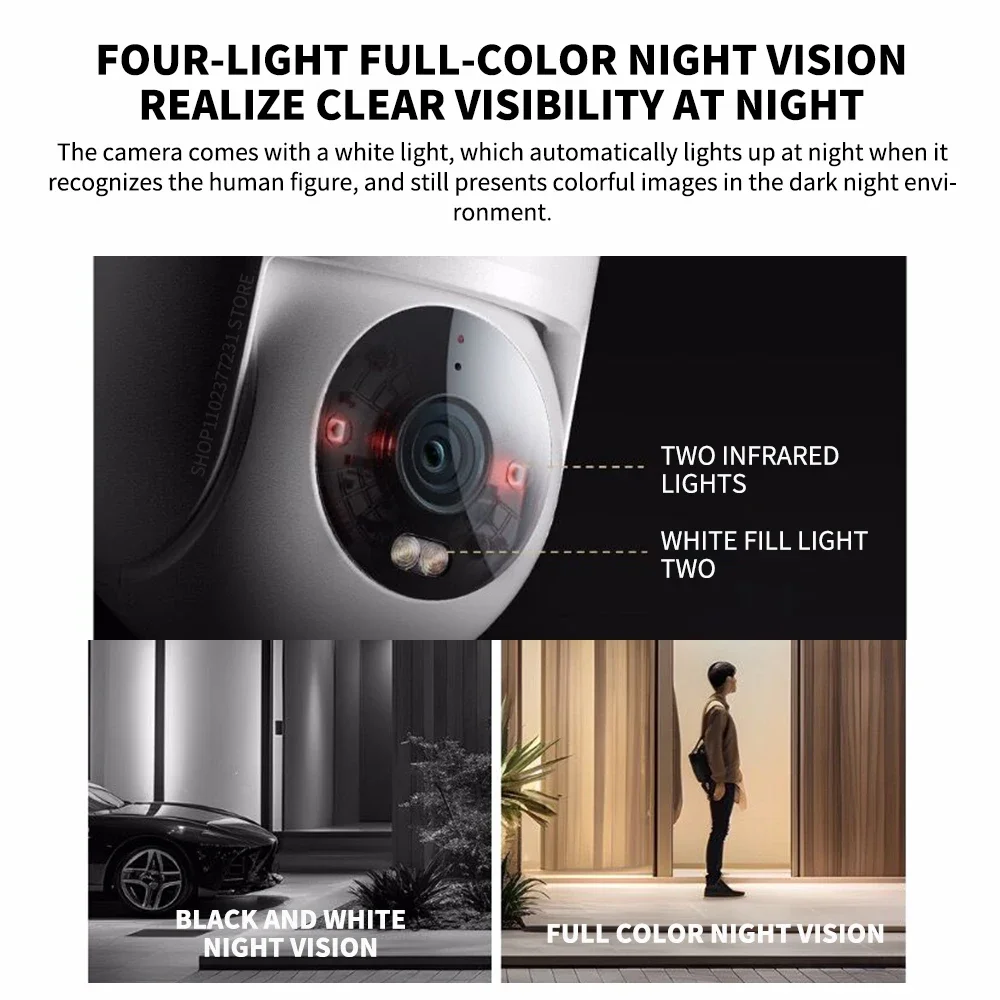

FOUR-LIGHTFULL-COLOR NIGHT VISION REALIZE CLEAR VISIBILITY AT NIGHT

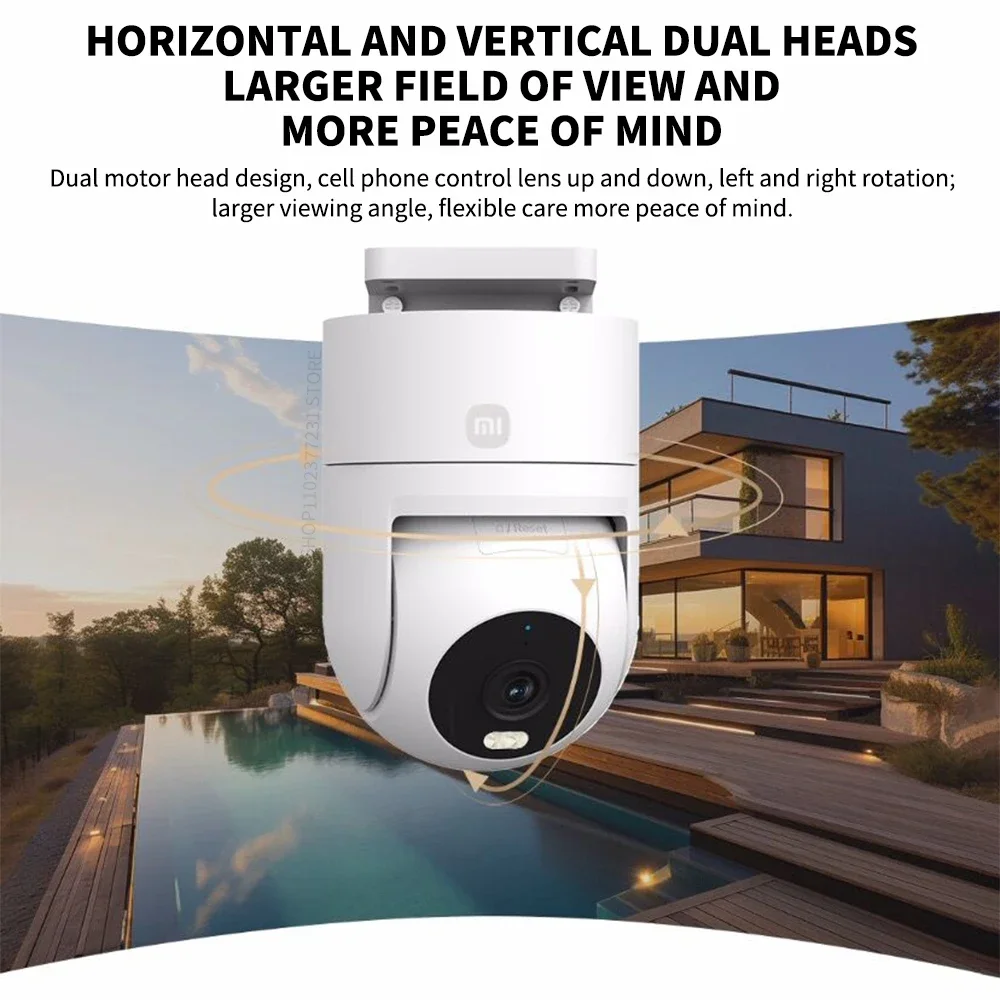

HORIZONTAL AND VERTICAL DUAL HEADS LARGER FIELD OF VIEW AND MORE PEACE OF MIND

-Dual motor head design, cell phone control lens up and down, left and right rotation;

larger viewing angle, flexible care more peace of mind.

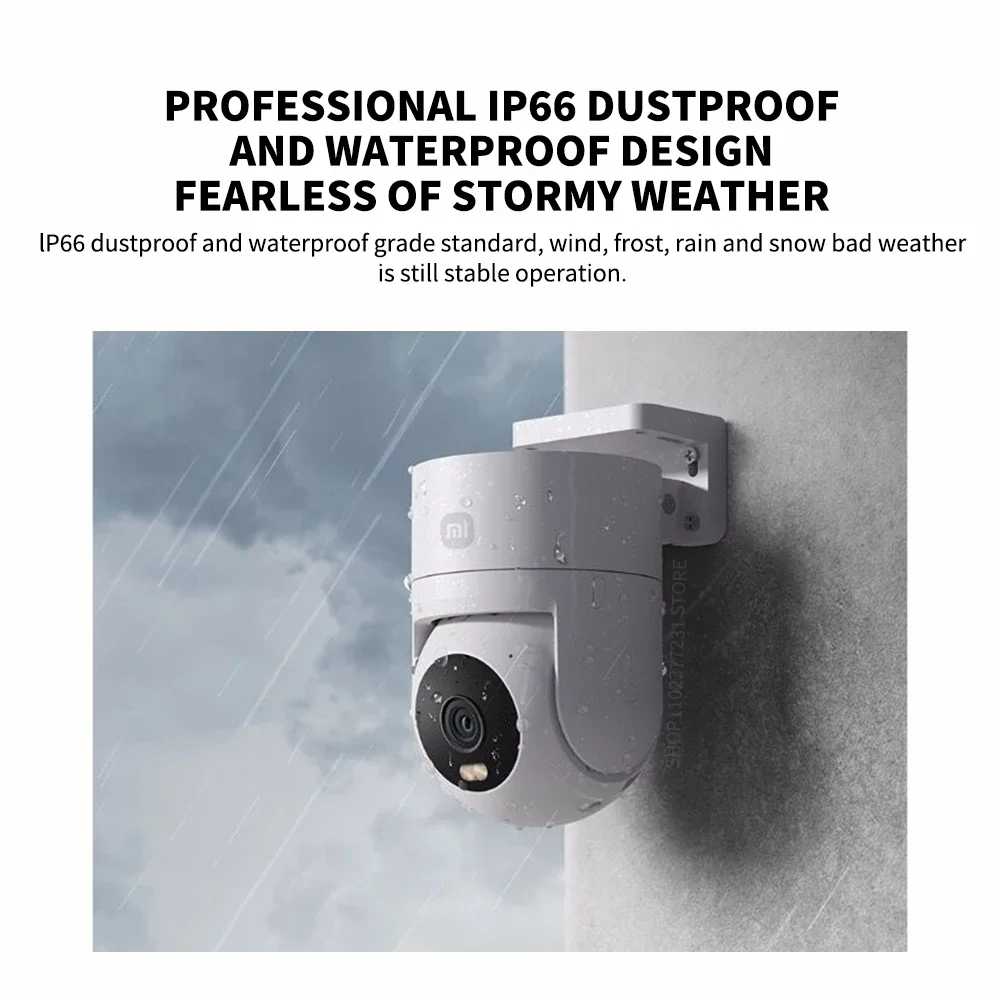

PROFESSIONAL IP66 DUSTPROOF AND WATERPROOF DESIGN FEARLESS OF STORMY WEATHER

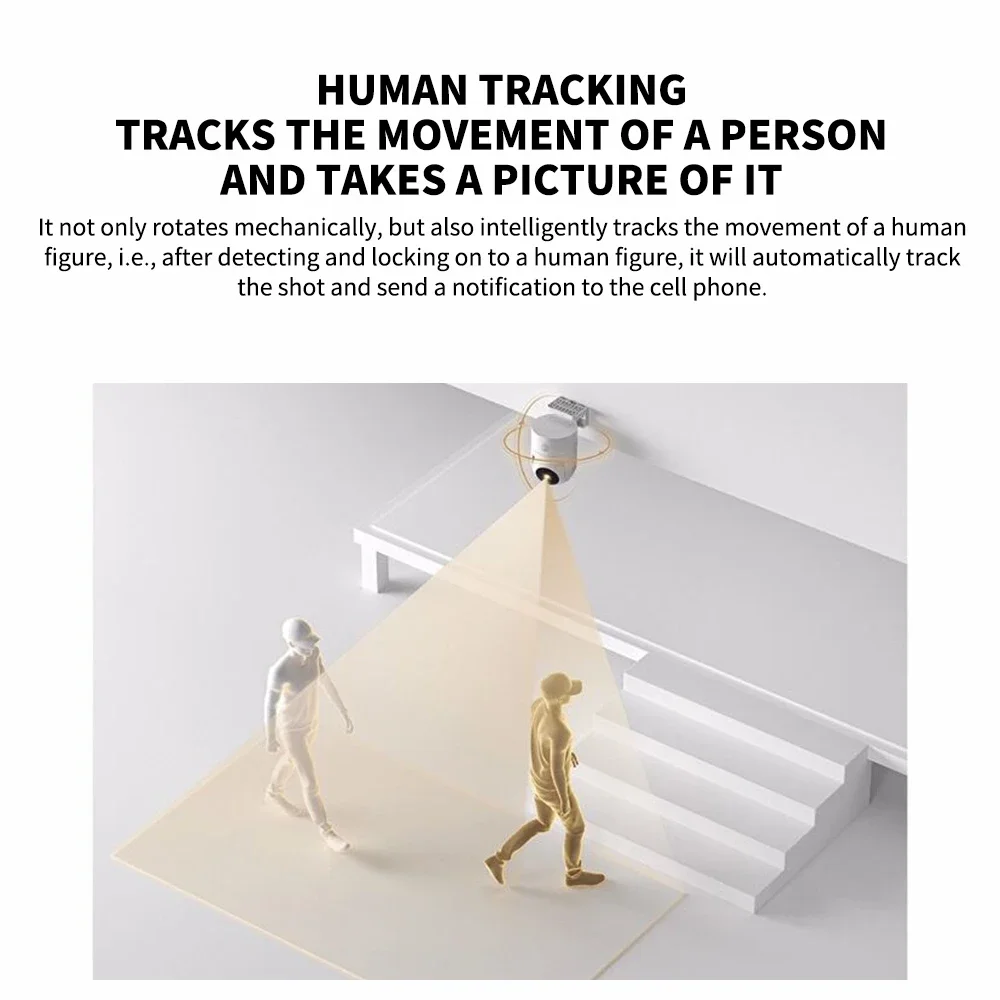

HUMAN TRACKING TRACKS THE MOVEMENT OF A PERSON AND TAKES A PICTURE OFIT

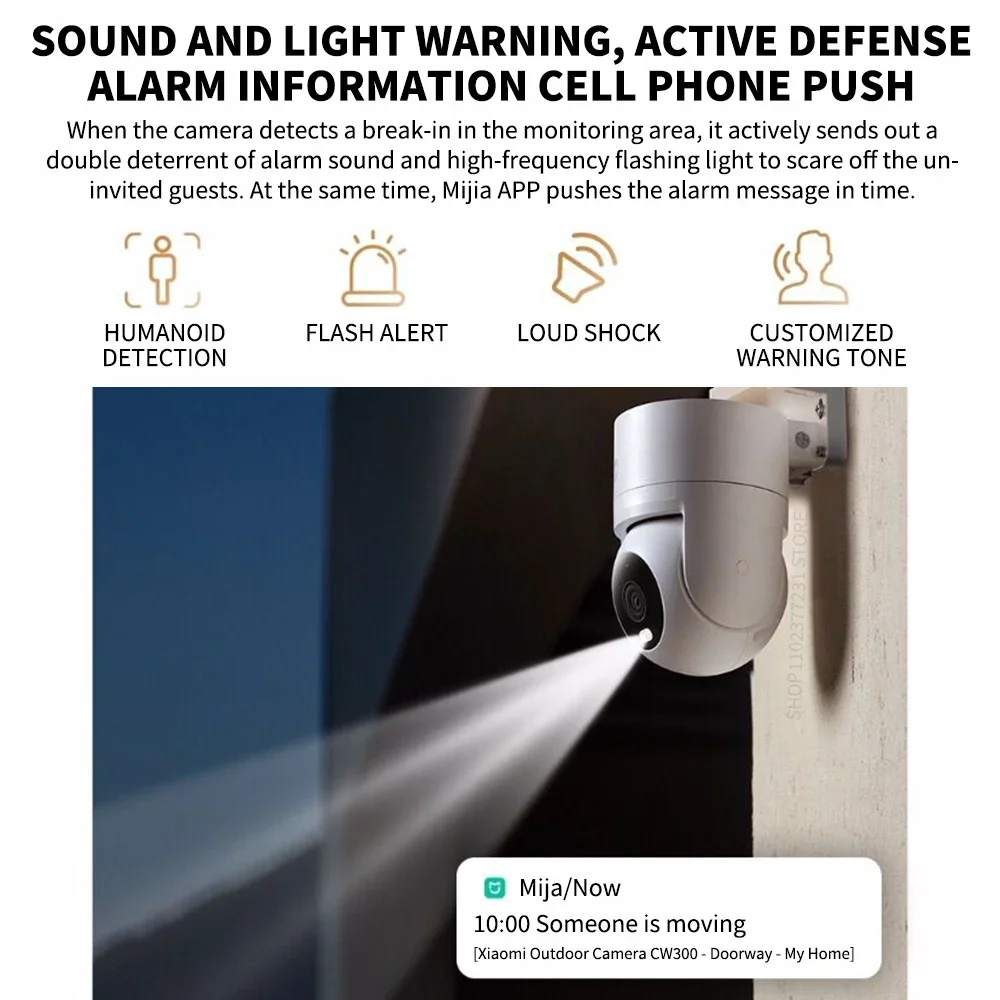

SOUND AND LIGHTWARNING,ACTIVE DEFENSE ALARM INFORMATION CELL PHONE PUSH

TWO-WAY VOICE CALL EASY TO DEAL WITH NOISY OUTDOOR ENVIRONMENT

-Built-in high sensitivity microphone, high-quality high-power speaker, with Al intelligent noise reduction algorithm. The sound pickup distance is long and the voice is loud, even in the complex outdoor environment, the sound effect is still clear.

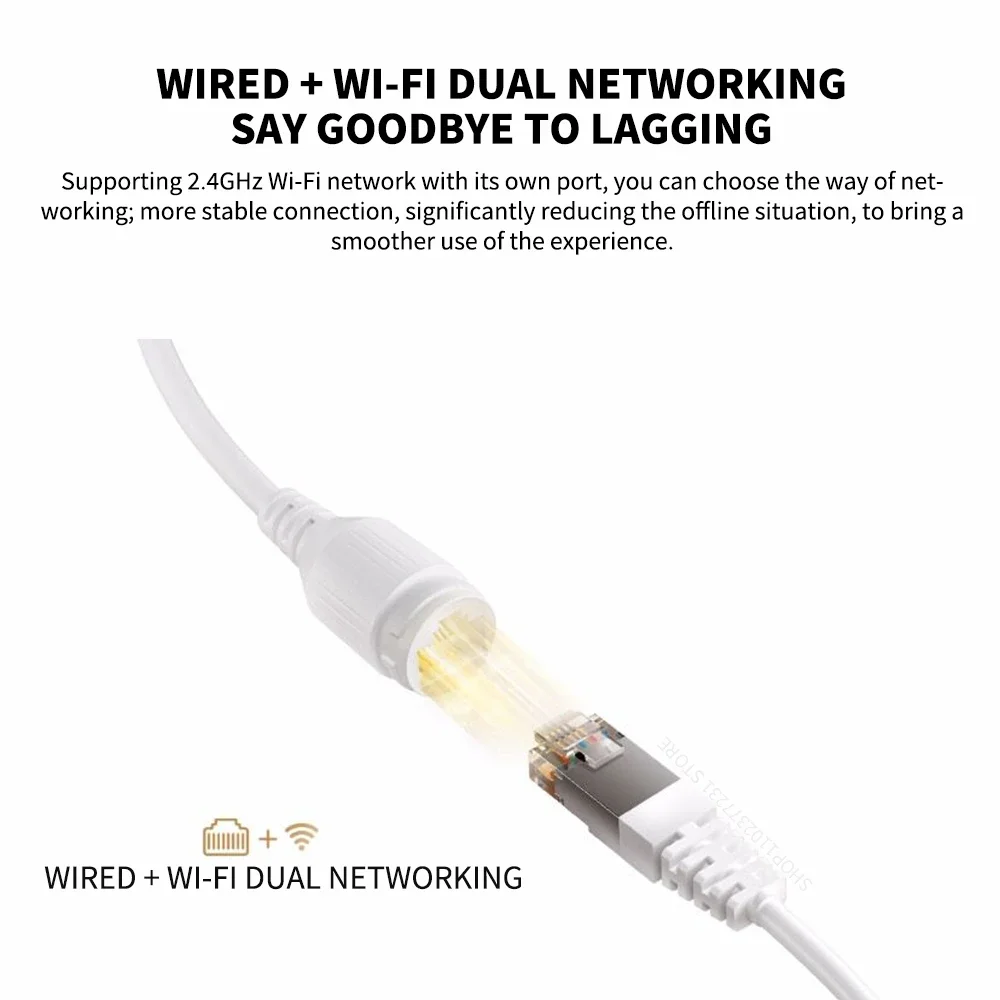

Supporting 2.4GHz Wi-Fi network with its own port, you can choose the way of networking; more stable connection, significantly reducing the offline situation, to bring a smoother use of the experience.

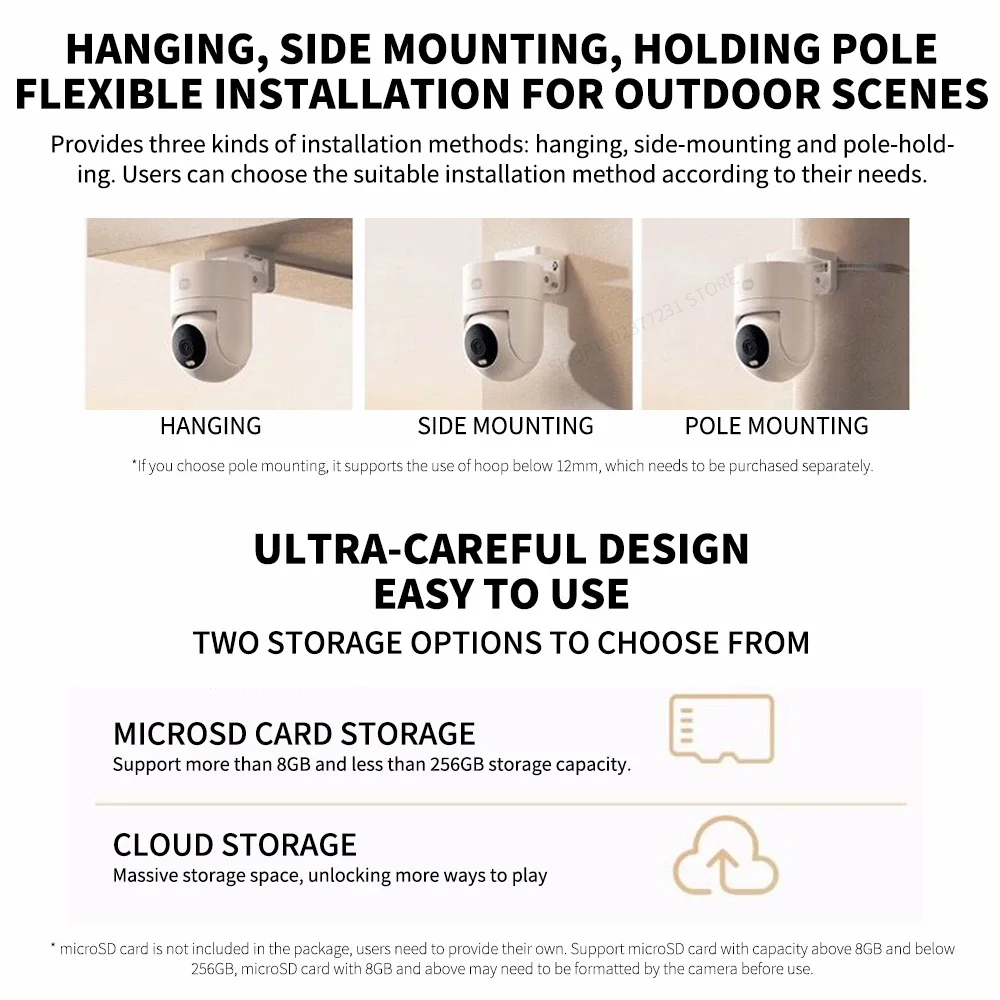

HANGING,SIDE MOUNTING, HOLDING POLE FLEXIBLEINSTALLATION FOR OUTDOOR SCENES

-Provides three kinds of installation methods: hanging, side-mounting and pole-holding. Users can choose the suitable installation method according to their needs.

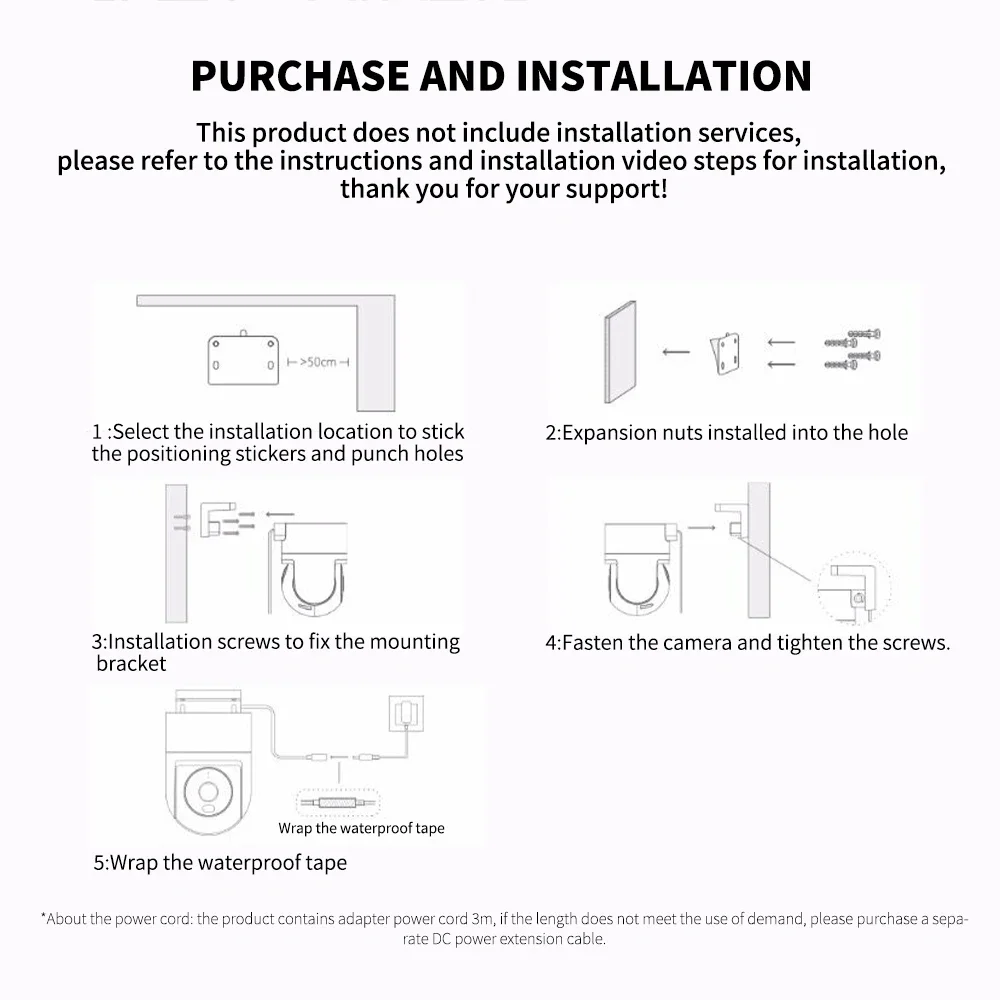

PURCHASE ANDINSTALLATION

-This product does not include installation services,please refer to the instructions and installation video steps for installation,thank you for your support!

1 :Select the installation location to stick the positioning stickers and punch holes

2:Expansion nuts installed into the hole

3:Installation screws to fix the mounting bracket

4:Fasten the camera and tighten the screws

5:Wrap the waterproof tape

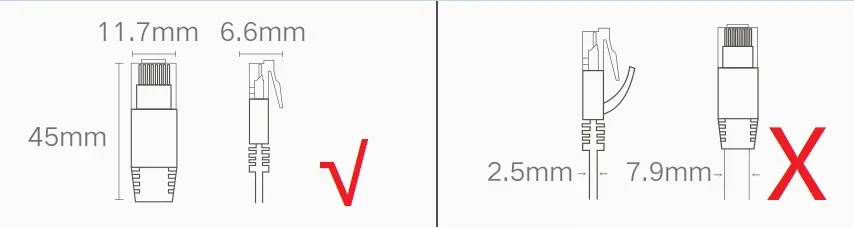

Adaptation:RJ45 network port

Crystal head and sheath width: 11.70mm / Crystal head height: 6.6mm / The length from the network cable to the crystal head does not exceed: 45mm / Network cable diameter: 5.5mm to 6.5mm.

Not suitable for:

flat wire / thin line / Network cable with compression sheath.

* When not using network cables, you also need to install a waterproof kit on the network cable interface.
