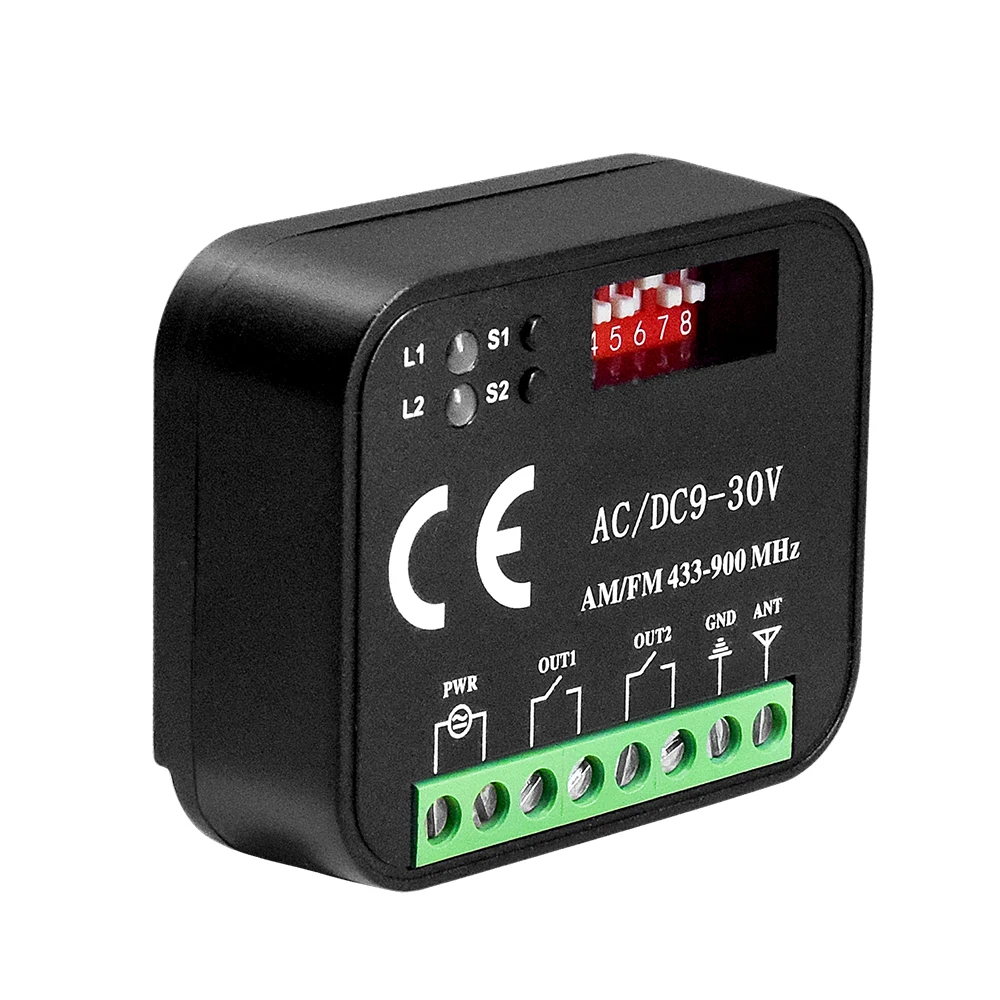

Universal Frequency 300-900MHz Garage Door Receiver AC DC 9-30V AC 85-250V 2CH Switch Module 433 868MHz Transmitter

Universal 2 channel garage door remote control recevier 300-900MHz

Specifications:

1) Distance: 30-50 meters.
2) Very mini size: 5.5cm*4.5cm*1.0cm.
3) One receiver can work with 400 codes.
4) It don’t interference other remotes and receivers.

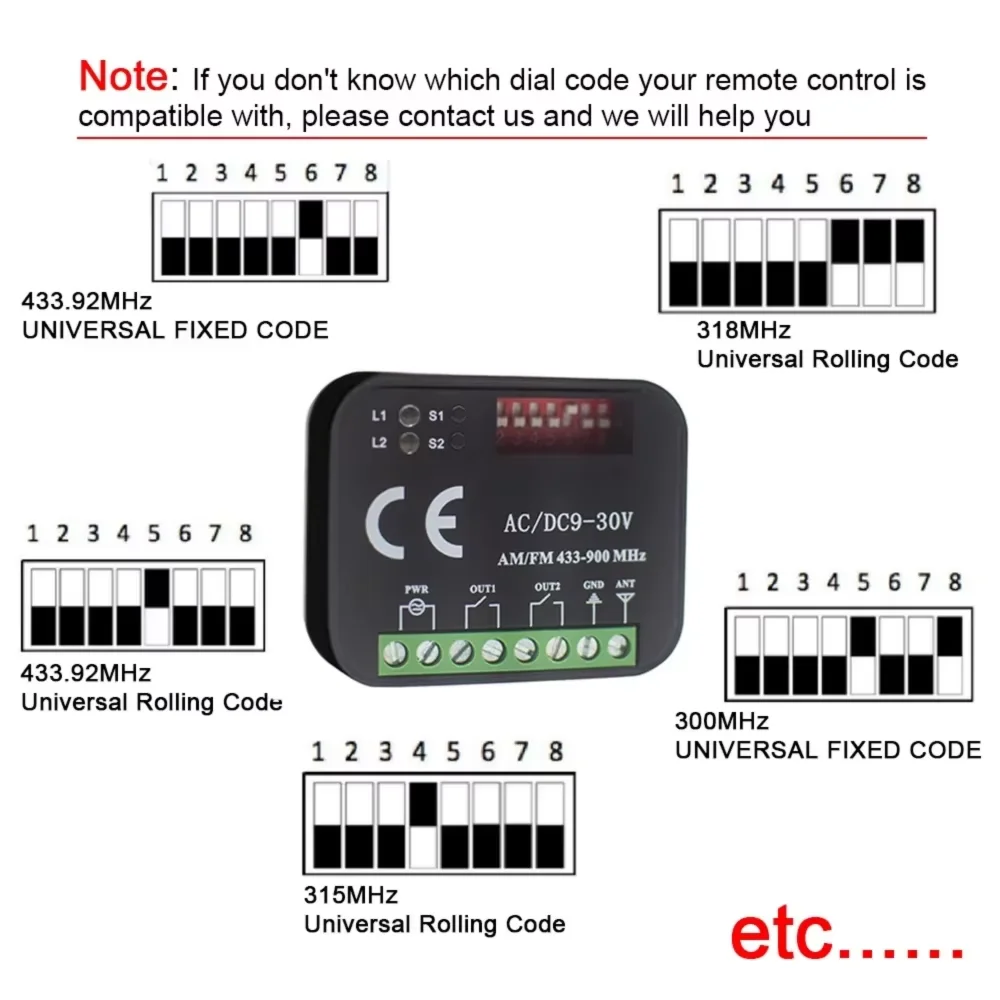

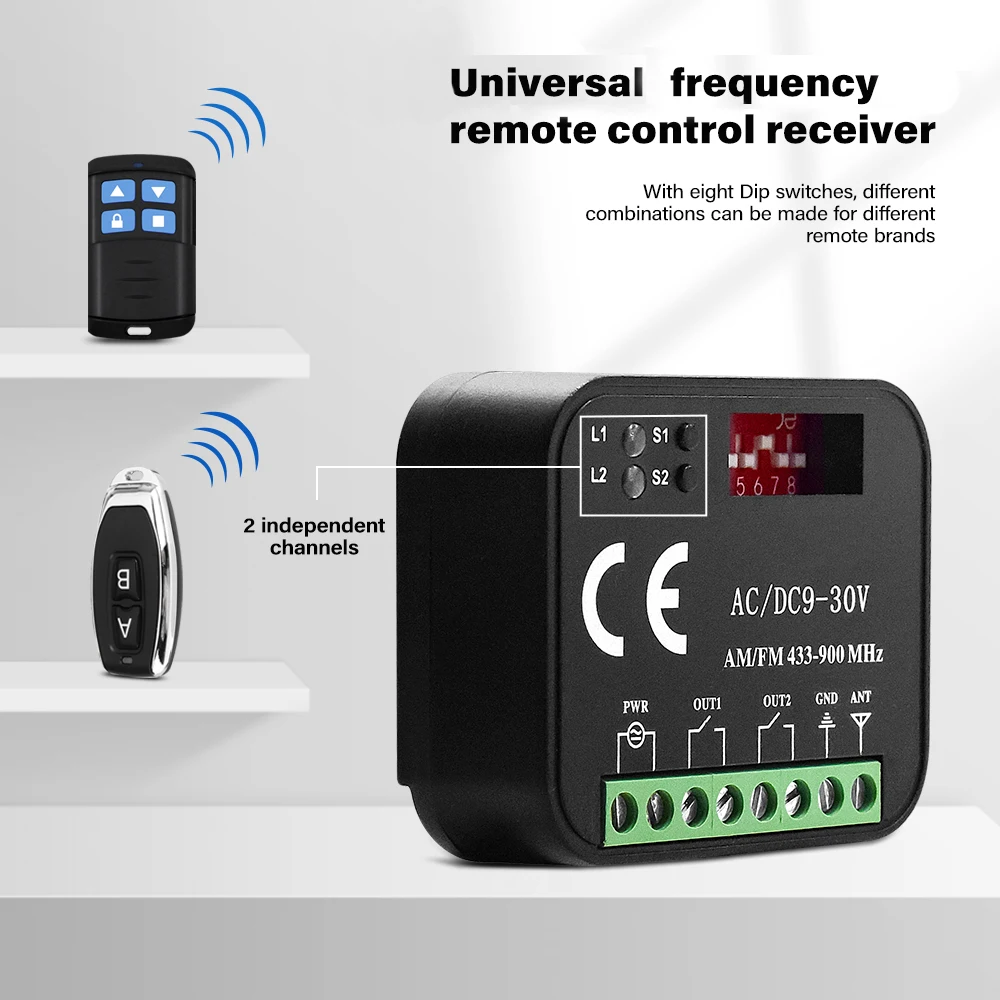

5) Brand selector: With 8 dip switches user can make different combination for different remote brands.
6) Power Input Selector: This receiver can work at AC/DC 9V~30V,AC 85-250V. However, it’s better to change the PIS according to the power input. If the input is great than 24V, shorten pin 2&3; shorten 1&2 if input less than 24V.

Working frequency: 300-900MHz(Rolling code & Fixed code)

300MHz
310MHz
315MHz
318MHz
390MHz
433.4MHz
433MHz
433.92MHz
868MHz
868.3MHz
868.8MHz

Can identify ALL Fixed code (2262, 2260, 2264, 5326, M1E, M5E and so on). All Learning code (1527, 2240, 6P20B, 6P20D and so on), Rolling code (HCS301, HCS300,HCS200, HCS201, HCS100, HCS101),

and many other main brands in the market

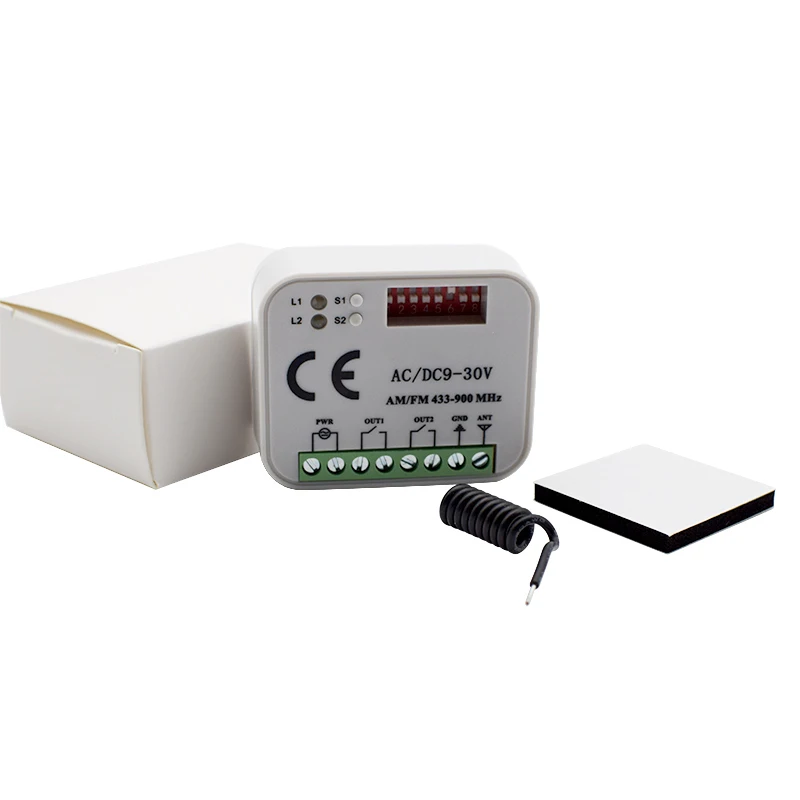

Include

1x Receiver
1x Small Antenna
1x English Manual

Programming a new remote

1) Select the correct brand for remote to be programmed by moving dip switches UP or DOWN. For example 433,92Mhz remote controls, just move Dip-switch 7 UP.

2) Press the learn button. The will LED turn on.

3) Press the button on the remote, the LED flashes 4 times. It means that remote control was programmed successfully.

4) Repeat step 2 for another button.

5)The 2-nd channel programming procedure is the same.

Erase all data from the memory card: Press and hold either learn button. The LED will start flash. Keep this button pressed, until the LED will turn off. All saved data in the memory card will be erased permanently and can not be recovered

Specifications Of The Remote Control:

Operating frequency: 433MHz
Power by 23A 12V (Battery not included ),
Material: PVC.
Button: 4 buttons
Encoding type: Learning Code.
Transfers distance: 20-50m

These remotes only work with my receiver.
Please do not buy the remote control privately.
