433.92MHz Access Control password Multi Function 433 transmitter receiver Wireless Keypad garage gate door opener

433.92MHZ Access Control password Multi Function Wireless Keypad garage door opener gate opener transmitter 433MHz receiver

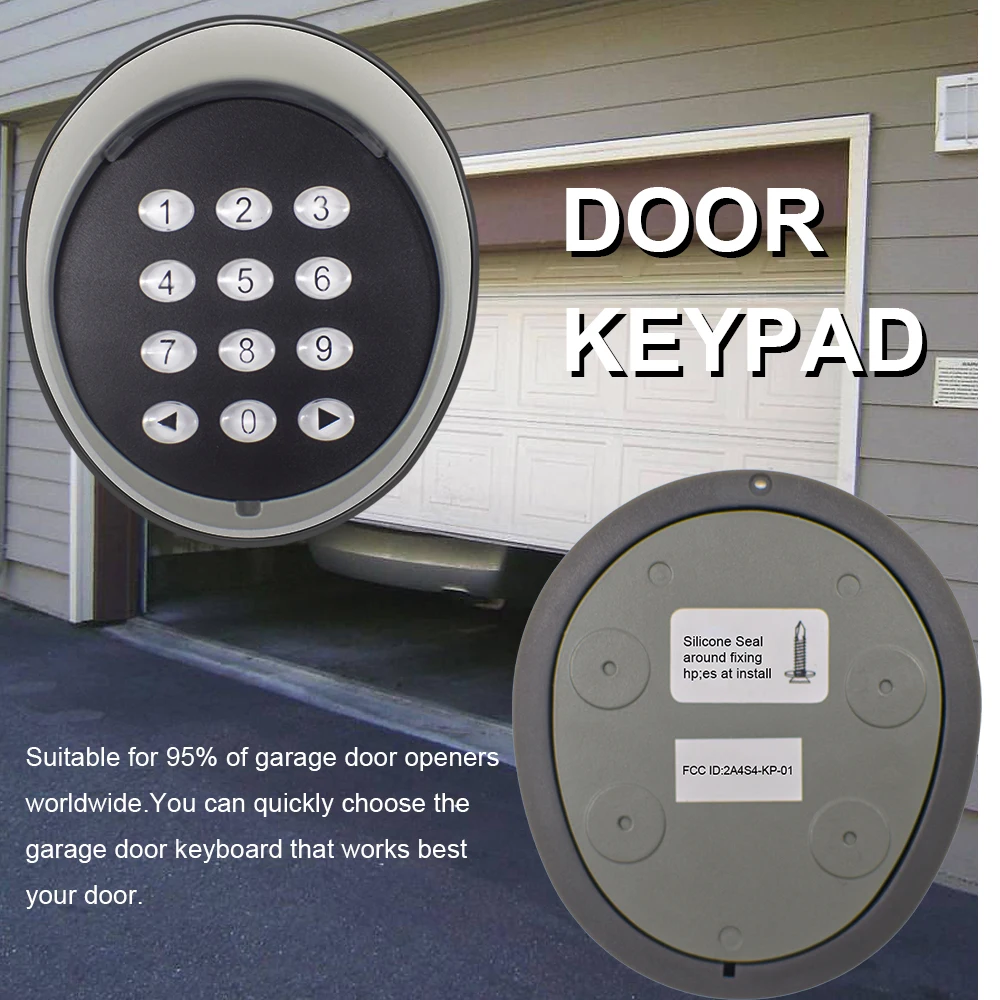

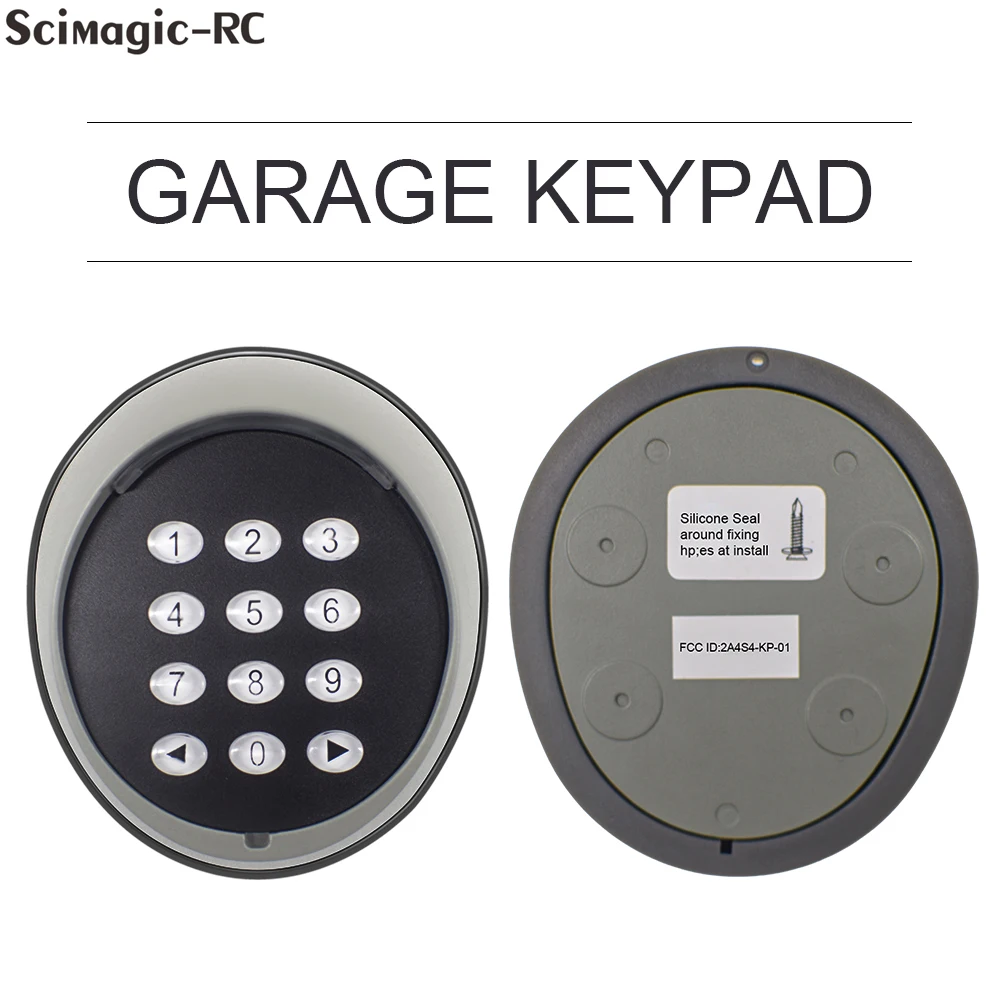

Keypad Product description:

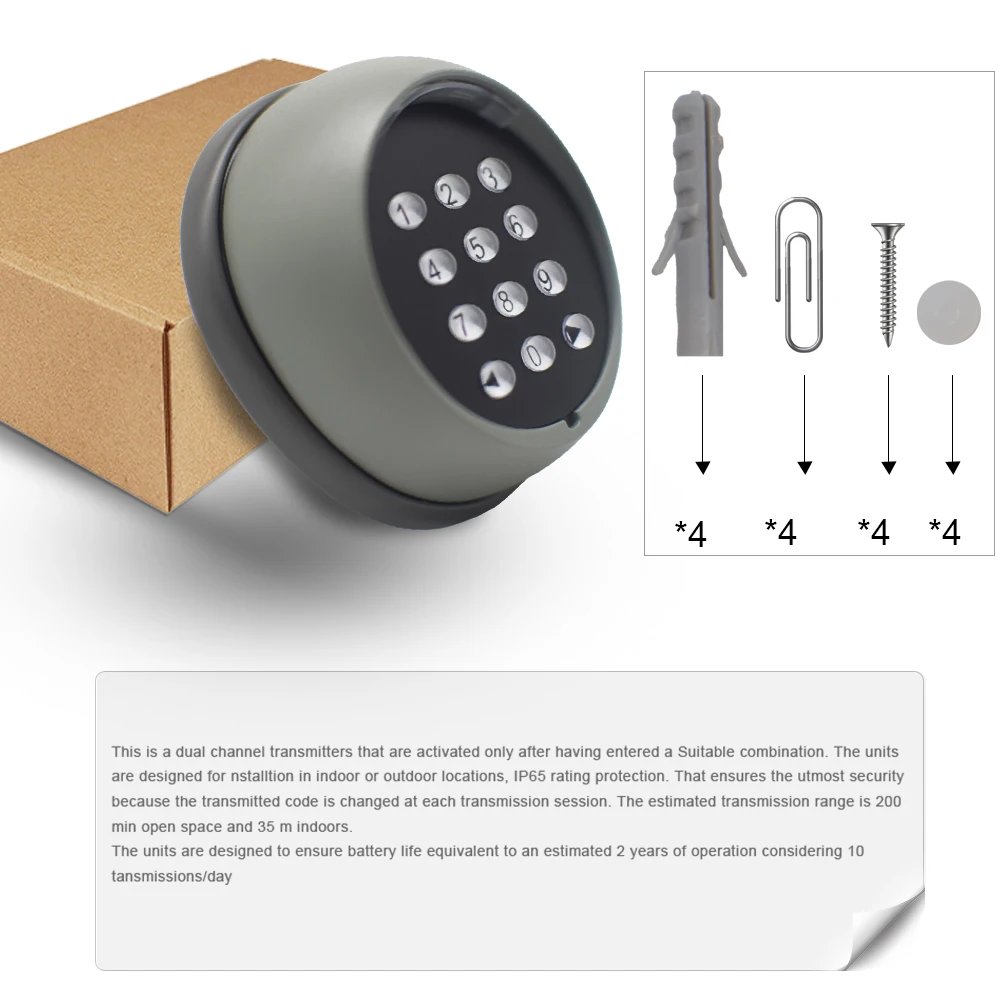

●This is a dual channel transmitters that are activated only after having entered a Suitable combination.

●The units are designed for installation in indoor or outdoor locations that ensures the utmost security because the transmitted code is changed at each transmission session.

●The estimated transmission range is 200 m in open space and 35m indoors .

●The units are designed to ensure battery life equivalent to an estimated 2 years of oper-ation considering 10 transmissions/day.

Specification:

Power:6Volt DC
2PCS CR2032 Li battery
Battery life:2 years(4 times operation every day)
Frequency:433.92MHz+/-75KHz
Transmitter power:1Mw
Data format:standard
Work temp:-20~+55 centidegree
Password number:0-8
Water proof level:1p54
Dimension:85*75*35mm
Weight:150g

433 MHz receiver

SECIFICATIONS:
1. Power supply: 12v-24v DC
2. Frequency: 433.92Mhz
3. Codes: can work with any fixed/learning/rolling codes
4. 2 channel
5. Working temperature :-40℃- + 80℃
6.Built in Aerial antenna : Reception range 10-50m

ANT - Receiver Antenna
CH1 - Relay Output 1
CH2 - Relay Output 2
V+ - Voltage +
GND - Ground

433 MHz remote control

Specifications:

Material: Plastic + Metal

Operating frequency: 433.92MHz

Usage: For 433Mhz RF receiver 1527 decode

This remote control only support the learning code (1527) of the receiver

Note: This is not a clone remote. Cannot clone other remotes

Include

1 x Keypad
1 x Receiver
1 x Remote Control
1 x English Manual
