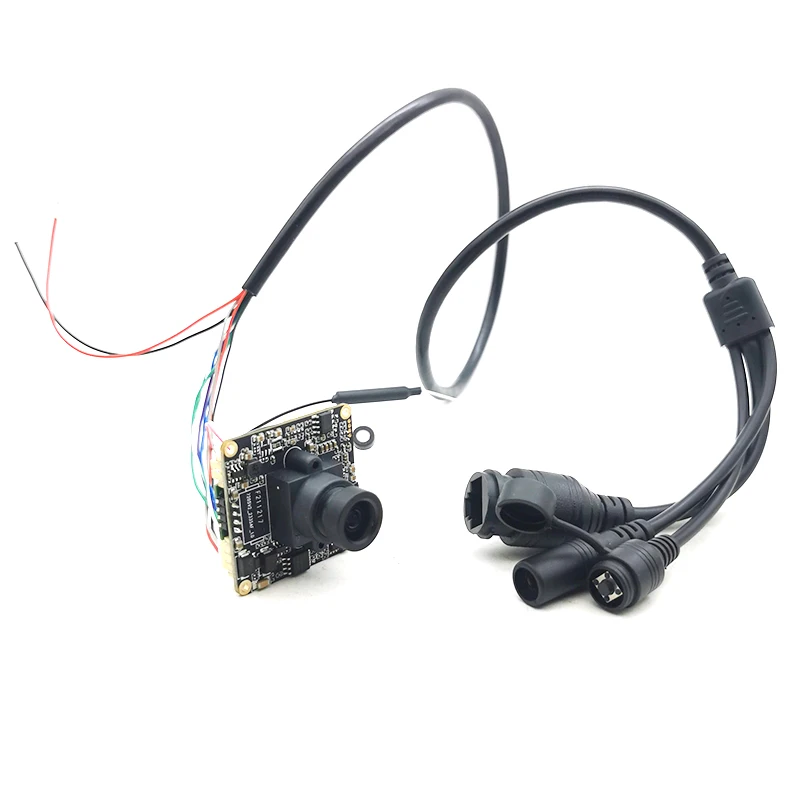

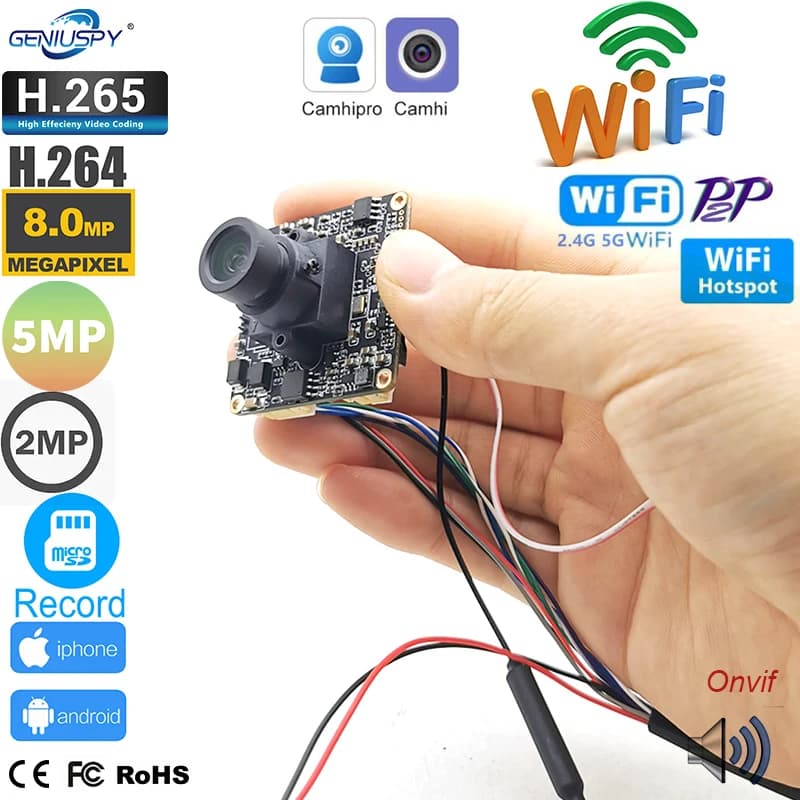

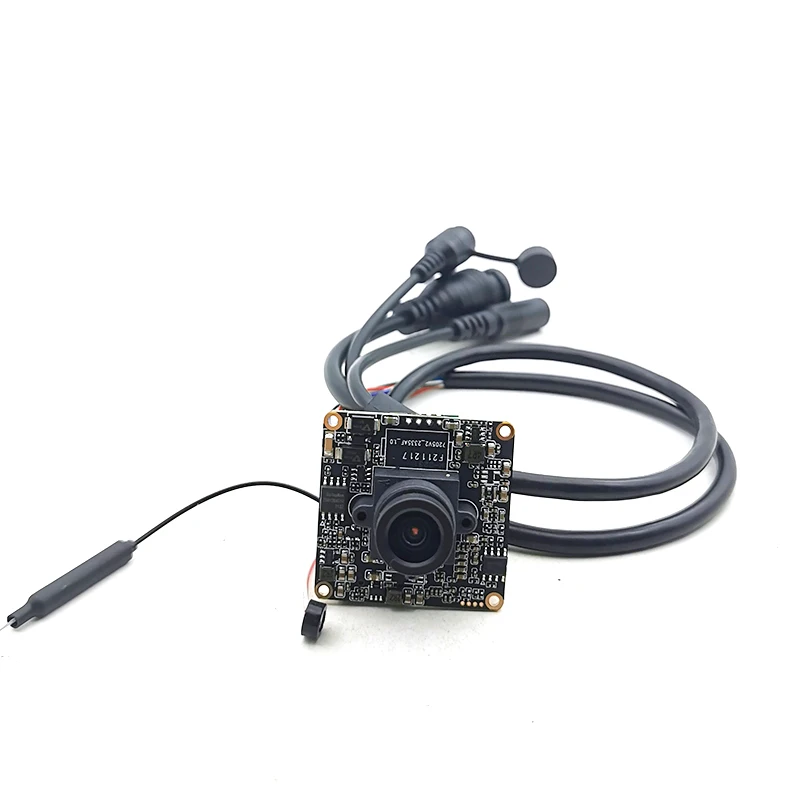

Diy Home Security 5MP 2MP H.265 HD Onvif P2P Size 38*38mm Audio Wide Angle Wifi IP Camera Module TF Card Slot Camhi Camhipro

Diy Home Security 5MP 2MP H.265 HD Onvif P2P Size 38*38mm Audio Wide Angle Wifi IP Camera Module TF Card Slot Camhi Camhipro
NOTICE:
Our IP Camera DO NOT Included The Power Adapter,
If You Need It, Please Kindly Click The Photo As Below, Add It In Your Order List, Thanks !

if you have other requirement ,welcome contact with us free !
Different angle lens available
3.6mm in 2mp/5mp camera ,angle view around 92degree
2.8mm in 2mp/5mp camera ,angle view around 110degree
1.66mm in 2mp/5mp camera ,angle view around 160degree
1.78mm in 2mp/5mp camera ,angle view around 180degree
25mm in 2mp camera ,angle view around 15degree,for long distance use

support WIFI& tf card slot&audio
Features
High sensitivity, high signal-to-noise CMOS image sensor
H.264 /h.265 Compression,three streaming, mobile surveillance; compatible with various smart Phone  operating system
Support multiple network protocol TCP/IP,HTTP,TCP,ICMP,UDP,ARP, IGMP,SMTP,FTP,DHCP,DNS,DDNS,NTP,UPNP and so on
Support :ON VIF 2.0
Support :DDNS and three DDNS
Support :sending email, attaching picture
Support :Alarm picture and record Uploaded to FTP server
Support :Timing captured picture to FTP server
Support :Static IP and DHCP
Support :P2P
Support :privacy mask
Support up to 12 users browsing at the same time(Each stream supports four users
Support remote alarm linkage
Only 1 network port is used for IE Browsing,stream transmiting and command access, convenient for router setting
Support WIFI, support AP mode;
Support up to 128G TF card storage;
Optional 2.8/3.7(default)/6mm lens;
Support P2P, view & anywhere & anytime;
Elegant outline and easy installation;
Provide android & ios APP and professional CMS PC client software;
The camera supports wifi hotspots, which can be accessed via the mobile APP without the need to connect the network cable
2. Specifications
Model
GS-PBTFWCMBA/GS-PBTFWCBA5M
Video
Sensor
Geniuspy  5mp models:1/2.7" GC5603 +T41NQ   h.264 H.265 5mp 2880X1620P 20fps
Geniuspy 2mp models: 1/3" SC2336P  +GK7201V200 h.264 H.265  1920*1080p 20FPS
Video resolution
Video compression
H.264 OR H.265 2mp 5mp
Lens
3.6MM Lens default Optional 2.8/3.6(default)/6mm lens
View angle
based on lens
Audio
Audio compression
G.726/G.711
Audio code rate
Rate adaptive
Audio input
support audio
Alarm
Motion detecting alarm
Can set 4 independent detection region (1-100 sensitivity can be set)
Alarm linkage
Alarm send pictures to the mailbox,
Alarm upload pictures and videos to the FTP server,
Alarm record pictures and videos to Micro SD card,
Alarm mobile phone message push
Alarm recording
Support Micro SD card and PC client linkage alarm recording
Network
Wireless
IEEE 802.11 b/g/n
Ethernet
RJ45 Ethernet
On vif protocol
Support ON VIF 2.4(backward compatible)
Storage
Micro SD card
Support up to 128G micro SD card max
Recording mode
Alarm record, timing record,
Video playback
Support APP, IE browser, remote client play and download the video
General specification
Power
DC12V 1A/
Operating environment
Environment -20℃~+60℃(-4℉~+140℉),
Humidity 10%~90%, non-condensing
Product size
38*38MM
Product weight
0.15kg
IR Night vision
n/a
Package weight
0.3kg
Reset button
Support
Package Include:
1 x wifi camera
1 x User manual
Notice ：Dear,all customer ,because cd disk is easy damaged by rude transport and Most
of the Customer‘s Computer Without CD CD-ROM disk drive,
it is hard to copy the files
from the CD Disk! In addation ,
the CD Disk Polluting the environment after used !
Please download the corresponding software and user manual for this product through the designated link on our website.?
Should you have any questions,?remember to contact our team so we can provide faster technical support and after-sales service."

If the buyer want other sizelens please 'Leave Message to Seller' to notify us when bidding.
To Customers :
Thanks for your attention to our products.if you have any question ,pls fell free to contact with us !
we will replyed you within 24hours!!!
Below Lens,some of them can be replaced for different angle view &distance requirement ! pls talk with us whetherit is available for the camera !

Simple instruation:
