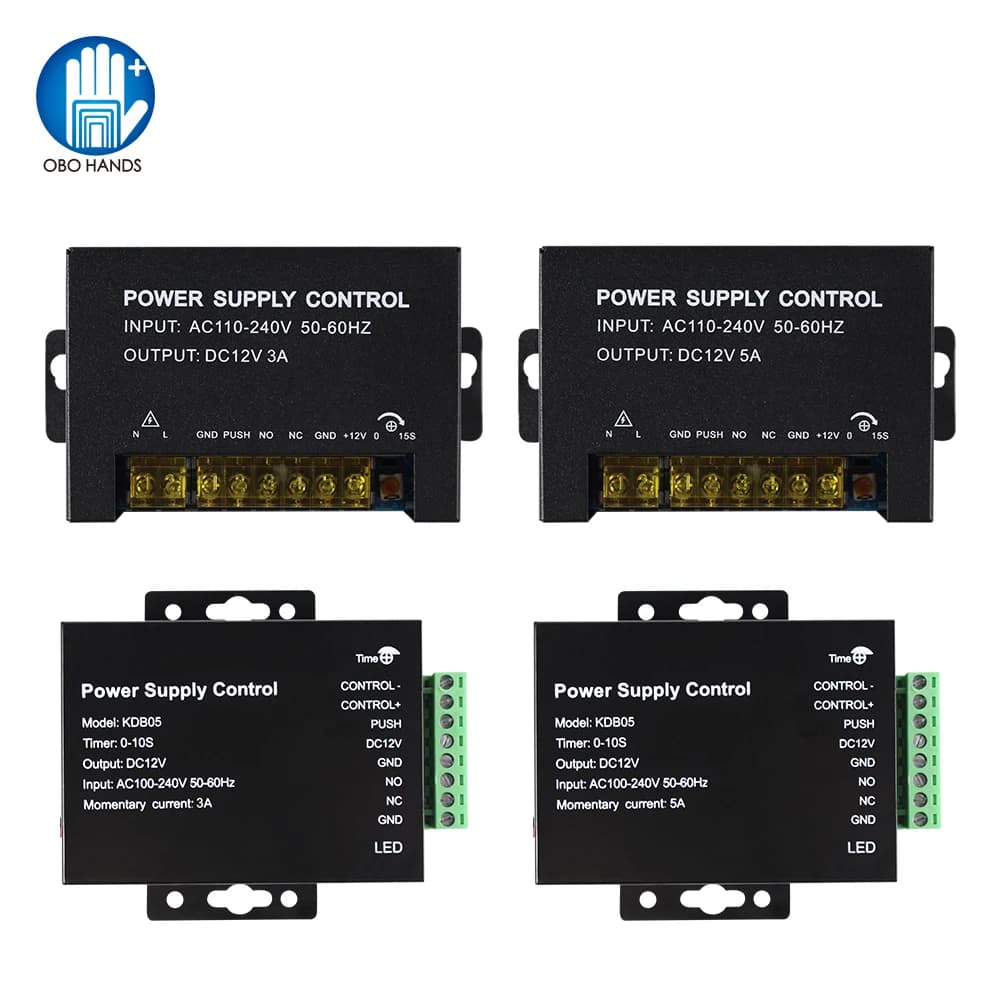

DC12V 3A 5A Output 110-240V AC Access Control Power Supply Controller Switch Adapter For Home Door Locks Video Intercom System

DC12V 3A/ 5A Access Control Power Supply

very suitable for door access control system and video intercom system

Product Features

1) Made of metal, high quality.
2) Less Power consumption, and high power.
3) It controls electric lock directly.
4) Can reduce the load of access controller, save wiring to reduce the hidden trouble
5) Set NC / NO outputs, can control various types of electric locks
6) Based delay control circuit, lock time is adjustable.
7) Automatic protection function
8) Operative device: E/M Lock, Access Controller, Exit Push Button, Door Bell

Kindly note: 3A can control 1 electric lock, 5A can control 2 electric locks.

Product Specifications

Type A

Input Voltage: AC110V-AC240V / 50-60HZ
Output Voltage: DC12V
Momentary Current: 3A/5A
Persistent Current: 3.5A
Working Temperature:﹣20℃~﹢60℃
Operating Humidity: ≦90%
Time Delay: 0~15 seconds adjustable
Dimension: 100X70X32mm( L/W/H )

Type B

Input Voltage: AC110V-AC240V 50-60HZ
Output Voltage: DC12V
Momentary Current: 3A/5A
Persistent Current: 3.5A
Working Temperature:﹣20℃~﹢60℃
Operating Humidity: ≦90%
Time Delay: 0~10 seconds adjustable
Dimension: 92X67X31mm

Product Details

Wiring Diagram

( please note that the access controller, locks, exit button is not including in the package, need to buy additional. Thanks)

Type A

Type B
