RFID Reader USB Port EM4100 TK4100 125khz ID IC 13.56mhz S50 S70 Contactless Card Support Window Linux

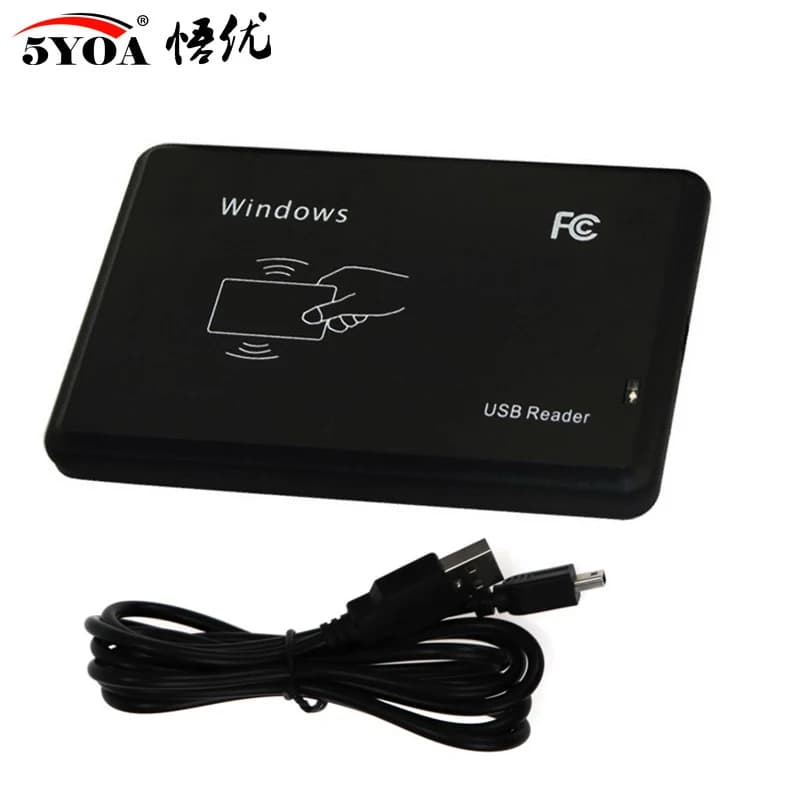

IDRead02 RFID Reader 125khz

The ID card reader is a 125kHz driverless which read ID card reader. When using, you can freely insert (plug and play), without external power supply, it does not need to load any driver, it can read the serial number in the RFID card and output to the computer through the data interface, which is equivalent to the automatic keyboard input .

Features:

*USB Plug and Play.
*0-8cm Reading Distance.
*Win8/7/XP/Android Supported.
*EM4100/TK4100 Card Supported.
*OTG Phone Connection.
*Built-in buzzer and LED for identification.

About Use:

1. Connect with computer through the USB cable inside.
2. Open notepad or a word document.
3. Put card on the top of the reader.
4. The document will output card number automatically.

Specifications:

Frequency: 125kHz
Baud Rate: 9600
Reading time: <0.5s
Power Supply: +5V DC
Consume Current: 70mA
USB Cable Length: 1.5m
Dimensions: Approx. 3.82*2.40*0.39in / 9.7*6.1*1cm
Supporting Cards: For EM4100, TK4100 etc.
Protocol: 14443A
Supporting System: Windows10\8\7\XP\98\2000\CE\ME\NT\LIUNX\Vista

ICRead02 RFID Reader 13.56mhz

This item is a RFID 13.56MHz IC reader, which is widely used for RFID radio frequency identification system and project.
The item is driverless, When using, you can freely insert (plug and play), without external power supply, it does not need to load any driver, it can read the serial number in the RFID card and output to the computer through the data interface, which is equivalent to the automatic keyboard input .

Features:

*USB Plug and Play.
*0-8cm Reading Distance.
*Win8/7/XP/Android Supported.
*S50/S70 Card Supported.
*OTG Phone Connection.
*Built-in buzzer and LED for identification.

About Use:

1. Connect with computer through the USB cable inside.
2. Open notepad or a word document.
3. Put card on the top of the reader.
4. The document will output card number automatically.

Specifications:

Frequency: 13.56MHz
Baud Rate: 9600
Reading time: <0.5s
Power Supply: +5V DC
Consume Current: 70mA
USB Cable Length: 1.5m
Dimensions: Approx. 3.82*2.40*0.39in / 9.7*6.1*1cm
Supporting Cards: For Mifare S50, S70
Protocol: 14443A
Supporting System: Windows10\8\7\XP\98\2000\CE\ME\NT\LIUNX\Vista etc.
