Smart Wifi Door Switch Universal Garage Receiver 2CH Remote Control Gate Opener Controller 433mhz Transmitter Works with Tuya

Upgraded SMG-8112,Newly added features

1.New App remote control function, wifi connection required.
2.Compatible with Alexa & Google Home，Enabling voice control.
3.Three models， Self-locking, Interlocking ,Inching.
4.Two voltages for a wider range of use，AC DC 7-32V, AC 85-250V no output
5.WIFI network is disconnected. The remote control still works fine
6.RF+Works with Tuya Wifi Universal 433MHz Garage Door Receiver
7.For Fixed Code Rolling Code 433mhz Transmitter

Products advantage

1,APP control, Works with Tuya or Smart Life APP to open the door anytime, anywhere.

2,Timer,Set a countdown timer to automatically close 1 minute after opening the door

3,Hands-free voice control，Compatible with Alexa and Google Home, voice control of door opening and closing.

4,Share Control，Share control of your home appliances to your family or friends so that they can also control the devices remotely

5,3 Working Modes，Self-locking, inching mode

6，Can learn Fixed and Rolling code 433,92Mhz remote controls separately and simultaneously !!!

7，2 channel receiver provides you with an option to control and use 2 gate automations or alarm systems simultaneously

8,The maximum number of remote controllers stored is 400, which is enough for the entire community to use.

9，It's very easy to connect it to your control board. All you need is to connect 4 wires between receiver and control panel. If you will need any technical support - i'm always at your service!

10,The product is a general smart receiver and it can be matched with the majority of the wireless receiver in the market, including fixed code （2262, 2260,2264,5326,M1E,M5E etc）, learning code （1527, 2240, 6P20B, 6P20D etc）. roling code （HCS301,HCS300,HCS200,HCS201,HSC100,HCS1O1 etc） and a part of customized remote controller.

Brand Examples

Aprimatic,ECOSTAR,DOORHAN,BFT,Alutech AT-4,DEA ATA,PUJOL,BENINCA,...

Replace old, add new

You can use it to replace your old receiver, or add our remote control to use

Tips

If you're not sure if your original remote control is compatible with our smart switches, you can contact us and we'll give you the answer!

Three working modes:Inching, Toggle, Latched

Inching: Set a time to automatically switch off after one click for 2-3600s

Toggle: press the button once to open, press the button again to close

Latched: press the button once to open, press another button to close

Parameters:

Input voltage：DC/AC 7V~32V AC85-250V
Radio Frequency:433Mhz 433.92MHz
Codes: Working with any fixed and rolling code remote control
Working temperature: -20℃~70℃
Programming: press and hold the learn button on the receiver few seconds. Then hold and press
the remote control button to programming.
Delete code: Press and hold the delete code about 20 seconds.
Checklist before using the device
Your smart phone or tablet has connected to a2.4g WiFi with internet.
You need to enable Bluetooth of the phone.You have the correct WiFi PWD.
You have the correct WiFi PWD.
You smart phone or tablet must have access to APPstore,Google play.
Your router is MAC-open

Checklist before using the device

Your smart phone or tablet has connected to a2.4g WiFi with internet.
You need to enable Bluetooth of the phone.You have the correct WiFi PWD.
You have the correct WiFi PWD.
You smart phone or tablet must have access to APPstore,Google play.
Your router is MAC-open

When connected, reset the device to pairing mode, i.e. the red light flashes rapidly

433mhz Transmitter PROGRAMMING:(Battery Not include)

1.Learning transmitter’s codes:
Press “learn 1” or “learn 2” for 2 second, the “learn_led” light, then, press the button which you choose on the transmitter till the “learn_led” flash and go out, the transmitter’s code has been stored.
• Repeat the above steps for other transmitters.

2.Erasing transmitter’s codes:
Press “learn 1” or “learn2” and hold on to make the “learn_led light till go out, all codes of transmitters which had been stored are erased.

App Remote Control

Control your garage door opening and closing Works with Tuya/Smart Life App

Simple connection

Connect to wifi network，Connect your motor, engine, receiver to use, very convenient simple answer

lnching Setting

Set up a countdown mode, click once to turn it on and then set 2-3600s to turn it off automatically

RF Control

Compatible with fixed code, scrolling code, learning code 433MHz RF remote control, the remote control can still work normally after wifi is disconnected.

Voice Control

Open your door using Alexa or Google Home voice control. Free your hands.

Family Staff Sharing

Once you're connected, you can share the device directly with your family members without having to pair it again!

If you have frequent problems with power outages, you can adjust the status of the device relays after power is applied yourself.

You can set the device to be off when power is applied.

Note: This product has no voltage output

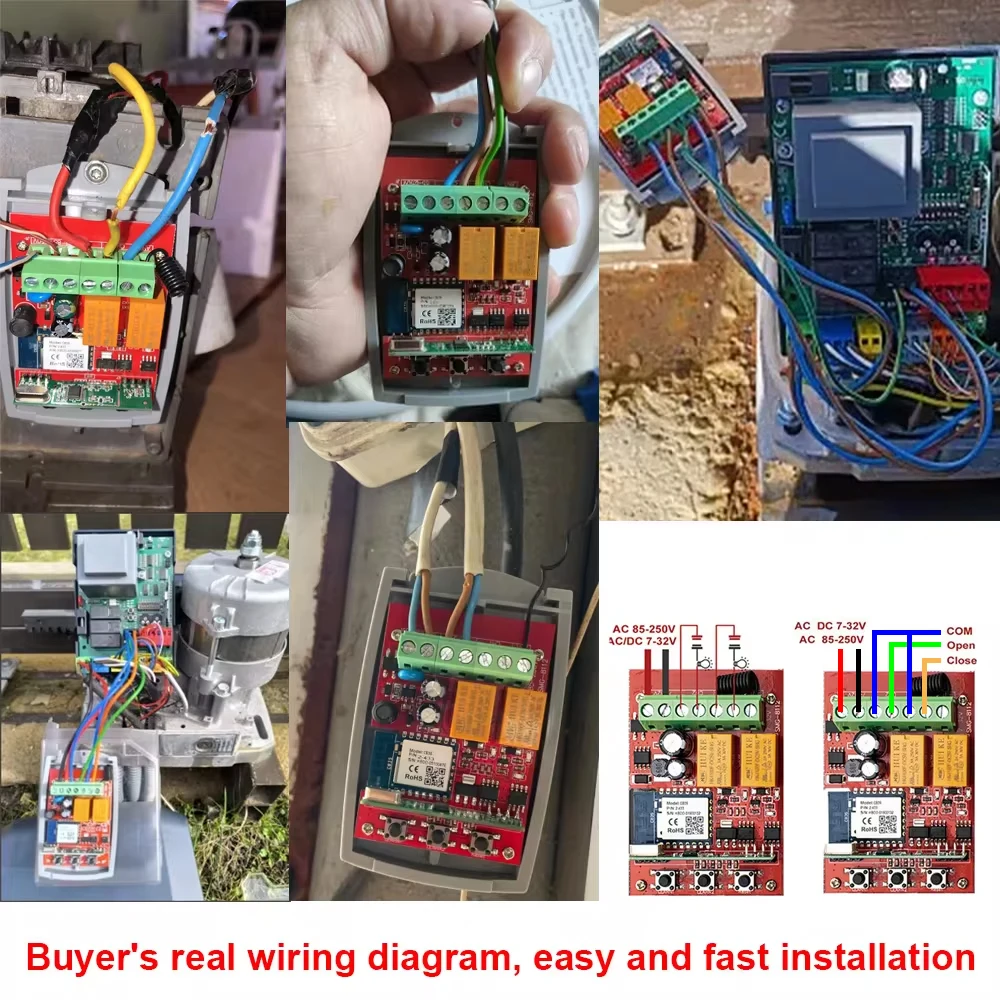

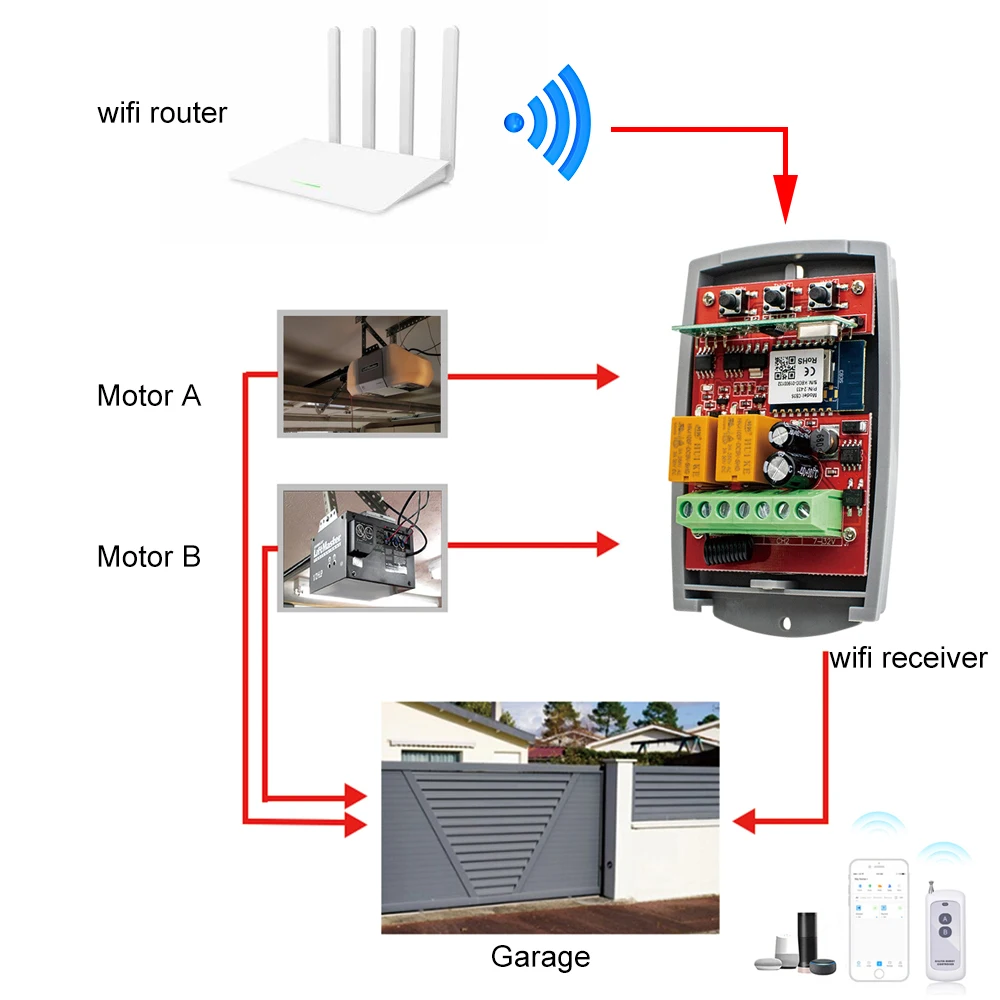

Connection Diagram for Garage

Wiring Diagram for Switch to Control Lights
