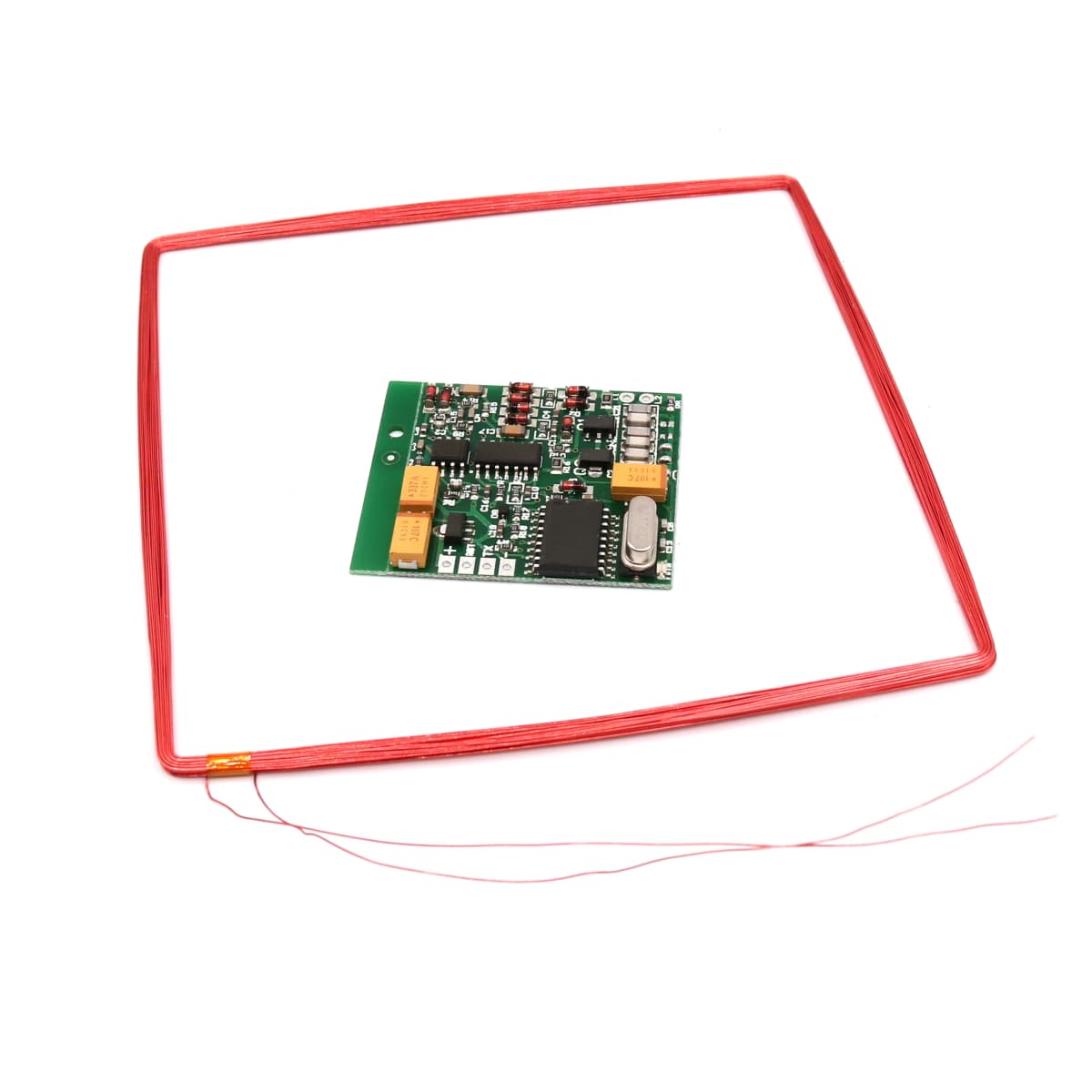

134.2K Long Distance Animal Tag Reader Module TTL ISO11784/85 FDX-B

134.2K Long distance RFID AGV Animal Tag Reader Module TTL Interface ISO11784/85 FDX-B
Model:WL-134
Protocols:ISO11784/85 FDX-B
Support tag chip:EM4305, TAG256, EM1001.(Not support HDX Tag)
Frequency:AM 134.2K
Voltage:9V battery or LDO power supply. (DC-DC or switching power supply will affect the reading distance)
Working current:140mA/9V
Operating Current: 120mA
Working temperature:-40c-80c
Default antenna inductance:580uH
Output: TTL
Read distance:
97*97mm antenna;2*12mm glass label distance is greater than 18CM
97*97mm antenna;3CM electronic ear tag distance of more than 36CM
Size:35 x 36mm
Notice:Not support HDX Tag
*recommended to use lithium batteries as power supply

Pin definitions are as follows:
1 +9 V
2 RST reset,Low Level effective
3 TX (serial port number output, TTL 5V level)
4 GND
L1 Antenna 1
L2 Antenna 2(340V vpp)
Package List:
1 * 97X97mm antenna
1 * RFID Module
