POE Extender/Repeater Waterproof Extension POE injector Adapter IEEE802.3at/af Plug&Play for PoE Switch NVR IP Camera

out Waterproof PoE Repeater

POE Extender/Repeater Waterproof Extension POE injector Adapter IEEE802.3at/af Plug&Play for PoE Switch NVR IP Camera

PoE power supply standard: support IEEE802.3af/at DC44-57V

Maximum support power of PoE input: 30W

Maximum support power of PoE output: 25.5W

Network rate: 10/100Mbps

Transmission distance: CAT5E/CAT6≤100 meters (can be cascaded down)

Network transmission: 1/2,3/6, POE power supply pin: 1/2(+),3/6(-) or 4/5(+),7/8(-)

Housing material: engineering plastic

1. Product description :

HX-FSPOE101is a high-performance,low power

consumption PoEextender, which provides a 10 /100

Mbps port, plus a 10M / 100Mbps UP LINK port, can be

used to connect upstream devices with higher bandwidth

support standard PoE and non-standard PoE-48Vinput, full

speed 100 million work, outdoor waterproof design to use

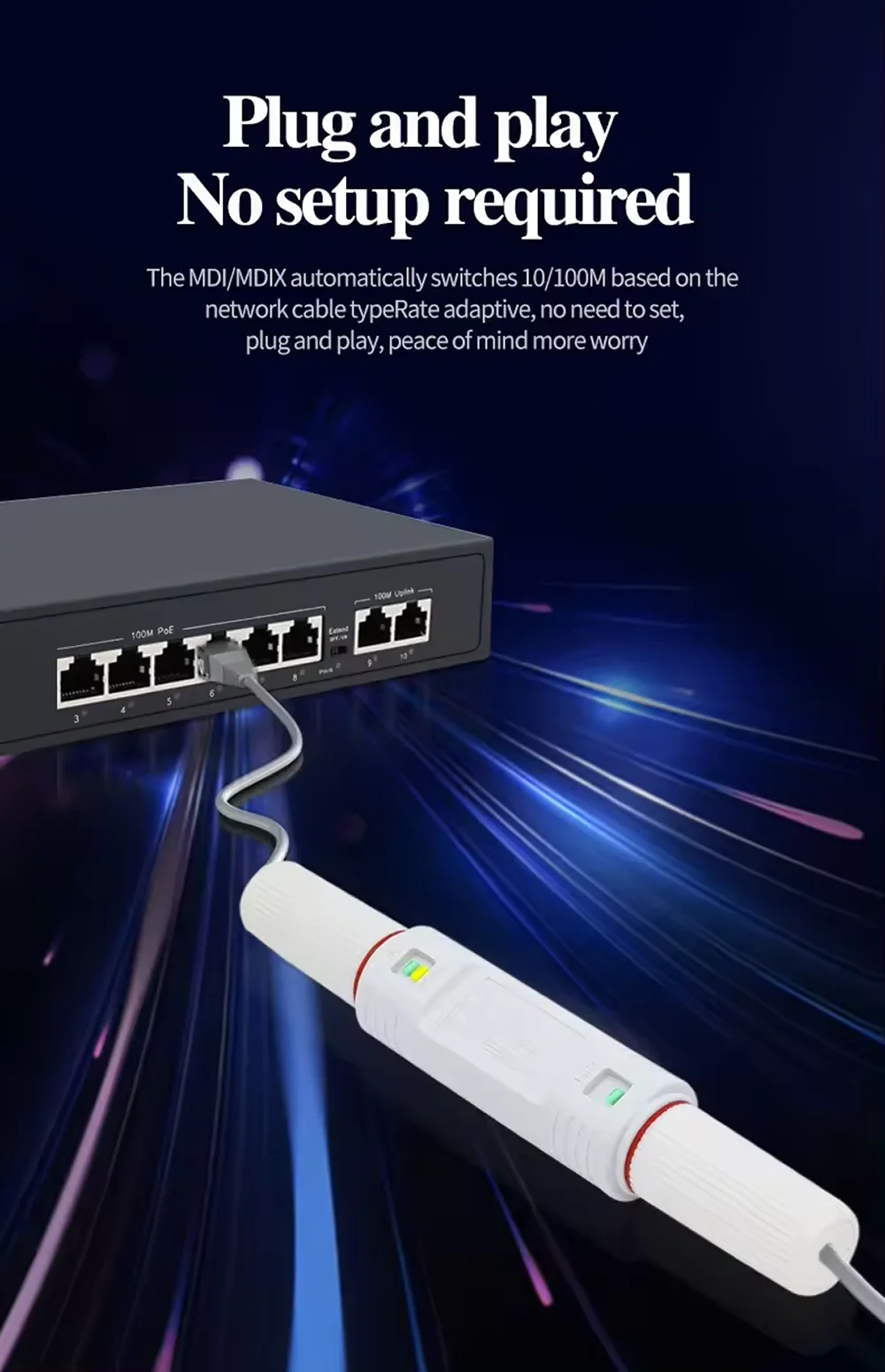

fast plug and play.

2. Product features :

Support forlEEE 802.3/802.3u

Support forlEEE802.3 af/at

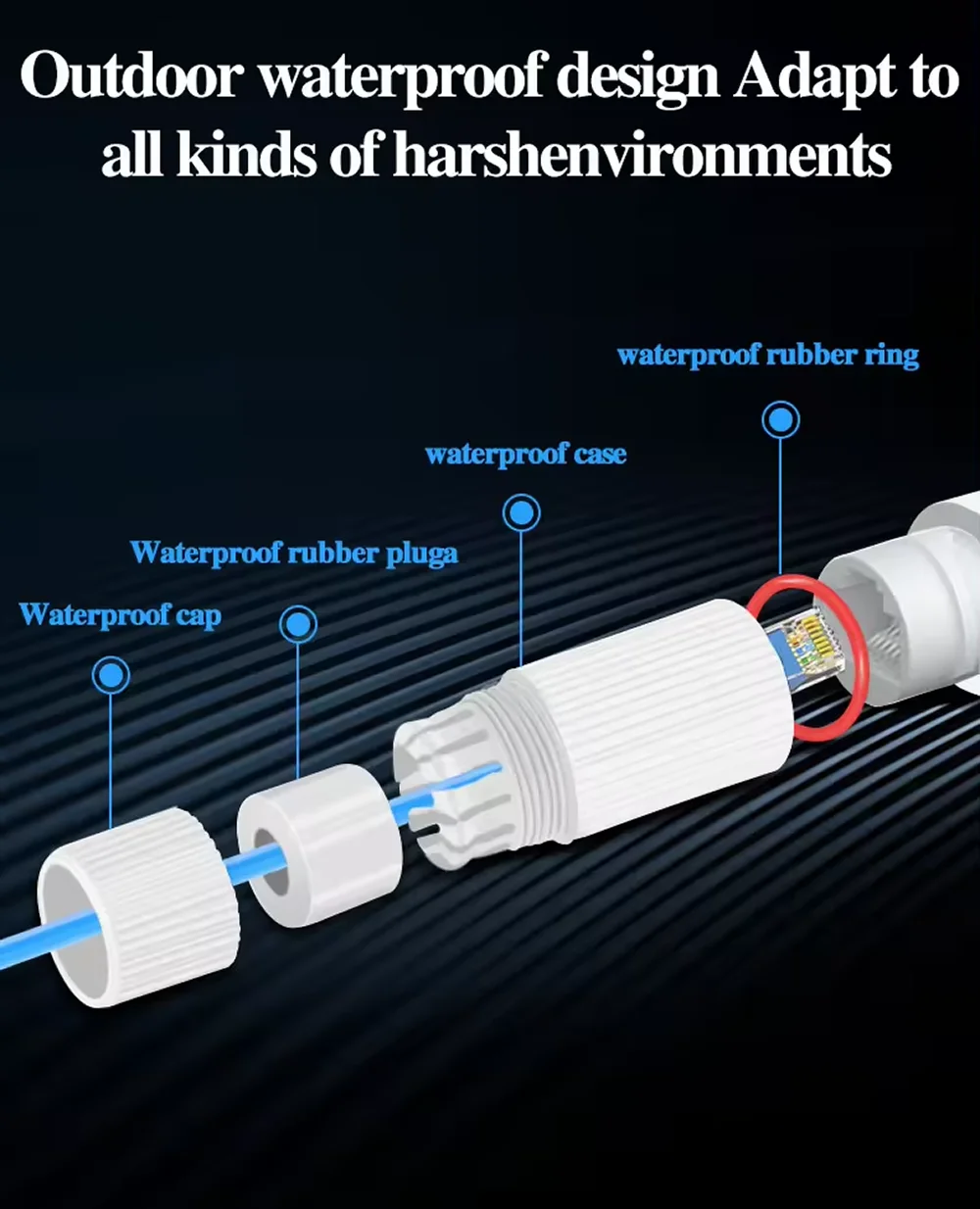

All port waterproof design (with waterproof

four sets

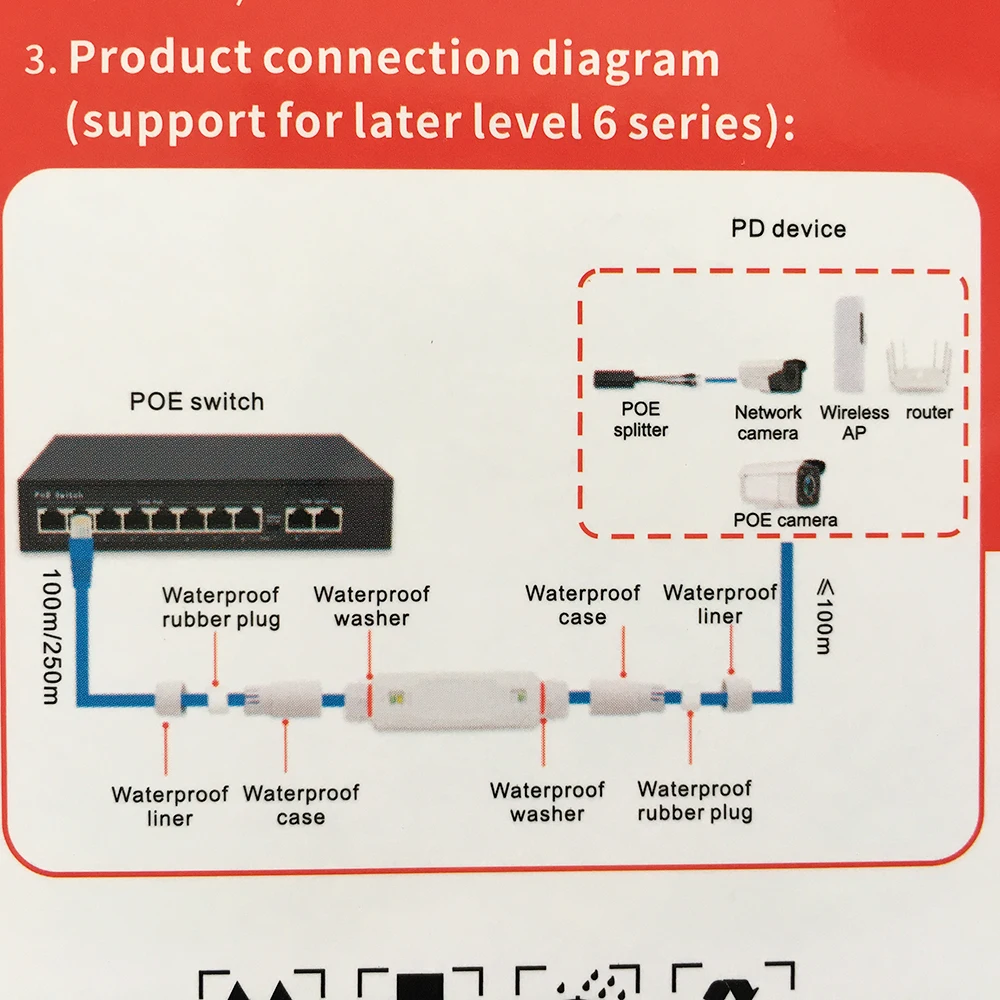

3.Product connection diagram

(support for later level 6 series):
