WiFi Switch Smart Tuya Garage Door Gate Opener Controller Work With Alexa Echo Google Home SmartLife APP Controller RF 433mhz

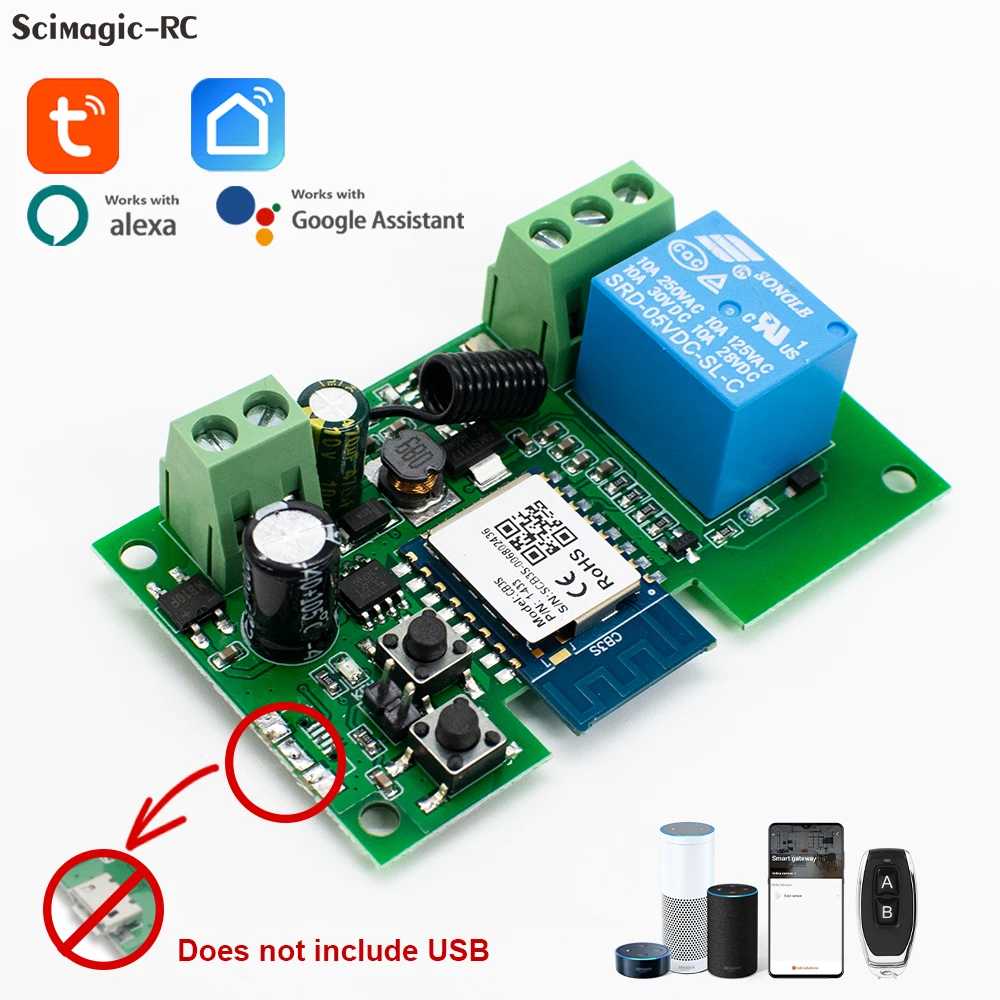

Special Notice:

USB5V input poses a safety hazard.
The latest version does not support USB 5V input.

The latest version does not support USB 5V input.

The latest version does not support USB 5V input.

Specifications:

Input voltage : DC/AC 7-32V Or AC 85-250V ,
Output voltage :
Max current : 2200W/10A.
WiFi standard : WiFi 2.4 ghz b/n/g.
working temperature: -20°C~70°C
Size : 69*41*20mm,
The life of Relay Model is more than 1,000,00.
Default inching Function: Press the open relay by mobile phone, then cut off the pull-on imediately, you can set the inching time in APP , it has the timing-share function at the same time.
Self-locking when press the inching and locking button with the light on. Press open relay to pull-on, press close relay to cut off.

RF remote control: 433mhz EV1527 remote control
This remote control can only work with our smart switch.

Support tuya APP WIFI Control

You can control the connectted home appliance in tuya APP anywhere and anytime.Such as light, electric kettle, electric rice cooker, electric curtain, Door system etc.

Support 433mhz learning code remote control

You can control your household appliances through our remote control, Such as light, electric kettle, electric rice cooker, electric curtain, Gate, Door system etc

Please note: This receiver can only work with our remote control

Support Mobile Phone Control

When you go outside or at home,you could control the device in your smart phone by 2G/3G/4G Mobile Network or WIFI.
(Note:The router need to online.The WIFI module need to keep a close distance with the router and the wifi module need to online in tuya APP)

Support Voice Control

Compatible with Alexa and Google Assistant, you can use the voice control to turn on/off the connectted home appliances .

Support Share Control

One device can control by Multiple phones,you can share the wifi module with your family.

Support Group Control

One phone can control Multiple smart device.You can add the wifi module and other smart device in a group,and then you can turn on/off all smart device at the same time.

Support Timing Function

Set a schedule in the app to turn on and off your lights according to your own living habits

Support 2 Working Mode

Momentary, self-locking
You can switch modes through the tuya app

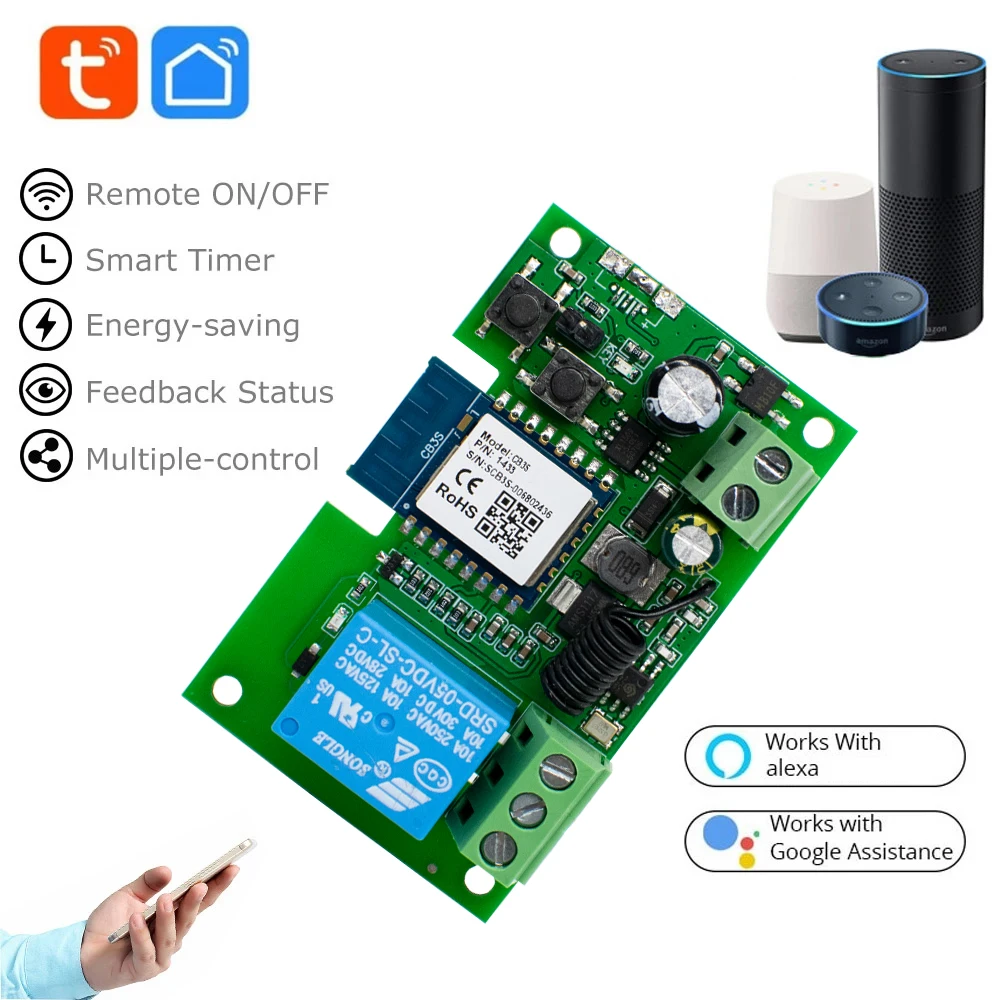

Features:

*App Support: Free iOS and for Android mobile App Smart Life / Tuya Smart.
*Sync Status: Real-time device status provided to App.
*Remote ON/OFF: Turn 4 electrical devices on/off remotely from anywhere.
*RF Remote control: Turn on/off by 433MHz RF Remote indoors,Only support 433MHz Learning code.
*3 Working Modes: Switch among interlock/self-locking/inching modes.
*Independent control: Control each gang separately in APP Tuya.
*Supports remotely turn on or off connected appliances, for example light, electric kettle, electric rice cooker, electric curtain, etc.
*Timing: Supports 8 enabled countdown/single/repeat timing tasks to turn on/off at specified time.
*Voice Control: Compatible perfectly with Alexa, for Google Home, for Google Nest.
*Share Control: Control your smart home together with your family.

What can I use it for?

*Connect a light, remotely control the switch of the light.Connect a light, remotely control the switch of the light, and can also switch on and off regularly
19:00 On 21:00 Off
*Open your curtains regularly 7:00
*Change the water for the fish tank regularly
*Use mobile phone or voice control Garage door switch
*Control your heater remotely
*And your coffee machine
*Connect a water pump, remote control or timer switch
More functions waiting for you to discover. DIY

Noted :

Your have the correct wif password.
Your smart phone or tablet must have access to APP store or google play.
Your router is MAC-open.
Your smart phone or tablet has connected to a 2.4g wifi with internet.
Default inching time 1s , you can set inching time from 1s to 3600s in APP ( smart life / tuya smart).

Special Note.

This smart switch is only compatible with 433MHz learning code remote controls.

It is highly recommended that you purchase my remote control.

It is not compatible with scroll code or clone code remotes.

Include:

1* wifi module
1* manual

Special Tip:

Smart Switch does not include 433mhz remote control.

Specifications Of The Remote Control:

Operating frequency: 433MHz
Power by 23A 12V (Battery not included ),
Material: PVC.
Button: 4 buttons
Encoding type: Learning Code.
Transfers distance: 20-50m
