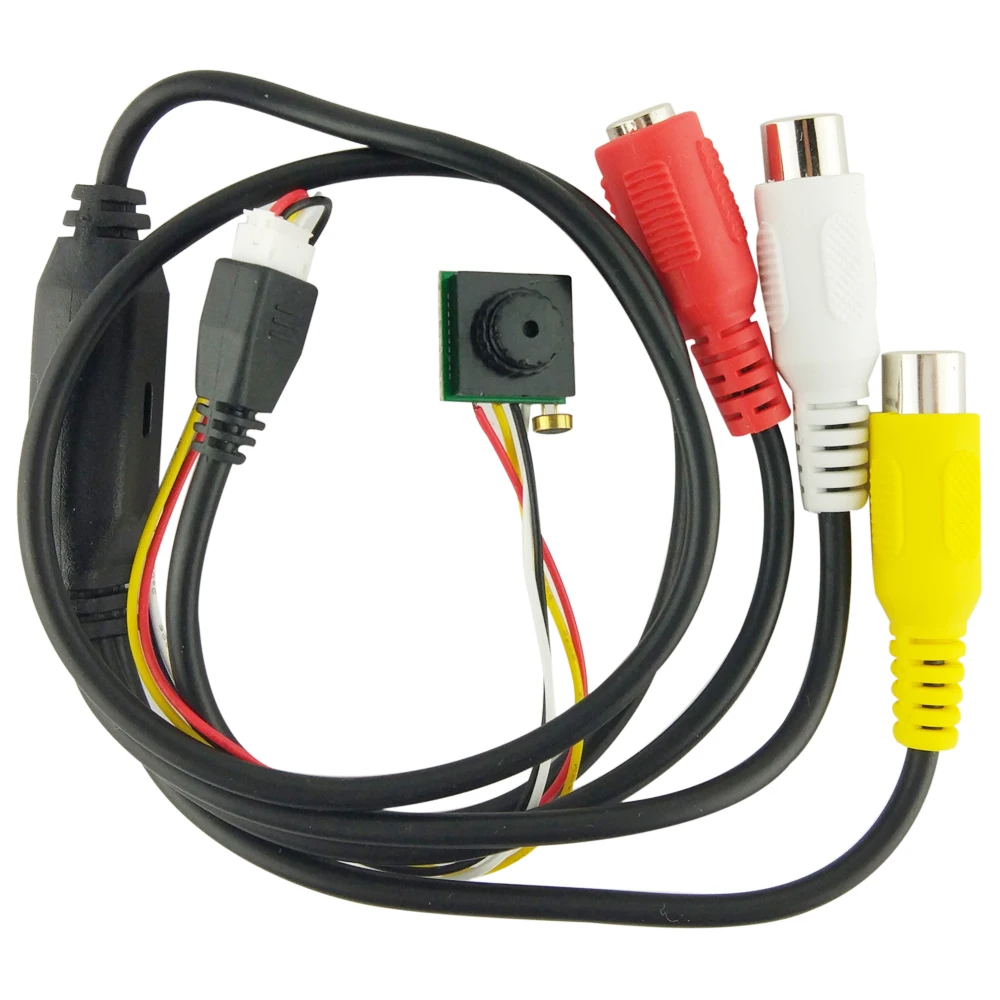

Mini FPV Camera 12x12mm 700TVL 3.6mm Lens Small Micro CMOS Color Video Camera with Mic/Audio for FPV Quadcopter/Racing/Drone

Mini FPV Camera 12x12mm 700TVL 3.6mm Lens Small Micro CMOS Color Video Camera with Mic/Audio for FPV Quadcopter/Racing/Drone

Technical parameters:

Image Sensor: 1/4'' HD CMOS

TV System: PAL/NTSC

Effective Pixels: PAL: 628(H) x 582(V)

Lens: Built in 3.6mm Lens

Horizontal Resolution: 700TVL

Minimum Illumination: 1.0Lux F=1.2 (0Lux with IR on)

S/N ratio: 48dB

Video Output: 1.0Vp-p.75. BNC Connector

AGC: Auto

White Balance: Auto

Backlight Compensation: Auto

Exposure Mode: EE

Electronic Shutter: 1/50(1/60) - 1/100000 sec

Power Supply Support: DC8V - 12V 500mA

Lens: standard 3.7mm

Sync. System: Internal Synchronization

Applications: Widely used for Home, Office, helicopters and other aerial aircraft, as son on

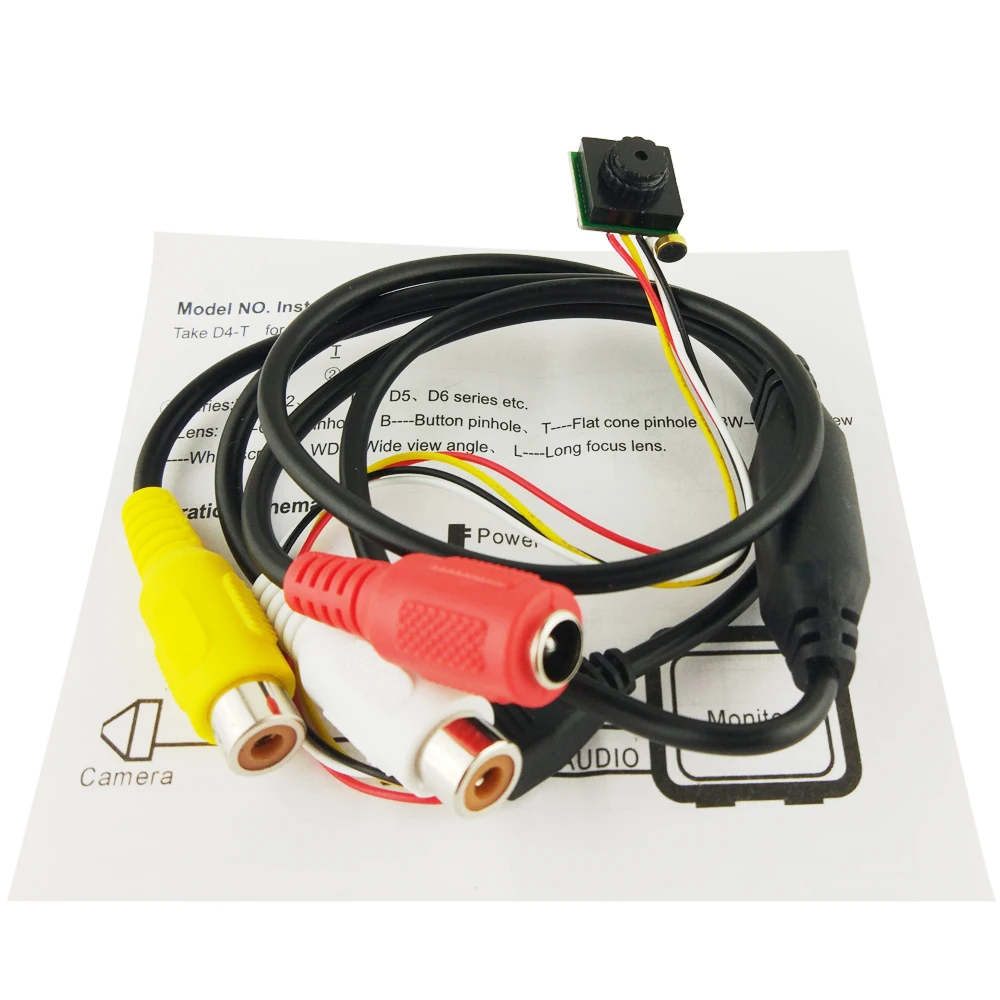

Package include:

1 x Mini FPV Camera(Size 12x12mm)

1 x AV Transfer Cable(about 50cm)

Notice:

Please select PAL or NTSC video format according to your FPV device, and be sure to choose a video format compatible with your FPV device, otherwise this FPV camera may not work. If you choose the wrong video format and the incompatibility is not within the scope of return, please know.Thanks!
