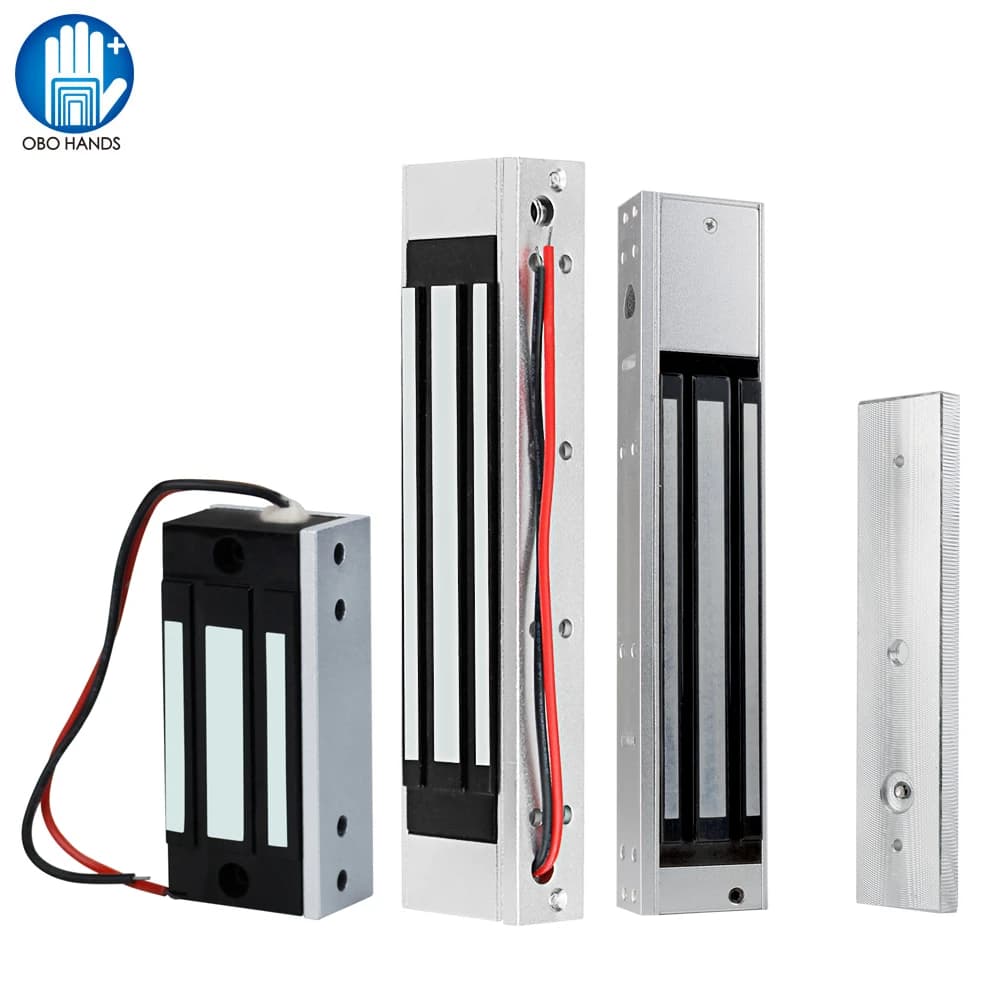

DC12V Electromagnetic Lock 180KG/350lbs Electric Magnetic Lock Waterproof Electronic Door Locks 60KG 280KG/600lbs Holding Force

DC12V Electromagnetic Lock 180KG/350lbs Electric Magnetic Lock Waterproof Electronic Door Locks 60KG 280KG/600lbs Holding Force Product Specifications Lock Type: 60KG / 180KG / 280KG Magnetic Lock Material: Stainless steel Working Voltage: DC12V Working Current: 380-500mA Working temperature: -20 to 55 Celsius degree Time of unlock: ≤1s LED Light: only the 280KG normal installation model has this. Holding Force: 60KG/132lbs; 180KG/350lbs; 280KG/600lbs Waterproof: 60KG/180KG model with full sealed waterproof, 280KG model optional Signal Feedback: With fail safe/fail secure signal feedback ( only the 280KG-signal feedback model) Function: can be used with building intercom, door access control system Suitable For: Wooden, metal, security, glass door etc ( frameless doors need to work with bracket) Product Details DC12V Electromagnetic lock Fine workmanship design / Made of Stainless steel / Sturdy and safety in using. Holding force with 60KG(132lbs) / 180KG(350Lbs) / 280KG (600lbs) Built-in reverse current protection device (MOV). Waterproof, can be install outdoor Suitable for wooden doors, glass doors, metal doors, fire doors (Not all 280KG type are waterproof) 60KG type Magnetic lock especially suitable for cabinets, drawers, storage cabinets, small doors Install Figure 1 1. Put the dowel pin into the suction plate. 2. Put the bonded washer. 3. The bonded washer make suction stronger. 4. Remove the hanging plate. 5. Fixed hanging plate. 6. Using the spanner and inner hexagon screws to fix the plate on the lock body. 7.Close the door to test the pulling force, can add or delete the bonded was her to adjust the adsorption surface of plate between with the lock body. 8. Tighten the tamper screws. Install Figure 2 For in-swing door, install the lock body inside and then need to install the ZL bracket at the same time. Discharge the mounting plate from lock body. Fix the L bracket on the door frame and then fix the lock body on the L bracket. Assemble the Z bracket and then fix it on the door frame. Fix the armature plate on the Z bracket. Wiring Diagram ( This package is Not including the power supply, access control keypad, exit button, door bell. )
