Mini locker door lock DC5v12v24v electric control lock small electronic lock smart mailbox lock magnetic lock

 Product style update instructions

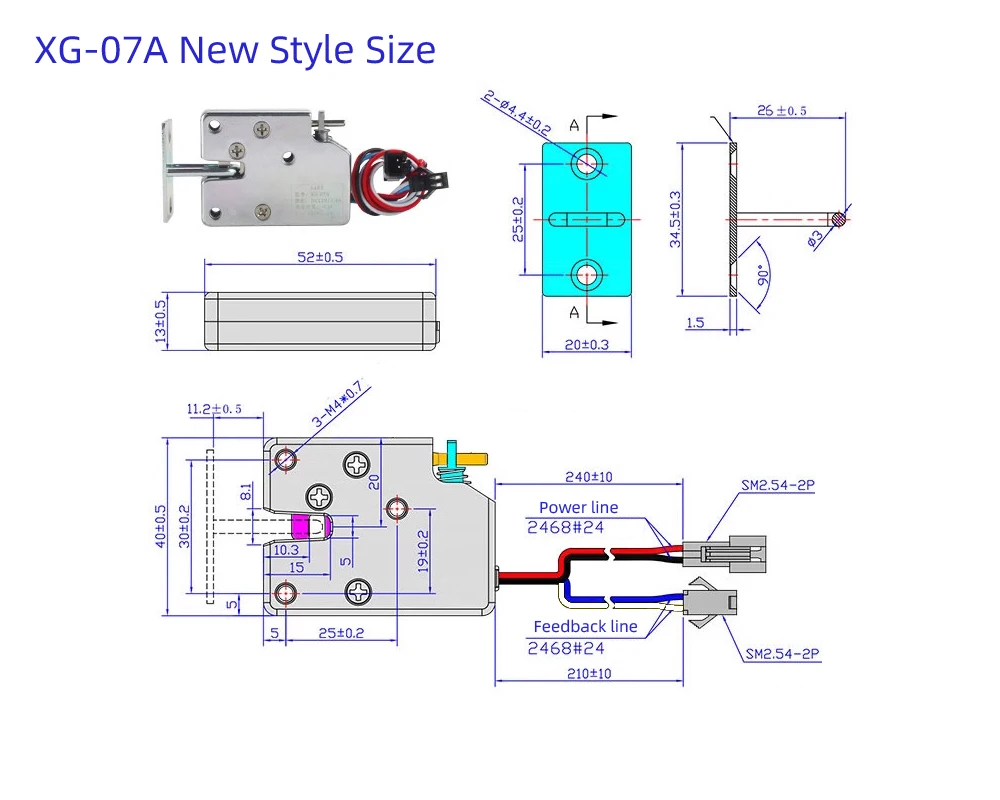

                 Starting March 19, 2026, all orders for this product will be fulfilled with the new model. The mounting hole positions and dimensions of the new model are compatible with those of the previous model.

Description:

The electric lock applicable for delivery locks, refrigerated cabinet, mail or newspaper box, self-service lock, book counter, changing clothes cabinet etc. Adopted steel plate for shell and carbon steel for inner material. Strong and safe to use.

Features:

The electric lock is mainly adopted carbon steel for inner material. Strong and safe to use.

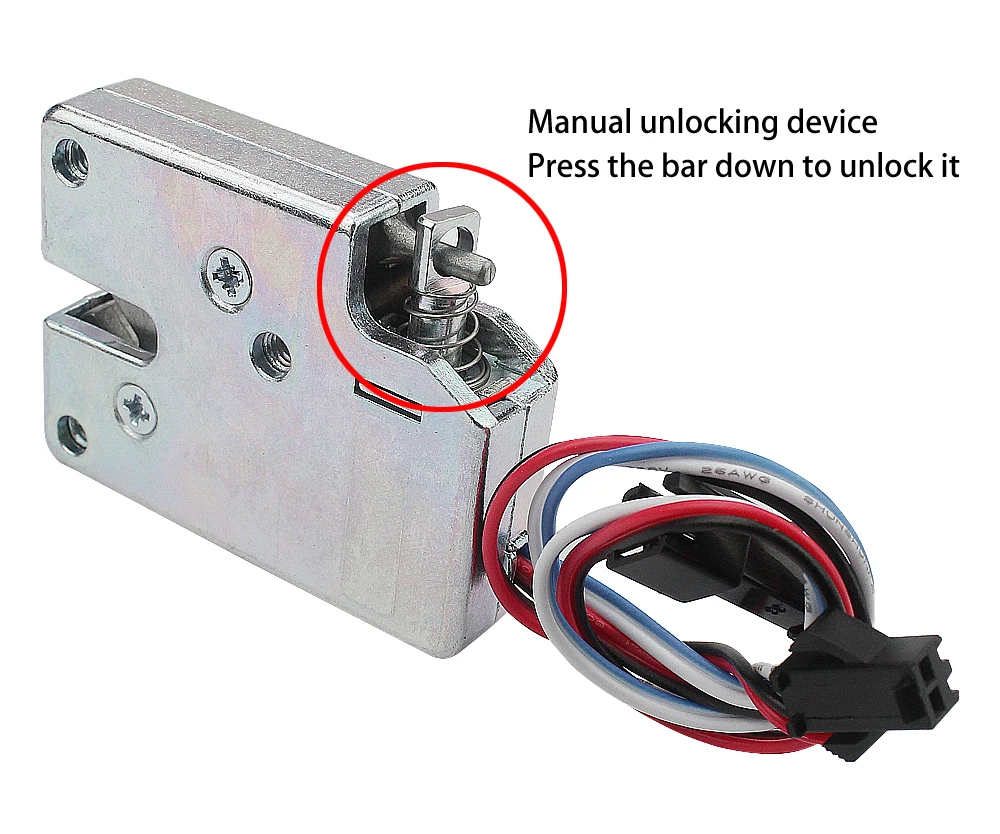

Security: latch hook can bear 150kg traction, won't obvious permanent deform permanently, shockproof, anti prying.Compact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position.

Self Elastic Design: Elasticity adjustable, suitable for weight 0.5~3kg door.

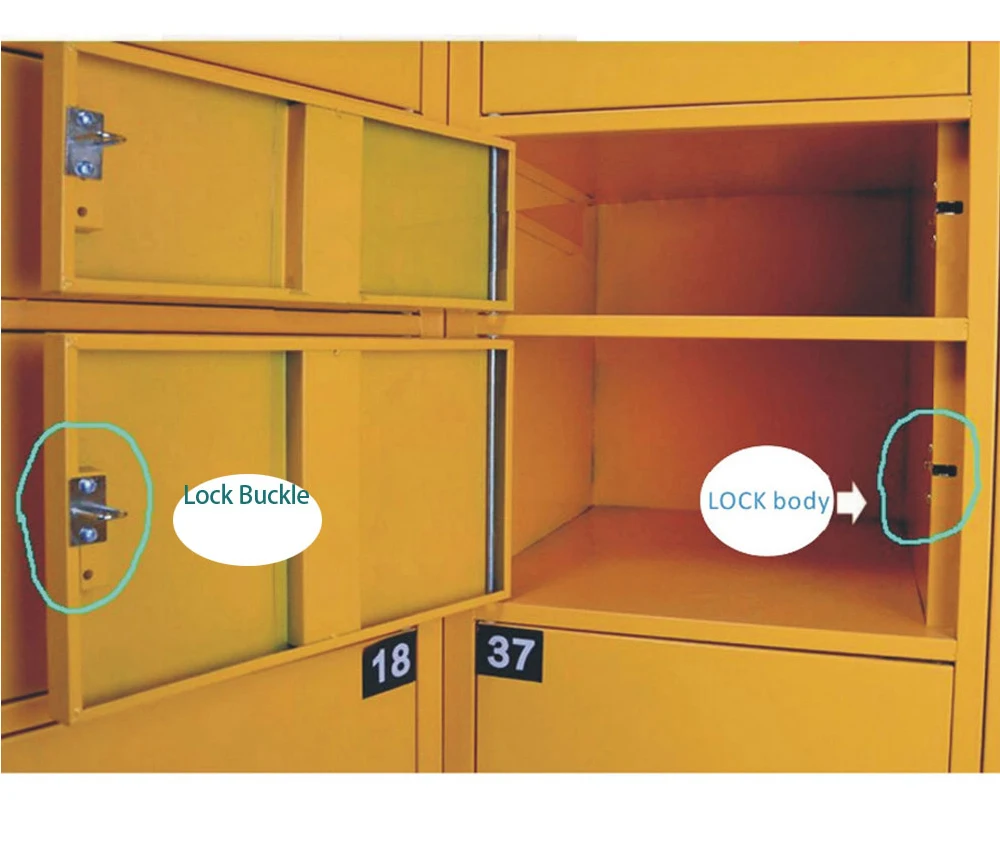

Application: Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Book Counter, Changing Clothes Cabinet etc.

Feedback signal line description: this is a short circuit signal switch. It is disconnected when unlocked and connected when locked

Specifications:

Condition: 100% Brand New

Main Material: Carbon Steel

Surface Treatment: Plated Electrophoretic Paint (neutral frog experiment over 500hours)

Work Mode: Independent type (Power off and close the door-Locked; Power on-Unlocked)

Electrical Parameters: DC 12V 2A

Power-on time ≤ 3S (power-on cannot be maintained for a long time)

Mechanical Life: In Designing Load Condition, about 500 000 times

Electromagnet Life: In Rated Working Condition, more than 1 000 000 times

Strength of Lock Hook: 150kg force (no permanent deformation)

Ambient Temperature: -20℃~60℃

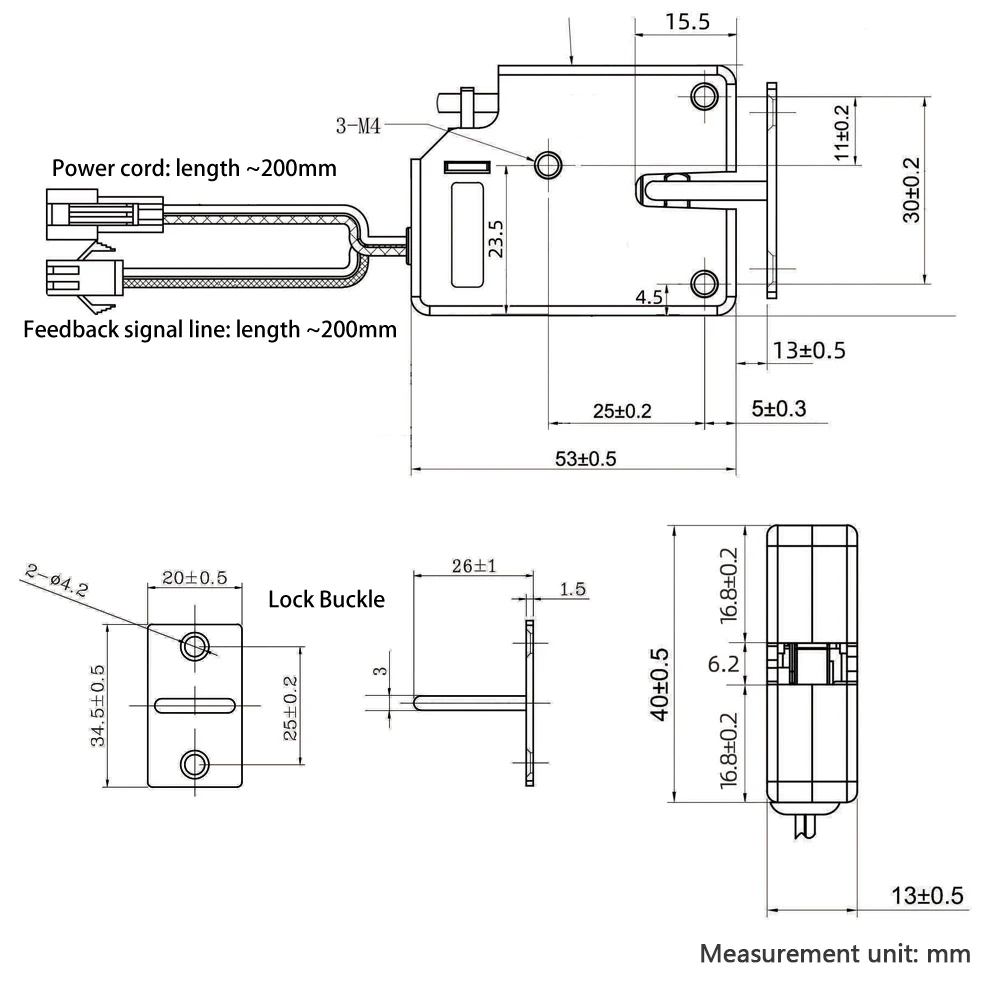

Size: Approx. 53 x 40 x 13mm

Product weight: 100g

Package Included:

1 x Electric Lock ( With detection switch)
