Support Tuya App Fingerprint RFID Access Control System Door Lock Electronic Gate Bluetooth Opener Home Digital Set Biometric

Support Tuya App Fingerprint RFID Access Control System Kit Smart Door Lock Electronic Gate Bluetooth Opener Home Digital Set Biometric

Product Specification:

Material: high quality ABS plastic

Working voltage: DC 12V

Working current: 500mA

Fingerprint capacity: 300

Card capacity: 1000

Password capacity: 1000

Panel: touch screen panel

Working frequency: 13.56MHz

Card reading type: support MF 1K compatible card

Card reading distance: 0-5CM

ldentification method: Fingerprint, RFID Card, Password, Tuya APP.

Record capacity: Mobile phone APP remotely view the latest door opening information.

Backlight: has white backlight

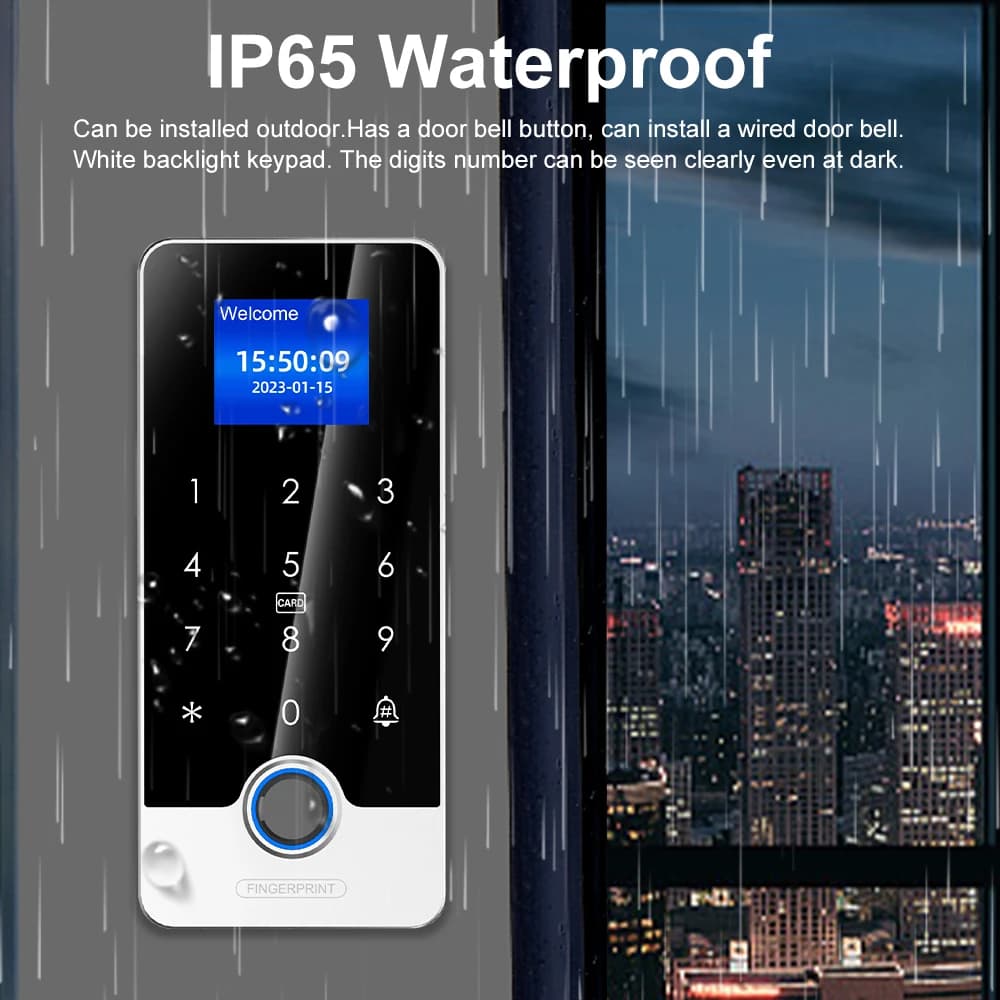

Waterproof function: IP65

Doorbell button: support wired doorbell

Display Language (J200X): Supports Chinese, English, French, German, Spanish, Latin, Romanian, Italian.

Working temperature: -20。C ~ 50。C

Working Humidity: 20% ~ 90%

Product size of S300A: 132*75*18mm

Product size of S300X: 163*75*18mm

Intelligent fingerprint access control machine

Regular open mode

Any user can enter "g and #" within 3s after unlocking the lock, and theregular open state will automatically exit the normal open state.Make the regular on indicator in purple.

Temporary unlocking setting

After entering the home page. click "temporary" at the bottom of the home page to enterthe "Add temporary lock" page, set the time limit or a single time can be used to unlock;

Key-button operation

* Key return, # key confirmation, 2 key to turn up, 0 key to turn down,long press 2 key to turn up quickly, long press 0 key to turn downquickly.
