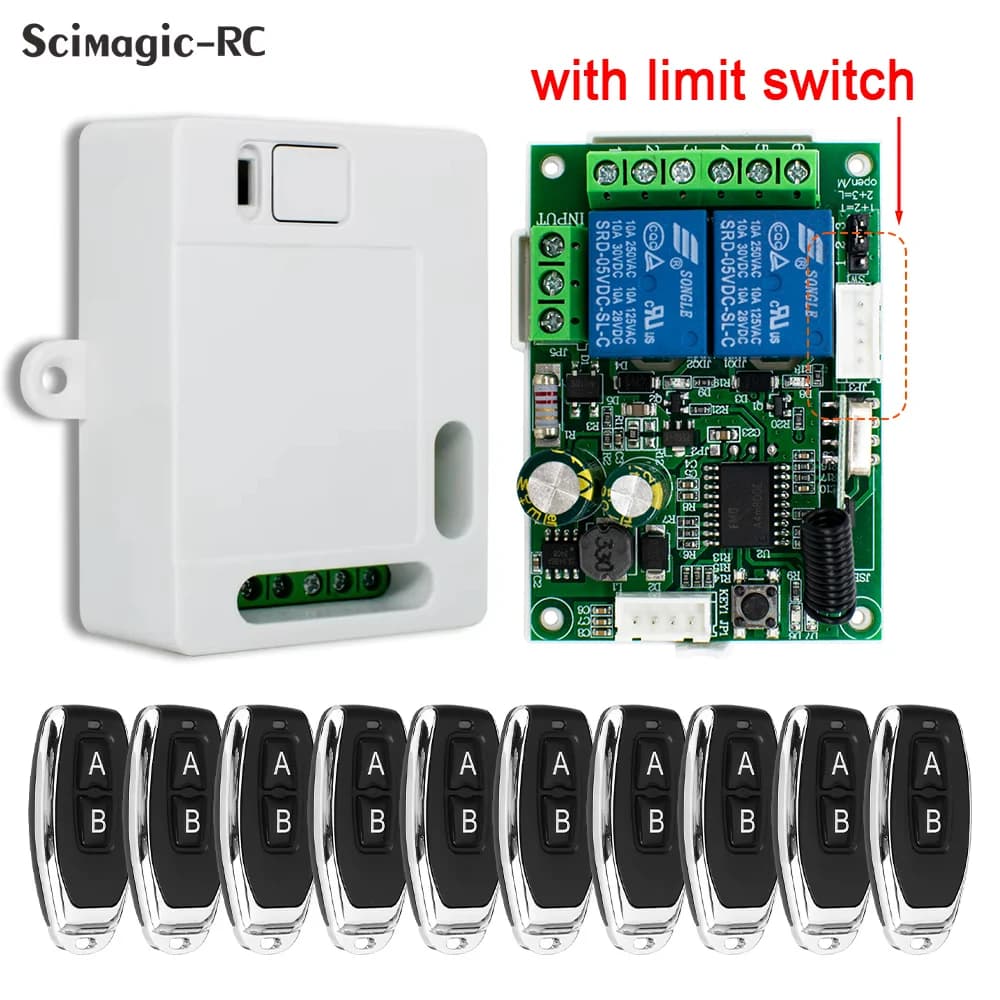

With Limit Switch 2 Relay Door Opener Garage Gate Door Receiver DC 9-72V 12V 24V & 433MHz Remote Control Controller Transmitter

Product Application Area

Factory \ Farm\ Office\ Instrument\ Ventilation \ Pump \ Motor \ Remote control garage door \ Remote control house door \ Remote control Lamp \ Remote control curtains \ Remote control Gate and other remote control device

Technical Data:

1.Operating voltage: DC9V-72V
2. Static operating current: ≤10mA
3. Operating temperature: -40℃～ +80℃.
4. Receiving sensitivity: ≥-100dB
5. Operating frequency: 433.92MHZ
6. Output current: ≤10A

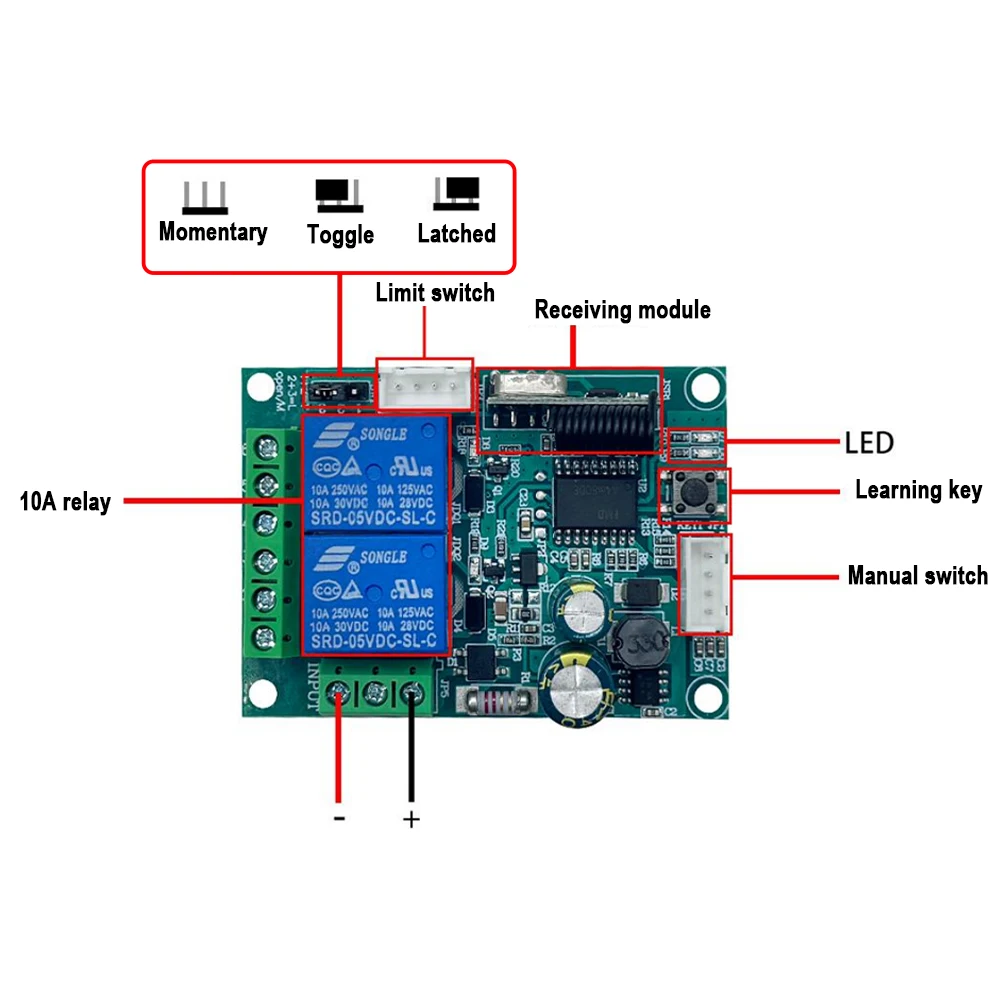

7. Working mode: pointing, self-locking, interlocking (jump cap switching)
8.Output mode: signal, voltage

Supporting methods:

After powering on, press the learning button on the control board once and the indicator light will flash once. Press the A button on the remote control and the indicator light will flash twice before turning off Successful learning of road relay; Press the learning button on the control panel twice again, and the indicator light will flash twice. Press the B button on the remote control to turn on the indicator light

After flashing twice, it will turn off, and the two relays have successfully learned:

Code clearing method:

Press and hold the learning button for about 8 seconds, and the indicator light will go
from off to back on, indicating that all stored information has been successfully
cleared.

In jog/self-locking mode, M1 and M2 circuits work independently.

In interlock mode: M1 and M2 cannot output simultaneously
