3pcs PHOX2 Garage Door / Gate Remote Control 433.92MHz PHOX PHOENIX 2 4 PHOX4 PHOENIX2 PHOENIX4 HANDY2 HANDY4 TSC4 TRC4 TXC4

Compatible With 433.92MHz PHOX2-433 PHOX4-433 PHOX PHOENIX2 PHOENIX4 TXC4 TRC4 TSC4 HANDY2 HANDY4 Garage Door Remote Control

Description

1，Model：SMG-001
2，Material：Metal and ABS
3，Buttons : 2
4，Frequency : 433.92MHz
5，Buttons : 2
6，Battery：Include Battery
7, Code : Rolling Code

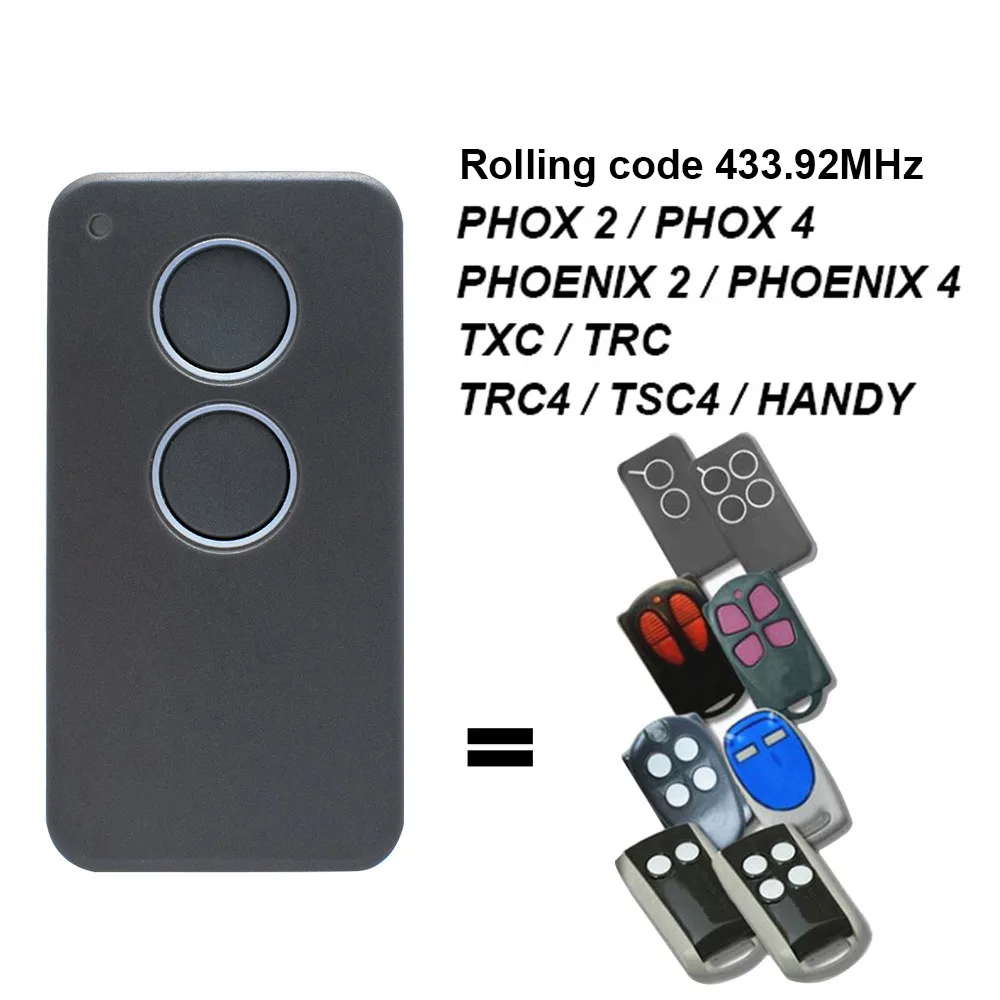

Compatible Models

PHOX 2 / PHOX 4
HANDY 2 / HANDY 4
TXC4 / TRC4 / TSC4
PHOENIX 2 / PHOENIX 4

NOTE：Before buying it, please make sure your original remote control is working properly because it needs to clone your original remote control.

NOTE: It is not compatible with other remote controls.

How to clone ?

1st，Remove Code
press the A and B button at the same time ,and the LED indicator will flash 3 times then off. After this ,keep hold the A and release the B button ,and press the B button 3 times ,the duplicator led indicator will flash quickly , that means it remove the exist code successful. Now you can come to the next step to copy now.
2nd，copy original remote
Pls take the original remote and duplicatoras close as possible. Then press one of button from original and one of themfrom duplicator at the same time, you will see the led indicator flash 2times,then fast flash ,that is too say you copy original remote successful.
3rd，Recovery
In case you remove the code you have copyed by accident, what to do ? Don’t worry , you can press the last two button C and D button at the same time ,the led indicator flash 3 times then fastflash ,the code you have recovery and you can continute to use.

Include

Remote Control
Include Battery
English Manual
