Door Locks 1PCS/5PCS DC 12V Small Electromagnetic Lock Automatic Vending Electric Control Mini Cabinet Door Electronic Lock

Description:
The electric lock applicable for delivery locks, refrigerated cabinet, mail or newspaper box, self-service lock, book counter, changing clothes cabinet etc. Adopted steel plate for shell and carbon steel for inner material. Strong and safe to use.
Features:
The electric lock is mainly adopted carbon steel for inner material. Strong and safe to use.
Security: latch hook can bear 150kg traction, won"t obvious permanent deform permanently, shockproof, anti prying.c ompact, easy to install, no left, right, front, reverse side limitation, and allowing mechanical lash-up unlocking position.
Self Elastic Design: Elasticity adjustable, suitable for weight 0.5~4kg door.
Application: Delivery Lockers, refrigerated cabinet, mail or newspaper box, Self-Service Locker, Book Counter, Changing Clothes Cabinet etc.
Specifications:
Condition: 100% Brand New
Main Material: Carbon Steel
Surface Treatment: Plated Electrophoretic Paint (neutral frog experiment over 500hours)
Work Mode: Independent type (Power off and close the door-Locked; Power on-Unlocked)
Electrical Parameters: DC5V/12V/24VThree options
Working current: 2A
Working mode: power on unlock / power off, close the door and lock
Mechanical Life: In Designing Load Condition, about 500 000 times
Electromagnet Life: In Rated Working Condition, more than 1 000 000 times
Strength of Lock Hook: 150kg force (no permanent deformation)
Ambient Temperature: -20℃~60℃

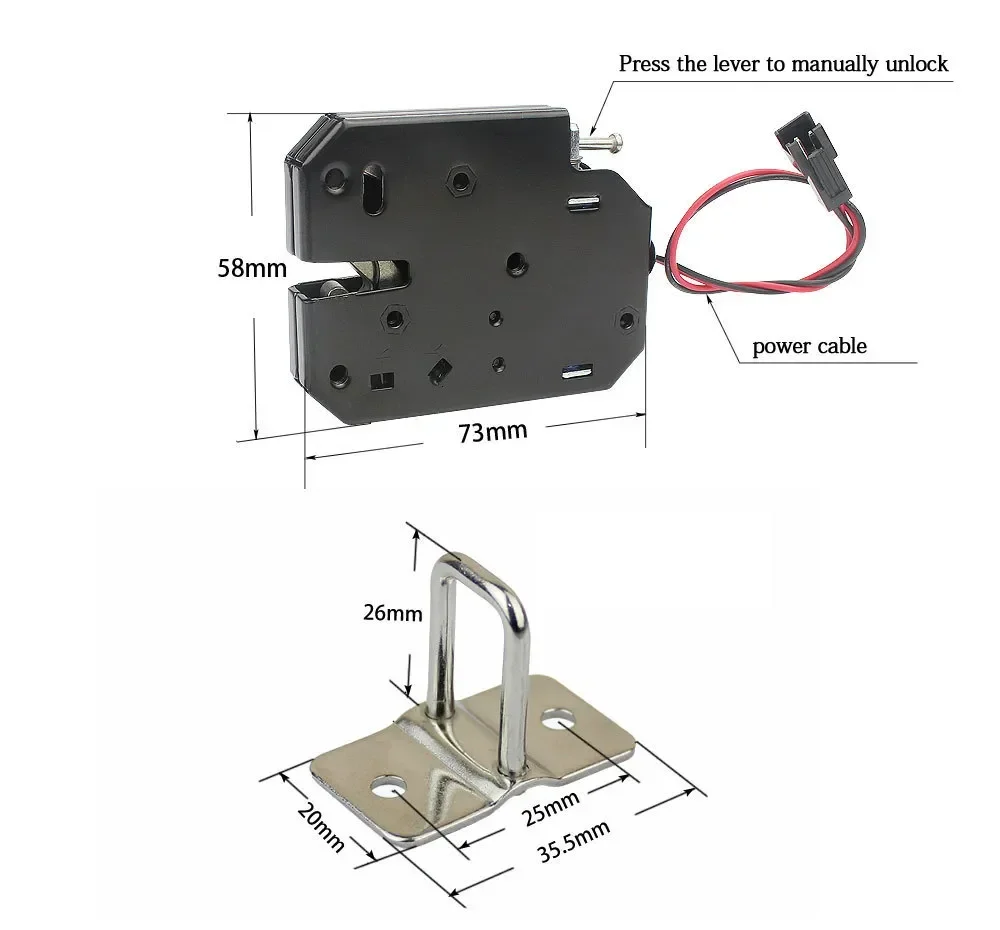

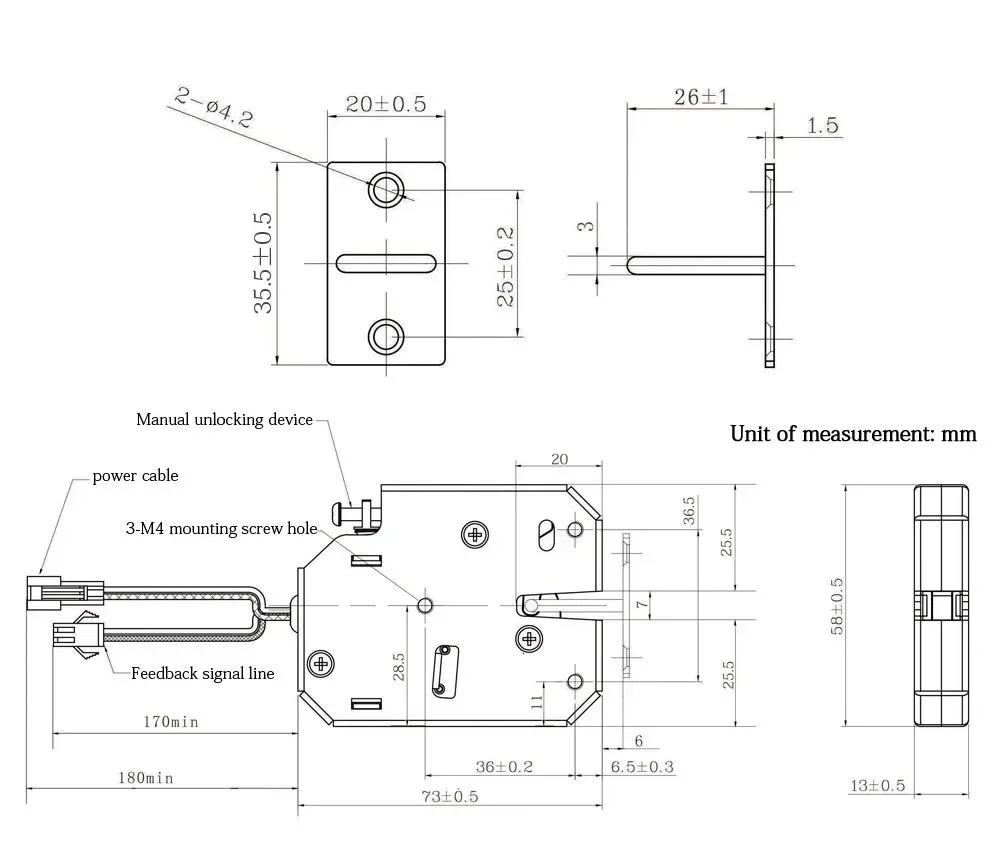

Size: Approx. 5.7 x 7.2 x 1.4cm / 2.24 x 2.83 x 0.55inch
Package Weight: 164g
Description of the feedback signal line:
The signal line produces a short-circuit signal. There is a small switch inside the electromagnetic lock. When the electromagnetic lock is locked, the signal line outputs a short circuit signal; when the electromagnetic lock is unlocked, the signal line is disconnected.
Instructions for use: It is recommended to set the power-on time within 1-3 seconds. If the electromagnetic lock is energized for too long, the internal electromagnet will be damaged
Package Included:

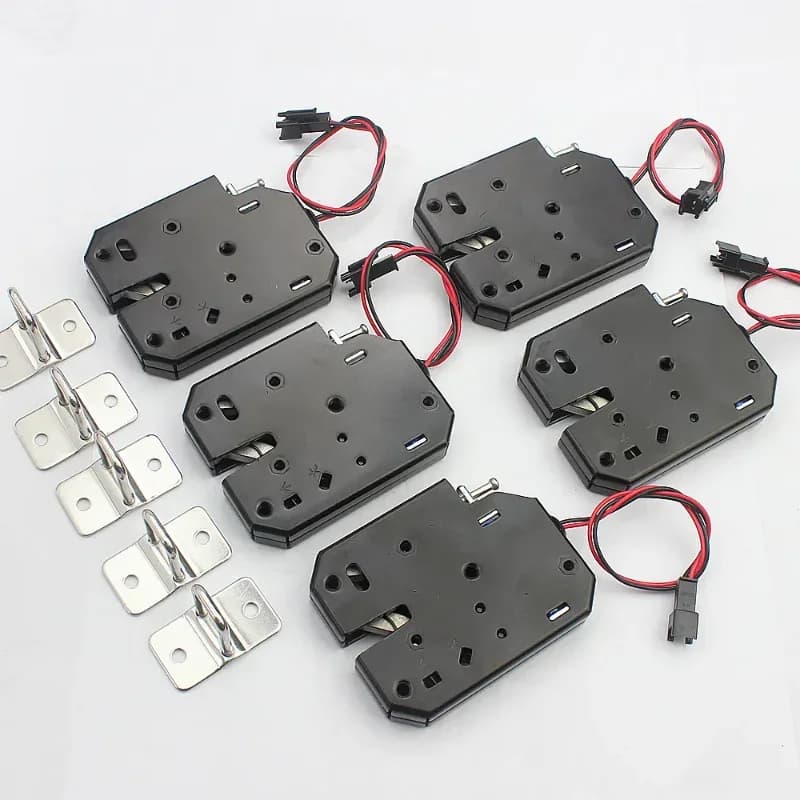

5 x Electric Lock
